Lazerinis suvirinimo įrenginys CORMAK 2000W, 3 viename, rankinis valymas, 2 kW

Trumpai apie prekę

Prekė: Lazerinis suvirinimo įrenginys CORMAK 2000W, 3 viename, rankinis valymas, 2 kW. Kategorija: Kita.

• Gamintojas: Cormak
• Modelis: SL2000 3w1+

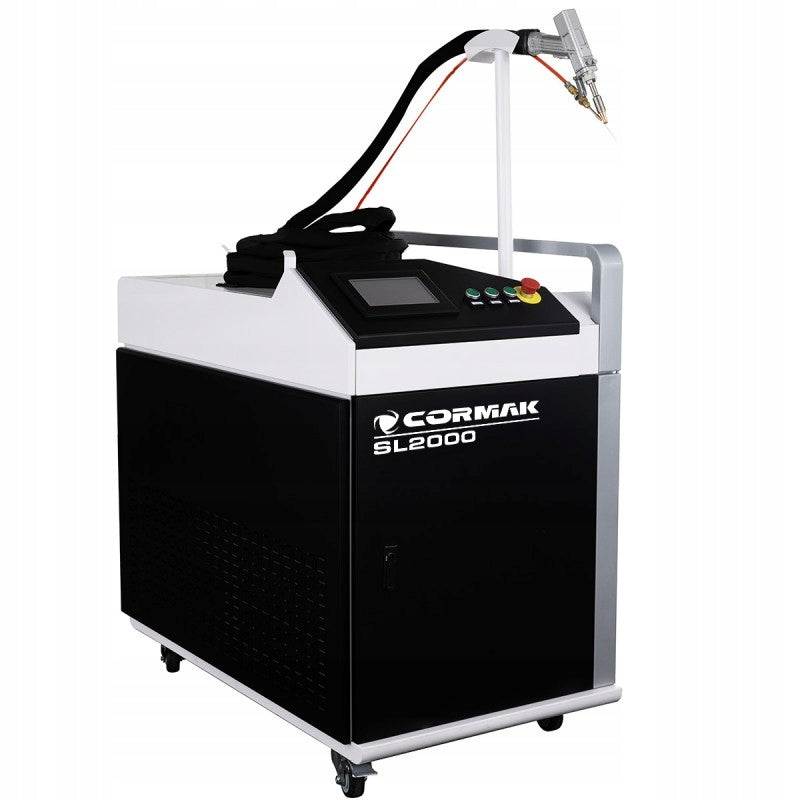

A modern device based on FIBER technology, designed for welding various types of metals, offers precision far superior to traditional welding methods. With a 3in1 function for welding, cutting, and laser cleaning, the device is versatile and efficient in a wide range of industries. Advanced technological solutions allow to perform repeatable, high-quality welding welds on the most demanding materials, minimizing the risk of their deformation.

Possibility of presenting the work and conducting tests at the customer’s premises.

Includes automatic wire feeder, nozzle set for different types of connections and protective glass starter kit.

CORMAK provides instructional videos on its YouTube channel, which can be very helpful when you first start the device. Thanks to these materials, you can easily familiarize yourself with the operation and key functions of our machines. We invite you to familiarize yourself with them to make it easier to start working with our products!

Advantages of laser welding machine

• Easy to use - thanks to the applied solutions and well-thought-out construction, the operator can start working after a short training
• Small indirect radiation, during operation it is enough to wear safety glasses to filter strong light,
• Much faster welding than traditional methods, the efficiency can increase up to 3 to 10 times
• Concentrated beam: slight change in structure due to small heat interaction area,
• Repeatability of welds, welding seam is nice, welds are of high strength.
• Very thin materials such as 0,5 mm stainless steel can be welded.
• Welding option with or without wire.
• The integrated laser cleaning function increases the range of applications of the device.
• The ability to use the cutting option - provides excellent cutting quality, without mechanical processing.

Technical parameters

• Maximum power: 2000 W
• Laser wavelength: 1080 nm
• Depth of melt (stainless steel 1 m/min): 4,57 mm
• Depth of melt (black steel 1 m/min): 3,59 mm
• Depth of melt (aluminium 1 m/min): 4,0 mm
• Depth of melt (brass 1 m/min): 4,0 mm
• Welding speed: 0-120 mm/s
• Automatic wire feeder: Ø 0,8 - 1,6 mm
• Maximum power consumption: ≤6,0 kW
• Cooling system: water
• Working voltage: 230V
• Curtain gas consumption: 20 L/min
• Dimensions: 600 x 1100 x 1100 mm
• Weight approx.: 185 kg

WELDING HEAD OF THE LATEST GENERATION

• Automatic wire feeder included;
• Adjustable spot size 0-5mm;
• High Power Welding Head
• Integrated connections for shielding gases and cooling system,
• Interchangeable nozzles allow for welding at different angles,
• 7 m optical fiber that connects the head
• Full ergonomics - thanks to its lightweight and flexible design, the head can perform welds even in hard-to-reach places;
• Easy to service – quick and hassle-free replacement of the protective lens.

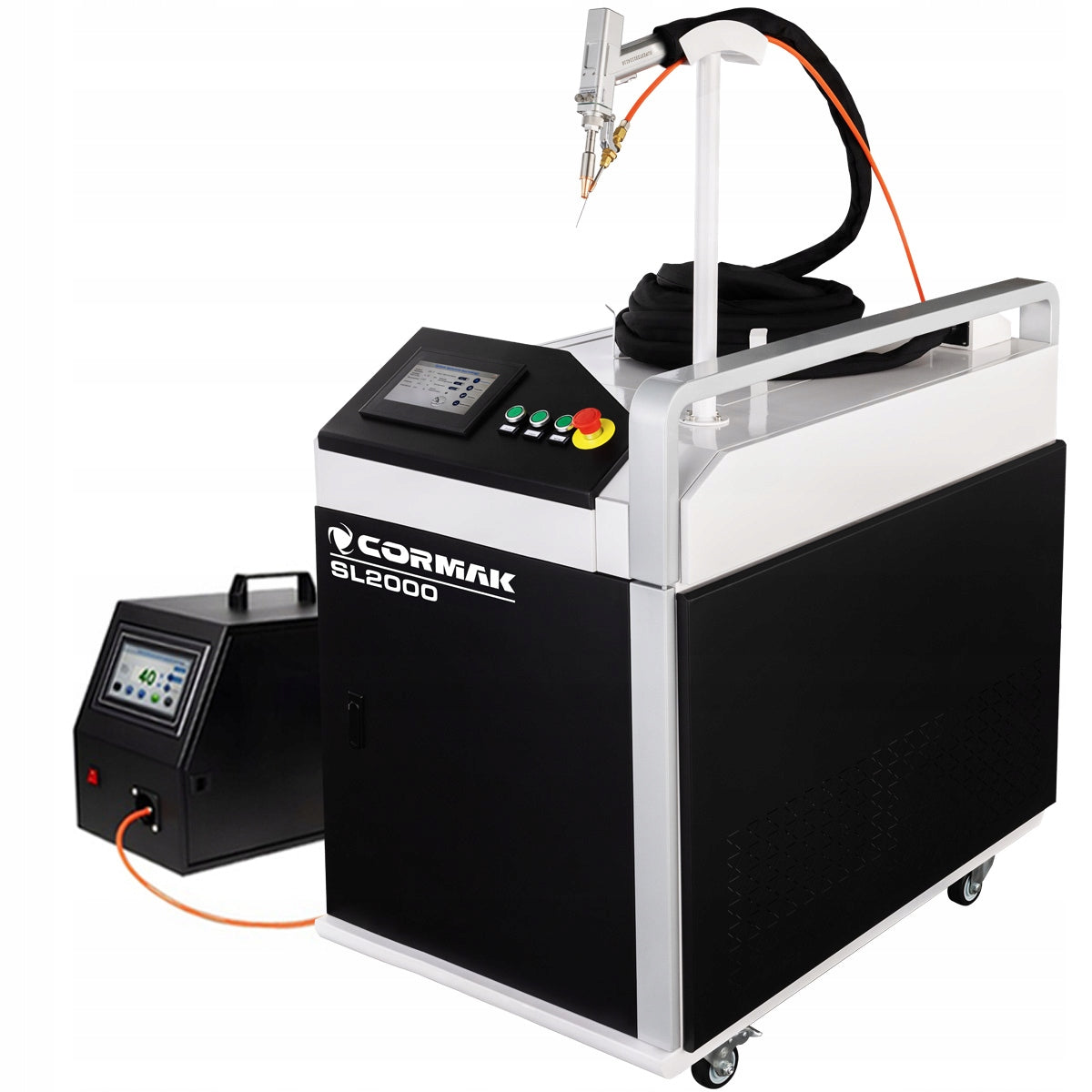

Automatic wire feeder included

The wire feeding system is synchronized with the welding machine software. The task of the feeder is to provide filling so that the operator can focus 100% on the operation of the head.

AUTOMATIC WIRE FEEDER included

Thanks to precise speed settings - works perfectly with a laser welding machine. It allows you to accurately adjust the speed and parameters of wire feeding (different types, depending on the material being welded) to welding processes such as welding or surfacing. It allows you to load up to 15 kg of wire.

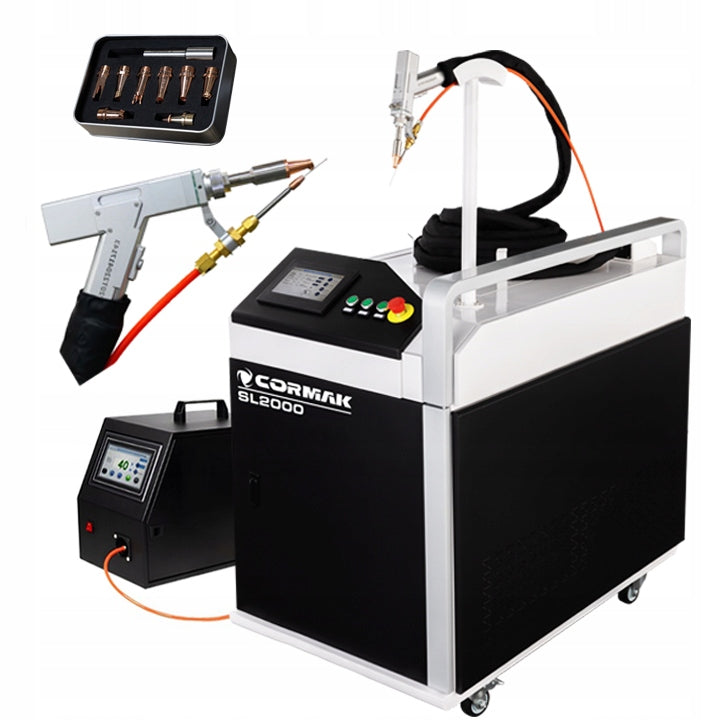

The set includes

• Laser welding machine with built-in cooling system
• welding gun with focal adjustment and a set of accessories
• source Fiber laser
• automatic wire feeder
• set of wires
• Starter set of nozzles and protective slides

The appearance of the device housing is a matter of design and may vary depending on the date of order. However, the technical specification remains unchanged, guaranteeing consistent quality and performance of the device.

*Laser cleaning optical kit is not part of standard equipment.
