Lazerio imtuvas BOSCH LR 7 su laikikliu, tinka GLL ir GCL modeliams

Trumpai apie prekę

Prekė: Lazerio imtuvas BOSCH LR 7 su laikikliu, tinka GLL ir GCL modeliams. Kategorija: Lazeriniai gulsčiukai.

• Gamintojas: Bosch
• Modelis: 0601069J00

technical parameters:

Working range

• with GLL 3-80 laser – from 5 to 50 m (red laser)
• with GLL 3-80 C laser – from 5 to 50 m (red laser)
• with GLL 3-80 CG laser – from 5 to 50 m (green laser)
• with GCL 2-50 C laser – from 5 to 50 m (red laser)
• with GLL 2-50 CG laser – from 5 to 50 m (green laser)

• 90° laser beam detection angle
• Measuring accuracy (fine mode) +/- 1 mm
• Measuring accuracy (fine mode) +/- 3 mm
• Operating temperature from -10 to +50 C
• Storage temperature -20 to +70 C
• Power supply 2 batteries 1.5V (LR6 AA)
• Working time on 1 set of batteries approx. 30 hours
• Automatic switch approx. 20 minutes
• Degree of protection IP 54
• Device dimensions 137 x 73 x 28 mm
• Device weight 0.15 kg

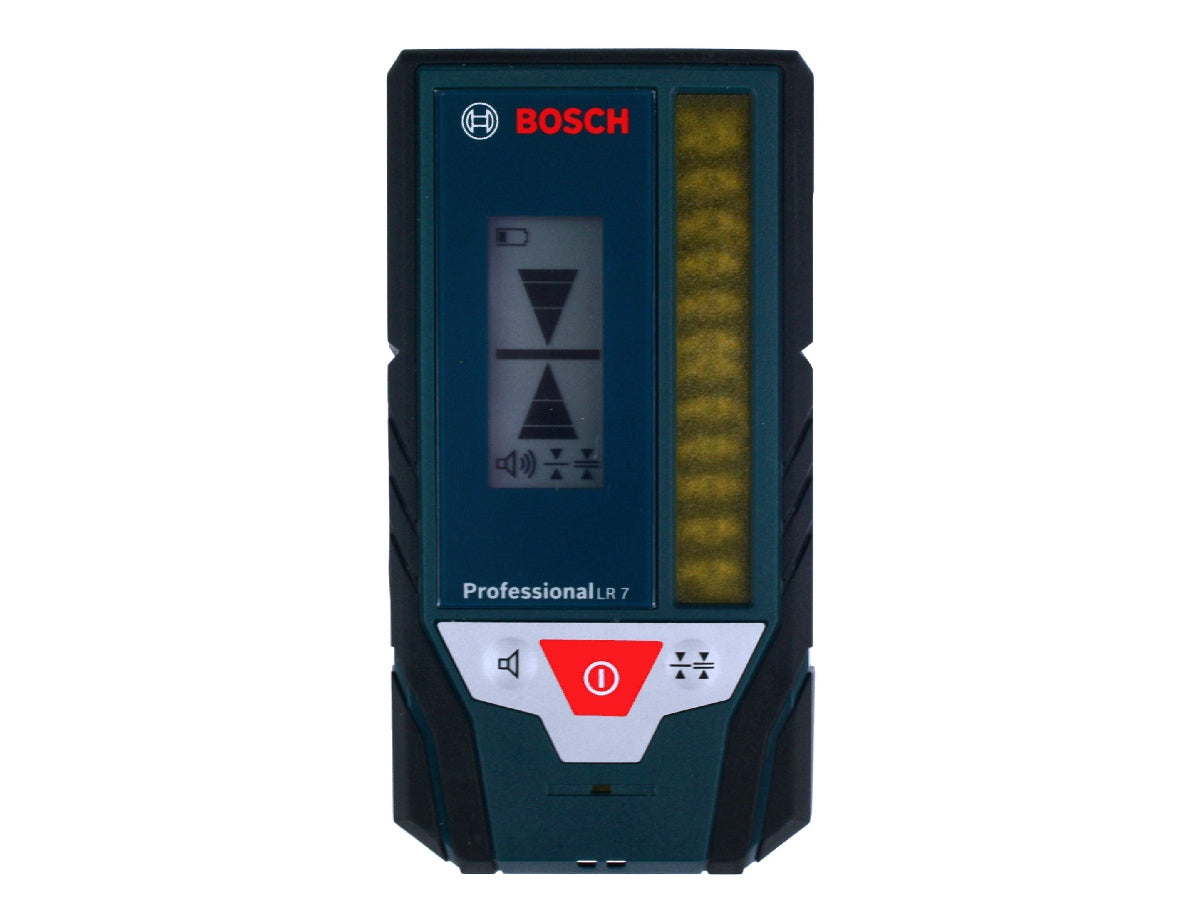

The BOSCH LR 7 Professional laser receiver is designed for quick and very accurate localization of the laser beam emitted by BOSCH cross and plane lasers (list of lasers below):

• GLL 3-80 (red laser)
• GLL 3-80 C (red laser)
• GLL 3-80 CG (green laser)
• GCL 2-50 C (red laser)
• GLL 2-50 CG (green laser)

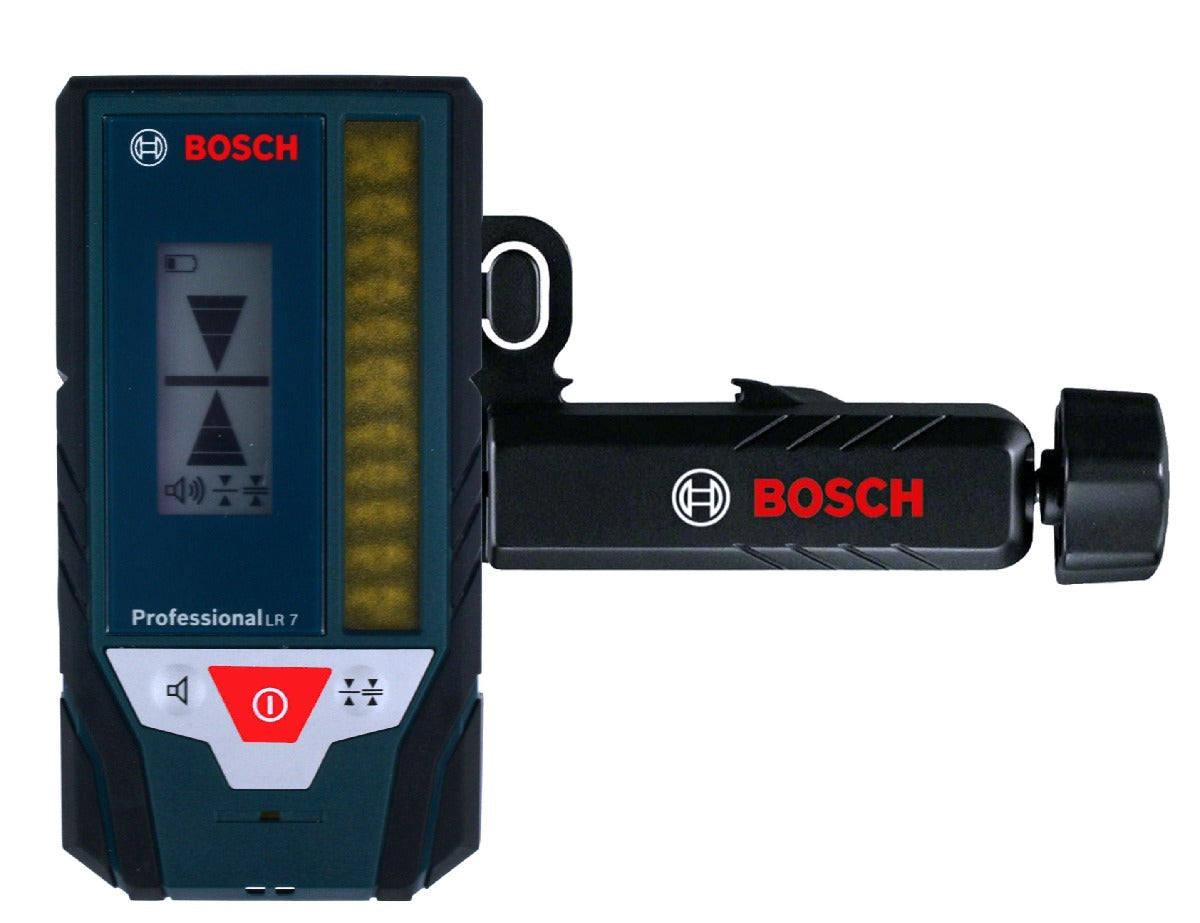

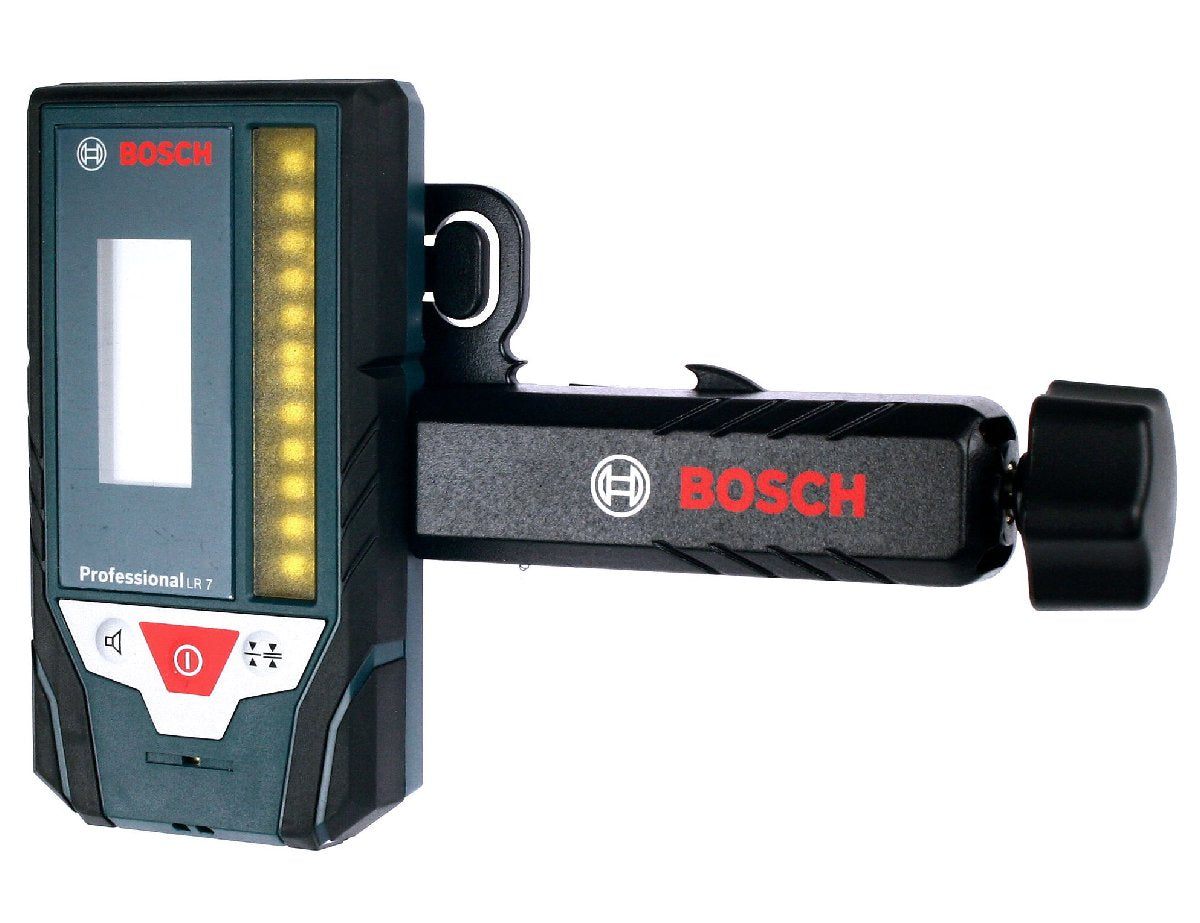

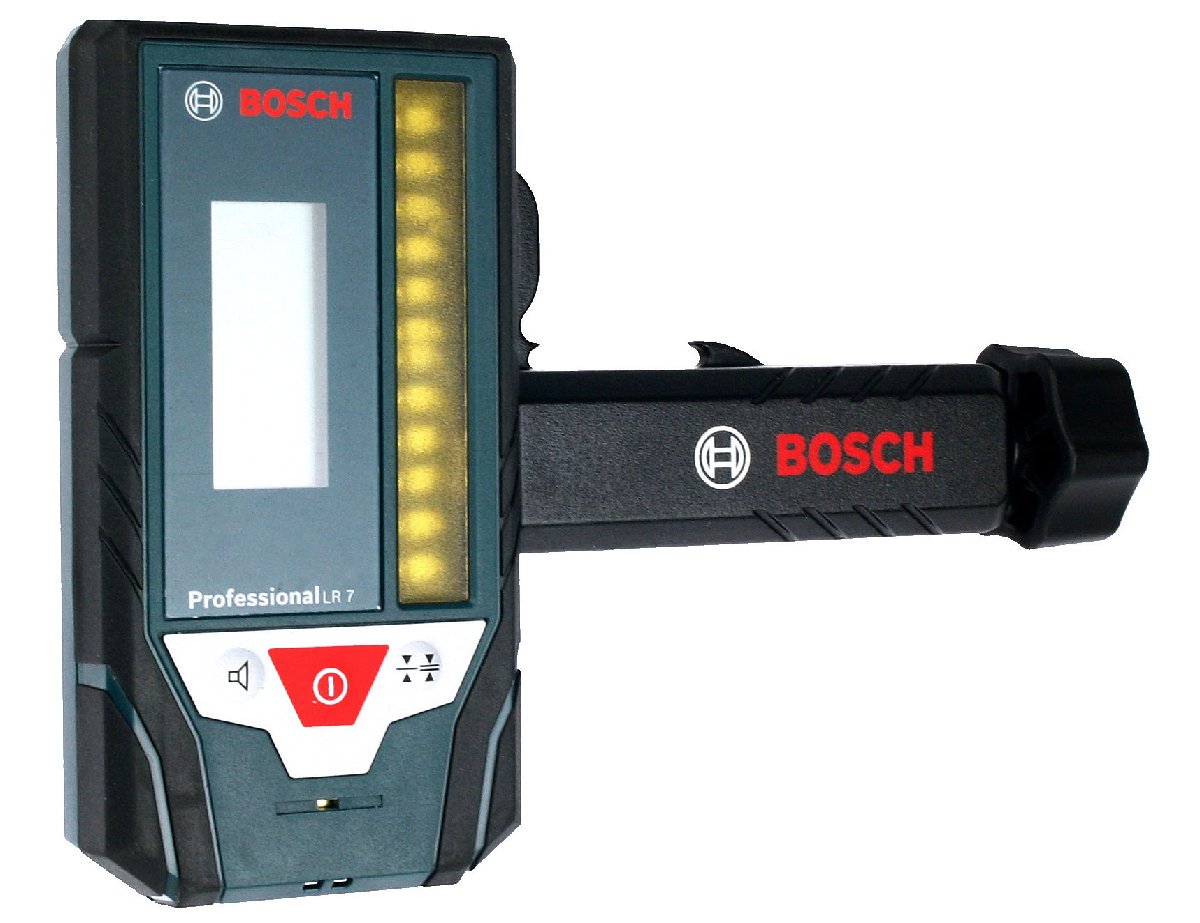

In addition, the receiver comes with a special mounting bracket for mounting the BOSCH LR 6 or LR 7 laser receiver on the GR 240 BOSCH laser staff or the GR 500 BOSCH leveling staff. Thanks to the large adjustment of the mounting width, the holder can also be used to mount the receiver on any structure, the mounting width of which does not exceed 60 mm.

The mounting bracket is made of durable and damage-resistant plastic, while the gripping elements are equipped with special rubber pads, thanks to which the mounted grip does not move on the batten, and the large and convenient adjustment screw allows for quick and easy assembly and disassembly of the grip .

ATTENTION !!!

The LR 7 receiver does not work with older BOSCH plane laser models:

• GLL 2-50 (red laser)
• GLL 2-80 P (red laser)
• GLL 3-80 P (red laser)

The LR 2 receiver, which is available in our other offer on Allegro, works with these lasers.

MORE THAN TWICE THE WORKING RANGE of BOSCH plane lasers.

The LR 7 laser receiver allows you to quickly locate the laser beam emitted by the laser, and when working inside the building, it more than doubles the working range of the lasers:

• GLL 3-80 - increases the range from 20 m to 50 m
• GLL 3-80 C - increases the range from 20 m to 50 m
• GLL 3-80 CG - increases the range from 20 m to 50 m
• GCL 2-50 C - increases the range from 20 m to 50 m
• GCL 2-50 CG - increases the range from 20 m to 50 m

WORK OUTSIDE THE BUILDING also in strong sunlight.

The LR 7 laser receiver allows you to locate the laser beam emitted by the laser when working outside the building, also when there is strong sunlight, i.e. in conditions in which the human eye is unable to see the laser beam.

EASY OPERATION thanks to two large LCD displays.

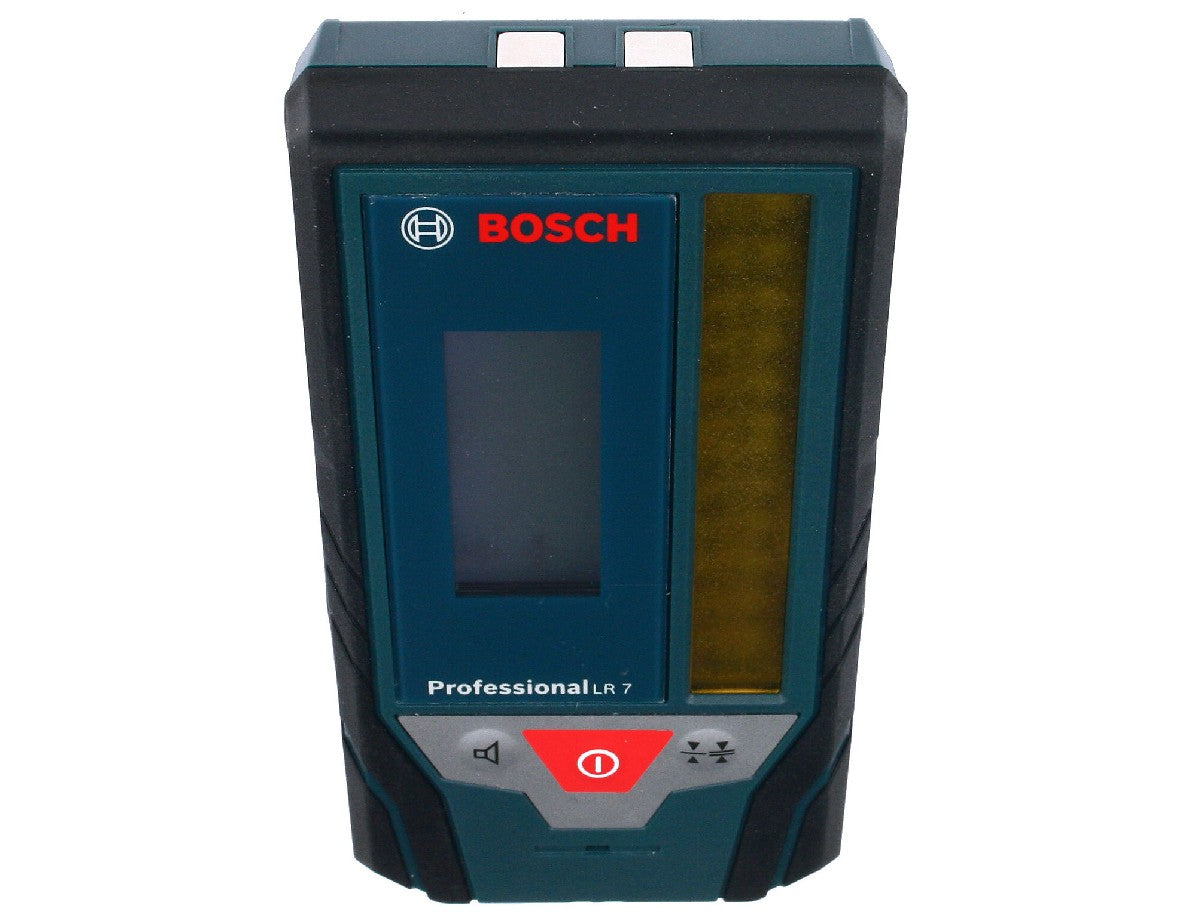

The LR 7 laser receiver is equipped with a large and very readable LCD display (on the front of the receiver), which displays all the information needed to locate the laser beam, such as:

• move the receiver up
• middle position
• move the receiver down
• battery discharge indicator
• sound signal on or off
• the selected beep volume level
• coarse setting indicator
• fine adjustment indicator

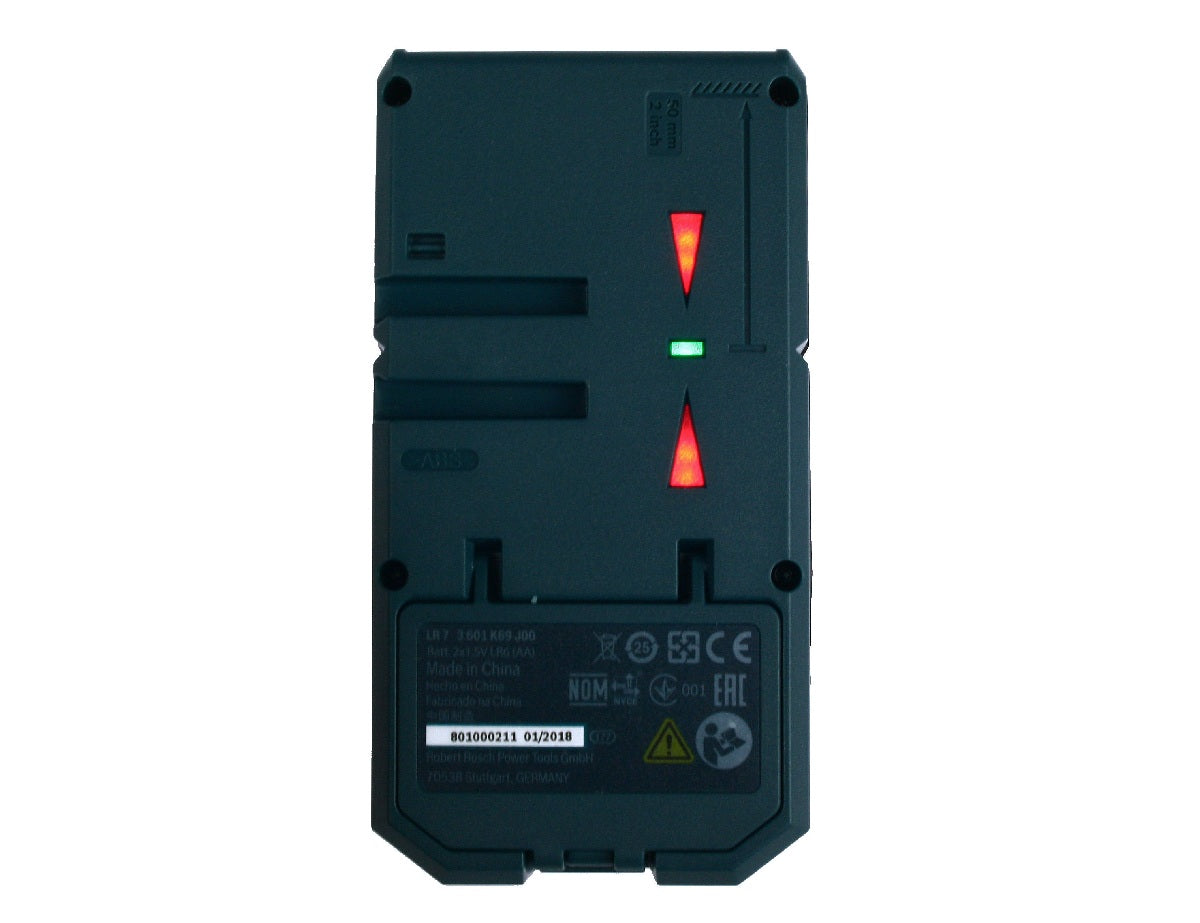

The above information is displayed both on the main display, mounted on the front of the receiver, as well as on the rear of the receiver on built-in special LEDs. This solution makes it easier to locate the laser beam when working with the BOSCH GR 240 or GR 500 laser staff, which we offer at our other auctions.

EASY OPERATION thanks to three LED indicators.

The LR 7 laser receiver has additionally 3 built-in LED indicators (on the front of the receiver), which greatly facilitate the location of the laser beam, indicating at the same time:

• move the receiver up - red LED
• middle position - green LED
• move the receiver down - red LED

HIGH WORK ERGONOMICS thanks to the built-in keyboard

Only 3 keys are used to operate the LR 7 laser receiver, thanks to which the user can:

• turn the receiver on or off
• enable or disable the sound signal
• change the beep volume
• select the beam locating mode - coarse or fine

HIGH DAMAGE RESISTANCE thanks to the housing with Softgrip rubber covers.

The LR 7 laser receiver is equipped with a housing made of durable and damage-resistant plastic, additionally the gripping parts and housing elements exposed to damage when hitting a hard surface are covered with a soft material of the Softgrip type, thanks to which the receiver does not slip out of the hand, and in the event of a fall from height, they absorb the impact, protecting the receiver from damage.

AUTOMATIC SWITCH OFF and BUILT-IN BATTERY DISCHARGE INDICATOR.

The LR 7 laser receiver is equipped with a very useful automatic shutdown function. If no button is pressed for 20 minutes and the receiver does not locate the laser beam, the auto power off function will be activated and the 3 LEDs on the receiver will flash briefly and the receiver will turn off. This feature significantly reduces battery consumption.

An additional useful feature offered by the receiver is the battery indicator. If the battery discharge is significant, an appropriate graphical message will appear on the LCD display (see photos in the gallery), which will mean that the battery will be completely used up within the next 2 hours, thanks to which the user is informed before the start of the measurements whether it needs to be replaced battery or not.

SIMPLE AND EASY ASSEMBLY thanks to the built-in magnetic plate.

The LR 7 laser receiver has a built-in magnetic plate, thanks to which the user can attach the receiver to any steel structure without tools. The magnetic plate is located in the front part of the receiver.

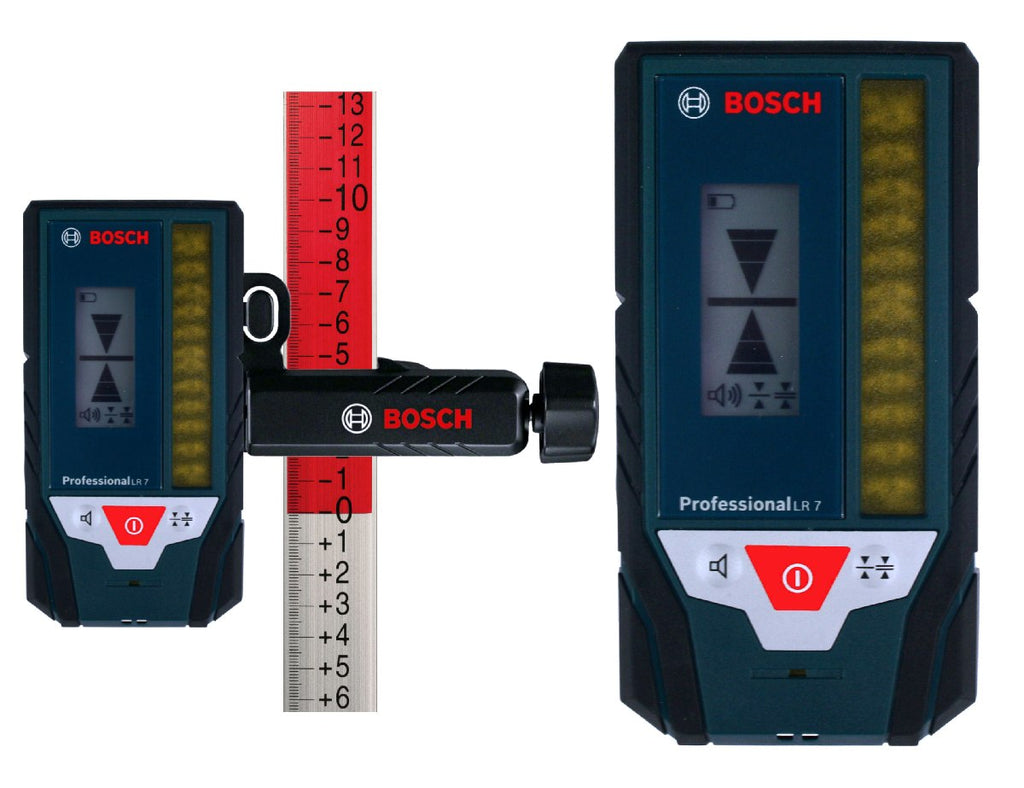

QUICK ASSEMBLY on the laser staff using the mounting bracket - included in the equipment.

The LR 7 laser receiver also has a special mounting socket, which is used to attach the mounting bracket. This holder is designed for mounting the receiver on the GR 240 BOSCH laser staff or GR 500 BOSCH leveling staff or for mounting the receiver on any structure.

The holder is included with the offered receiver.

The patch is not included with the offered receiver.

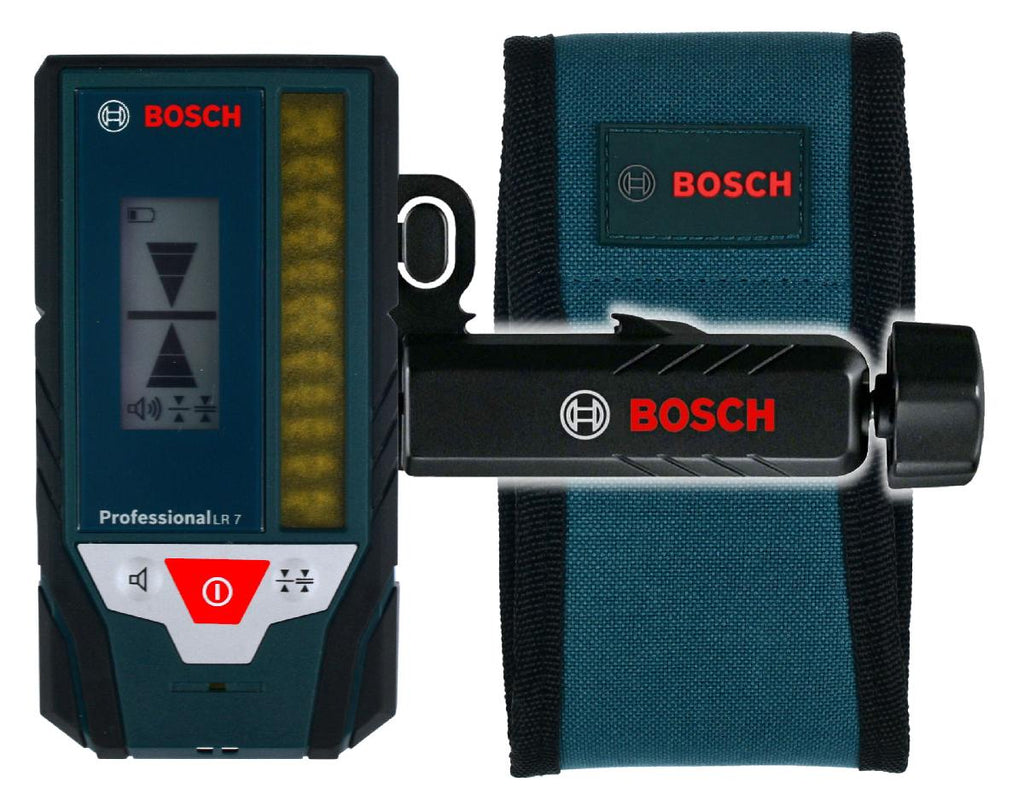

Delivery includes:

• Laser receiver LR 7 BOSCH
• Holder for attaching the receiver to the staff
• Protective cover
• A set of batteries for the receiver
• Manual in Polish
• warranty card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Bosch
Parametry	Power supply	batteries
Parametry	Maximum working range	50 m
Parametry	Manufacturer code	0601069J00
Parametry	EAN (GTIN)	3165140835572
Parametry	Additional features	handle included,cover included,receiver included
