LED laiptų valdiklis 8-17k DIN su Sharp optiniais jutikliais ir Drew grotelėmis

Trumpai apie prekę

Prekė: LED laiptų valdiklis 8-17k DIN su Sharp optiniais jutikliais ir Drew grotelėmis. Kategorija: Centriniai blokai.

• Gamintojas: Nowoster
• Modelis: 8-17k DIN

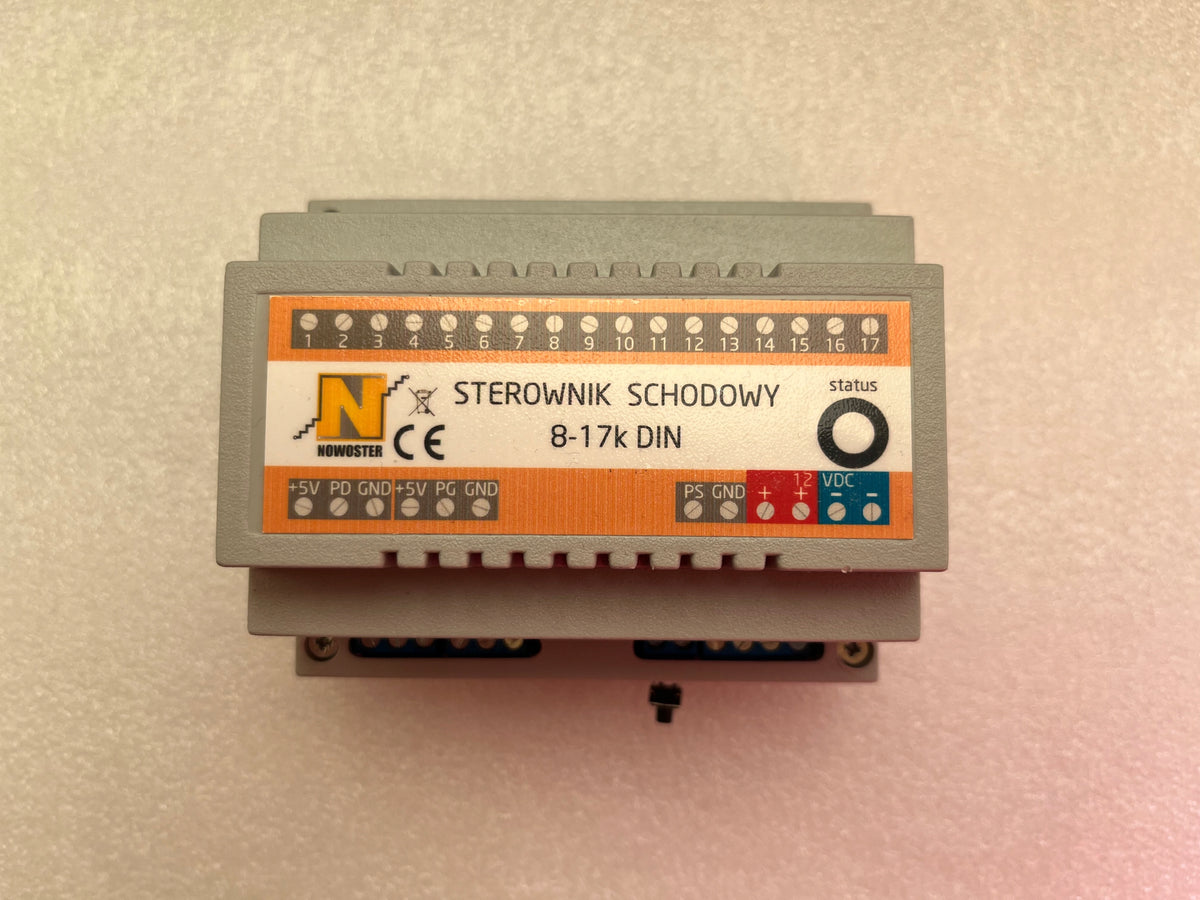

8-17k DIN LED stair controller (supports Sharp optical detectors directly, constant light input, energy efficient).

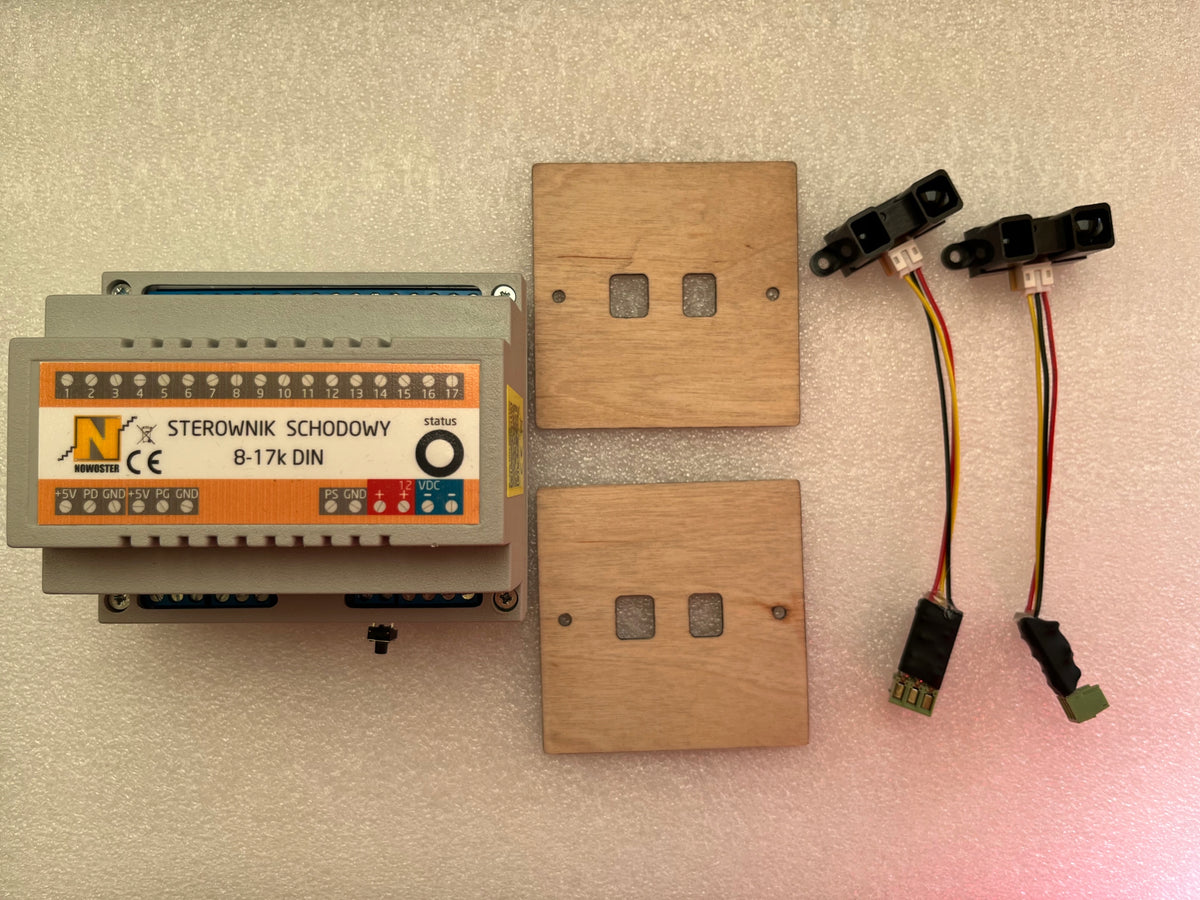

Included:

• stair controller 8-17k DIN - 1pcs
• Sharp GP2Y0A02YK0F optical detectors - standard + filter adapter - 2pcs
• Wooden masking machine for can fi50 (75mm x 75mm) thickness 1,5mm - 2pcs

Note: The range of operation of the detectors is set in the controller (not at the detector).

Supports 8 to 17 stair treads (light points). The number of steps is selected in the controller.

Universal housing for mounting on DIN rail width 6S.

Polish product. In this price class probably the best controller for stairs (also works under Sharp detectors).

Many types of Sharp analog optical detectors can be connected to the controller, such as:

GP2Y0A02YK0F - standard

GP2Y0A21YK0F - midi

GP2Y0A60SZLF - mini

GP2Y0A710K0F - 5m

Attention. You can mix types of Sharp optical detectors. The range of each detector is set separately in the controller.

The use of a stair controller in addition to visual effects, safety, etc. It is also a real energy saving because the stairs are switched on for the time of passage.

Electrical parameters:

DC 12V power supply (8V to 15V).

Power consumption ok. 0,2W (without detectors).

Current capacity 2A per channel (34A per controller).

High-end NMOSFET power transistors.

LED control efficiency 99%. This means that if there is 10W LED on the step, the power loss on the nmosfet transistor will be 100mW (0,1W). If there is 100W LED for the entire staircase, the power loss will be 1W.

Two high current collective terminals minus the power supply (each up to max. 15A).

Supported LED power is up to 450W for 12V for all channels.

Polymer fuse on 5V power supply detectors and polymer fuses on LED control outputs.

Capacitors (2pcs/ 470uF 35V) electrolytic supporting the operation of the power supply.

MKT (self-regenerating) foil capacitors on digitally analogue inputs of the controller.

5V output for powering detectors. Maximum output load of 100mA detectors.

Terminal connectors with 5mm raster for wire cross-section up to 2,5mm2.

Driver operation:

When the detector is triggered, the controller switches on the step stair lighting or smoothly. Depending on the set algorithm, the stair detectors will glow for the set time or will extinguish from the release of the second detector. The extinguishing method is set in the controller (all at once, one by one, random).

Inflammation or liquid (different degrees of liquidity)

Permanent lighting input PS.

Extreme resting light or all.

Control LEDs in the detector actuation controller.

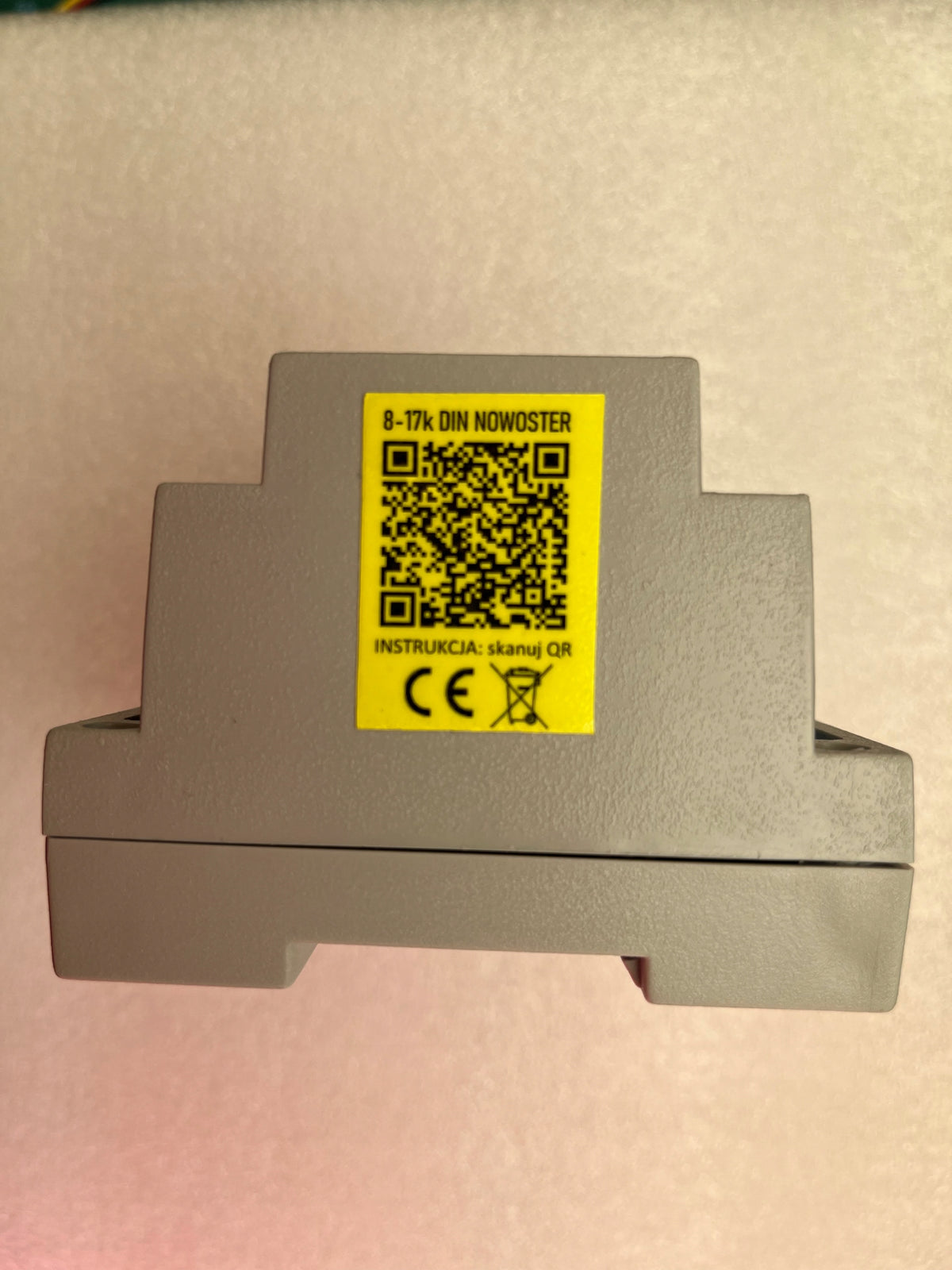

For more information, see the instructions in the attachment or scan the QR code.
