LED laiptų valdiklis su iki 24 pakopų jutikliais, pilkas, smartLEDs

Trumpai apie prekę

Prekė: LED laiptų valdiklis su iki 24 pakopų jutikliais, pilkas, smartLEDs. Kategorija: Centriniai blokai.

• Gamintojas: Smartleds
• Modelis: Sterownik-OMEGA-2-czujniki-ruchu-szare

for LED lighting of stairs

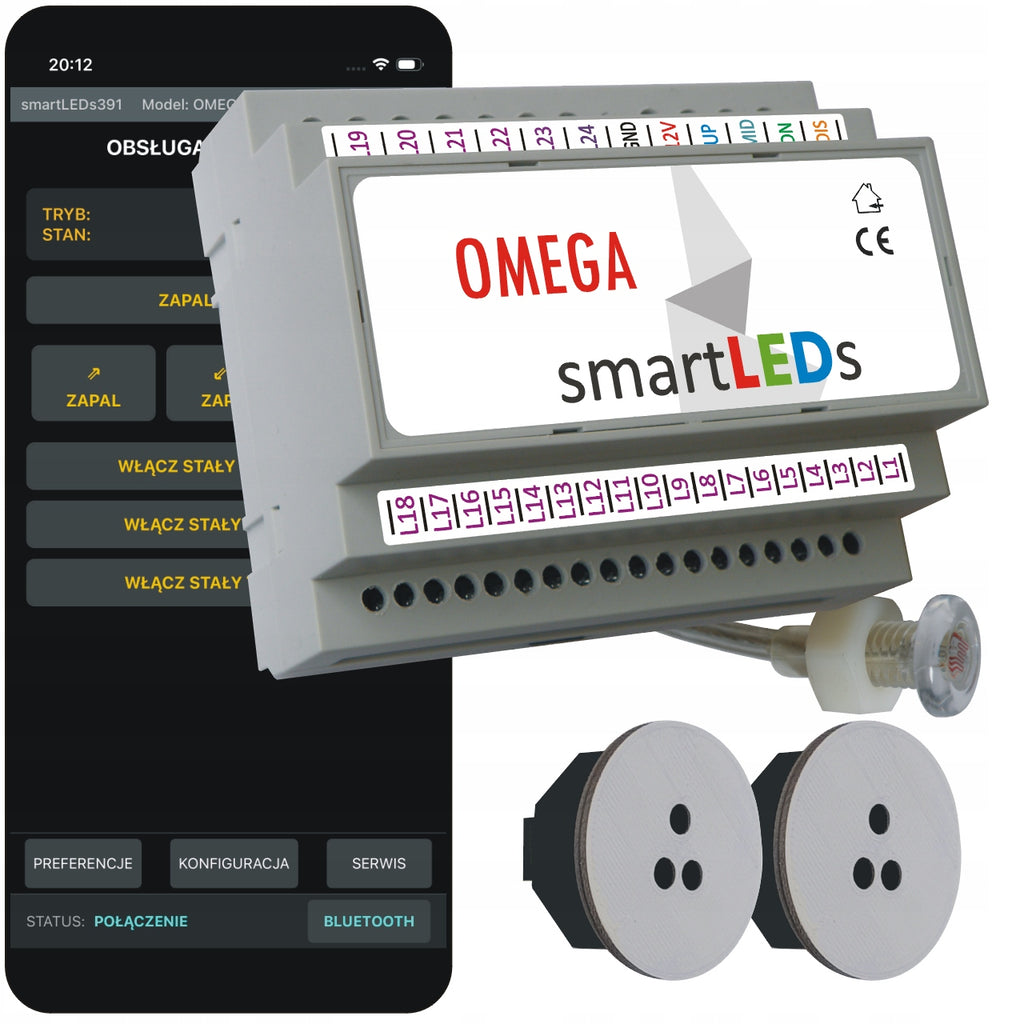

The heart of the set is the intelligent LED stair controller from smartLEDs - an advanced device for automatic control of stair lighting, supporting from 3 to 24 channels (steps) . The set is equipped with 2 precise optical motion sensors to automate ignition and extinguishing, and a dedicated Bluetooth application allows for convenient configuration of the controller's operating parameters from a smartphone.

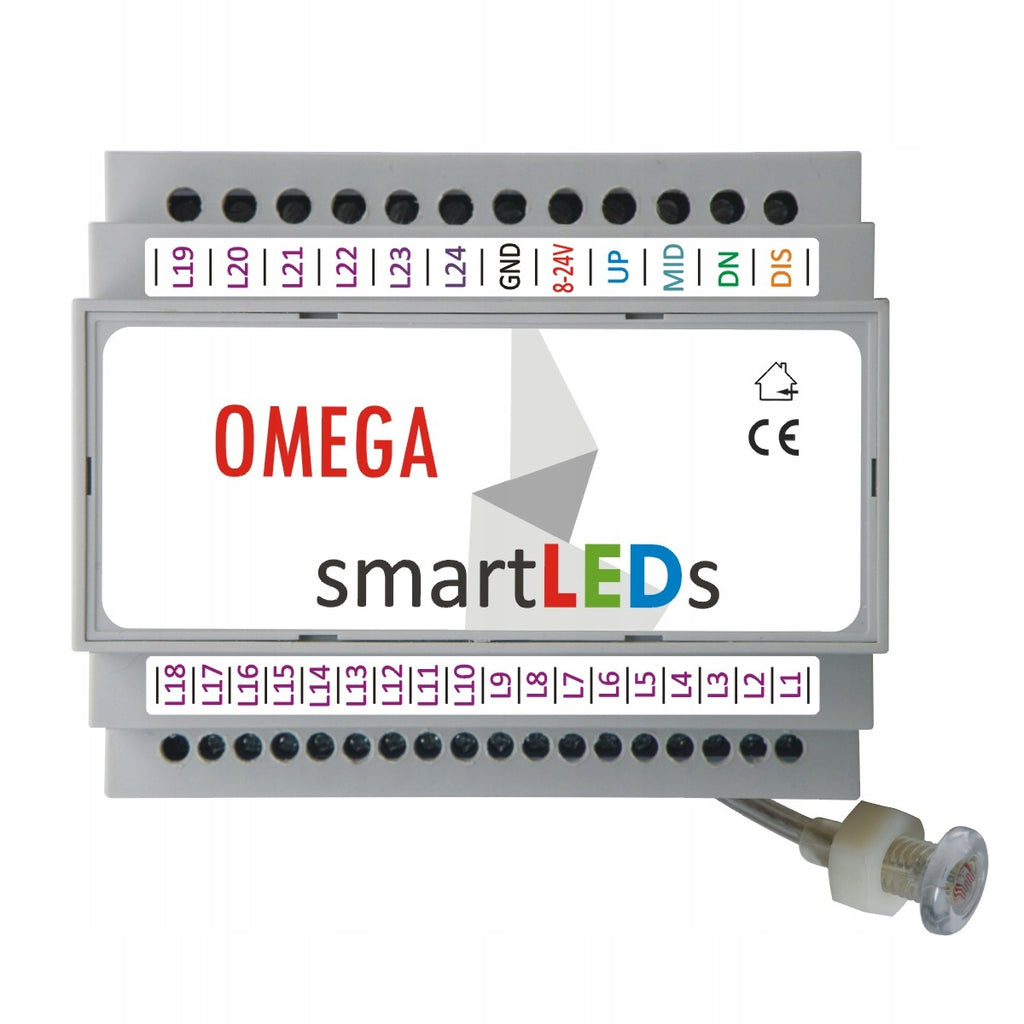

1. OMEGA Exclusive - LED Stair Controller 12V/24VDC
2. 2 x ALFA gray - two optical distance and motion sensors 100cm 12V with gray covers
3. BT smartphone app (iOS, Android) for controller configuration and operation
4. Built into the controller:

• Intelligent twilight switch + light probe
• Astronomical clock
• Real-time clock
• Dimmer

NOTE: Sensors are specifically designed to detect movement on stairs. Adjustable range (30-100cm), narrow detection angle (10-15°), 2 operating modes available (distance and movement), deflected optical path guarantee correct operation of the sensors for both open and closed stairs. The only sensors of this type on the market.

Manufacturer: APACHETA SMART SYSTEMS, Poland

• Number of lamps controlled: 3-24
• 3 operating modes: DAY, MAX and NIGHT
• Basic lighting/extinguishing style: advanced LED WAVE – lighting/extinguishing lamps sequentially, smoothly, with a blur effect
• Additional lighting/extinguishing styles: TOGETHER, PULSAR, COMET, SNAKE, CHAOS
• Backlight styles: ALL, EXTREME, SKY, NO BACKLIGHT
• Output support function on mezzanine
• Lights off warning function
• Master lamp function
• Permanent lighting function

NOTE: Due to EU ROP regulations, the controller does not include a battery supporting the real-time clock when the driver power is turned off. If necessary, the CR2032 battery can be purchased separately.

• Smooth fit (3-24 channels): The controller universally supports both short stair gears and extended staircases up to 24 degrees.
• Built-in astronomical clock: The system automatically calculates sunrise and sunset times for your geographical location. Thanks to this, the controller knows when it gets dark and you should activate the backlight of the stairs – without having to mount dusk sensors on the facade.
• Three operating modes Day, Max and Night: independent parameters set from the smartphone allow for a perfect fit to the user's preferences
• Dedicated night mode: Allows for gentle, energy-efficient illumination of extreme degrees (or all) at rest after dark. This ensures complete safety and makes it easier to locate the stairs in complete darkness without hurting your eyes at night.
• Convenient configuration via Bluetooth: A dedicated mobile application allows you to instantly set the number of degrees, lighting time, brightness or animation dynamics directly from your phone.
• Precision diffusion optical detectors (PiR advantage): Unlike ordinary PIR motion sensors, advanced optical detectors (distance and motion) respond to the intersection of the step line. This prevents the light from accidentally turning on when someone just walks past the stairs.
• Effective light animations: Lighting / extinguishing in the form of an advanced LED wave gives a spectacular effect incomparable to ordinary cascade controllers.
• Intelligent control algorithms: The system automatically responds to the situation on the stairs (e.g. when two people enter from opposite sides at the same time).
• Polish manufacturer – documentation in Polish, technical support and manufacturer’s service – if necessary, there is no problem with access to a competent person and obtaining help.

The controller acts as an intelligent time switch for LED lighting. It has 3 operating modes: MAX, DAY and NOC, with different parameters, switched automatically built into the controller twilight switch, astronomical clock or real-time clock. In the standby state of the controller, the lamps can be extinguished or gently illuminated. When any of the control inputs are activated, full lighting is turned on according to the selected lighting/extinguishing style. In MAX mode, it is most often LED WAVE, there can also be another style (TOGETHER, PULSAR, COMET, SNAKE, CHAOS). NIGHT MODE allows different parameter setting, e.g. only illumination of extreme lamps at rest and replacement of lighting in the form of a light wave with another style, e.g. TOGETHER (or DO NOT LIGHT) and with less brightness. DAY MODE is a mode of locking the controller by twilight switch or astronomical clock, in which the controller does not respond to control inputs (motion sensors, buttons) and it is only possible to illuminate the stairs or completely extinguish them.

After a certain lighting time, the lamps are automatically extinguished or dimmed to the set backlight value. In the case of dimmable lamps, switching on and off/extinguishing each lamp is carried out smoothly (gradual change of brightness), and in the case of non-dimmable lamps – incrementally. The last two lamps can act as Master lamps – for general lighting or handrails. There is a function to warn against turning off the lights (blinking, dimming, etc. ) and function of operating the output on the mezzanine (activation by means of a button or motion sensor smartLEDs). The controller has a permanent ignition function via the application or, if the mezzanine function is not used, via the MID input (smooth simultaneous ignition/extinguishing of all lamps). The controller requires installation with control of each lamp separately.

OMEGA Exclusive is the most advanced controller from the smartLEDs family of staircase controllers, with extensive functionality, with an application for smartphone/tablet/iPhone , designed for convenient configuration, operation and maintenance of the installation.

Using the application is very convenient and intuitive. You can choose the language version ( Polish , English, French or German). More about the application - later in the offer.

The application can be downloaded from Google Play or the App Store. Next to it - QR Codes

Minimum requirements: Android 5.0 or iOS 15.1 and Bluetooth 4.0

NOTE: Smartphone not included in the offer.

For switching operating modes: MAX, DAY and NIGHT are built into the controller: twilight switch, astronomic clock and real-time clock. (No additional external devices are needed.) The method of switching operating modes is set in a convenient way using the application.

Next to the light probe to the twilight switch.

• Installation of the probe is possible both outside and inside the house in the area of the stairs (the controller is intelligent - it does not block from lighting, which itself switched on, which is an important advantage over external twilight machines, whose light probes must be installed outside the rooms, in a place not illuminated by artificial light). The light probe must be connected to the DIS input of the controller.
• 10 brightness thresholds (selectable) for light probe

NOTE: Instead of a light probe, another device can be connected to the DIS input (e.g. circuit breaker) or potential-free output of any Smart Home system.

The quality of the LED wave determines the quality of the stair controller. Our LED wave is much more than just a simple sequential lighting of lamps.

Our controller realizes a real, extremely impressive LED wave,with the smoothness of lighting and extinguishing carried out in two stages and allows unprecedented in others adjustment of wave parameters to the user's preferences:Liquidity (0-7), Lighting time (0s-24s), Lighting time (0s-240s),Extinguishing time (0s-24s), Brightness, Step type (acceleration,deceleration or with a fixed step), Extinguishing direction (backwards, compatible).

Sequential lighting of lamps in this controller is lighting of subsequent lamps, at fixed or variable intervals, resulting from the parameters: Lighting time and Number of lamps and step type parameter

The first degree of fluidity - consists in the gradual (liquid) lighting of individual lamps with the possibility of adjusting the brightening time of a single lamp using the Liquidity parameter (0-7)

Second degree of fluidity - gives the effect of flowing and blurring the wave. With a sufficiently large value of the Liquidity parameter, subsequent lamps begin to ignite when the previous ones have not yet reached maximum brightness. Brightening of subsequent lamps is applied over time, giving the effect of blurring and flowing the wave (the wave front is just lighting up, while the tail is already shining stronger). This feature is a significant difference from other controllers on Allegro and determines the final effect, unparalleled in others. Extinguishing is similar.

• Dimming all lamps, blinking
• Flickering (very fast, fast, medium fast or slow)
• Swinging, swinging (pendulum extinguishing of one or two lamps)

The function is available when using an additional (third) sensor or button. If motion is detected from the output on the mezzanine, the controller will turn on the lamp after the lamp, up and down starting from the mezzanine, according to the selected lighting style.

• Setting the brightness of lamps in the lighting and backlight state (separately for each of the operating modes and for the Master lamp)

• One or two last lamps can act as a Master lamp, e.g. for illuminating handrail or general lighting
• Master lamp is usually lit first and extinguished last

Sample screen - Setting the main installation parameters:

• number of lamps,
• number of lamps up to mezzanine,
• dimmability of lamps,
• parameters of the Master lamp,
• activation of the warning function,
• activation of DAY and NIGHT modes,
• setting the way of switching the DAY mode (DIS input or built-in astronomical clock)
• change of DIS input function (advanced)
• change of active input level (advanced)
• change in input filtration level (advanced)

Adjusting the driver parameters to the user's preferences by changing the settings:

• MAX, DAY and NIGHT modes
• clock (mode switching time)
• light wave parameters,
• fluency of ignition/extinguishing
• lighting time
• warning function,
• twilight switch

In addition to normal hardware methods of activating the controller (any button-free connectors or motion sensors with potential-free output, e.g. relay or with OC type output) additionally there is the possibility of operating the installation from the application:

• lighting up, from the mezzanine and down
• permanent ignition
• Enabling permanent operating modes

Diagnosing the causes of malfunction of the installation:

• checking lamps
• checking the operation of the controller itself
• checking the status and settings of driver inputs
• driver reset
• Factory reset of the driver

• Driver supply voltage: 8-24 VDC
• Power consumption (typical): 240 mW (at 12V power supply)
• Output operating voltage: type: 12 VDC; max: 24 VDC
• Output current load (max): 2A x 24
• Load Type: LEDs
• Degree of protection: IP20
• Type of work: continuous
• Operating temperature: -10°C - +45°C
• Dimensions: 10,5 cm x 9,0 cm x 6,5 cm
• Mounting: DIN rail TH-35 (6 modules)
• Minimum requirements for apps: smartphone/tablet/iPhone (Android 5.0 or iOS 15.1 and Bluetooth 4.0)

• Digital active optical reflection sensor
• 2 operating modes: distance and movement
• Narrow detection angle 10°-15°
• Range 30-100cm, adjustable approximately every 10cm (suitable for stairs up to 140 cm wide)
• One-piece construction (no receiver or mirror installation is required on the opposite side of the sensor)
• Convenient access to potentiometer and signal diodes (front of sensor, under removable cover)
• Easy electrical installation of the sensor (clamping lines)

NOTE: You can specify a different color of the sensor cover when placing your order: white, grey, brown or black

• Range: adjustable, from 30cm to 100cm
• Detection angle: 15°
• Supply Voltage: 8-24VDC (typically 12V)
• Output: NPN OC (active low state), max. 30V 250mA
• Dimensions: cover diameter 40mm, length 25mm
• Power Consumption: 0,12W (at 12V power supply)
• Current Consumption: 10mA
• Operating temperature: -10°C - +45°C
• Degree of protection: IP20
• Protection Class: III
• Type of work: continuous, indoor
• Sensor Color: White, Grey, Brown, Black

Installation of sensors

• Installation in the stair post in a hole with a diameter of 35 mm.
• Flush mount in the mounting box (to be purchased at our other auction)
• Installation in the installation box fi 60mm using the adapter (to be purchased at our other auction).

NOTE: It is recommended to install sensors at a height of 80cm

• Current load of controller outputs (max.): 2A x 24
• Large controlled output power: 24 x 48W (with 24V lamp power supply)
• Activation of UP and DN inputs of the controller: manual (any button-type potential-free connectors), automatic (e.g. 2 motion sensors with potential-free output, e.g. relay or with OC type output) or mixed. (NOTE: Connectors are not included. )
• Integration with smart home systems (e.g. KNX, Fibaro, Crestron, Lutron, LON) through potential-free outputs
• Control of dimmable LED lamps (liquid, based on PWM method) and non-dimmable (jump)

NOTE: Dimmable are ordinary LED strips, where a single segment consists of 3 diodes and a resistor. In the case of other LED light sources, each time you should ask the manufacturer about the dimmability feature of the light source and the possibility of cooperation with the PWM dimmer. Some LED light sources (e.g. replacements for popular halogens) may include additional electronics that will make dimming difficult or impossible.

The product is accompanied by a user manual containing m.in. installation diagrams.

We have also prepared a guide on planning, executing and launching the installation step by step.

As a manufacturer of controllers, we offer professional technical support and direct warranty and post-warranty service.

1. Stair controller smartLEDs OMEGA Exclusive
2. Light probe
3. Two motion sensors smartLEDs ALFA
4. OMEGA Driver User Manual
5. ALFA Motion Sensor User Manual

Rich offer, adapted to the needs and financial capabilities of different customers: 7 models of stair controllers

We use our proprietary solutions, which we are very proud of, for example:

• Advanced, effective LED wave with liquidity and blur effect
• Mobile application (Android, iOS, Bluetooth communication) for convenient configuration and installation diagnostics
• Built-in controller: twilight switch, astronomical clock and real-time clock - for switching operating modes
• Stair optical distance and motion sensors dedicated to detecting movement on stairs

We offer additional functions: Backlight at rest, Built-in dimmer, Master lamp (e.g. for illuminating the handrail), Operation of the mezzanine, Warning against turning off the lights, Additional ways of lighting, Night mode and others.

Our controllers have been working flawlessly with hundreds of customers since 2013. The hardware part is made on a professional printed circuit, we use modern, automatic surface mounting SMT and THT in lead-free technology, and the components come from leading manufacturers of electronic components. The software algorithm is perfectly refined, the drivers work correctly regardless of the method of activation (sensors or buttons) and the number and direction of people moving up the stairs. There is no fear that the driver will "get lost" if more people enter the stairs or different ways of activating the driver will be used in the installation (e.g. and detectors and buttons).

We care about the satisfaction of our customers and service at the highest level: telephone technical support, accurate product documentation (user instructions, installation diagrams, data sheets, guides).

The sensors offered on the market are mostly not suitable for stair applications. These are either PIR sensors with a wide detection angle and indeterminate range, reacting to people passing by the stairs or cheap optical sensors imported, incontinuing parameters, with high sensitivity to reflections and glare, e.g. from the white wall opposite, moreover, with high failure rate. These flaws practically disqualify these sensors for this application.

The smartLEDs ALFA and DELTA sensors are the only sensors known to us, actually suitable for detecting movement on stairs. They were developed by us in response to a gap in the market in this area and are 100% produced in Poland. These are active diffusion optical sensors operating in infrared invisible to the eye. They have a one-piece construction, a well-defined, adjustable range, a narrow detection angle and a tilted optical path, eliminating reflections. The available 2 operating modes allow proper operation regardless of whether the stairs (passages) are open or closed, with a white wall opposite. The small size allows for discreet installation, and it is also possible to choose the color of the sensor cover. The sensors are very good value for money.
