Aprašymas
Trumpai apie prekę
Prekė: LED lemputės vieno kanalo šviesos reguliatorius, 230V, WiFi, TUYA Smart. Kategorija: Automatizavimo moduliai.
- Gamintojas: ACS
- Modelis: Ściemniacz Światła 1 Kanały WIFI TUYA Smart
✅ Meet the latest ACS module – a single-channel dimmer that turns a classic switch into a full-fledged smart home component. Thanks to the integration with the TUYA Smart app, you can fully control the lighting – remotely via WIFI, automatically or by voice.
This module works directly via WIFI in conjunction with the TUYA app - you don't need a Zigbee gateway.

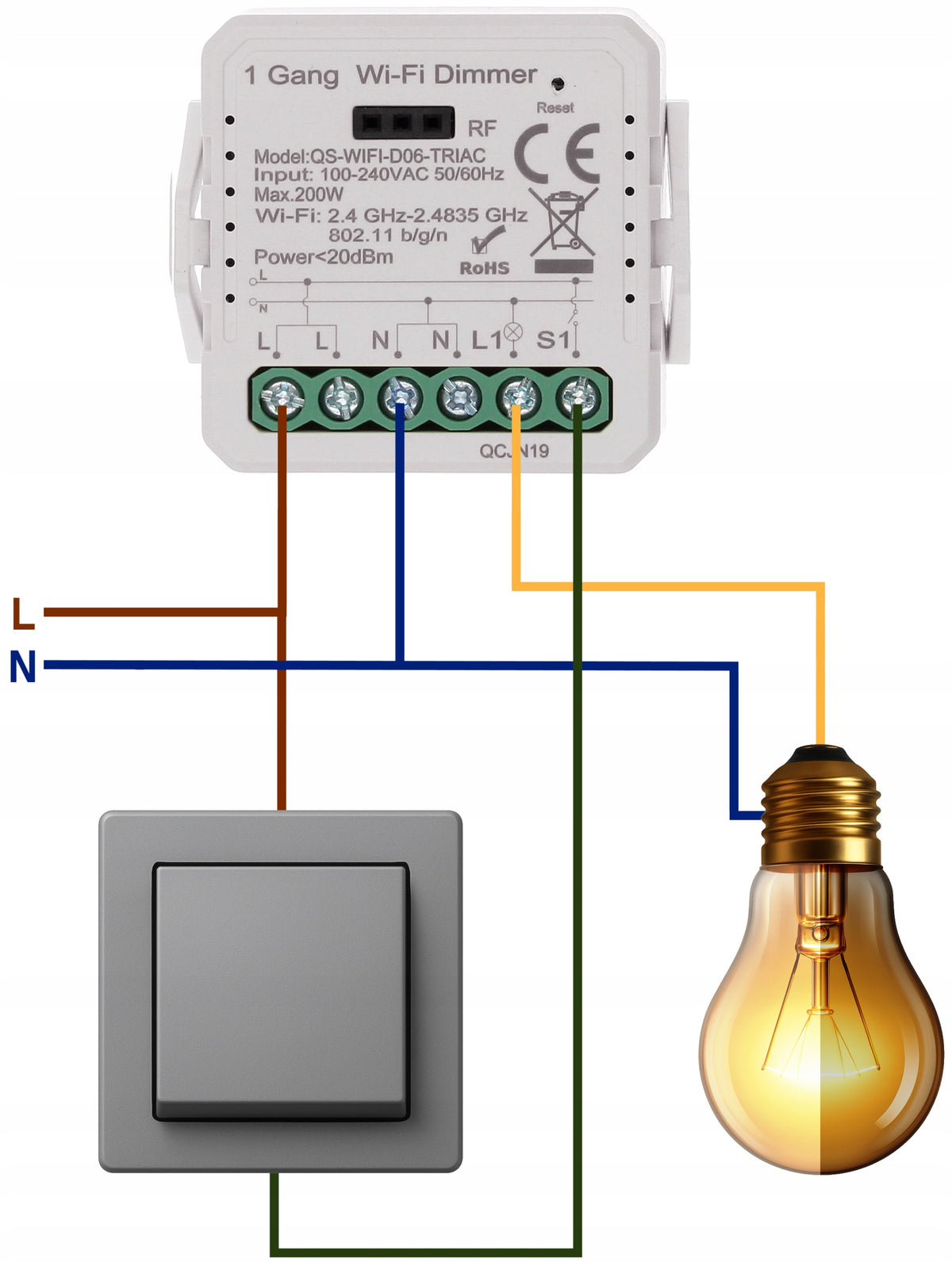

The connection diagram can be found in the photo below.
Very simple configuration :
- connect the module to a voltage of 230V AC
- connect your smartphone to the WIFI network (the same one you want the dimmer to use )
- you open the TUYA app,
- click on + in the upper right corner and the dimmer is already found and ready to add.
If you want to control LED bulbs, make sure that LED bulbs have Dimmer support (not all LED bulbs have such functionality) - in the description of such a bulb you will find a description : Dimmable / Dimmer support: YES / Dimmable / Cooperation with dimmer: Yes
✅ Key features
- Flush-mounted box module – simple and aesthetic installation
- Support one lighting circuit
- Compatible with the TUYA Smart app – control from your smartphone or tablet
- Voice System Integration: Google Home and Amazon Alexa – Convenience without touching the switch
- Supports LEDs and traditional dimmable light sources for complete flexibility
Technical specification
- Working voltage: 220-240V AC
- Maximum power: 1 channel 200W
- Application: incandescent, halogen lighting, LED bulbs (dimmable), CFL fluorescent lamps (dimmable), LED strips (dimmable - those that do not require a power supply, e.g. LED strips 230V )
- Required: full power supply in the can (phase L and neutral N)

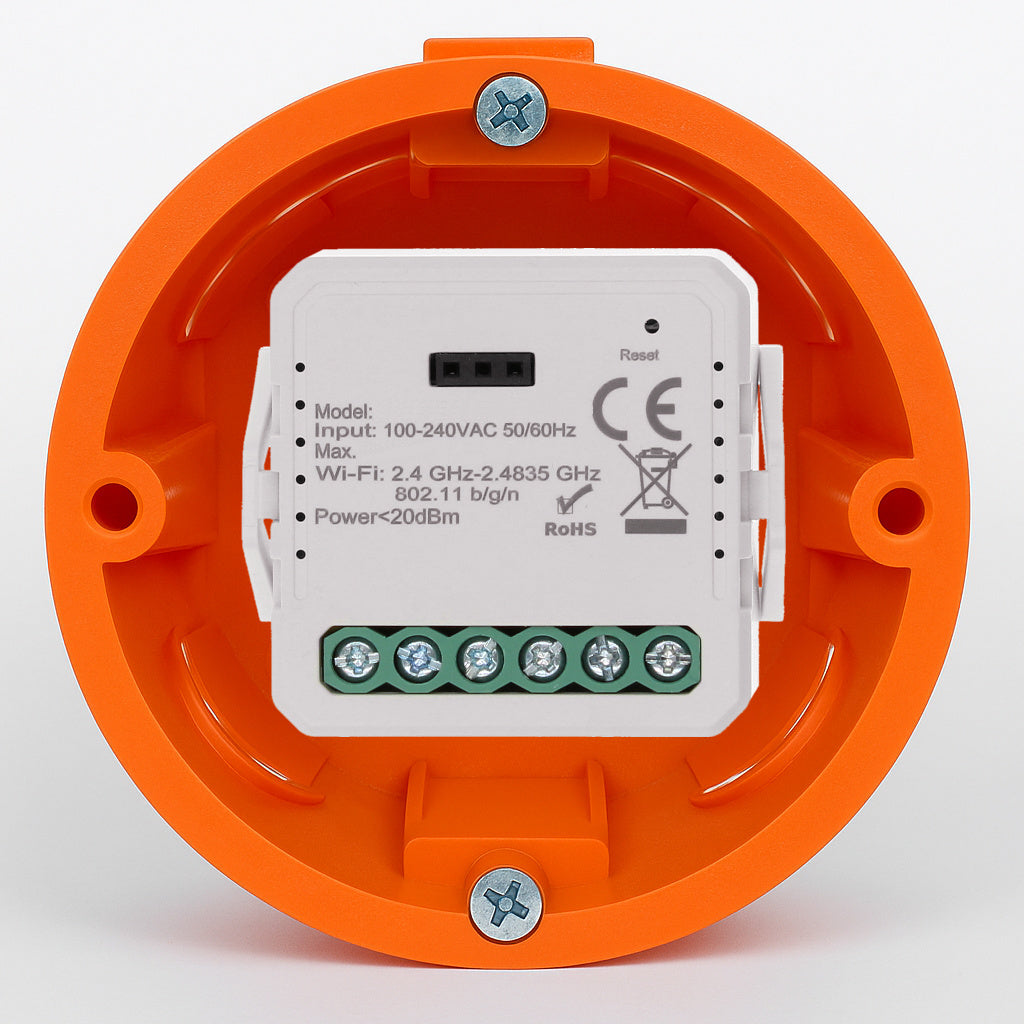

Installation inside the can (be sure to choose deeper cans)
DIN rail mounting
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | control panel |
| Parametry | Series | Wifi |
| Parametry | Power supply | mains |
| Parametry | Communication | WiFi |
| Parametry | Brand | ACS |
| Parametry | Number of communication channels | 1 |
| Parametry | Additional features | WiFi connection |
| Parametry | Manufacturer code | Ściemniacz Światła 1 Kanały WIFI TUYA Smart |
| Parametry | EAN (GTIN) | 5904162825219 |
| Parametry | Batteries included | no |
