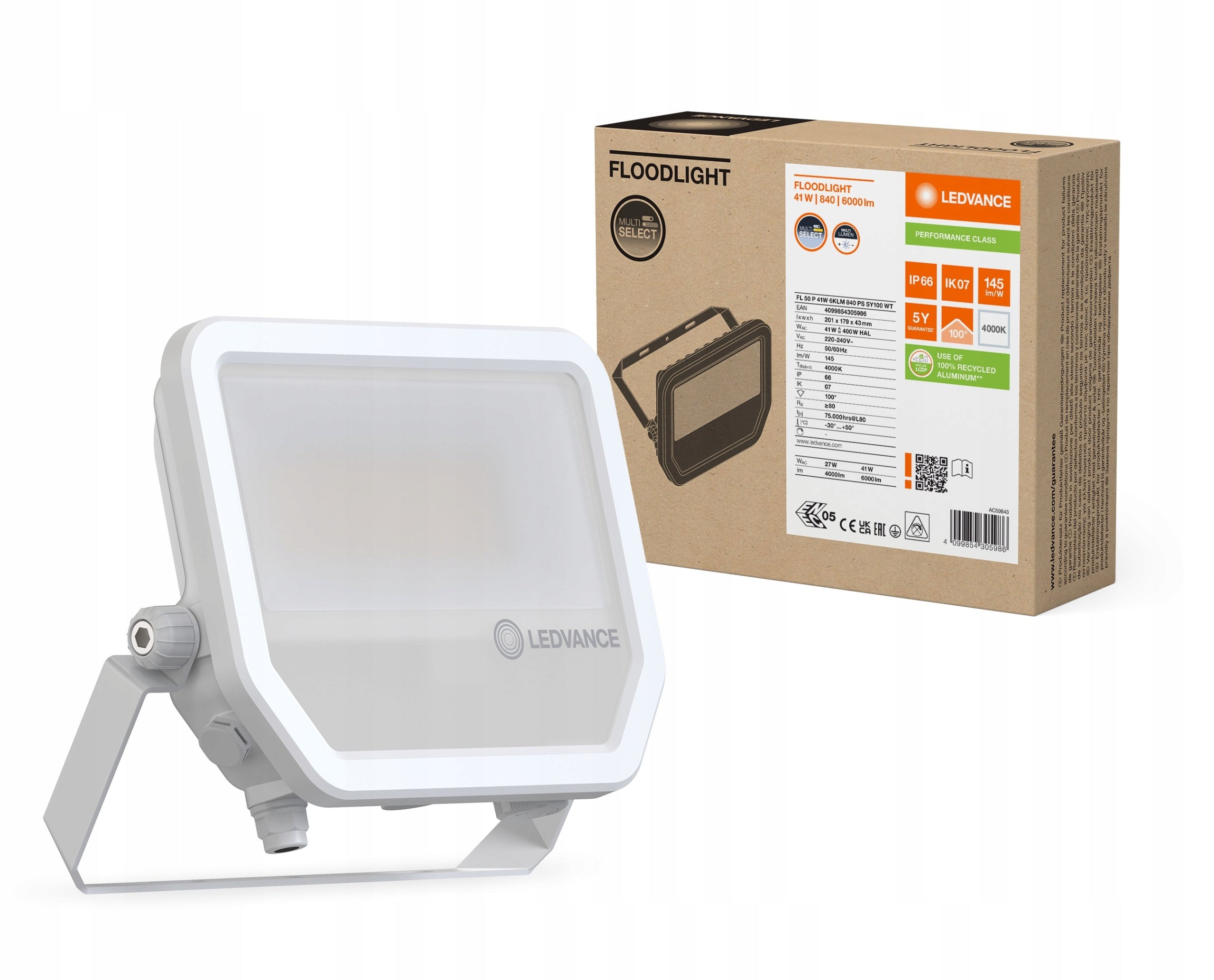

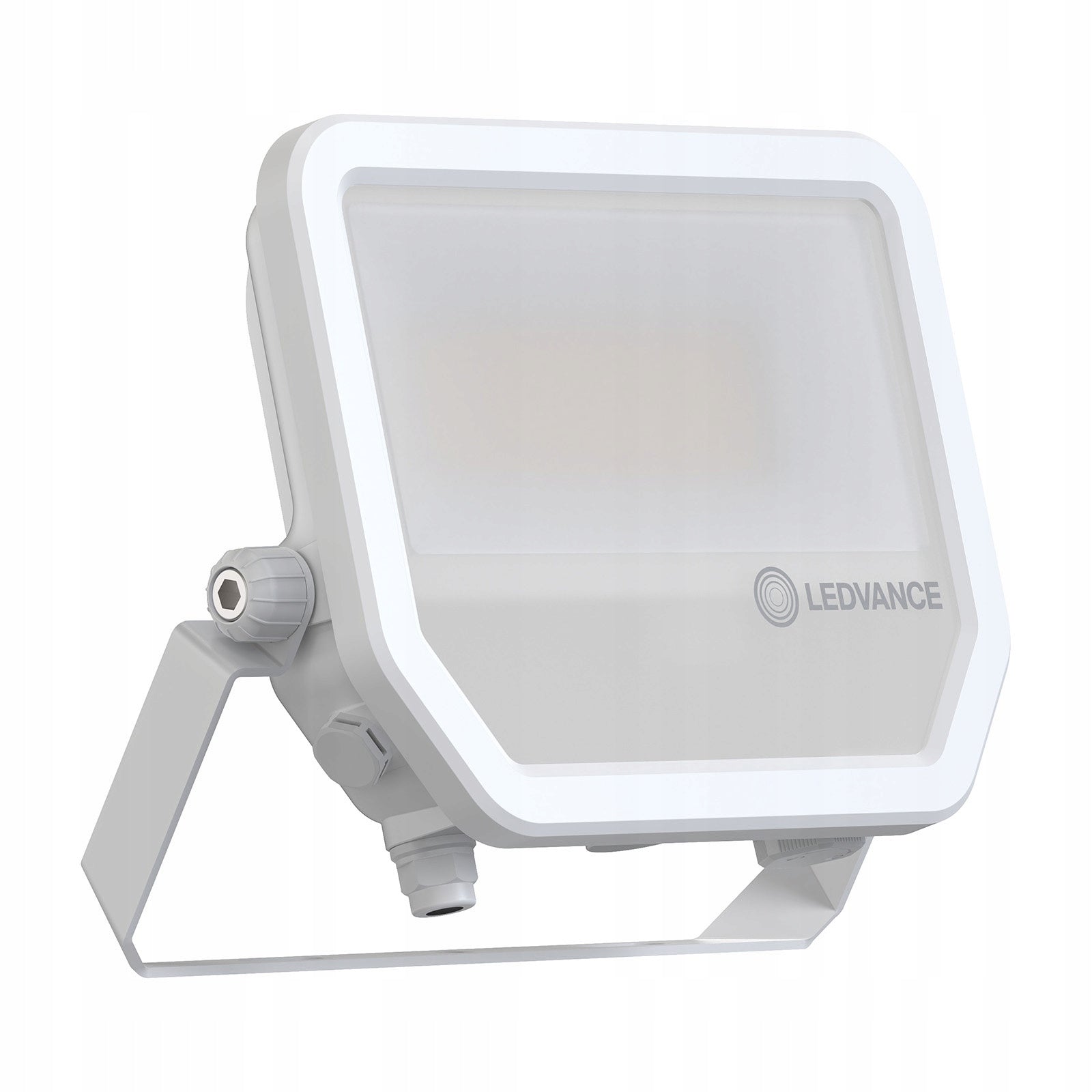

LED prožektorius LEDVANCE, 27W/41W, 4000K, 4000 lm / 6000 lm

Trumpai apie prekę

Prekė: LED prožektorius LEDVANCE, 27W/41W, 4000K, 4000 lm / 6000 lm. Kategorija: Halogeniniai ir prožektoriniai šviestuvai.

• Gamintojas: Ledvance
• Modelis: 4099854305986
• Galia: 41 W
• Ilgis: 4.3 cm
• Spalva: white

Product advantages

Vent valve to optimise air exchange, without compromising IP protection

High versatility thanks to selectable power levels (Multi Lumen) on the housing

Robust cable gland with integrated water barrier function

Safe and very even lighting thanks to the frosted lampshade made of tempered glass

Bright, resistant and durable

Energy savings of up to 90% (compared to floodlights with halogen lamps)

No upper light distribution coefficient (ULOR 0%) when mounted at an angle of 0°

Areas of application

Replacement floodlights for halogen bulbs

External applications (IP66)

Design in accordance with EN 60598-2-24 for fire hazard, e.g. through the accumulation of dust

Public areas

Facades of buildings

Construction sites

Parking

Gardens and balconies

Product Features

High luminous efficiency: up to 145 lm/W

Degree of protection: IP66

Factory installed flexible cable length 1 m (H05RN-F), 3 x 1,0 mm²

Reflector, symmetrical light distribution with 100° x 100° beam angle

Mounting clamps with 30° angle and wide rotation area

ELECTRICAL DATA

• Nominal power: 41 W / 27 W
• Rated voltage: 220...240 V
• Network frequency: 50...60 Hz
• Rated current: 185/130 mA
• Initial inrush current: 14.85 A
• Starting current, time T: 33.6 µs
• Max. number of luminaires in one circuit B16 A: 50
• Max. number of fixtures in one circuit C10 A: 40
• Max. number of luminaires per overcurrent circuit breaker C16: 64
• Power factor λ: > 0,90
• Total harmonic distortion: < 20 %
• Protection class: I
• Impact voltage resistance (L-N): 2 kV
• Resistance to nap. stroke (L/N-ground): 4 kV
• Working mode: Integrated LED driver

Photometric data

• Luminous flux: 6000 lm / 4000 lm
• Light efficiency: 145 lm/W
• Color temperature: 4000 K
• Light colour (designation): Cool white
• General color rendering index Ra: 80
• Standard color matching deviation: 5 sdcm
• SVM strobe effect value: ≤0.9
• Photobiological hazard group EN62778: RG1
• Photobiological hazard group EN62471: RG1
• Light distribution angle: 100° x 100°

DIMENSIONS AND WEIGHT

• Length: 201,00 mm
• Height: 179,00 mm
• Width: 43,00 mm
• Product weight: 830,00 g
• Cable length: 1000 mm
