LED valdiklis ZAMEL SUPLA mSLW-02, 4 kanalų, WiFi, mini

Trumpai apie prekę

Prekė: LED valdiklis ZAMEL SUPLA mSLW-02, 4 kanalų, WiFi, mini. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: MSLW-02

4x Led Wi-Fi Supla Driver In Mini Enclosure

ZAMEL mSLW-02

✔ The mSLW-02 module allows you to control LED lighting using a smartphone or tablet

✔ While retaining all the features of the original model, the SLW-02 offers a smaller and lighter housing.

✔ The controller gives us the possibility of individual control of three LED strips

✔ Full control! In the application, you can not only turn the lighting on and off , but also check whether it is on and smoothly dim or brighten it.

✔ Simple installation – if you have an LED strip driver in the room, you can easily replace it with the SLW-02 device. Plug in the LED strip, hide in the can and you're done, you can control locally and remotely.

✔ SUPLA products have a developed community. You can share comments and ideas with other users of the system, you can look for support and inspiration in the community forum. Join thousands of satisfied users!

The set consists of

• 1 pc. LED driver mSLW-02
• User manual in Polish

Building automation systems available on the market are usually very complex, closed and expensive.

In many cases, require installation already at the construction stage of the facility.

With SUPLI you can, among other things, control lighting, turn on and off household appliances and electronics, open and close gates and doors, or control the temperature in rooms.

You can do all this with just one swipe of your finger.

SUPLA is available wherever you have access to the Internet and you have a smartphone or tablet at hand. < UL>

Everything is at hand. Anywhere, anytime.

Each of us sometimes wonders whether he turned off the light, stove or kettle after leaving the house.

Today you don’t have to worry about it anymore.

All you have to do is run SUPLA on your smartphone and immediately you can check whether everything that should have been turned off.

If not, you can turn off the lighting/household appliances, close the blinds or close the entrance gate with one swipe of your finger.

Download the app to your smartphone and start your adventure with SUPLA today.

< UL>

Technical data

• Rated voltage: 1224 V
• Rated power consumption: 0,4 W
• Transmission: Wi-Fi 2.4 GHz b/g/n
• Transmission power: ERP < 20 mW
• Number of inputs: 1
• Number of output channels: 3 x PWM transistor
• Number of connection terminals: 7 (wires up to 2,5 mm²)
• Housing mounting: installation box Ø 60 mm
• Temperature range: -10 +55°C
• Degree of tightness: IP20
• Maximum output load capacity: 2 A / channel: LED strips 12 V: 5 m – 70 W; LED strips 24 V: 10 m – 140 W.

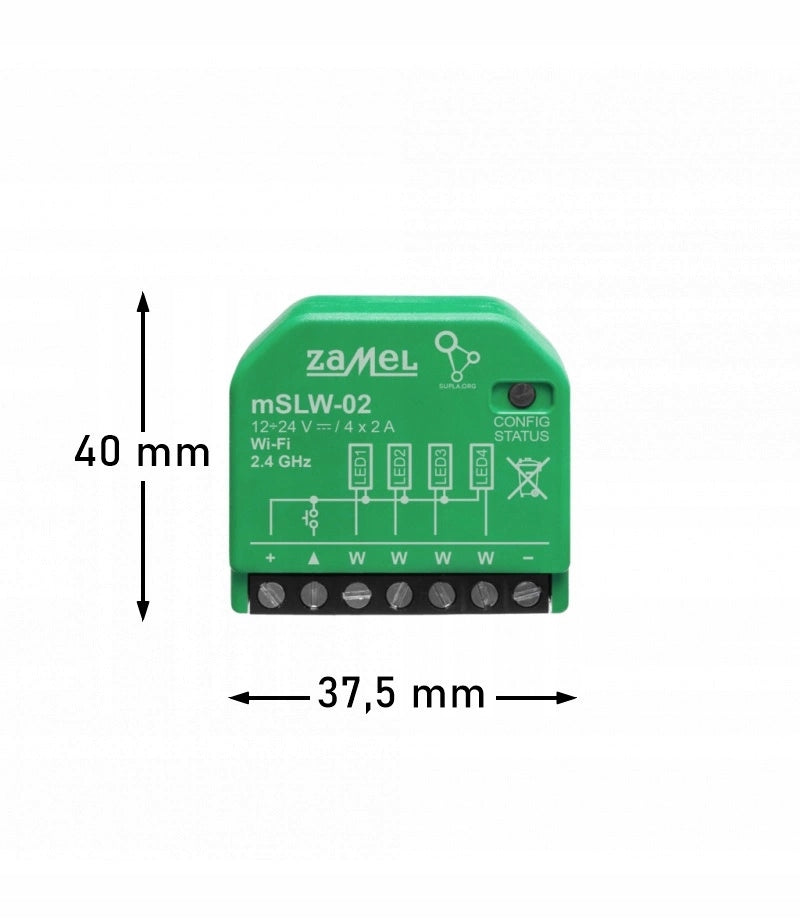

• Height 40mm
• Width 37,5mm
• Depth 17mm

Specifications
