Lietaus vandens siurblys MULTI AUTO LIFT 45, 100 l/min, automatinis

Trumpai apie prekę

Prekė: Lietaus vandens siurblys MULTI AUTO LIFT 45, 100 l/min, automatinis. Kategorija: Siurbliai ir hidroforai.

• Gamintojas: Tolen
• Modelis: LIFT45

WITH A CABLE LENGTH OF 10 METERS

.

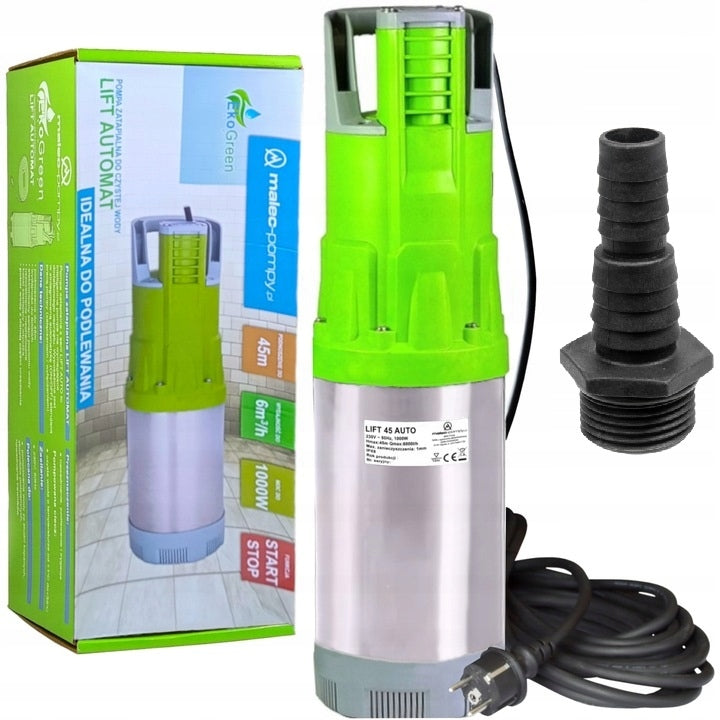

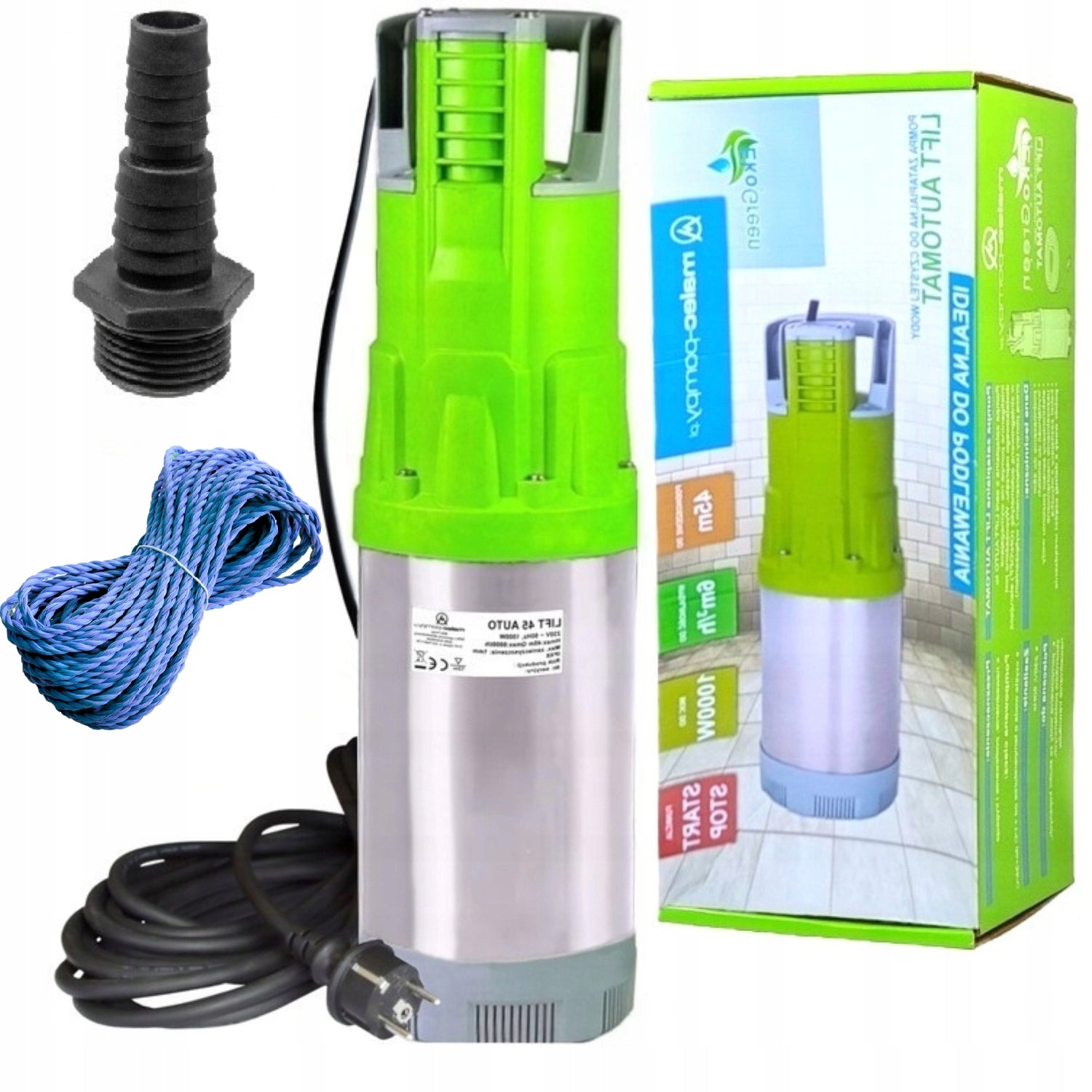

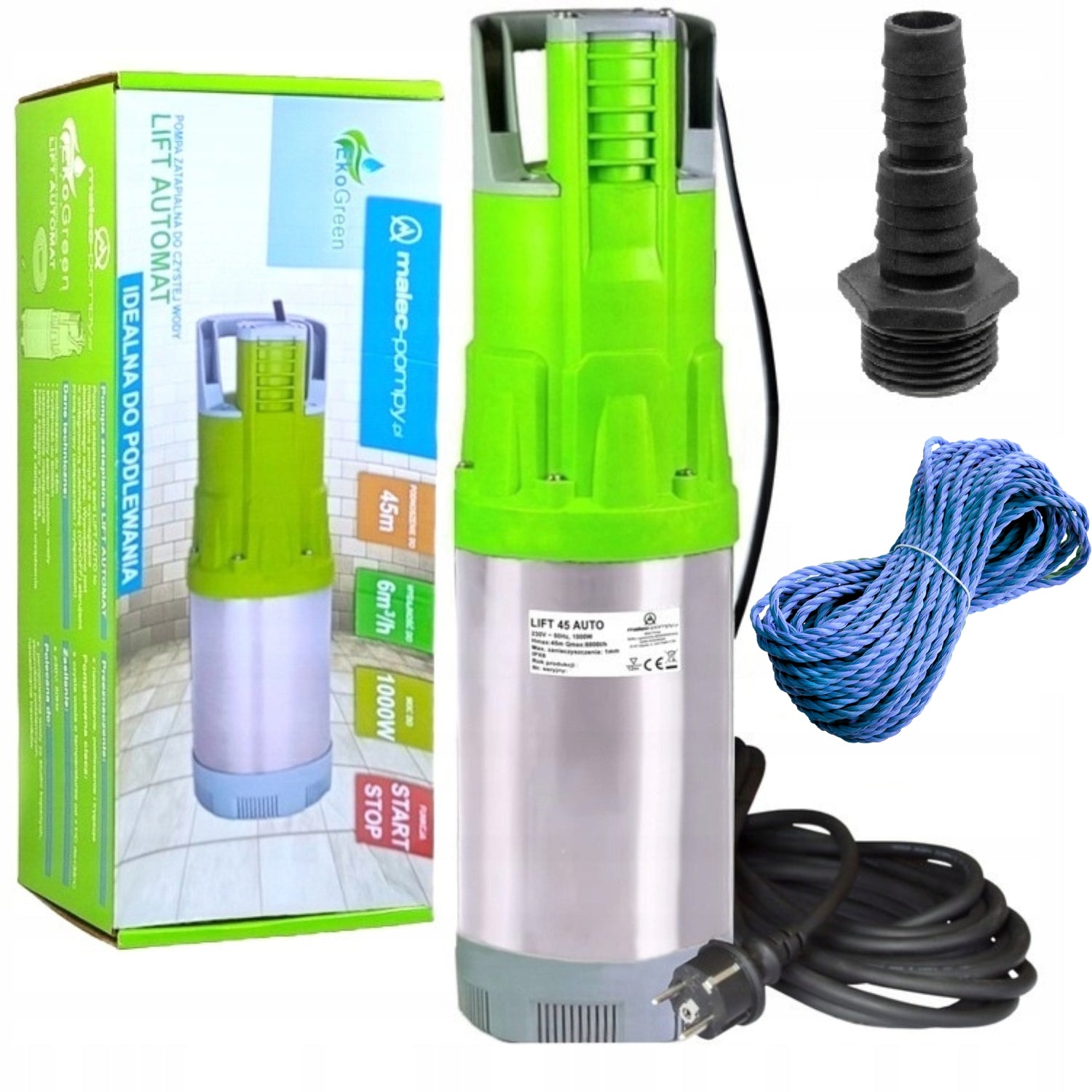

The set includes:

• pump LIFT 45 AUTOMATIC

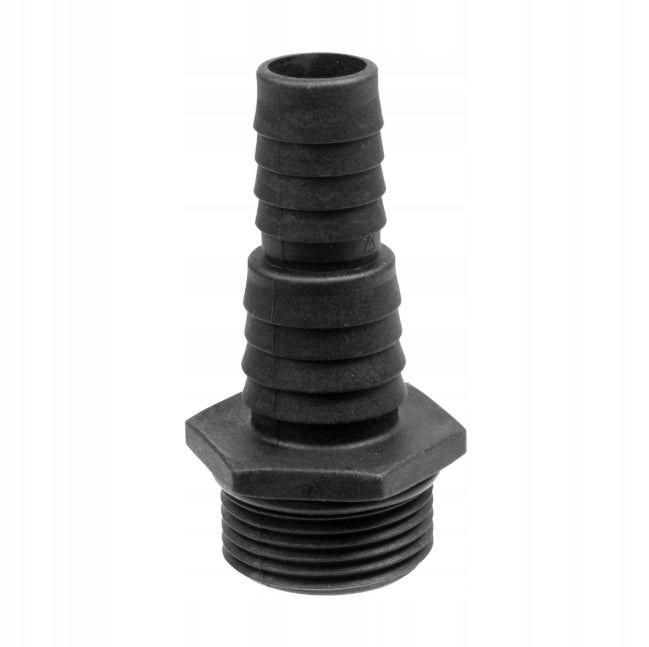

• discharge port

CABLE FOR SUSPENDING A PUMP WITH A LENGTH OF 5 METERS

BUYING A SET WITH AN ADDITIONAL ROPE (5 METERS), YOU WILL RECEIVE A ROPE WITH A LENGTH OF 10 METERS

The LIFT 45 AUTOMAT pump, in its improved, latest version, is a popular choice among the newest generation of rainwater pumps due to its numerous advantages that characterize and distinguish it from other submersible pumps.

.

Advantages of the LIFT 45 AUTOMAT Pump:

• MAINTENANCE-FREE OPERATION - The pump operates fully automatically thanks to a built-in electronic controller with flow and pressure sensors.
• AUTO Extension - Indicates a built-in innovative control system responsible for starting the pump when a valve is opened and stopping the device when the flow ceases. This solution eliminates the need for a classic float switch, which often proved unreliable, especially in narrow openings where the pump operated by getting stuck on the wall. This often led to very costly failures.
• ENERGY-EFFICIENT -
• COST SAVINGS - The pump's design allows it to be connected directly to the water system, bypassing the pressure tank and pressure switch, which significantly reduces installation costs.
• MULTI-IMPELLER DESIGN - Allows for achieving high pressure - up to 4.5 bar and quiet operation - the pump is very quiet.
• FAST WATERING - The pump is very efficient, with a maximum flow rate of 100 l/min. These parameters mean that pumping water from deep wells is not a problem, while the small diameter of the pump allows it to be installed in tanks where the mounting hole does not exceed 20cm.
• DRY-RUN PROTECTION - Thanks to the protection included in the switch, the pump is protected against dry running, and thus, damage to the pump.
• 160MM DIAMETER - The LIFT 45 is one of the slimmest pumps available on the market, allowing for easy and convenient installation even in tanks with a very small inlet opening (not exceeding 20cm).
• HIGH DEGREE OF PROTECTION - The pump has triple sealing. The built-in oil chamber provides better lubrication of bearings and mechanical seals. This allows for achieving a longer pump lifespan.

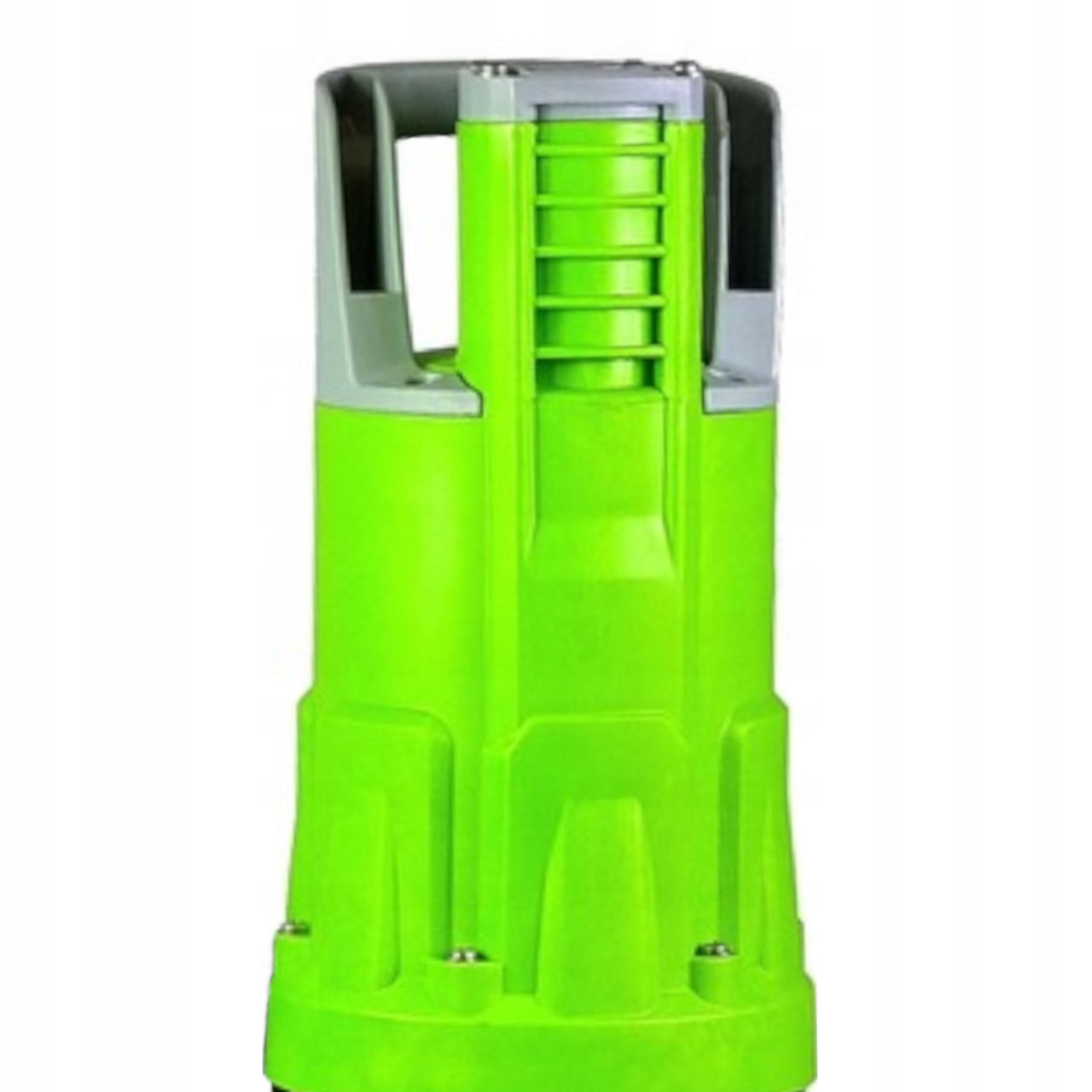

• EXTERNAL HOUSING The pump's housing is made of high-quality materials – plastic, stainless steel – which makes the device resistant to mechanical damage and corrosion.
• CONVENIENT INSTALLATION - The power cord is 10 meters long, which contributes to the high comfort of using the device.

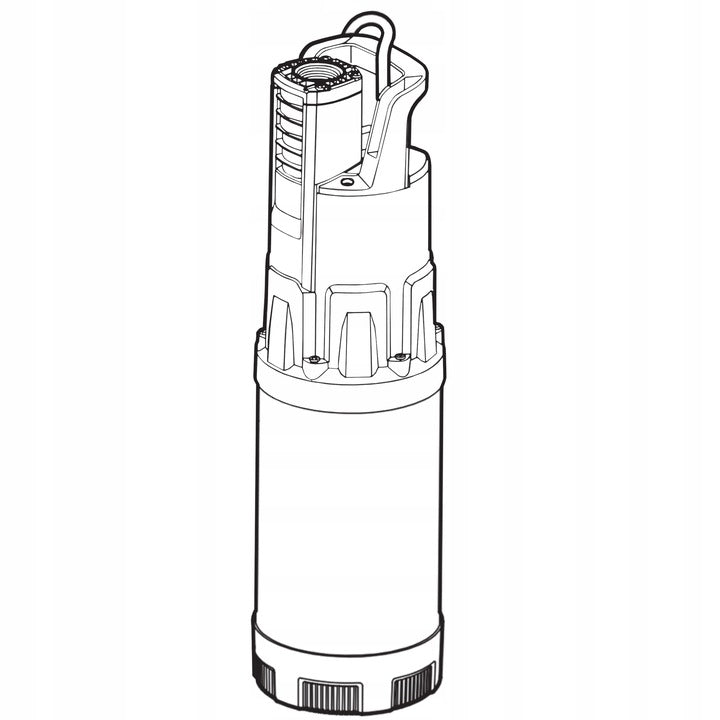

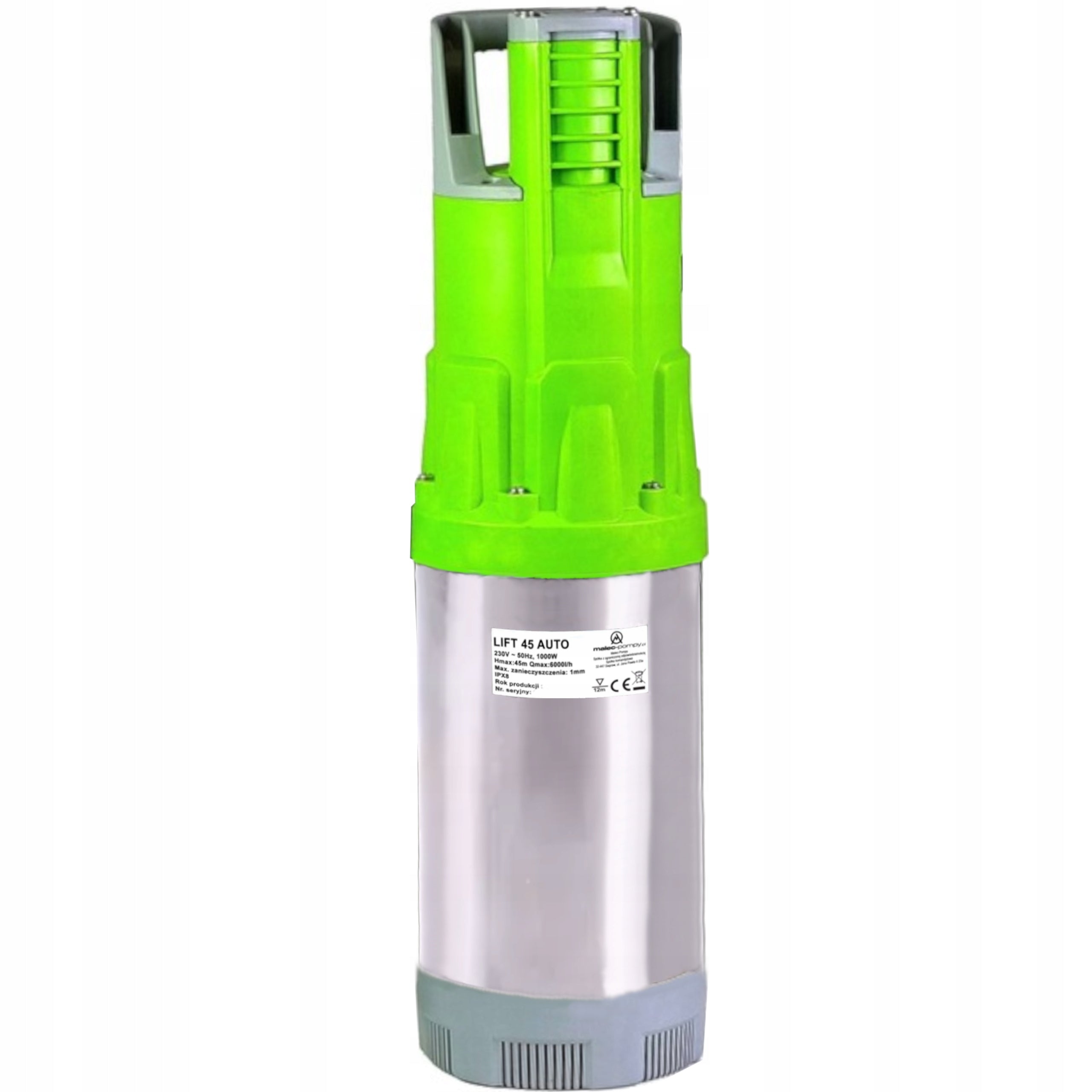

LIFT 45 AUTOMATIC

Multi-stage, monoblock, fully automated submersible-pressure pump designed for pumping fresh, clean, cold water from vertebral wells and large-size tanks.

The pump is ideal for rainwater systems, when watering from the mains and for pumping water from tanks, ponds, wells and other applications requiring high pressure.

Installing the pump in the rainwater tank will allow you to water the garden and lawn with the help of collected rainwater. Thanks to this, the consumption of water from the water supply network will be reduced, which will translate into significant savings.

High pressure and high efficiency ensure that the pump will provide the right amount of water in a short time.

The pump does not require external control, thanks to the integrated ON / OFF automation controlling the operation of the device.

The integrated electronic controller together with the flow sensor and pressure sensor automatically starts the engine when a pressure drop in the system is detected (opening of the exhaust valve). On the other hand, when the outlet valve is closed and the pressure in the system increases, the pump is turned off and goes into standby mode, maintaining a constant pressure. The machine was installed in the pump instead of the float switch.

Just connect the hose, immerse the pump in water and connect the power supply, and the pump will start working fully automatically, without the need for supervision.

Thanks to the dry-running protection contained in the circuit breaker, the pump is protected against dry operation and thus damage to the pump.

LIFT 45 AUTOMAT also has a built-in protection against too frequent switching in the event that the discharge system has a small leak.

The pump body is made of corrosion-resistant stainless steel and technopolymer, rotors and diffusers made of noryl, shaft made of stainless steel, and suction sieve made of technopolymer.

Parameters:

• Voltage: 230V/50Hz
• Engine power: 1000W
• Capacity: 100 l/min
• Lifting height: 45m
• cable with a length of 10 meters
• Switching pressure: 1,5 bar
• Piston Output: 1"
• Pump height: 535mm
• Pump Diameter: 160mm

Working conditions:

• Maximum liquid temperature: 35°C
• Maximum immersion depth: 9m
• Degree of protection: IP X8
• Working Position: Vertical
• Max. Pressure: 4,5atm

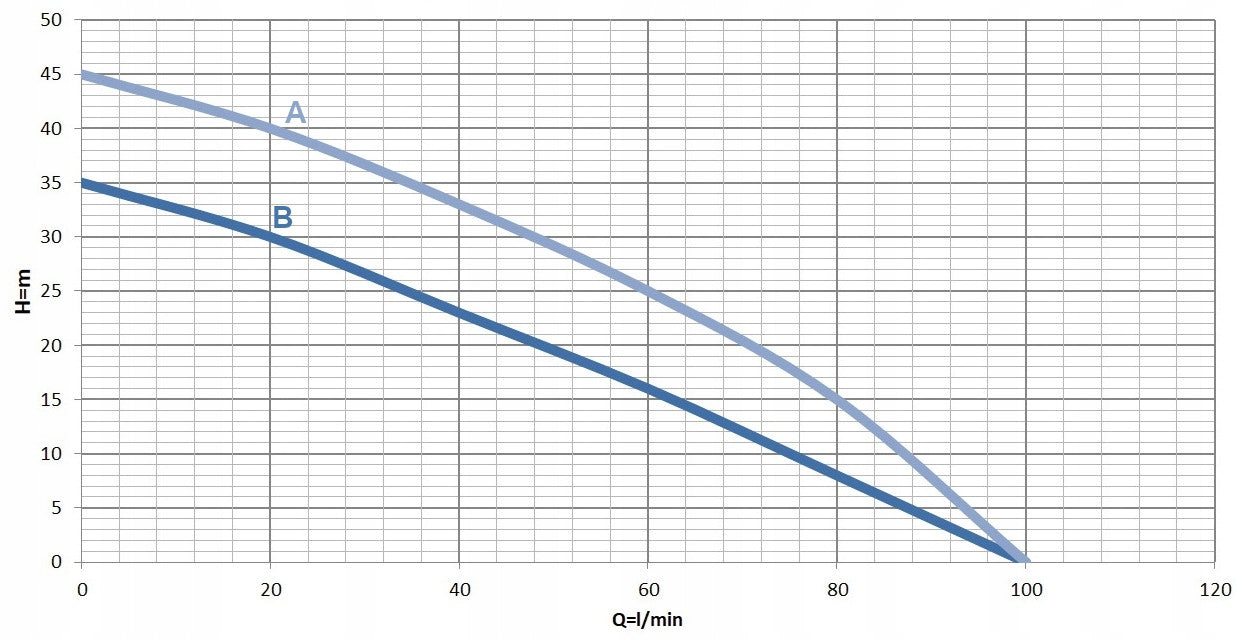

Efficiency / Lifting:

A - LIFT 45

B - LIFT 35

Specifications
