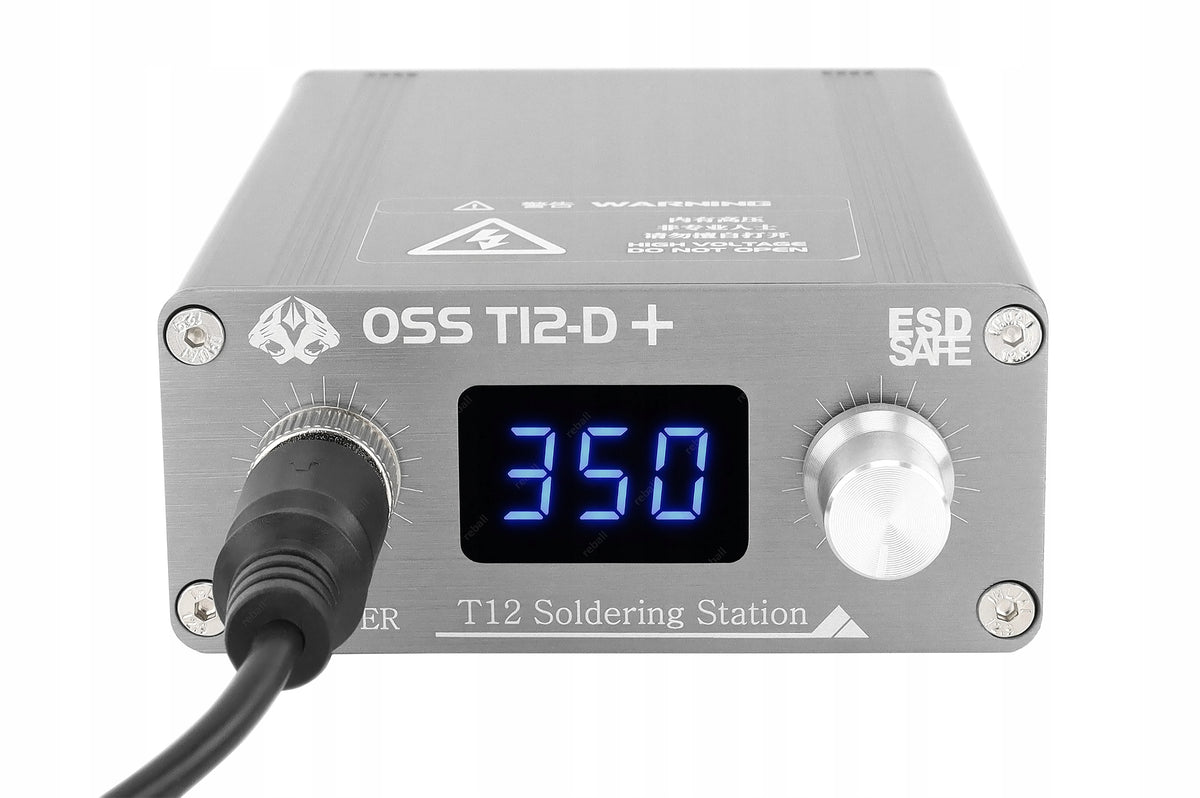

Litavimo stotelė OSS TEAM T12-D+, 75 W, su priedais

Trumpai apie prekę

Prekė: Litavimo stotelė OSS TEAM T12-D+, 75 W, su priedais. Kategorija: Lituokliai.

• Gamintojas: Reball
• Modelis: T12-D+
• Galia: 75 W
• Įtampa: 230 V

XSLU0000696

• ✅ UPDATED VERSION - DETAILS IN THE DESCRIPTION!
• ✅ ADDITIONAL PRACTICAL HANDLE - ONLY WITH US!
• ✅ IMPROVED GROUNDING (IN COOPERATION WITH OSS TEAM)
• ✅ VERY POPULAR AND UNIVERSAL MODEL
• ✅ MAKE COMMENTS ABOUT WHAT SURPRISES ARE IN THE COMPETITION!
• ✅ POWER 75W - FAST HEATING
• ✅ COMPACT HOUSING, INTUITIVE OPERATION
• ✅ STATION FOR POPULAR T12 GROTTOES - VERSATILITY
• ✅ INCLUDED TIPS T12-BLS + T12-K + MEGA SOLDERING PACKAGE!
• ✅ PERFECT AS A GIFT FROM A RELIABLE SELLER!

STATION LEGEND OSS TEAM T12-D+ EXT. XXL

Perfect kit for electronics and microelectronics repairs. Very well suited for professional service.

The power of 75W allows you to reach set temperatures in the range from 150°C to 450°C in a very short time.

Programmable STANDBY and AUTO SLEEP functionality strongly reduces power consumption and tip consumption up to 5 times slower than normal!

The set includes:

• soldering station OSS-TEAM T12-D+ 75W - 1 piece
• soldering flask - 1 piece
• only with us additional handle for flask - 1 piece
• T12-BLS tip - 1 piece
• T12-K tip - 1 piece
• soldering stock stand - 1 piece
• copper tip cleaner - 1 piece
• sponge for cleaning tips - 1 piece
• ground wire - 1 piece
• High Temperature Washer - 1 Piece
• silicone mat, insulating 280mmx200 - 1 piece
• flux-topnik AMTECH RMA-223-UV 10g - 1 piece
• tin with flux 16g - 1 piece
• Lead-free tin 14g - 1 piece
• paste-flux Cynel-1 40g - 1 piece
• rosin Cynel 45g - 1 piece
• specialized paste RT-9 10g - 1 piece
• GOOTWICK 3,5mm copper braid - 1 piece
• PCB Cleaner KT-5 200ml Atomizer - 1 piece
• polish manual - 1 piece

* ONLY WITH US EXTENDED VERSION

The set includes additionally original handle OSS TEAM under the flask mounted to the soldering station.

Technical parameters of the stand:

• dedicated for T12-X Plus, T12-D+ stations
• total height: approx. 11.5cm,
• width: approx. 3.2cm,
• length of mounting element: approx. 5.5cm,
• mounting hole spacing: ok. 3cm,
• Diameter of mounting hole: ok. 5mm,
• weight: approx. 47.3g.

CHARACTERISTICS OF OSS TEAM T12-D+

• metal compact housing
• readable display
• method of heating with intelligent PID control
• knob for changing parameters and temperature
• fast jump temperature change with the possibility of setting the range of jumps
• increase the temperature with one click to 50°C
• power 75W allows you to reach set temperatures in a short time
• included universal tip T12-BLS and necessary accessories
• support for popular T12 tips with built-in heater which are also available in our offer
• ground socket
• rubber feet that provide stabilization of the station
• auto standby
• auto sleep mode
• function to disable buzzer
• temperature calibration function

TECHNICAL DATA

• supply voltage: AC 90-230V 50/60Hz 5A
• Power: 75W
• temperature range: 150-450°C
• Type of supported tips: T12
• temperature control: digital knob
• LCD display showing the current temperature
• indicator of supplied power
• total length of the station: approx. 15cm
• station width: approx. 9cm
• station height: approx. 4cm
• station weight: approx. 340g
• length of power cord: 1 m

Quantity: 1 piece

SOLDERING FLASK

The station is equipped with a soldering flask supporting T12 type tips suitable for work in the field of electronics and microelectronics.

Technical parameters:

• flask length: 15,5cm
• cable length: 1m
• Weight: 65g

Quantity: 1 piece

The set is equipped with two tips from the T12 series:

• T12-K
• T12-BLS

The set also includes a copper cleaner and a sponge for cleaning tips and a practical stock stand that allows you to store 6 spare tips T12. The set includes only one T12-BLS tip.

The grottoes included in the photo are not part of the sold T12-D+ station.

The station has a ground socket and a grounding cable included.

High temperature resistant silicone pad designed for soldering work, e.g. when repairing/replacing SMD BGA, SMD, uBGA, CBGA, CCGA, CSP, QFN, MLF, PGA systems.

The thickness of the washer measuring 72x72mm is 3mm.

SERVICE SILICONE MAT, INSULATION 280x200mm S-110

Silicone mat is designed for services of electronic devices, GSM, photo.

It is used to segregate and immobilize electronic parts and components, any metal components and screws when repairing smartphones, tablets, laptops, etc.

It is made of silicone resistant to temperatures of 500 ° C. Thanks to this, soldering work can be performed directly on the PCB placed on the mat.

The non-slip properties of silicone help when soldering because objects do not move.

It has compartments in which you can place screws in an organized way, e.g. according to the order of assembly and disassembly.

The mat is equipped with a ruler with a length of 20cm.

Technical data:

• 4 compartments for larger items
• Overall dimension: 28x20cm
• thickness: 3-4mm
• Temperature resistance: up to 500°C
• color: blue or transparent shipped depending on delivery.
• Quantity: 1 piece

FLUX-TOPNIK AMTECH RMA-223-UV 10g

INTENDED FOR SOLDERING SMD AND BGA

Flux RMA-223-UV is used by m.in for BGA and SMD chips.

Flux in paste form is easy to apply and wash off.

It does not leave nagar and impurities.

The use of fluxes in the soldering process allows for:

• even distribution of heat from the hot air soldering station,
• prevention of melted solder binder sticking,
• prevention of flux residues causing pathway corrosion,
• obtaining high economy through even and accurate flux distribution.

Flux with the addition of the UV component that allows you to detect errors when applying the paste by screen printing.

Isopropanol liquids and dedicated liquids such as KT-5 and KT-6 can be used to clean residues.

Flux RMA-223 is a flux with a very good price-quality ratio and a wide range of applications.

Quantity: 1 piece

SPECIALIZED SOLDERING PASTE RT-9 10g

RT-9 is a specialized soldering agent without surface cleaning.

Wide application:

• soldering of hard-to-solder wires, e.g. oxidized, covered with greenish tarnish, and other surfaces that have corroded
• tin alloy coating of difficult surfaces, i.e. snowy, heavily soiled, difficult to whiten
• whitening of new wires where significantly accelerates the process of tin coating
• soldering copper, brass, bronze
• general soldering.

Technical data:

• consistency: paste
• does not contain zinc chloride
• non-corrosive product
• DIN standard: EN 29454 2.1.2.C
• Weight: 10g
• packaging: dosing syringe with stopper
• Quantity: 1 piece

TIN WITH FLUX FOR SOLDERING

CYNEL 16g 1mm 3m

The binder is placed in the vial so that it is easy to pull out, does not tangle and does not break.

Lead alloy S-Sn60Pb40 produced in the first tin and lead smelting in accordance with PN EN 29453:2000, in a continuous casting process without air access, then extruded, which ensures the elimination of the occurrence of oxides.

Solder binder S-Sn60Pb40 is mainly used in the electronics industry, for the production of standard electronic devices and components, electrical engineering and for soldering elements with tin, tin-lead, cadmium, zinc and silver coatings.

SW26 flux residues do not require washing.

Technical data:

• Alloy designation: S-Sn60Pb40 (tin 60%, lead 40%)
• Type: 1.0mm wire
• Length: 3m
• Weight: 16g
• minimum purity of raw materials used: 99,90%
• flux: SW26
• flux content: 2.5%
• melting point of binder: 183°C to 190°C
• Operating temperature: 320°C to 420°C
• specific weight: 8,65 g/cm3
• Pack size: vial
• Manufacturer: Cynel
• Quantity: 1pc

LEAD-FREE TIN CYNEL Sn99,3Cu0,7

wire 1.0mm 14g - with flux SW26/2,5%

Lead-free alloy S-Sn99,3Cu0,7 produced in the first tin and copper smelting according to PN EN 29453-24. Popular soft solder, designed as a low-cost replacement for tin-lead binders.

High quality binder Sn99,3Cu0,7 is designed for soft soldering in electronics as well as aluminum elements and water and CO installations.

Technical data:

• alloy designation: S-Sn99,3Cu0,7 (tin 99,3%, copper 0,7+/-0,2%)
• Type: 1.0mm wire
• Weight: 14g
• minimum purity of raw materials used: 99,90%
• flux: SW26
• flux content: 2.5%
• Melting temperature: 227°C
• Soldering temperature: 300-400°C
• specific weight: 7,3g/cm3
• Pack size: vial
• Manufacturer: Cynel
• Quantity: 1pc

PASTE FLUX FOR SOFT SOLDERING

Cynel-1 40g

Cynel-1 paste is a medium active rosin-based paste with organic activators.

Especially recommended for soldering heavily soiled or oxidized surfaces.

It is perfect for soldering tinned, copper, brass, nickel plated surfaces, whitening wire ends, etc.

In justified cases, paste residues may be removed with turpentine.

Technical data:

• Solder paste: CYNEL-1 40g
• Classification according to DIN: 8511 SW 26
• Pack size: 40g
• contains active flux 1.1.2.C according to PN EN 29454
• Quantity: 1 piece

ROSIN FLUX FOR SOFT SOLDERING

Cynel45g

Soldering rosin is the basic flux used in electronics. Made from pine resin.

Often used as a base for standard flux (25% solution in isopropyl alcohol).

Technical data:

• manufacturer: CYNEL
• Pack size: 45g
• Quantity: 1 piece

COPPER BRAID GOOTWICK 3,5mm/1,5m

The desoldering braid is made in the form of a copper strip composed of many individual braided copper strips. It is used to remove excess tin or clean paths from solder residues.

Technical data:

• material: copper
• Width: 3,5mm
• Length: 1,5m
• Quantity: 1 piece

PCB CLEANER KT-5 200ml ATOMIZER

CREATED FOR ELECTRONICS PROFESSIONAL PREPARATION

FOR CLEANING PRINTED CIRCUIT BOARDS FROM FLUXES AND PASTES

RIGHT AFTER THE SOLDERING PROCESS.

Product Features:

• liquid KT-5 quickly and effectively removes dirt resulting from the action of high temperature in soldering processes,
• immediately after soldering processes, when the cleaned surface is still warm (but not hot), cleaning is much faster, easier and more efficient than classic means for these applications. The preparation evaporates faster in such conditions leaving a clean printed circuit board,
• perfectly washes away rosin,
• removes all kinds of fluxes and pastes, both fresh and dried,
• in addition to printed circuit boards the agent cleans tools very well, i.e. tweezers, brushes, spatulas,
• the preparation is characterized by reduced aromaticity compared to other cleaning products,
• thanks to moderate evaporation, the liquid is very efficient, reduces cleaning costs,
• can be used in ultrasonic cleaners,
• safe for plastics,
• is not a substitute for isopropanol, but in many situations, especially immediately after soldering processes, significantly exceeds its properties,
• does not leave white raids, vaporizes completely, leaving no residue.

Capacity: 200ml (with atomizer)

Quantity: 1 piece

You need other soldering or service accessories - check out our other listings.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Power	75 W
Parametry	Product weight with unit packaging	0.1 kg
Parametry	Manufacturer code	Zestaw lutownica OSS TEAM T12-D+
Parametry	EAN (GTIN)	6949639127471
Parametry	Maximum operating temperature	450°C
Parametry	Brand	Reball
Parametry	Minimum operating temperature	150°C
Parametry	Model	T12-D+
Parametry	Supply voltage	230 V
Parametry	Device weight	0.34 kg
Parametry	Power supply	mains
Parametry	Kind	heater (resistance)
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
