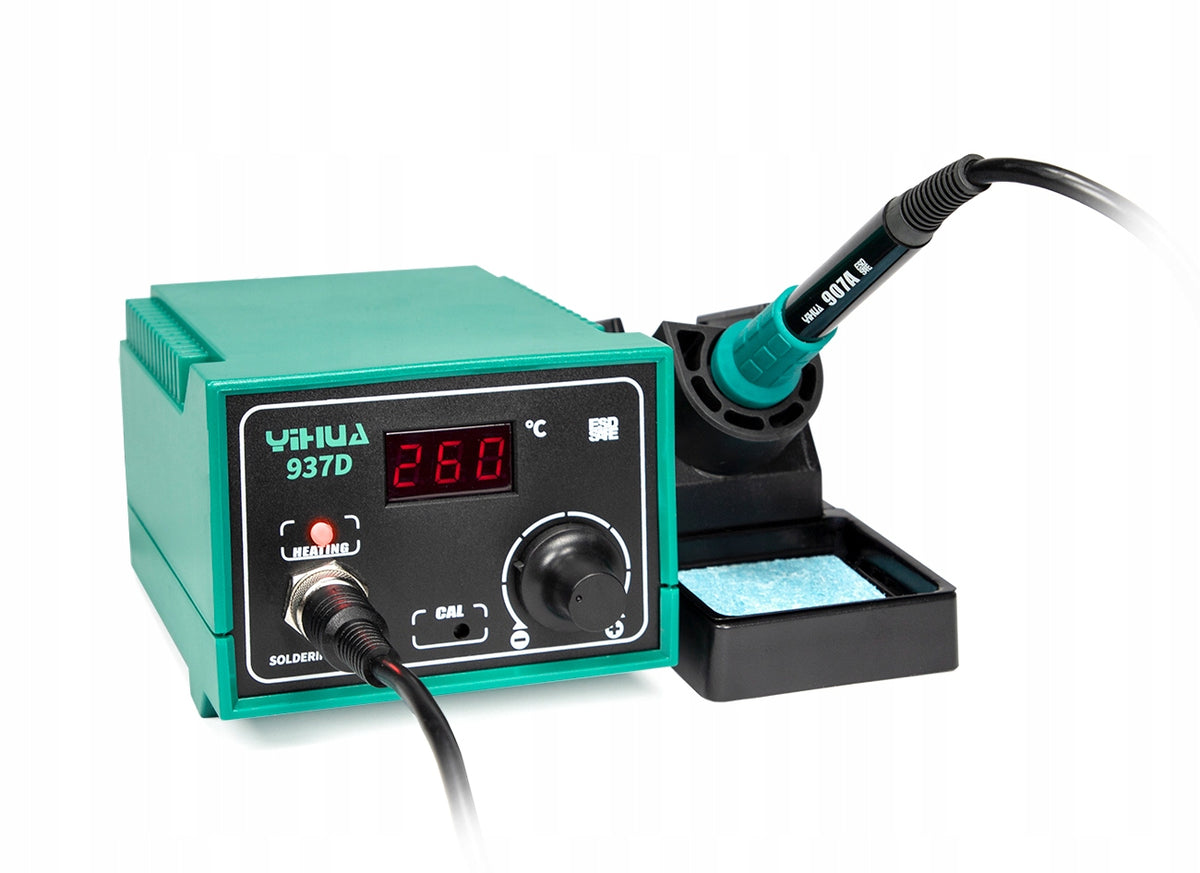

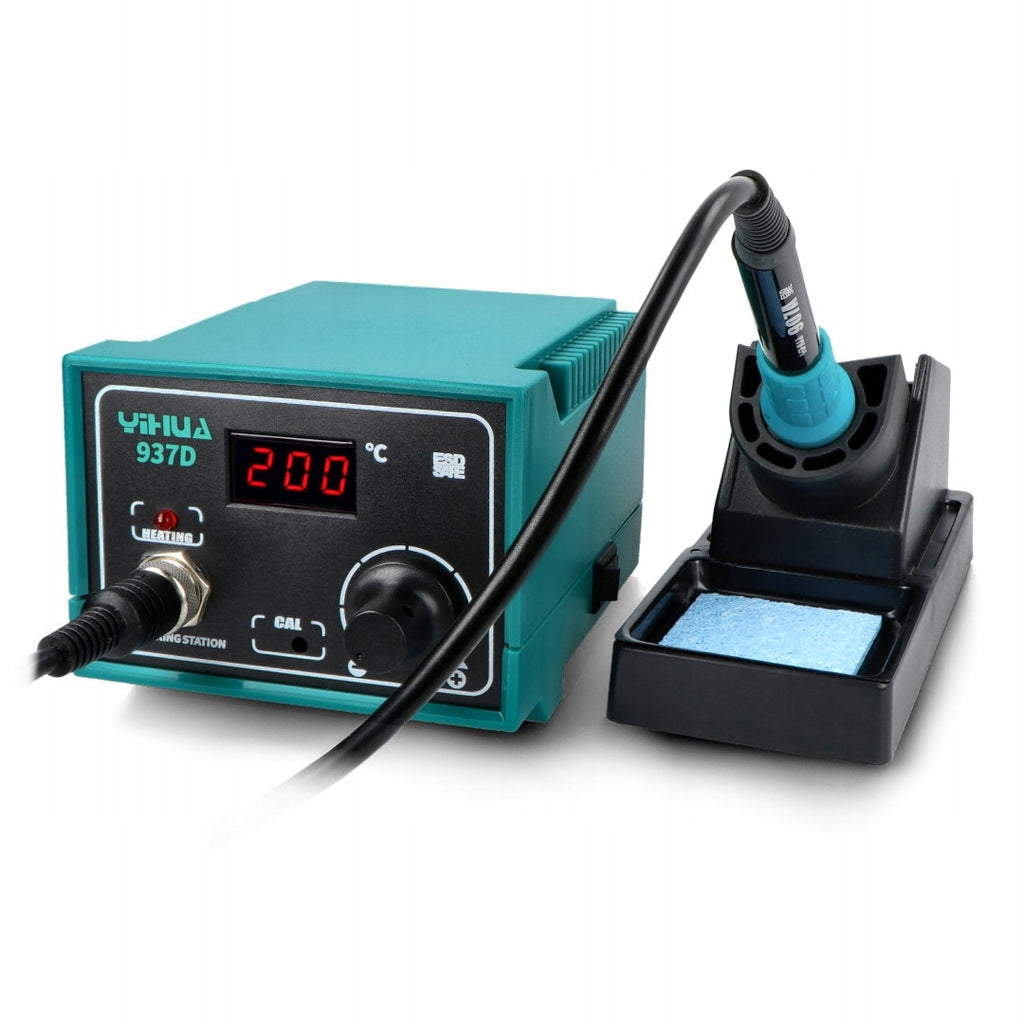

Litavimo stotelė Yihua 937D, 50W, 200–480°C, skaitmeninis LCD, 900M-T antgaliai

Trumpai apie prekę

Prekė: Litavimo stotelė Yihua 937D, 50W, 200–480°C, skaitmeninis LCD, 900M-T antgaliai. Kategorija: Lituokliai.

• Gamintojas: Yihua
• Modelis: 937D
• Galia: 50 W
• Įtampa: 220 V

Looking for a simple, compact, and precise soldering station to work with electronics? YIHUA 937D is a proven tool with a power of 50 W, designed for soldering SMD elements, working with PCB boards, repairing consumer electronics and everyday service and workshop tasks.

The temperature control range 200 – 480°C allows you to adjust the operating parameters to different types of solder connections, wires and components. The digital display makes it easy to control settings, while the ESD Safe system helps protect sensitive electronic systems from electrostatic discharge.

The station is equipped with a soldering stock Yihua 907A, which cooperates with the popular tips of the 900M-T series. This makes it easy to choose the right tip for your specific task, from precise soldering of small components to working with wires, connectors, and larger soldering fields.

Why is it worth it?

✔ Power 50 W – suitable for most precision soldering work in electronics.

✔ Temperature range 200 – 480°C – allows you to adjust the temperature to the type of soldered elements and tin used.

✔ The soldering wheel Yihua 907A – convenient to work with, works well for service repairs and soldering electronics.

✔ Compatibility with 900M-T tips – the popular tip series makes it easy to choose the tip for different applications.

✔ Grot included 900M-T-I – conical tip for precise service work and soldering of small elements.

✔ Digital display – allows convenient monitoring and temperature control.

✔ ESD Safe – protection against electrostatic discharges when working with sensitive components.

✔ Stable operating temperature – helps to achieve reproducible soldering effects.

✔ Compact dimensions – the station does not take up much space on the workstation.

✔ Quick and easy tip replacement – allows you to efficiently adjust the tool to the current task.

Application of YIHUA 937D station

Soldering station YIHUA 937D is suitable for:

➕ soldering of SMD components,

➕ work with PCBs,

➕ repairs of consumer electronics,

➕ service of electronic devices,

➕ soldering wires, connectors and small components,

➕ replacement of sockets, pins, switches and THT elements,

➕ modeling and hobby work,

➕ DIY projects,

➕ learning soldering,

➕ daily workshop work.

The 937D is well suited for precise repairs where temperature control and comfortable handling of the flask are important. It can be used for soldering resistors, capacitors, transistors, microelements, wires, connectors and other components used in electronics.

Yihua 907A flask and 900M-T grottoes

The station cooperates with the Yihua 907A soldering stock, which supports the popular 900M-T series tips. This is a big advantage, because grottoes of this type are easily accessible and come in many shapes.

You can choose a tip for a specific application, such as:

➕ conical tip for precise soldering points,

➕ chisel tip for wires and larger soldering fields,

➕ miniwave tip for faster soldering of selected SMD components,

➕ angled tip for universal service work.

The set includes a cone tip 900M-T-I, which works well for accurate work with electronics and small components.

❗ Technical specification

• Power supply: AC 220 V, 50 – 60 Hz
• Power: 50 W
• Temperature range: 200 – 480°C
• Soldering wheel: Yihua 907A
• Compatible tips: series 900M-T
• Grot included: 900M-T-I, conical
• Potential between tip and ground: < 2 mV
• Resistance between tip and ground: < 2 Ω
• Dimensions: 120 × 93 × 170 mm
• Weight: 1,60 kg
• Protection system: ESD Safe
• Display: digital
• Purpose: soldering electronics, SMD, PCB, service work

The set includes:

• soldering station YIHUA 937D
• soldering flask Yihua 907A
• mounted conical tip 900M-T-I
• soldering iron stand
• instruction manual

YIHUA 937D – compact station for precision soldering

YIHUA 937D is a practical choice for people who need a soldering station for everyday work with electronics. The device combines simple operation, temperature control and compact design, making it suitable for service stations, electronics workshops and home projects.

Temperature range up to 480°C allows you to work with different materials and types of solder joints. The digital display makes it easy to control settings, and the ESD Safe system increases safety when working with delicate components.

A big advantage is compatibility with 900M-T tips. It is a popular standard that allows you to easily expand the set with additional tips and adjust the station to your own style of work. In practice, this means greater versatility – one station can be used both for precise soldering of small elements, as well as for simpler work with wires or connectors.

✨ YIHUA 937D – precise soldering in service, workshop and home ✨

Choose the YIHUA 937D if you need a compact soldering station with digital temperature control, ESD protection, Yihua 907A stock and easily accessible 900M-T series tips.

Symbol: 00020411
