Lituoklis SET Smart Pinecil V2 su menu, lydmetaliu, stovu ir kempinėle

Trumpai apie prekę

Prekė: Lituoklis SET Smart Pinecil V2 su menu, lydmetaliu, stovu ir kempinėle. Kategorija: Lituokliai.

• Gamintojas: Pine64
• Modelis: Pinecil V2 + Podstawką + Cyna
• Galia: 88 W
• Įtampa: 24 V

Pinecil V2 is a smart, mini portable soldering iron with a 32-bit RISC-V SoC processor, featuring a sleek design, automatic standby function and heating up to operating temperature in just 6 seconds!

It is ideal for field work by being able to connect it via USB-C to a powerbank, laptop or smartphone charger!

Thanks to this, it will work great when soldering:

• Home Electronics
• Drones
• Integrated circuit boards
• Telecommunications equipment
• LED strips

The main advantages of Pinecil V2:

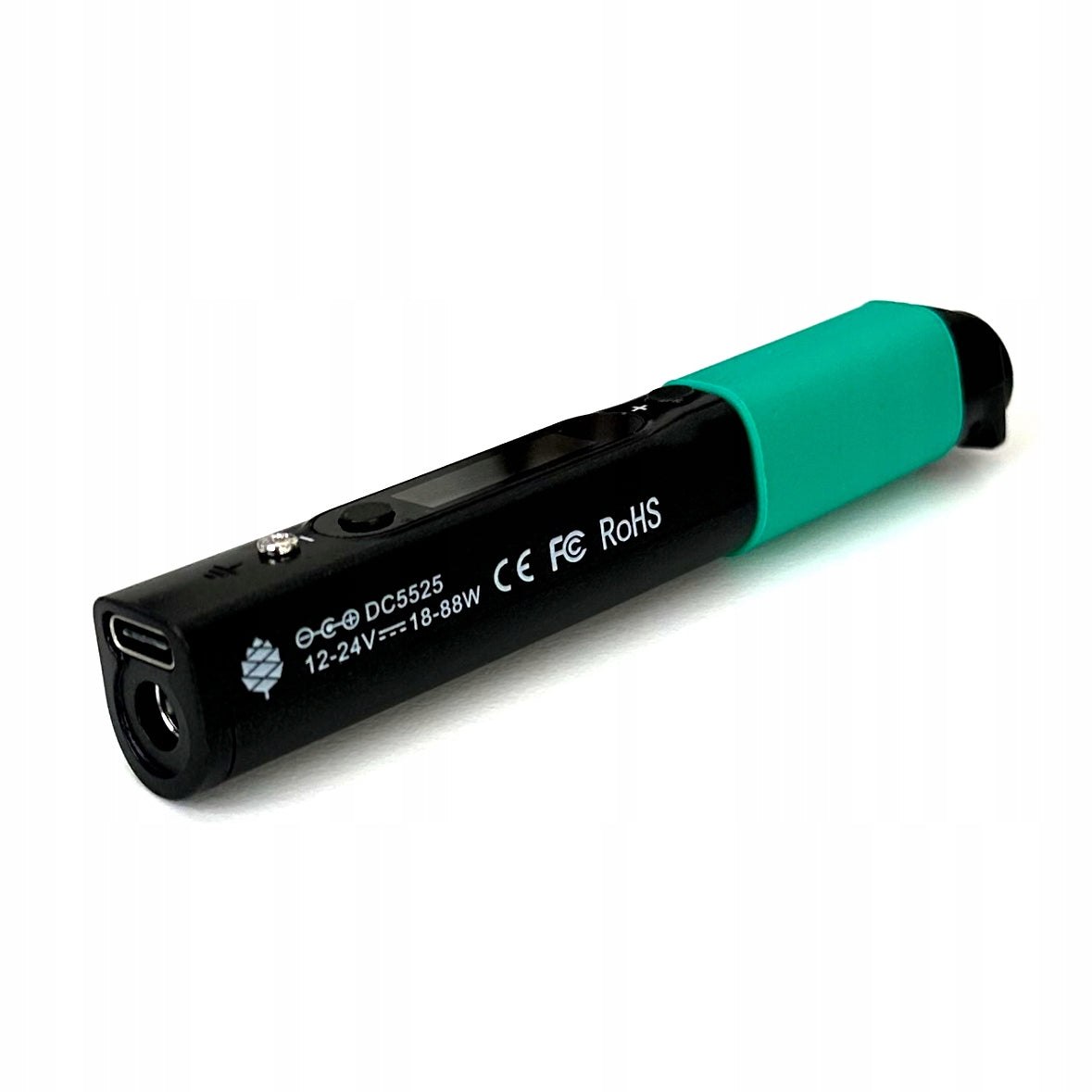

• Dual power input design: USB-C and DC DC5525 socket.
• Fast heating: The soldering iron reaches its operating temperature in 6 seconds.
• Support fast top-up function on demand.
• Adjustable temperature, which can be set from 100°C to 400°C using the control buttons.
• Easy-to-read OLED display available from the menu in Polish.
• The automatic standby mode turns on when not in use, ensuring the safety of the user.

The slim design of the soldering iron includes SAE 304 stainless steel core placed inside a polycarbonate housing.

Soldering iron specification:

• System: IronOS
• Chipset: Bouffalo BL-706
• CPU : 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz
• Display: OLED 0.69 inches 96 x 16pixels
• Dimensions: 103mm x 12.8mm x 16.2mm
• Dimensions with tip: 155mx 12.88mm x 16.2mm
• Power supply: USB-C / DC5525, 12V-24V DC 3A
• Weight: 80g

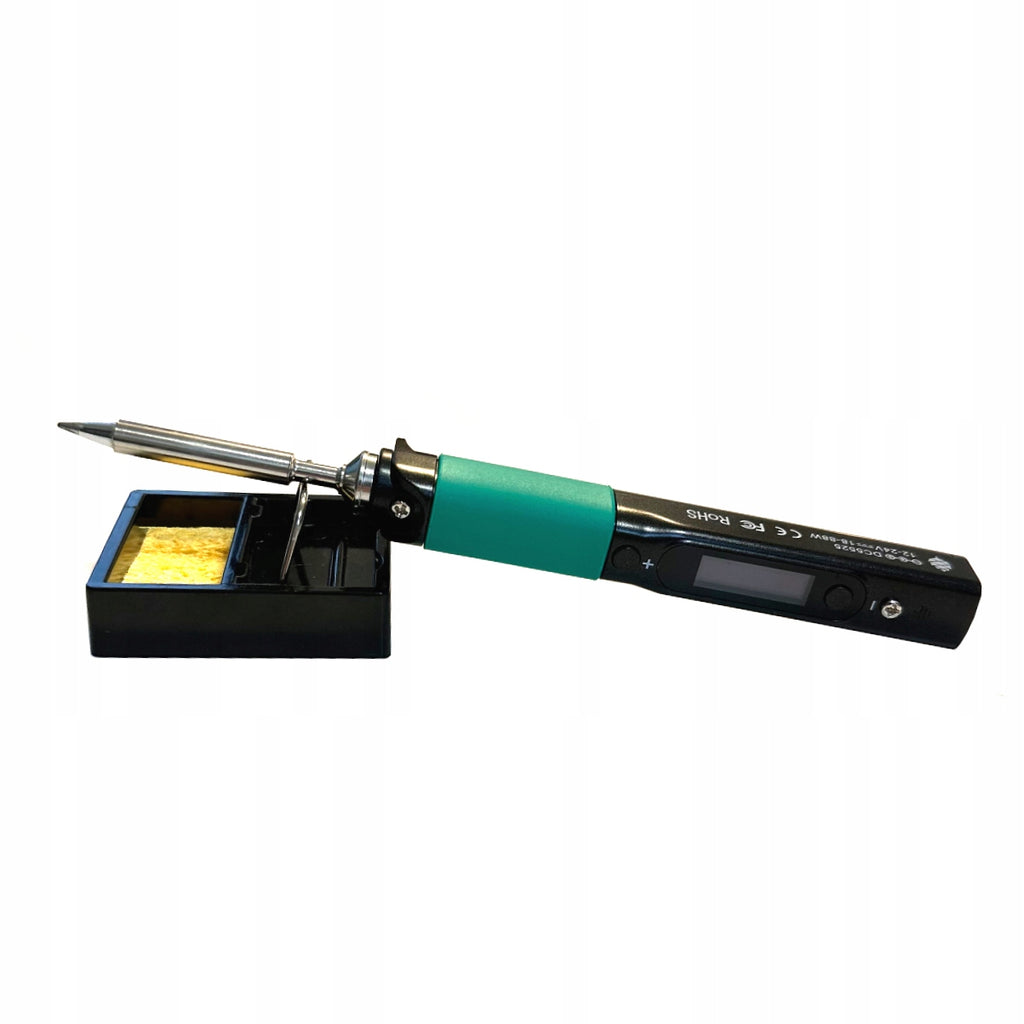

• Soldering iron stand:

Soldering iron stand made of high strength plastic with a base length of 47mm / width of 40mm and a metal handle, allows you to keep the soldering iron stable during its operation

• Small sponge

Work with a soldering iron should necessarily be done with a water soaked sponge, this will allow you to clean the tip from excess tin and greatly facilitate the work, and the soaked sponge can be safely laid in the stand.

• Tin with rosin

Packed in a 15g vial, the Sn60Pb40 solder binder with a diameter of 1,0mm and a weight of 15g allows you to work with a soldering iron, and its melting point is 183-190C

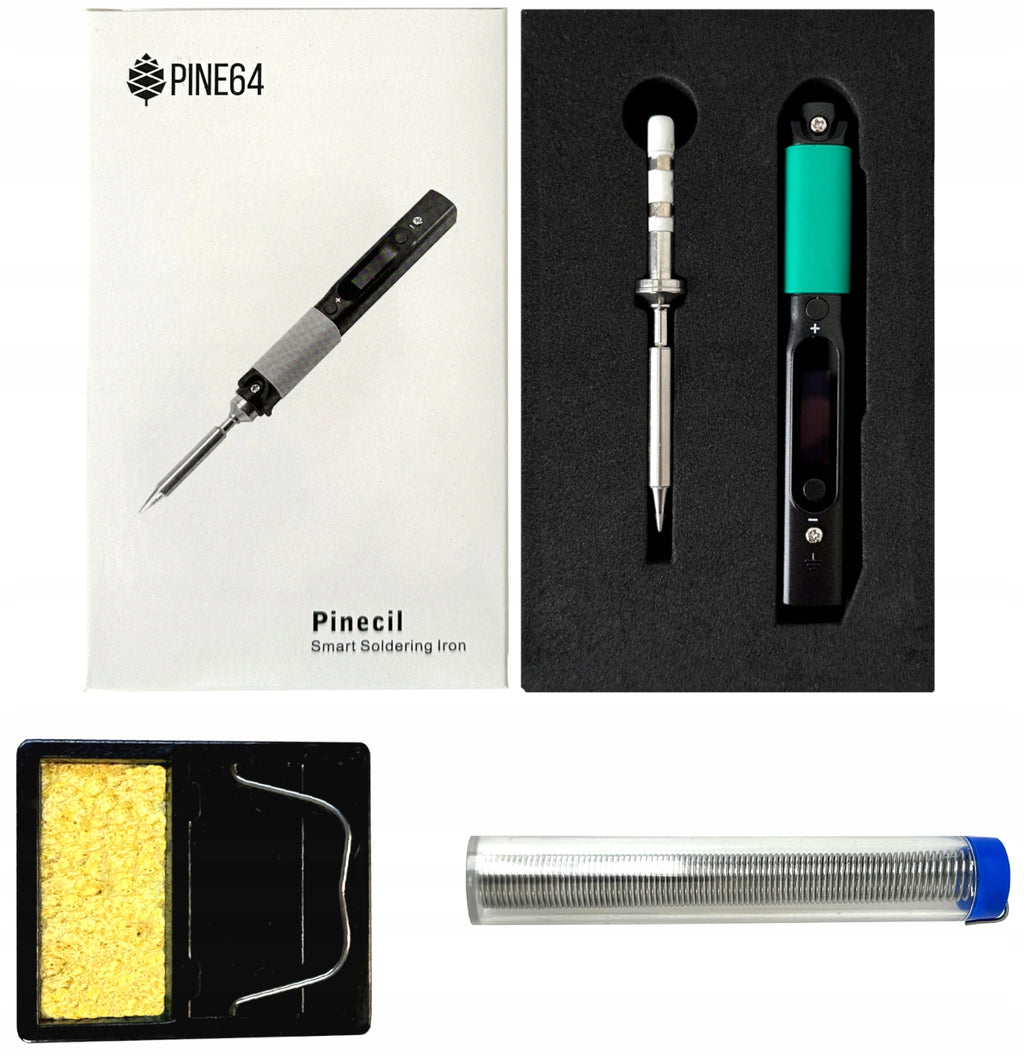

The original box, and inside it:

✅ Pinecil V2

✅ ST-B2 soldering tip

✅ Tin 15g

✅ Sponge

✅ Universal stand

The kit does not include a power cable. In our other offers you will find this product with a set of additional accessories (including USB-C)
