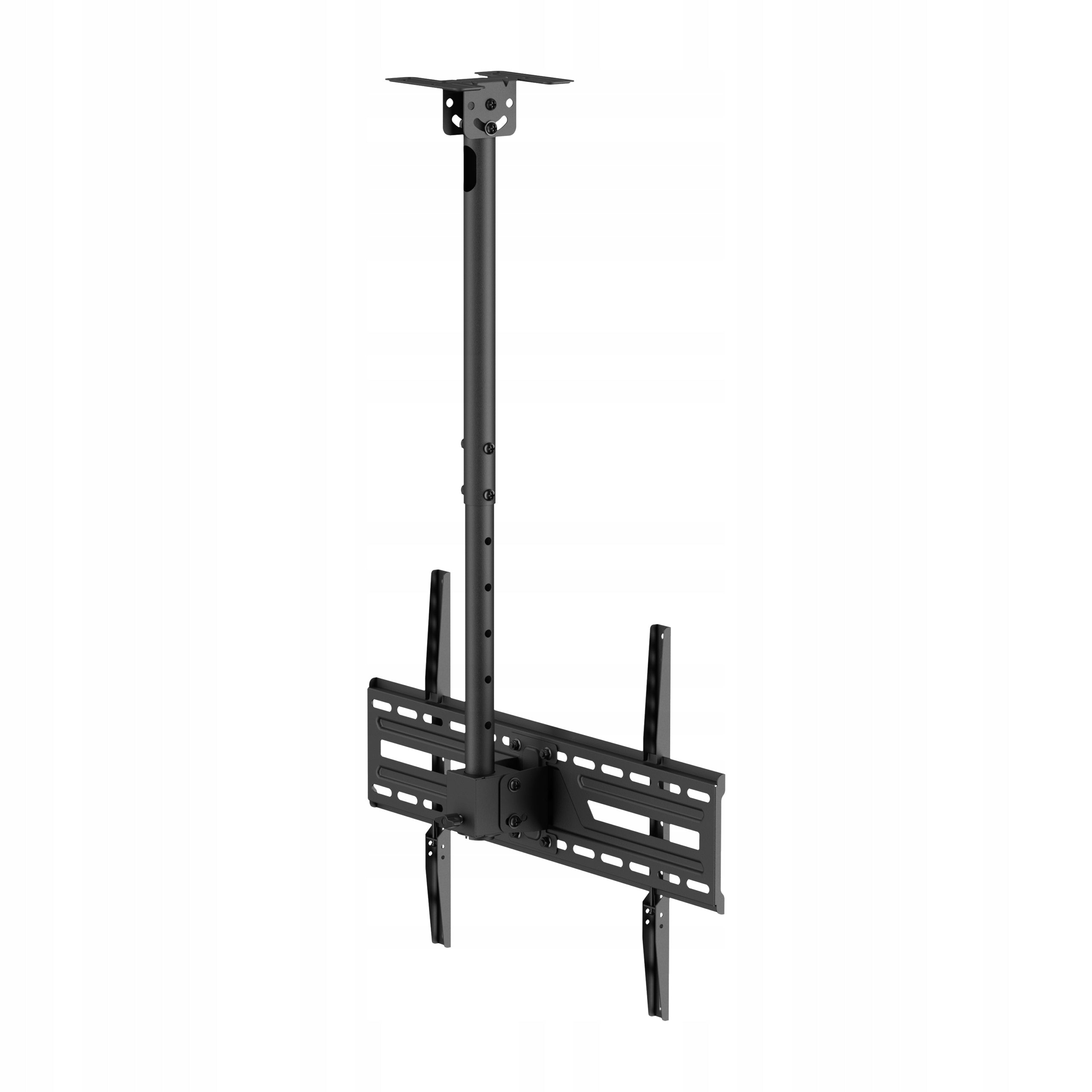

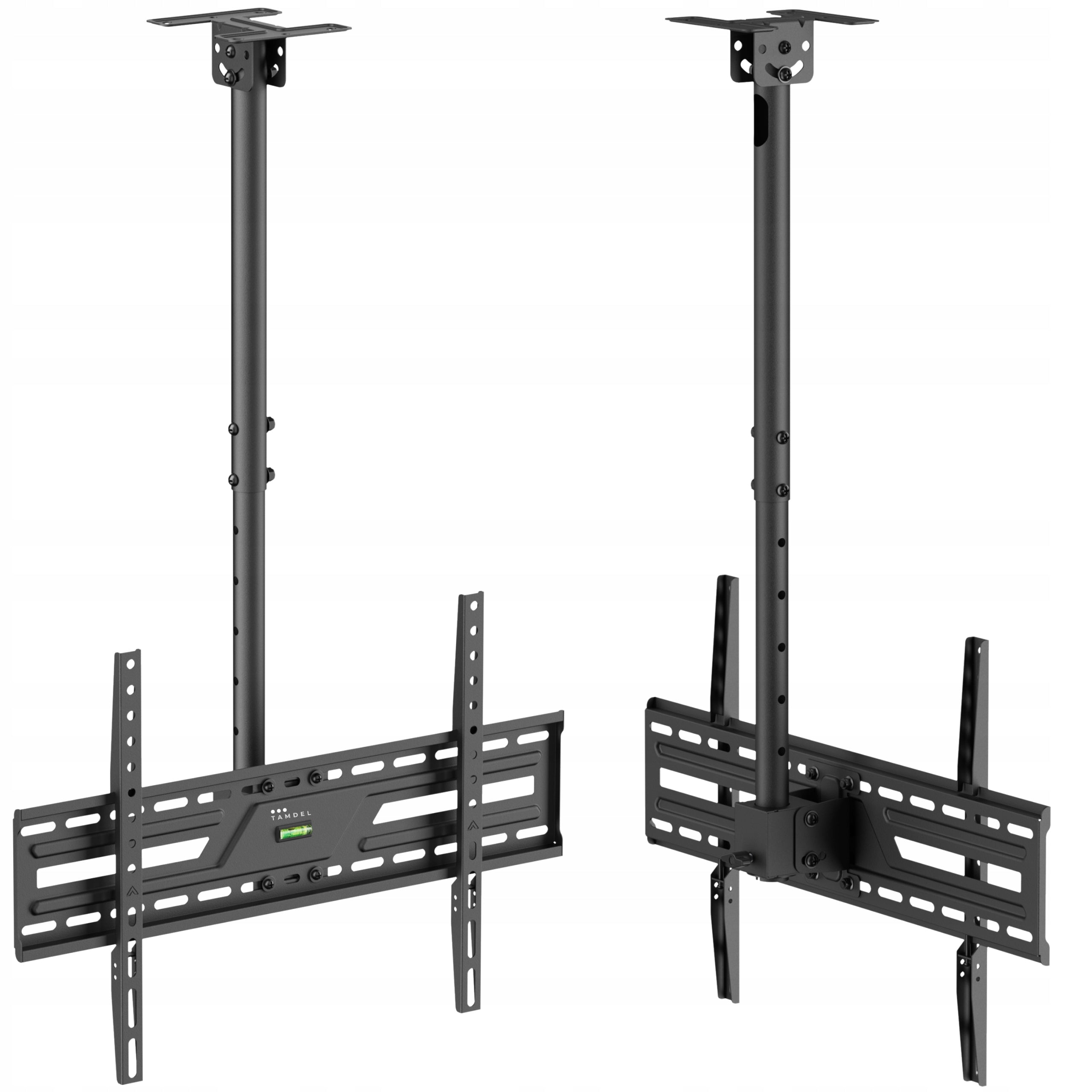

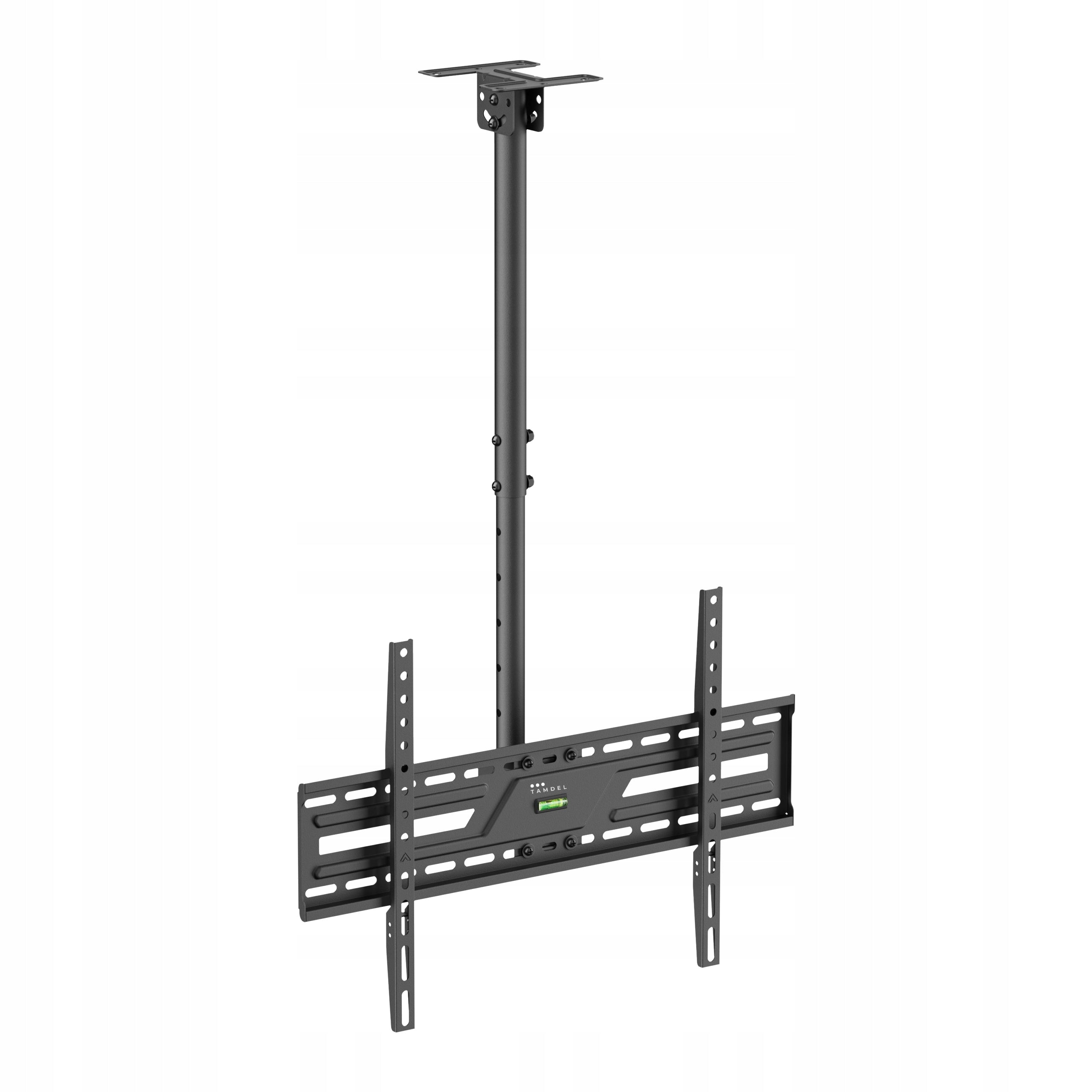

Lubinis TV laikiklis 37–86" reguliuojamas, universalus, VESA, 50 kg

Trumpai apie prekę

Prekė: Lubinis TV laikiklis 37–86" reguliuojamas, universalus, VESA, 50 kg. Kategorija: Rankenos.

• Gamintojas: TAMDEL
• Modelis: ETX-SUF2

🏗 PROFESSIONAL CEILING MOUNT TAMDEL – WATCH WITHOUT RESTRICTIONS Are you looking for a solution for a living room with a high ceiling, an attic bedroom or a commercial premises? The TAMDEL ceiling mount is a powerful steel construction designed for the largest screens (up to 86 inches! ), which combines extreme strength with full freedom of adjustment.

✅ KEY FEATURES AND BENEFITS:

• 📏 TELESCOPIC HEIGHT ADJUSTMENT – Change the height of the TV suspension in the range from 52,7 cm to 77,7 cm. This allows the screen to be perfectly adjusted to the level of vision, regardless of the ceiling height.
• 📐 IDEAL FOR BEVELS AND ATTIC – The movable mounting plate allows installation not only on flat ceilings, but also on sloping ceilings and structural beams. This is the only solution for difficult arrangements.
• 🔄 FULL 3D ADJUSTMENT – Rotate the TV 180° and tilt it in the range of 0° / -25°. Now one TV can serve several zones in the room, and you will eliminate bothersome glare of light.
• 🔌 CABLE MASKING SYSTEM – Hide all wires inside the support pipe. Your installation will look neat and professional, without hanging cables – this is crucial in restaurants, offices and modern living rooms.
• ✅ SAFETY LOCK – The mechanical safety screw system permanently integrates the TV arms into the column. You can be 100% sure that the screen will not slide out of the guides even during intensive adjustment.

⚙ TECHNICAL SPECIFICATION:

• 📏 TV diagonal: 37" – 86" inches
• ⚖ Maximum load: up to 50 kg
• ↔ Height adjustment: 527 – 777 mm
• 📐 Tilt adjustment: 0° / -25°
• 🔄 Rotation: 180°
• 🎯 Leveling: +2° / -2° (allows for perfect screen alignment after installation)
• 🔧 VESA Standard: from 50x50 up to 600x400 mm (Supports: 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 500x300, 400x400, 600x300, 500x400, 600x400) ✅ Fully compatible with 99% of TVs on the market.

• 🎨 Material and colour: Cold rolled steel, powder coated, black

🔄 FULL 3D ADJUSTMENT – SCREEN TAILORED TO YOU

The TAMDEL ceiling mount is a precision tool that allows you to perfectly position the image regardless of the architecture of the room. Thanks to the telescopic design, you can change the height of the TV suspension to suit the eye level of people sitting on the couch or standing at the bar. The smooth tilt function up to -25° allows you to completely eliminate glare from windows or lamps, and the full 180° rotation means that one TV can serve several zones in the room (e.g. living room and kitchen). What’s more, the built-in micro-leveling function (+/- 2°) is your “fuse” – if the ceiling turns out to be uneven after drilling holes, you can adjust the position of the screen to the perfect level in a few seconds without having to drill again.

📏 HEIGHT ADJUSTMENT – SCREEN WHERE YOU NEED IT

Forget about compromises. The TAMDEL ceiling mount is equipped with height adjustment ranging from 52,7 cm to 77,7 cm. Such a wide range of settings makes it an extremely versatile solution: in high lofts or commercial premises, it allows you to lower the screen to the level of customers' eyesight, while in bedrooms it allows you to discreetly suspend the TV closer to the ceiling, saving valuable space. The robust telescopic tube locking system ensures that once set, the height remains constant, ensuring complete safety even with the heaviest TVs weighing up to 50 kg.

📐 UNLIMITED INSTALLATION – IDEAL FOR BEVELS AND ATTICS

The architecture of your home does not have to limit your entertainment. The TAMDEL ceiling mount is equipped with a moving mounting plate, which easily adapts to the angle of inclination of the ground. This means that you can safely install it not only on flat concrete ceilings, but also on attic bevels, mezzanines or sloping structural beams. It is an ideal solution for modern lofts and bedrooms, where traditional wall mounting is impossible. The sturdy steel base ensures that no matter the angle of the ceiling, your TV will hang securely and stably.

🔌 INTEGRATED CABLE MASKING SYSTEM – AESTHETICS WITHOUT COMPROMISE

Nothing spoils the effect of a modern interior like a tangle of hanging wires under the ceiling. When designing the TAMDEL ceiling mount, we focused on maximum aesthetics – the main support column also acts as a spacious cable channel. This allows you to hide all cables (HDMI, power supply or antenna) inside the structure, releasing them directly at the TV sockets. Thanks to this, your installation looks clean, neat and professional, which is crucial not only in the home living room, but also in offices, restaurants or conference rooms, where every visual detail counts.

✅ MECHANICAL SAFETY LOCK – CONFIDENCE OVER YOUR HEAD

Ceiling installation requires the highest level of trust in the equipment. The TAMDEL mount is equipped with a special system of security screws that permanently merge the TV rails with the ceiling column. This solution eliminates the risk of accidentally sliding the screen out of the guides – even during intensive adjustment of the angle of inclination or full rotation by 180°. With this mechanical lock, you can be sure that your TV will stay in place no matter the situation, which is crucial both in your home bedroom and in public spaces such as offices, restaurants, or lecture halls.

📦 SET CONTENTS – COMPLETE MOUNTING SYSTEM

We have made sure that you can start assembly as soon as you receive your package. In the package you will find all the key elements:

• ✅ Solid ceiling mount TAMDEL – telescopic column with mounting plate (flat/slant).
• ✅ Ceiling mounting kit – strong dowels and screws designed for stable mounting of the handle in concrete or full brick.
• ✅ Package for fixing the TV:

  Set of universal screws (m.in.

  M6, M8) suitable for most modern receivers.

  A set of safety pads.

  Mounting distances – necessary for TVs with curved back (Curved) or deep sockets.

• ✅ Clear User Manual – simple steps to guide you through the installation process.

⚠ IMPORTANT INFORMATION ABOUT MOUNTING SCREWS

Our accessory kit has been completed to fit 99% of TV models available on the market.

However, it is worth knowing that some manufacturers (e.g. Select Samsung series or specific models with very deep VESA sockets) use custom threads or require extremely long screws. Due to the huge number of standards in the world, in these rare cases it may be necessary to purchase dedicated screws on your own.

Don't worry! These are standard metal elements that you can easily choose in any building market (cost of several zlotys), and the TAMDEL handle itself remains a fully compatible, universal mounting base for them.

⚠ IMPORTANT SAFETY INFORMATION

Due to the high lever force, the handle must be mounted only on solid structures (reinforced concrete, full brick, solid wooden beams).

Suspended gutters (G-K): Installation directly to the plasterboard itself is prohibited. In this case, screw the handle directly to the ceiling above the plate.

ℹ FAQ – FREQUENTLY ASKED QUESTIONS AND ANSWERS

1. Is this mount really a good fit for my TV? The TAMDEL holder is universal and fits most 37-86 inch receivers. To be 100% sure, check two parameters of your TV:

• Weight: must not exceed 50 kg.
• Standard VESA: The mounting hole spacing on the rear of the TV must be between 50x50 mm and 600x400 mm.

2. I have a house with an attic – can I mount the handle on a bevel? Yes! This is one of the biggest advantages of this model. The ceiling plate has an adjustable joint, which allows for installation at an angle. Thanks to this, the handle is ideal for attics, mezzanines and rooms with an inclined ceiling.

3. Are all mounting screws included? The set includes a complete, standard set of screws that fit 99% of TVs on the market.

• 💡 Good to know: In very rare cases (e.g. Specific Samsung models with extremely deep sockets), factory screws may turn out to be too short. In this situation, it is enough to buy dedicated screws in every construction market (this is the cost of several zlotys), and the handle itself remains a fully compatible base for them.

4. I have a suspended ceiling made of G-K panels – is the installation safe? Due to the weight of the TV and the strength of the lever, we do not recommend mounting only to drywall. In this case, the handle should be screwed directly to the concrete ceiling (through a hole in the slab).

5. How to hide cables so that they do not hang from the ceiling? The holder has an integrated cable masking system. The ceiling column is empty inside, which allows you to carry wires (power supply, HDMI, antenna) inside the pipe. Cables come out aesthetically directly at the TV and at the ceiling.

ℹ DIMENSIONS
