Magnetinė gręžimo mašina BOSCH GBM 50-2, 1200 W

Trumpai apie prekę

Prekė: Magnetinė gręžimo mašina BOSCH GBM 50-2, 1200 W. Kategorija: Gręžimo staklės.

• Gamintojas: Bosch
• Modelis: 06011B4020
• Galia: over 851 W

The equipment of the offered magnetic drill includes:

• drill bit adapter
• two hex keys (3 mm and 4 mm)
• punch for MT 2 drills
• reduction sleeve (MT 2 / MT 1)
• guide pin
• safety belt
• coolant tank with handle
• plastic suitcase

technical parameters :

• Motor Power: 1200W
• No load speed (1 gear): 50-250 rpm /min
• No load speed (2nd gear): 100-510 rpm /min
• max . drilling diameter with a drill: 23 mm
• max . drill bit diameter: 50 mm
• max . tap size: M16
• max . drill stroke: 165 mm
• Magnet force: 14 kN
• Toolholder thread: MT 2 / DIN 228
• Base dimensions (length. x width ): 200x98mm
• Device dimensions (length x width x height ): 196x274x444mm
• Weight: 14.7 kg

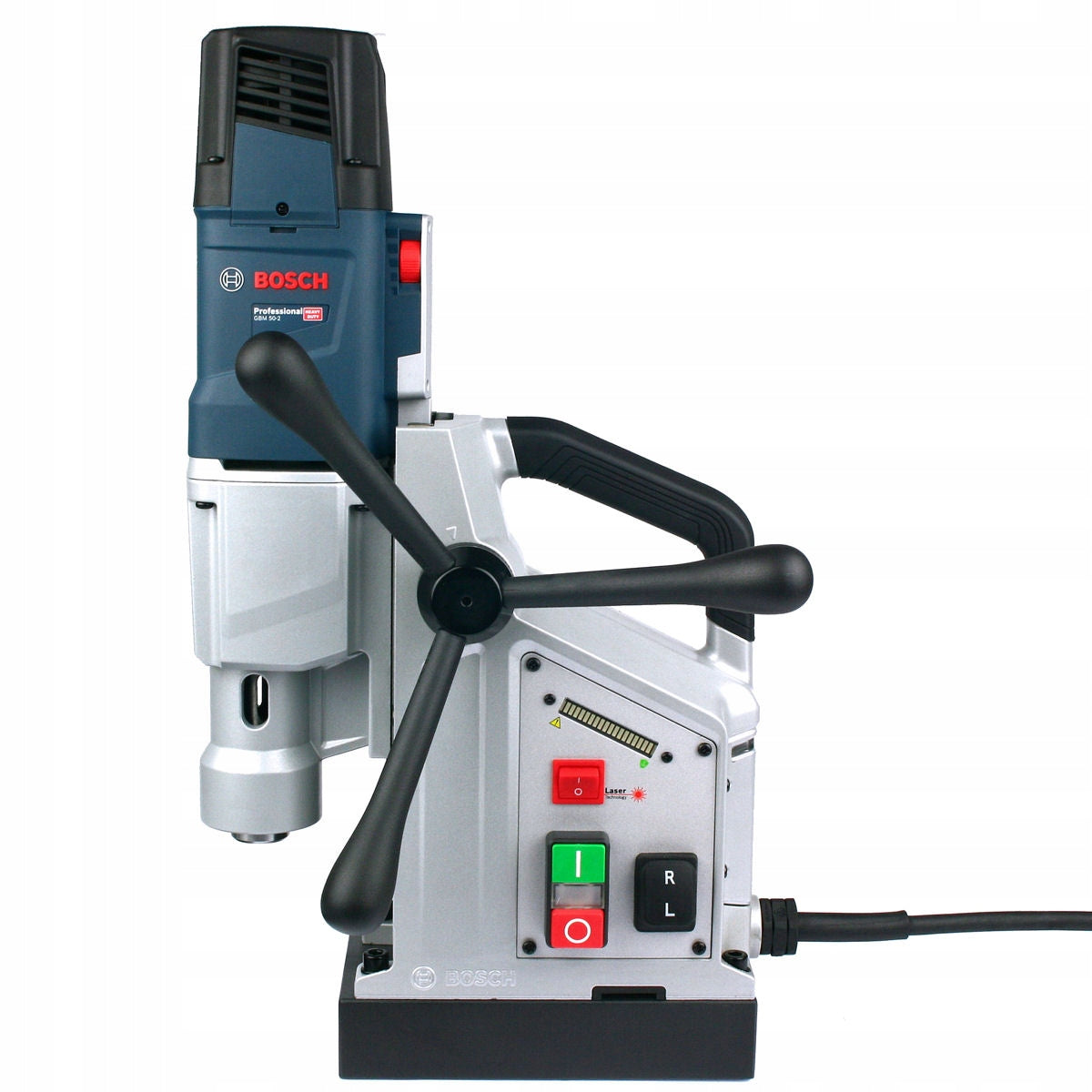

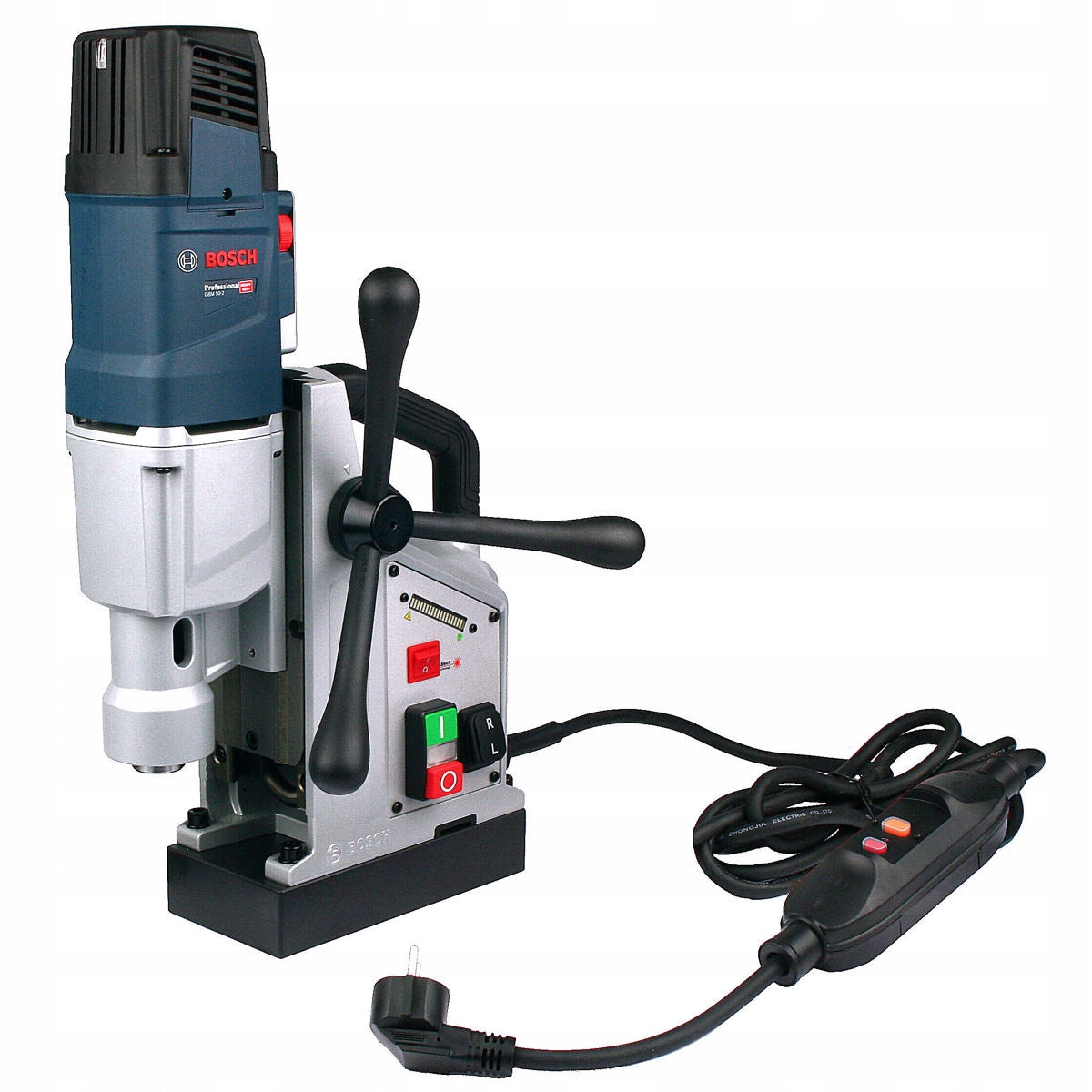

The GBM 50-2 magnetic drilling machine is a versatile and extremely precise tool that allows you to drill, thread and countersink holes in metal in the range from 1.5 mm to 50 mm using drills, core bits or taps.

Efficient 1200W motor for drilling in steel with a maximum diameter of 50 mm ensures comfort of use and durability of the device

The foot with an electromagnet guarantees precision and stability of the tool (the minimum thickness of the structural element for its installation is 20mm)

The very high magnetic force (14 kilonewtons) allows optimal support during drilling

The built-in laser pointer enables easy and quick target tracking, which affects the comfort of work

PROtection switch with power cut-off system ensures safe operation by turning off the tool when the switch is released, thus preventing the risk of electric shock

The intelligent HMI system uses the display to inform about overload and the need to replace the brushes, thus facilitating the long life of the tool

The plastic suitcase guarantees easy and safe transport and facilitates the storage of the tool, it is resistant to any mechanical damage, in addition, the suitcase has specially profiled places for additional accessories, thanks to which none of the equipment elements moves during transport.

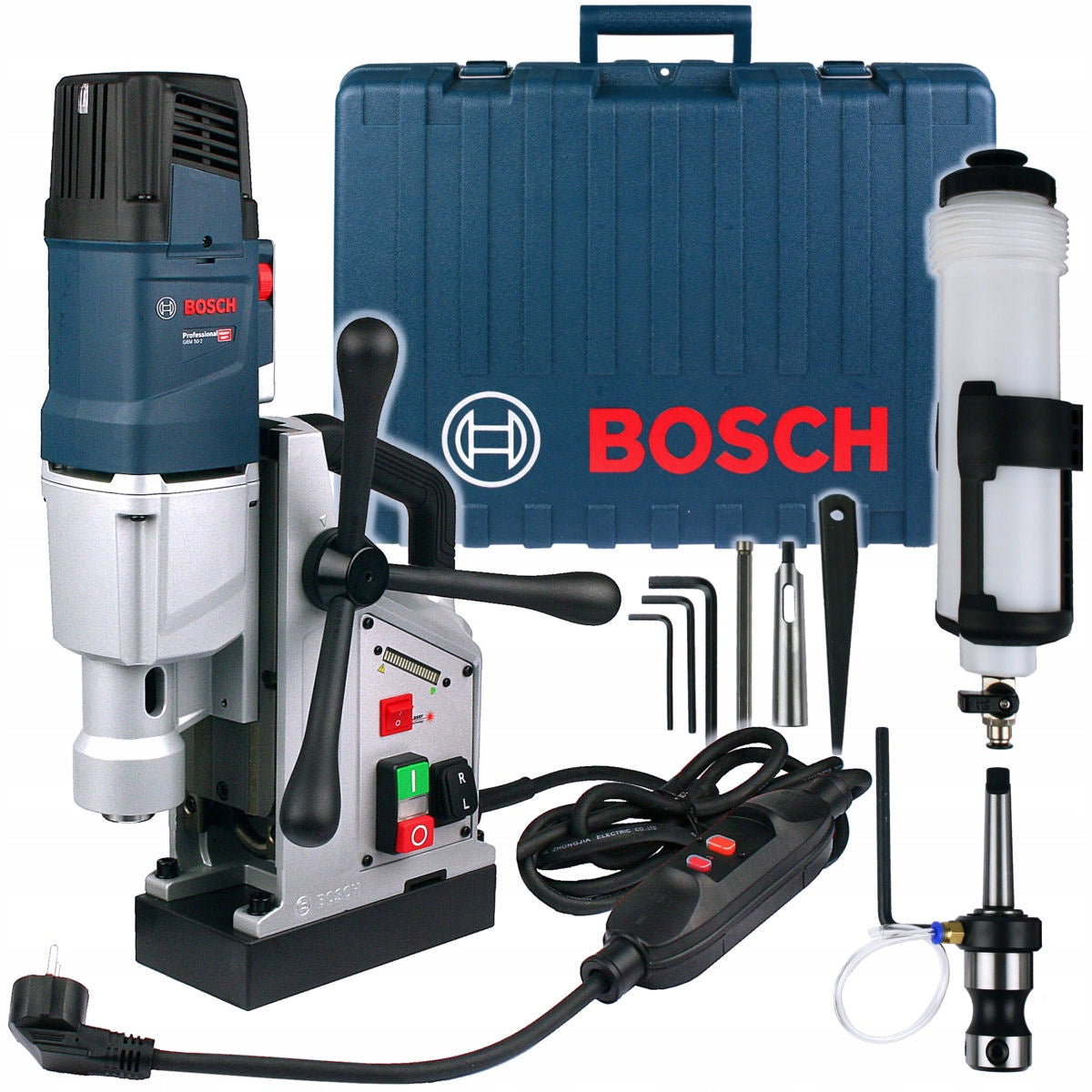

Delivery includes:

• BOSCH magnetic drilling machine
• Core bit adapter
• Two hex keys (3mm and 4mm)
• Drill punch MT 2
• Reducing sleeve (MT 2 / MT 1)
• Guide pin
• Safety belt
• Coolant tank with handle
• A plastic suitcase
• User manual in Polish
