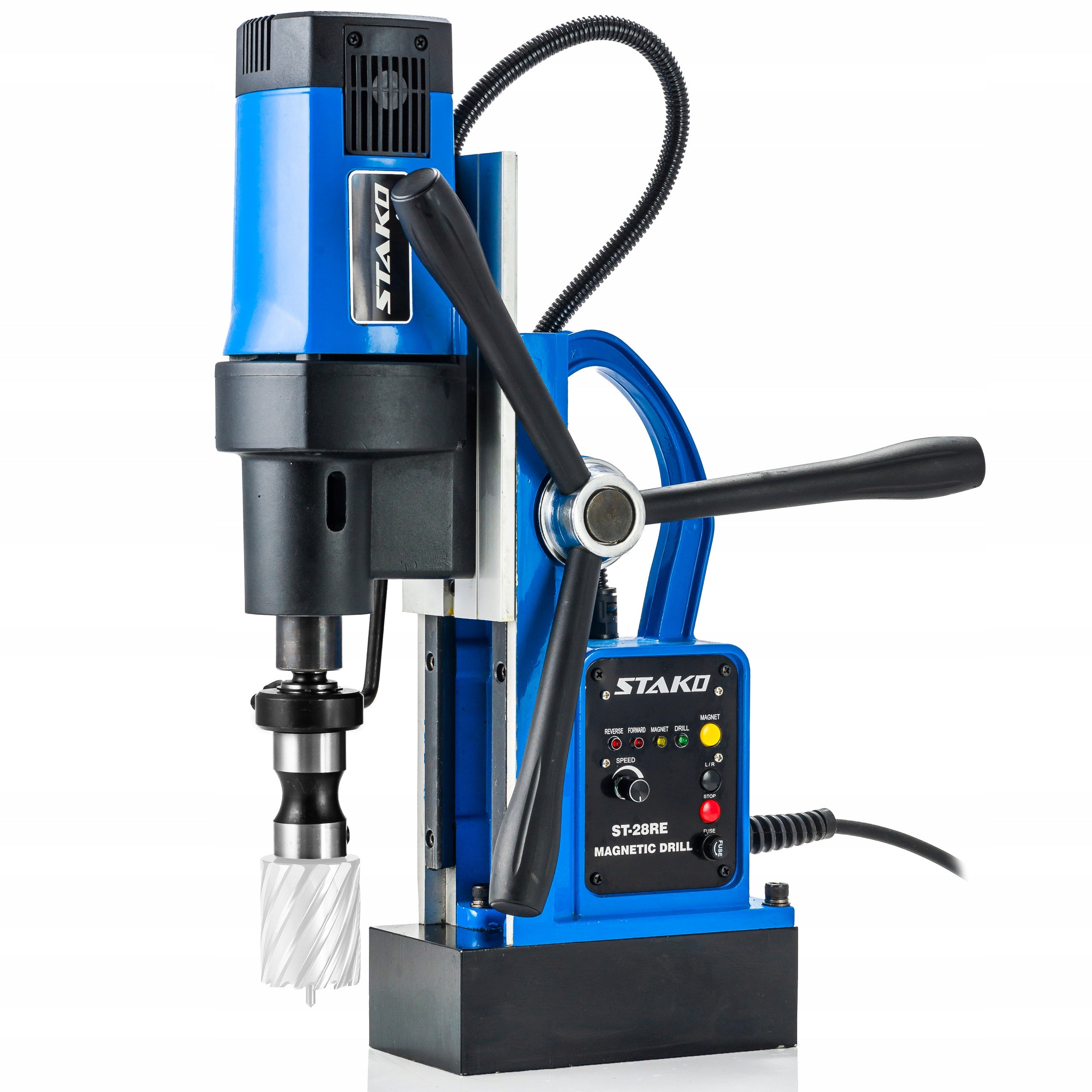

Magnetinė gręžimo mašina STAKO MT3, 80 mm

Trumpai apie prekę

Prekė: Magnetinė gręžimo mašina STAKO MT3, 80 mm. Kategorija: Gręžimo staklės.

• Gamintojas: Stako
• Modelis: ST-28RE Zest-2
• Galia: over 851 W

* Includes No. 2 of:

1. Drill chuck WELDON 19 mm ¾" (for trepanation / core cutters)

2. Borkop 3 – 16 mm drill chuck (for cylindrical drill bits)

• Engine power: 1980 Watt
• Power supply: 230 V / 50-60 Hz
• Threading option:YES (left/right rotation)
• Threading range: 3 - 22 mm
• Soft start (soft start): YES
• Tool holder: Conical spindle MT3
• Adjustable rotation speed: YES (0 - 550 rpm /min.)
• Max. Ø drilling (full): 28 mm
• Max. Ø drilling (tube): 80 mm
• Working stroke: 205 mm
• Magnetic force: 17000 N (1700 kg)
• Height (Min. / Max. ): 37,5 / 57 cm
• Magnetic foot dimensions: 200 / 105 mm
• Net weight: 20 kg

Ladies and gentlemen,

We are pleased to inform you that by choosing our magnetic drill, as part of the current promotion you will receive free extras! We are currently joining every purchase:

• HSS trepanation cutter with a diameter of your choice: from 12 mm to 20 mm (with a working length of 30 mm),
• Centering pilot.

Please indicate the selected cutter diameter in the message to the seller. In the absence of information, the cutter will be sent in a randomly selected size.

Thank you for your trust and we wish you complete satisfaction with your purchase!

• ✅ High quality and robust construction
• ✅ Multifunctionality – for core drilling, full drilling and threading
• ✅ Wide range of drilled holes - max. fi 80 mm
• ✅ High power - 1980 Watt and at the same time gentle start (soft start)
• ✅ Smooth speed control from 0 to 550 revolutions per minute

Our magnetic drill is a guarantee of increasing the efficiency and precision of the holes, avoiding mistakes and damage to the material that can occur during classic manual drilling. Moreover, it makes the drilling process much faster, which translates into saving time and resources.

This type of equipment is an alternative to table machines, is characterized by much lower weight, greater mobility and comfort of work, while maintaining sufficiently high technical parameters, including engine power.

The drill control panel is designed to allow for easy and intuitive control of the device, while also ensuring safety and efficiency.

Smooth speed control in the range from 0 to 550 revolutions per minute does not burden the motor, which extends its service life and is useful when working with different drill diameters and during threading.

The device has protection against automatic restart s in the event that the work is interrupted due to power failure.

The double coil magnet, which generates a magnetic field with a high attraction force of 17000 N (1700 kg), enables safe horizontal, vertical and above-the-head operation, ensures stability and confidence in attaching the drill to the metal surface and enables precise and efficient drilling of holes.

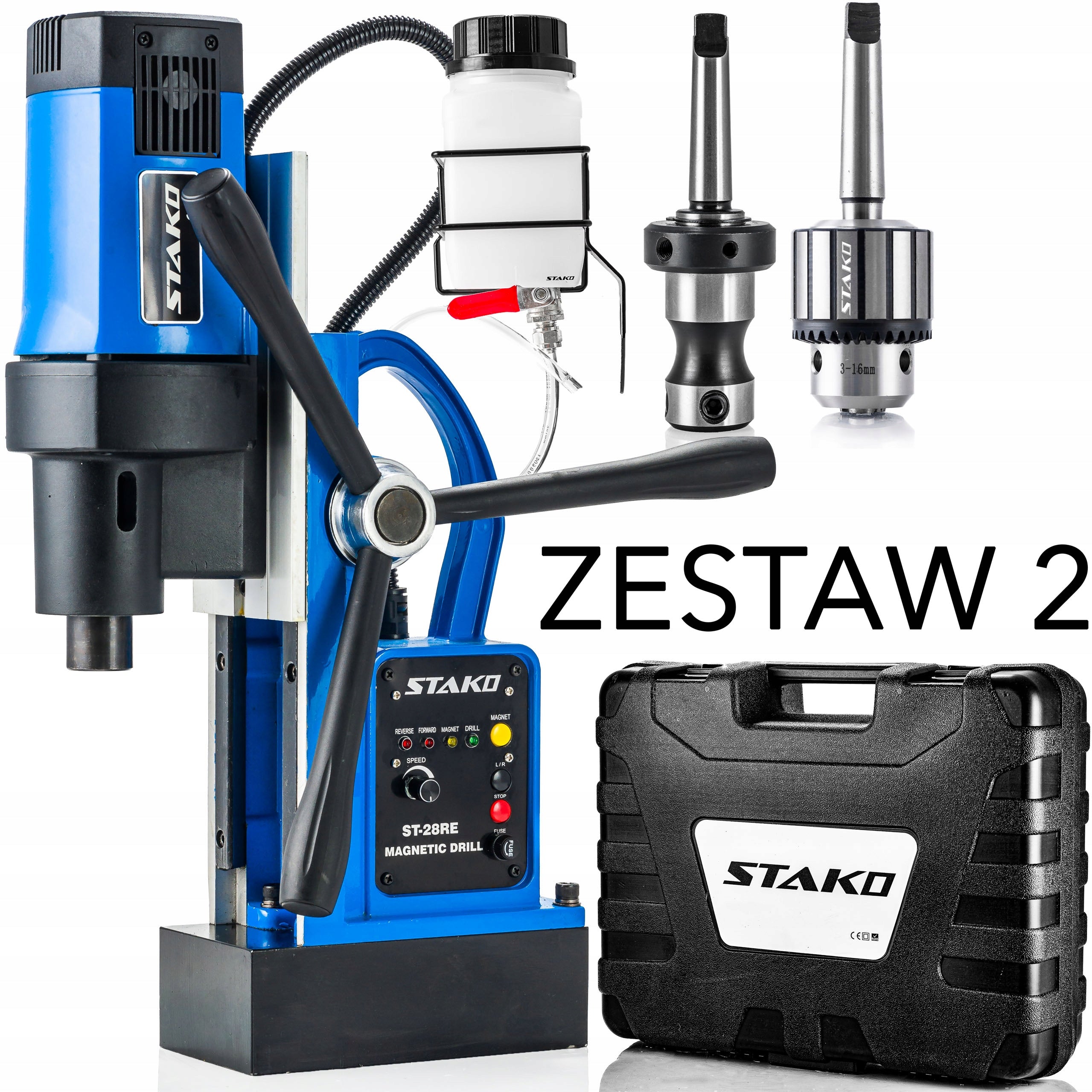

The presented set includes two drill chucks:

1. Weldon 19 mm (¾") handle with internal cooling system up to the tip of the drill bit for mounting trepanation cutters

2. Borkop 3 – 16 mm drill bit holder for cylindrical drill bits (standard)

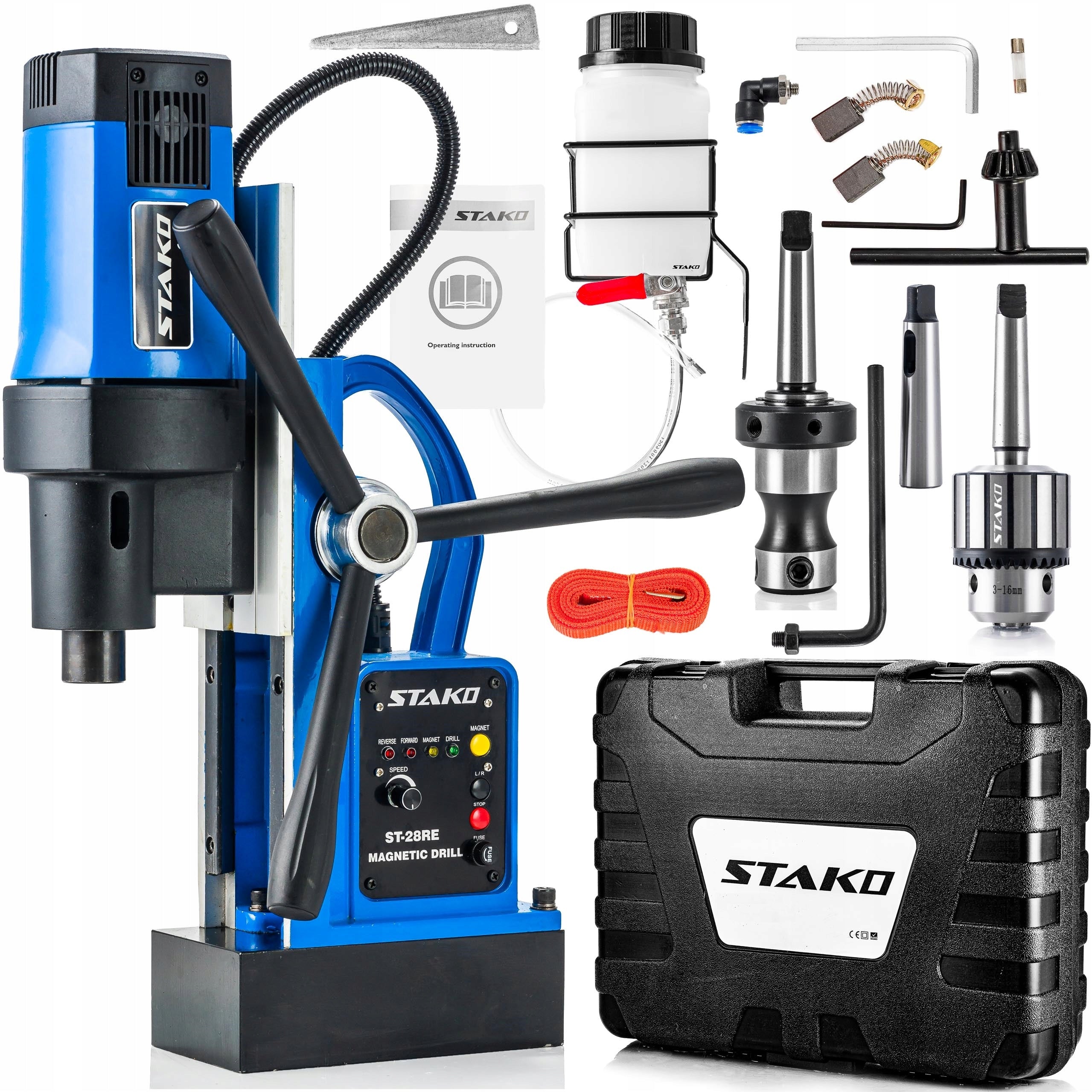

• 1 x Magnetic drill-threading machine STAKO ST-28RE
• 1 x MT3/MT2 Reducing Sleeve
• 1 x Weldon 19 mm 3/4" Drill Chuck
• 1 x Coolant tank with cable
• 1 x Drill chuck 3 – 16 mm
• 1 x Drill Chuck Crimping Wrench
• 1 x Drill Chuck Attachment Pin
• 1 x Punching Wedge
• 3 x Feed handle
• 2 x Allen Wrench
• 1 x Seat Belt
• 2 x Motor Brushes
• 1 x Fuse
• 1 x Manual
• 1 x Sachet for additional accessories
• 1 x Carrying case

✨ + Currently valid for free! ✨
