Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę

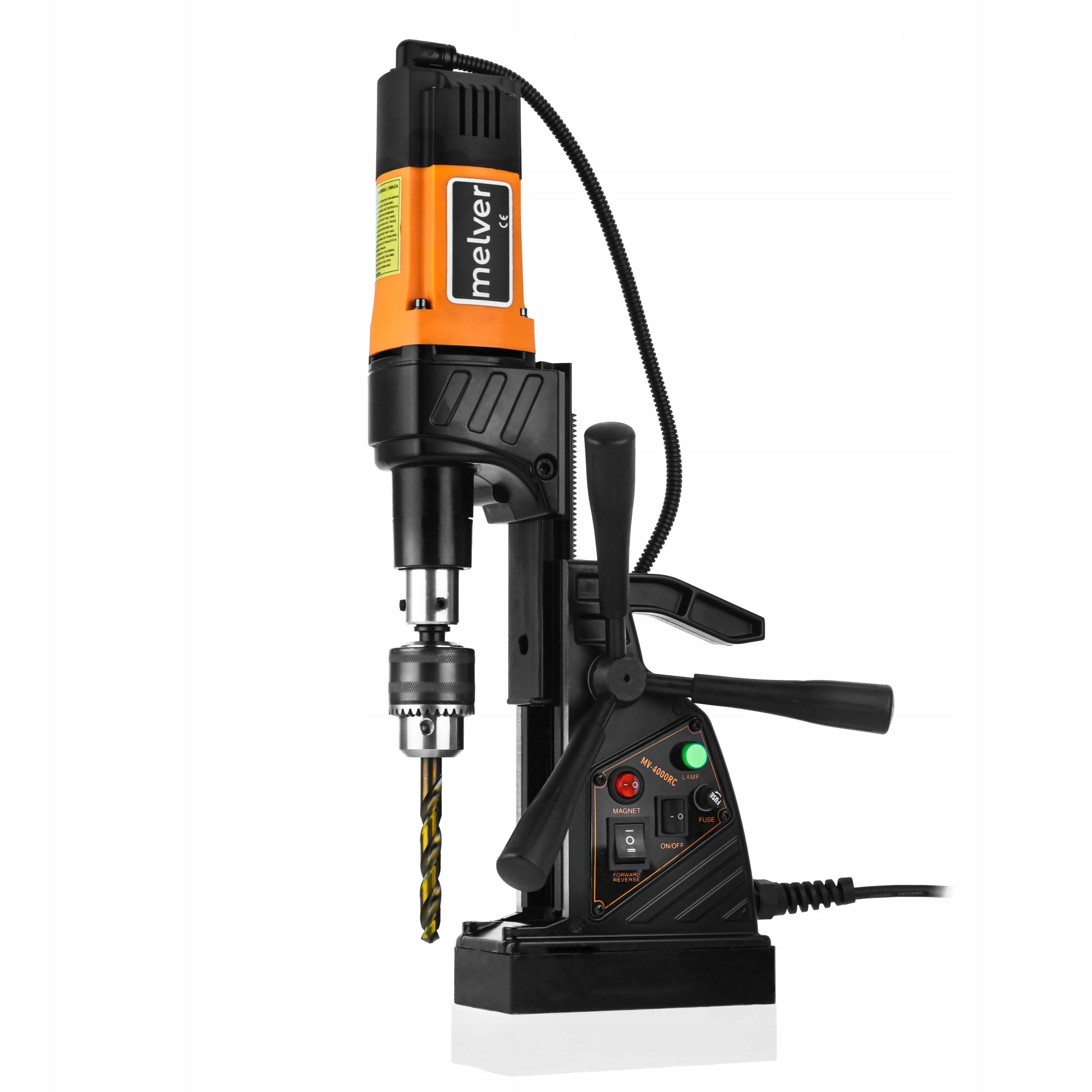

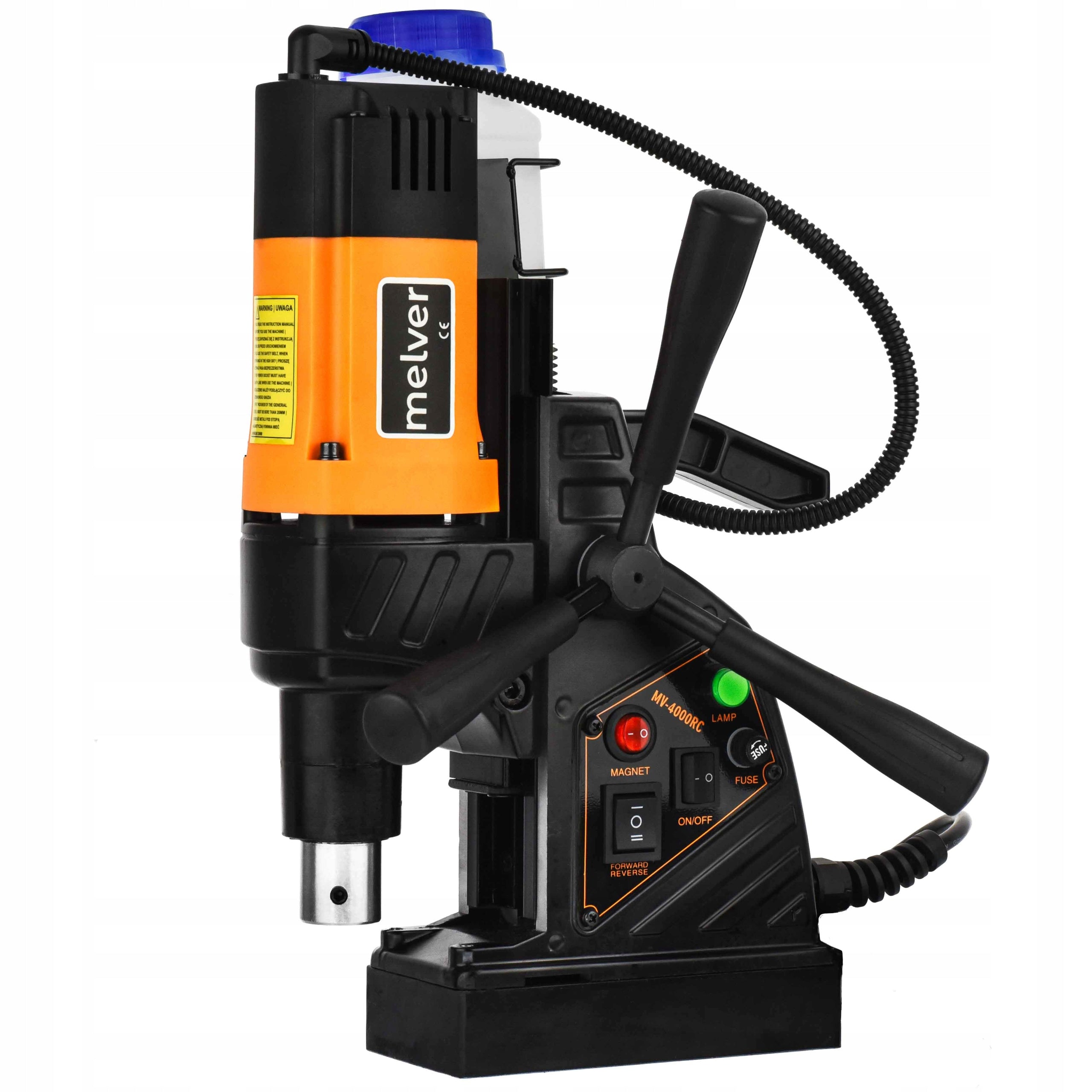

Prekė: Magnetinis gręžimo įrenginys Melver, 1480 W, FI 40 mm, 10 kg. Kategorija: Gręžimo staklės.
- Gamintojas: Melver
- Modelis: MV-N4000RC
- Galia: over 851 W

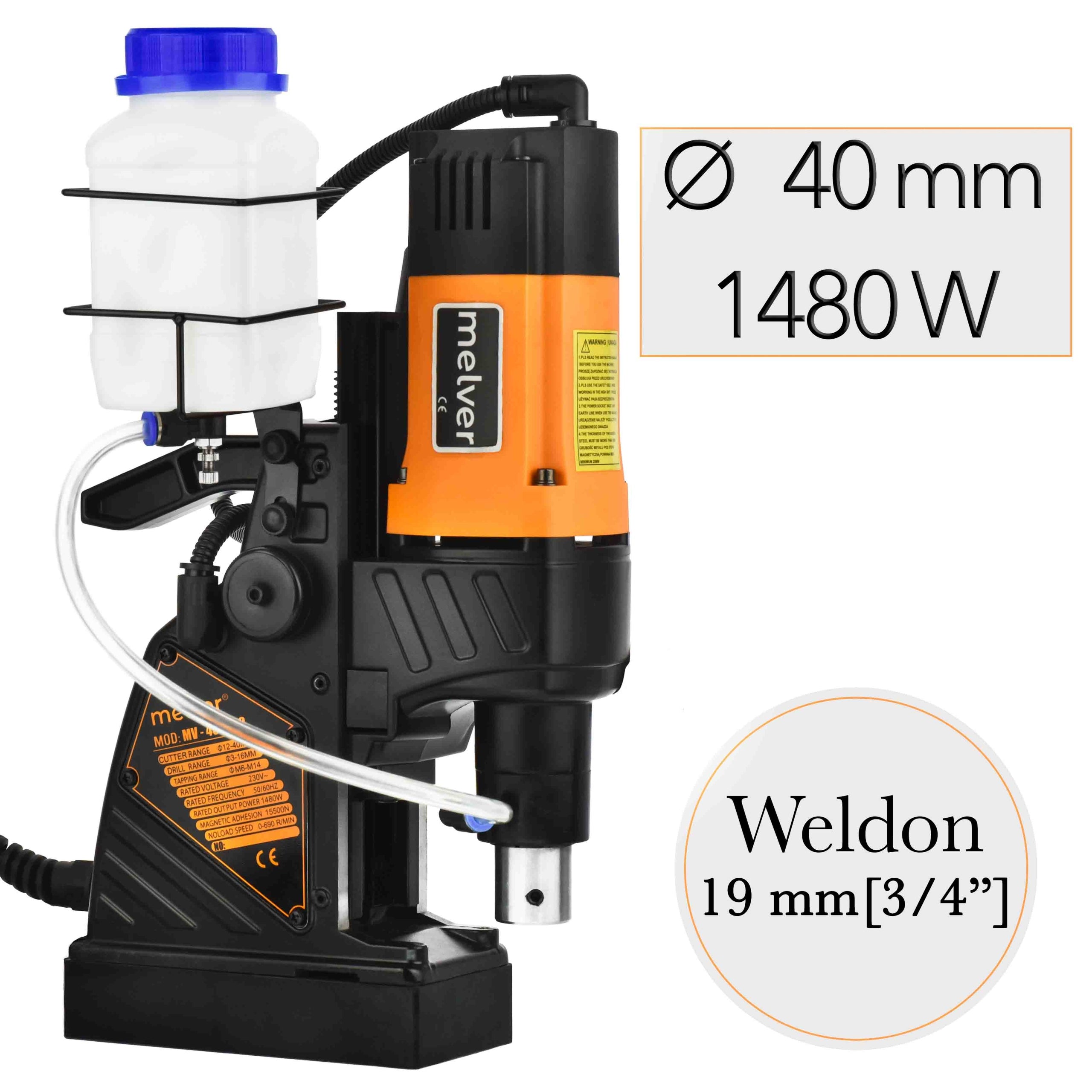

Drill with magnetic base with spindle for Weldon 19mm [3/4"]
- Max. drilling diameter (pipe drill) 40 mm
- Max. Drilling diameter (full/roller drill) 16 mm
- Max. thread cutting diameter M14
SPECIAL FEATURES:
- Small, lightweight and compact
- Smooth adjustment of rotational speed
- High-performance motor with 1480 Watt
- Sturdy construction
- Threadable
Who says only big machines can do big things? The magnetic drill from MELVER MV-N4000RC proves the opposite.
This machine offers an extremely efficient and reliable drilling and tapping solution with very good quality at an affordable price.
TECHNICAL DATA:
- Power supply: 230 V
- Engine power: 1480 Watt
- Soft start: YES
- Max. Drilling diameter (pipe drill): 40 mm
- Max. Drilling diameter (full/roller drill): 16 mm
- Max. Thread cutting diameter: M 14
- Drill chuck: Key bag [3 - 16mm / B16]
- Drill chuck: Weldon 19mm [3/4"] built into the machine
- Max. Rotational speed:100 - 690 [rpm / min.]
- Threading function: YES
- Spindle size: Weldon 19 mm
- Number of gears: 1
- Working stroke: 240 mm
- Power cord length: 2,26 m
- Max. Magnetic attraction: 15500 N (1550 kg)
- Cooling tank capacity: 650 ml
- Weight: 10 kg
Dimensions:
- h1 [max. height] 570 mm
- h2 [min. height] 340 mm
- h3 [max. spindle height from base] 195 mm
- h4 [height of electromagnet] 35 mm
- L1 [total length] 310 mm
- L2 [length of electromagnet] 175 mm
- L3 [magnet distance from spindle center] 30 mm
- L4 [magnet width] 85 mm
- L5 [handle length] 140 mm
MAIN APPLICATION:
- drilling holes in all types of steel max. up to 40 mm
- machine threading
- works and installations in the field on steel, bridge, shipbuilding structures, etc.
- installation of metal installations in the field
- service and repair work of lifting equipment, heavy equipment, e.g. Excavators, etc.
Drilling machine with electric foot MV-N4000RC included with:
- Borcope handle B16 / 3-16 mm
- Weldon 19mm handle with internal cooling system
- coolant tank with cable
ADDITIONAL INFORMATION:
- Mobility. Works great in the field and work at height
- Small, light and compact - high engine power of 1480W with a weight of only 10 kg
- Solid construction and high power electromagnets
- Large jump 240 mm allows you to process larger components
- Possibility of machine threading
It has a built-in level which facilitates work on the installation of the drill without the need for additional tools.
Gentle start (soft start system) and the ability to smoothly adjust the rotational speed from 100-690 rpm allows for convenient threading up to max. M14
Robust electromagnet construction combined with a high holding force of 15,500 Newtons (1580kg) allows for safe operation of the device in both vertical and horizontal positions.
At least 20 mm of steel is required to achieve 100% of the magnet's holding force. The magnet has a flat surface, so it should only be used on flat, smooth material where the entire surface of the magnet makes contact.
High-performance 1480 W motor, allowing drilling diameters up to 40mm with the possibility of continuous internal cooling
It works great in the field. Very convenient to use.
With this magnet drill, you will be well equipped for professional use on the construction site as well as in the workshop.
SCOPE OF DELIVERY:
- 1x Magnetic drilling machine MELVER MV-N4000RC
- 1x Weldon drill chuck 19 mm [¾"] built into the machine
- 1x Borkop drill chuck 3 to 16 mm
- 1x Coolant tank with cable
- 1x Mandrel for fixing the Borkop drill chuck
- 1x Wrench for crimping drill chuck
- 3x Feed handle
- 3x Allen key
- 1x Seat belt
- 2x Brushes for engine
- 1x Fuse
- 1x Instruction Manual
- 1x Transport case
INFORMATION: THE SUITCASE IS NOT SUBJECT TO SALE AND THEREFORE IS NOT SUBJECT TO COMPLAINT.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Melver |
| Parametry | Type | drill |
| Parametry | Kind | no impact |
| Parametry | Manufacturer code | MV-N4000RC |
| Parametry | EAN (GTIN) | 5904653738783 |
| Parametry | Series | MV-N4000RC |
| Parametry | Power | over 851 W |
| Parametry | Rotational speed | 690 RPM |
| Parametry | Number of gears | 1 |
| Parametry | Handle type | other |
| Parametry | Motor type | brushed motor |
| Parametry | Maximum drilling diameter in metal | 40 mm |
| Parametry | Voltage (V) | 230 V |
| Parametry | Maximum power | 1480 W |
| Parametry | Power cord length | 2.3 m |
| Parametry | Drill weight | 10 kg |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Additional information | right-left rotation,speed regulator,transportation box included |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
