Magnetinis gręžtuvas 1100W, 40 mm, 580 aps./min, 12 grąžtų

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas 1100W, 40 mm, 580 aps./min, 12 grąžtų. Kategorija: Gręžimo staklės.

• Gamintojas: Vevor
• Modelis: 1100W580RPM

Electric Magnetic Drill Press

580RPM & 1100W & 5.90" Travel Distance

Our portable drill press is best used with the included precision drill bits. It is capable of drilling into your toughest materials, producing a 1.57" diameter bore up to 2.17" deep. Thanks to its 1100W copper motor, this line boring machine generates enormous power without sacrificing long-lasting stable performance. The spacious coolant tank protects your drill press lift from overheating and further extends its service life. Its solid magnetic adhesion is 12000 N, which provides it with the necessary capabilities to perform multidirectional operations. Take power into your own hands, and use our drill to break through any material. Accuracy and precision can all be yours.

Superior Performance

Premium Coring & Twist Bits

12,000 N Magnetic Force

Cooling System & User-friendly Designs

Specifications

Model: VV-MD-UK12

Power: 1100W, 50/60Hz, 220V, 5A

Max. Boring Diameter(Coring Drill): 1.57"/40 mm

Max. Boring Diameter(Twist Drill): 0.63"/16 mm

Max. Travel Distance: 5.90"/150 mm

Max. Rotate Speed: 580 rpm

Magnetic Force: 2697lbf/12000N

Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm

Max. Boring Depth: 2.17"/55 mm

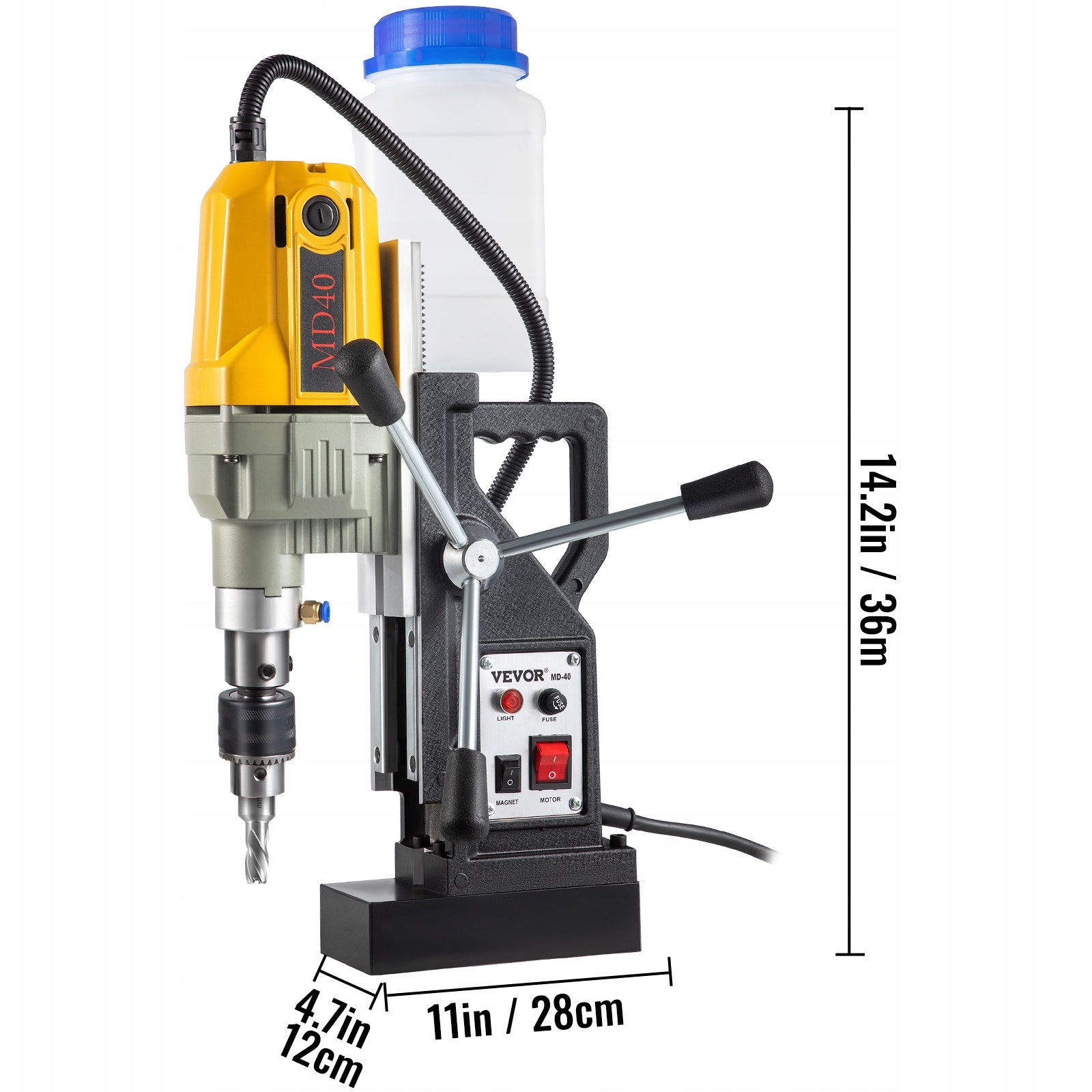

Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm

Product Weight: 24.25lb/11kg

Excellent Performance

Designed for precise and demanding coring, this mag base drill features 1100 watts of motor power. Max. Coring Diameter: 1.57"/40 mm; Max. Travel Distance: 5.90"/150 mm.

Twelve Practical Bits

Ideal for you to handle work-pieces of any size, ensuring your magnetic power drill drills faster with the included core drill bits than with the regular bits.

2697lbf/12000N Suction Power

The nearly pure iron base anchors the mag drill press solidly during work as a powerful electromagnet with a 2697 pounds' force (12,000 N), preventing movement during the drilling process.

Efficient Cooling System

The portable drill press features a detachable, integrated coolant system that will help significantly increase the life expectancy of your drill bits as well as your cutters. What's more, dustproof air inlets and exhaust air holes for temperature reduction.

Optimal Design

Three extended crank rods allow you to adjust the drill up and down with minimum effort. Ergonomically handles for easy carrying. Besides, a simple control panel allows easy operation.

Versatile Usage

Our magnetic base drill is used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction, and many other fields.

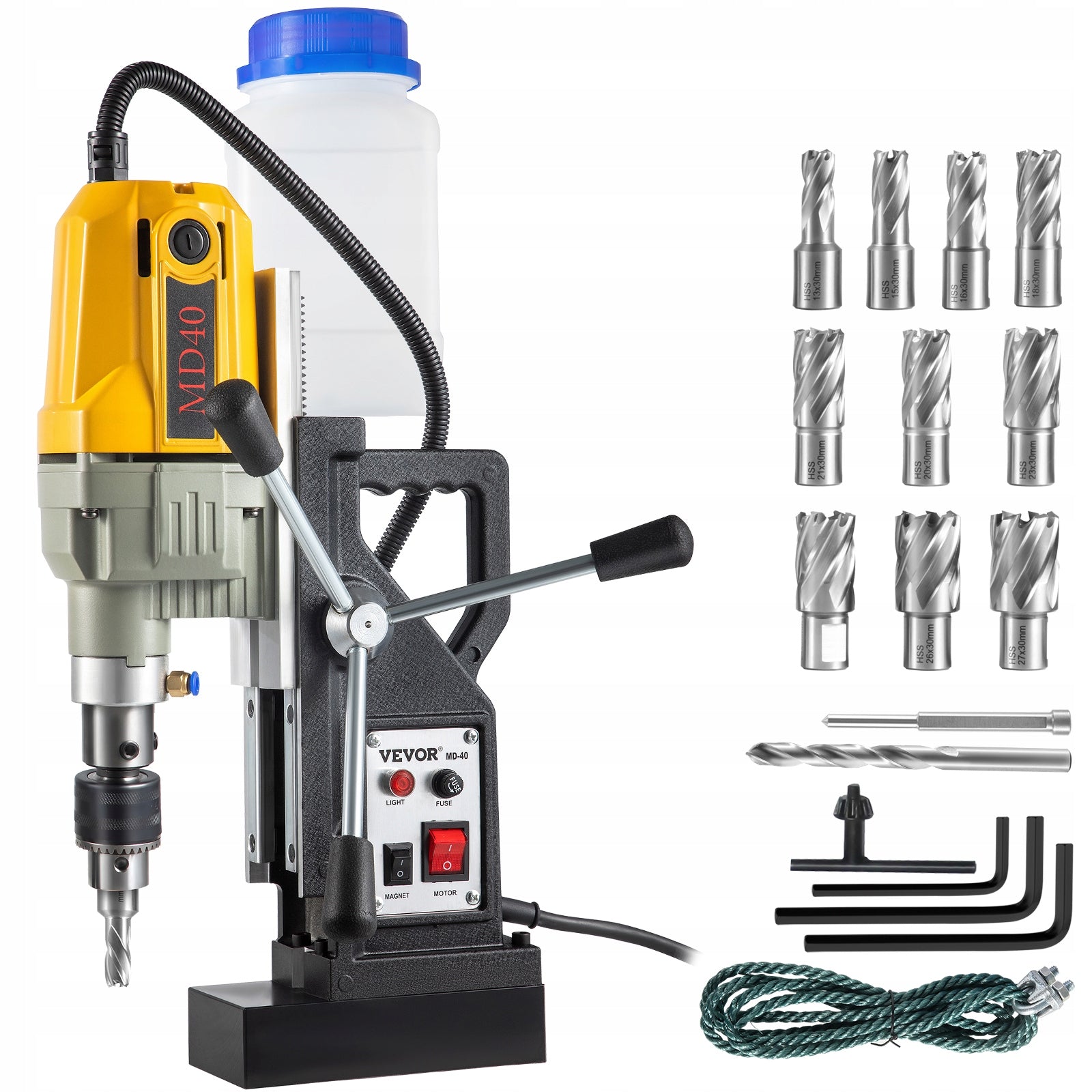

Package Content

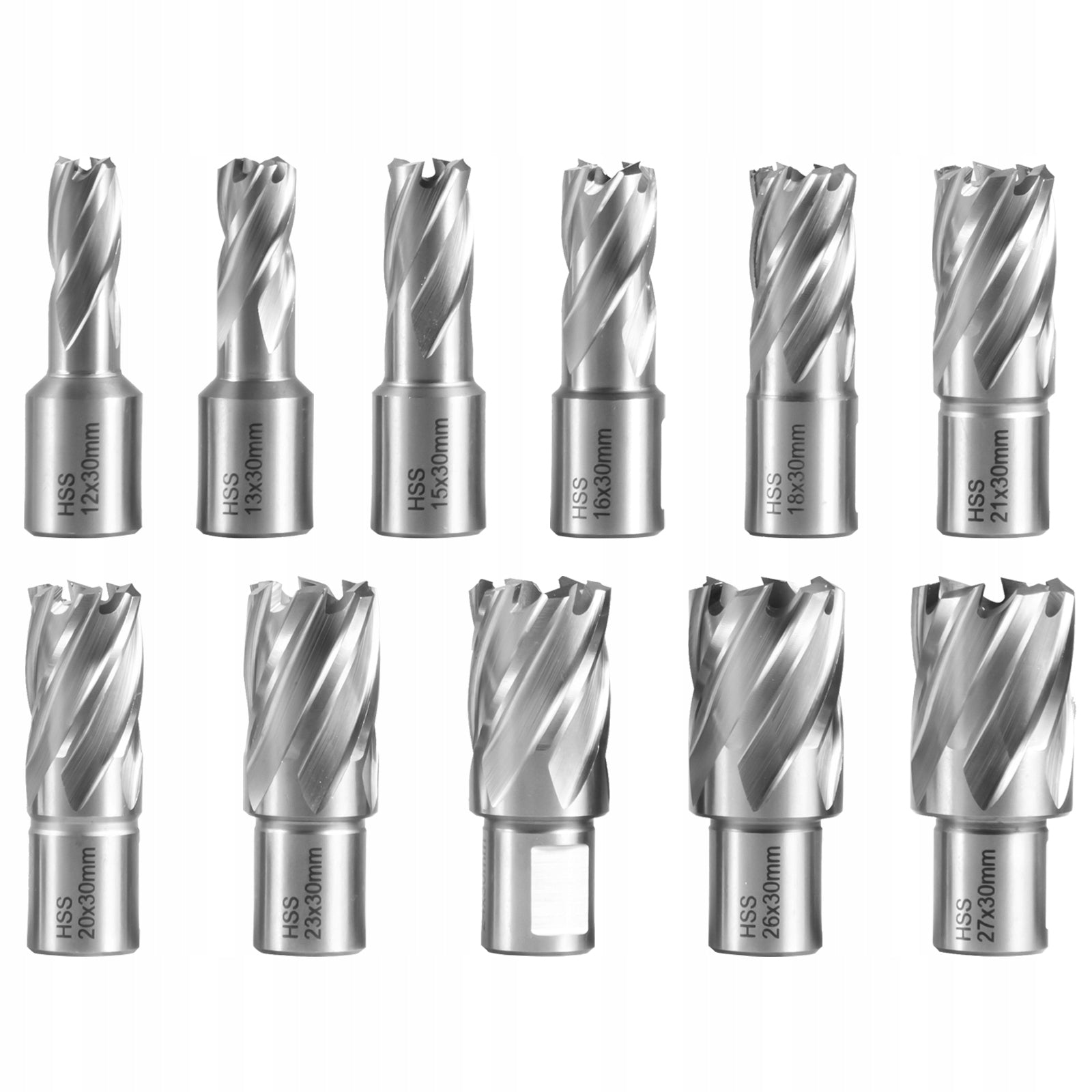

11 x Coring Bits (Φ0.47"/12 mm, Φ0.51"/13 mm, Φ0.59"/15 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.83"/21 mm, Φ0.91"/23 mm, Φ0.94"/24 mm, Φ1"/26 mm, Φ1.1"/27 mm)

1 x Twist Drill (Φ0.4"/10 mm)

1 x Coolant Tank

1 x Drill Chuck

1 x Thimble (0.25"x 4"/6.34 x 102 mm)

1 x Rope

1 x Manual

Key Features

Superior Performance: This 1100W heavy-duty mag drill bores at 580 RPM up to a maximum 2" depth and a maximum 1.6" across. With its 5A powerful motor, the magnetic drill press drills through industry quality steel with ease.

Premium Coring & Twist Bits: The mag press is best used with the included drill bits, allowing you to create holes in most common sizes. 11 Coring bits: Φ0.47"/12 mm, Φ0.51"/13 mm, Φ0.59"/15 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.83"/21 mm, Φ0.91"/23 mm, Φ0.94"/24 mm, Φ1"/26 mm, Φ1.1"/27 mm. Twist Bits: Φ0.4"/10 mm.

12,000 N Magnetic Force: The electromagnetic base is made of almost pure iron, which is sturdy and durable. It has a powerful magnetic force up to 2697lbf/12000N, allowing you to accurately position the machine for precision drilling.

Cooling System & User-friendly Designs: The ergonomic handle provides a comfortable grip during transport. These 3 extended crank handles ensure laborsaving operation. Coolant tank is used for fast heat dissipation. Clear panel for easy read and operation.

Wide Applications: This versatile magnetic drill allows you to bore into almost any surface you can think of. It is ideal for ship & bridge building, industrial and steel fabrication, windmill & power-plant construction, railway manufacture, equipment installation, and many other fields.
