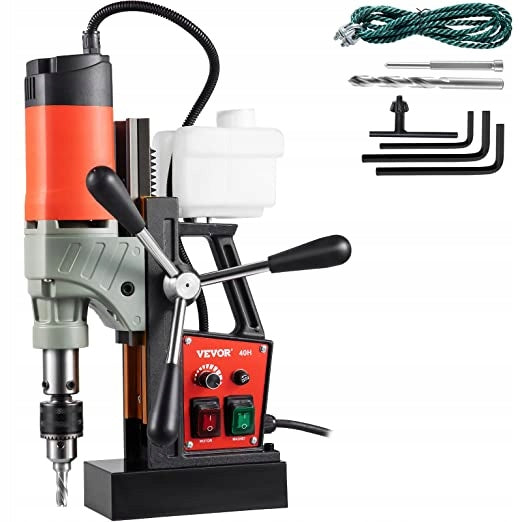

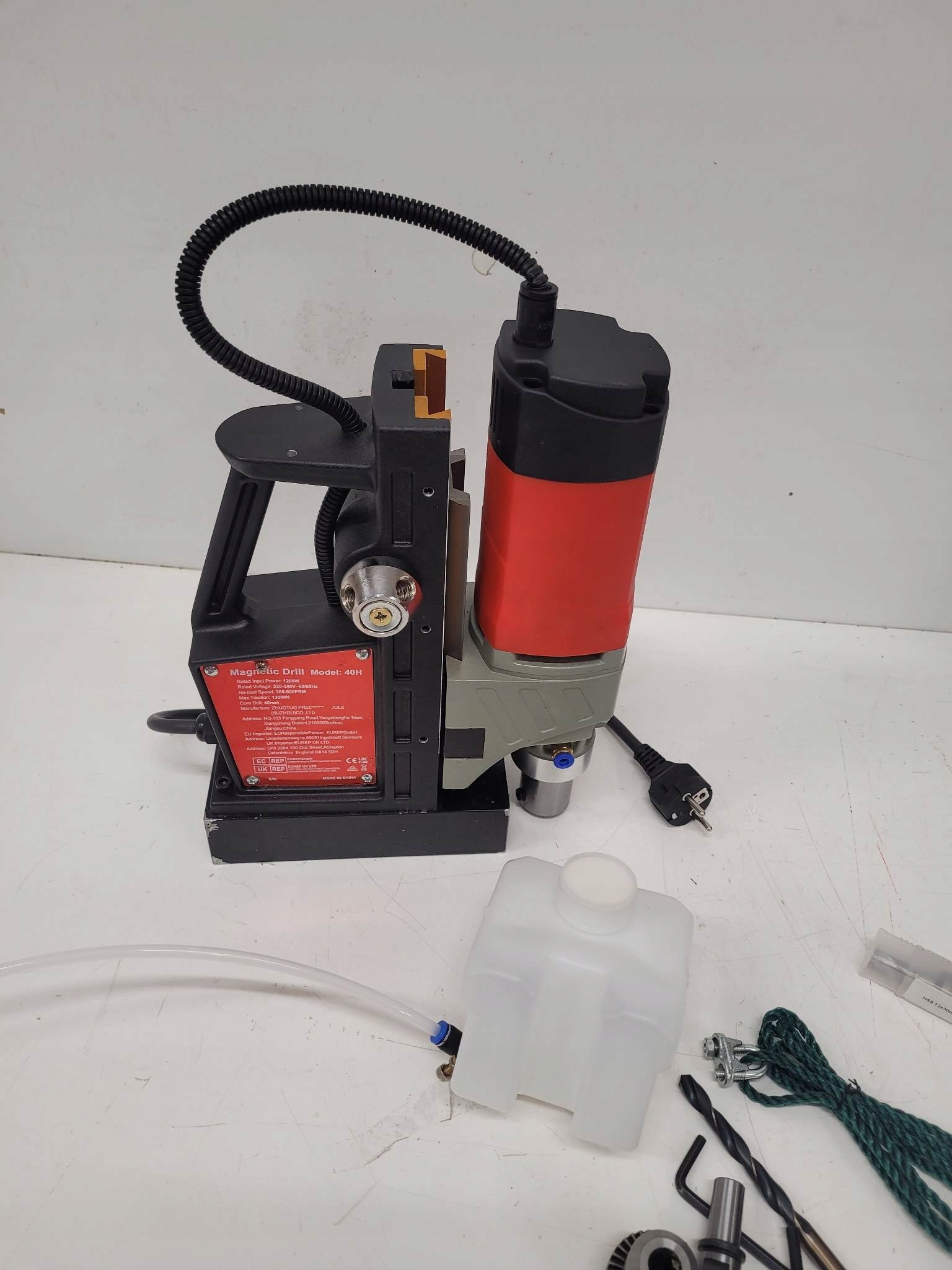

Magnetinis gręžtuvas 1200W, 40 mm, reguliuojamas greitis, nešiojamas, CE

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas 1200W, 40 mm, reguliuojamas greitis, nešiojamas, CE. Kategorija: Gręžimo staklės.

• Gamintojas: Vevor
• Modelis: SYWGDCLZ1220V4

0-580 rpm and 1200 W and stroke distance 160 mm

Our portable drill is capable of drilling into the toughest materials. Precision drill bits included. It achieves a drilling diameter of 40 mm (1,57 inches) and a drilling depth of up to 55 mm (2,17 inches). With a powerful 1200W copper motor and a constant magnetic adhesion of 13000N, our drill operates long-lasting and stable. The coolant tank protects the drill from overheating. It pierces every material with accuracy and precision.

• Good job
• Precision Core and Twist Drill Bit
• Magnetic holding force 13000 N
• Double guide rail on the swallow tail

Specifications

Model: VV-MD-UK2

Power: 1200W, 50/60Hz, 220V, 2,6A

Core Drill Bit: Maximum Drill Bit Diameter 1,57 inch / 40 mm

Twist drill bit: Φ1.5-Φ13 mm

Maximum stroke: 6,3 inch / 160 mm

Speed: 0-580 rpm /min, stepless

Magnetic holding force: 2922 lbf / 13000 N

Base Size: 6,54 x 3,15 x 1,97 inches / 166 x 80 x 50 mm

Drilling depth: max. 2.17 inch / 55 mm

Housing size: 20 x 15,7 x 7,1 inches / 51 x 40 x 18 cm

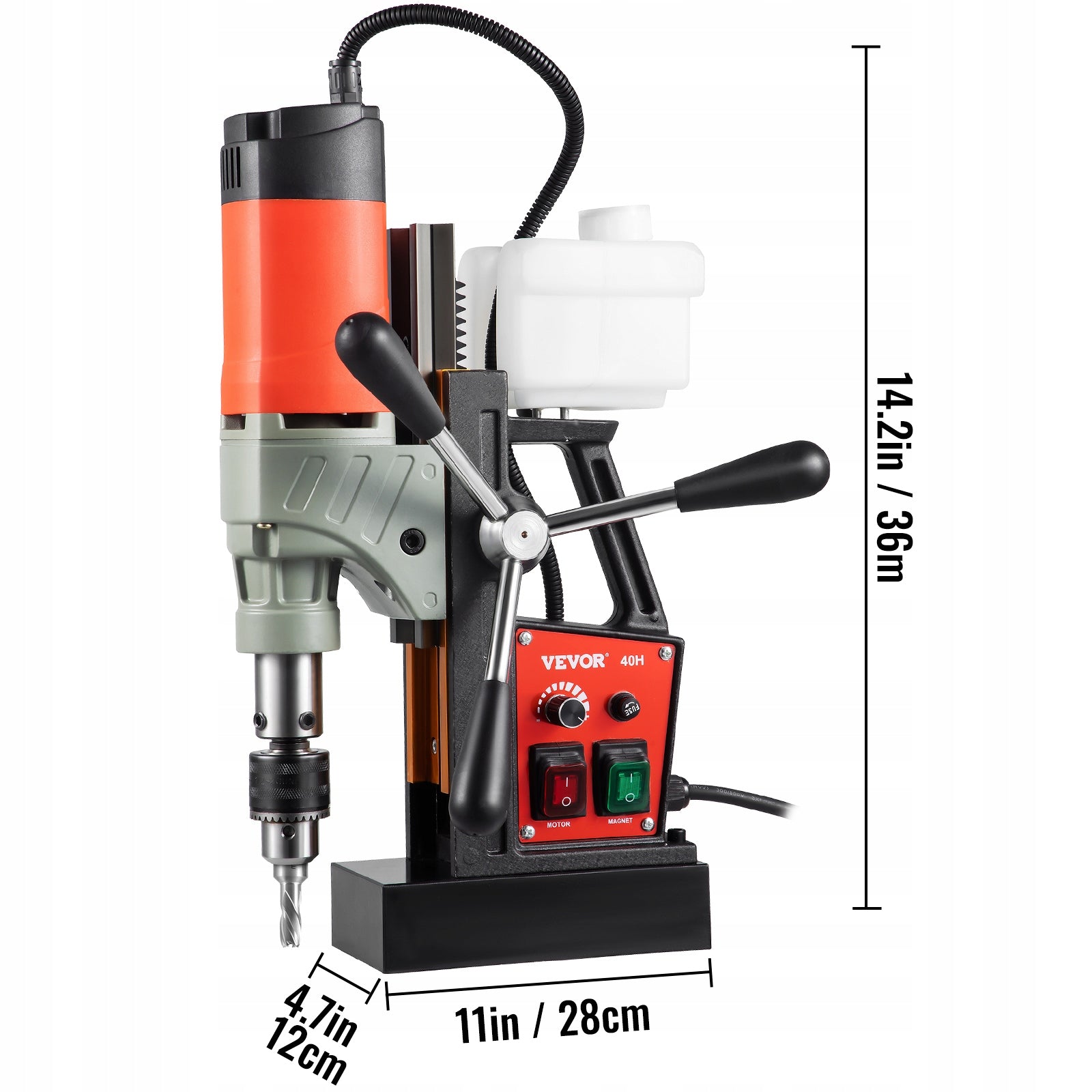

Size: 14.2x11x4.7 inch/36x28x12 cm

Weight: 29lbs / 13kg

Convincing performance

Our magnetic drill with 1200W motor is suitable for precise and complex core drilling. Maximum drill diameter: 40 mm (1,57 inches) Max. stroke: 160 mm (6,30 inches).

Two high-quality core bits

Ideal for machining details of various sizes. The included drill bits provide better drilling performance than conventional drill bits.

Holding force 13000 N

The iron base provides a solid anchoring of the magnetic drill during operation. A powerful electromagnet with a holding force of 13000 N (2922 pounds of force) prevents movement during the drilling process.

Aluminum Alloy Guide Rail

Double rail in the shape of an aluminum alloy swallow tail increases rigidity and improves the wear resistance of the drill.

Thoughtful details

The coolant tank is equipped with a quick coupler. This ensures a long drill life and smooth drilling. The three elongated cranks make it easy to adjust the drill up and down with minimal effort. Ergonomic handles ensure comfortable carrying.

Versatile

Magnetic drilling machine is used m.in. in the construction of steel, ships and bridges, wind energy, drilling and power engineering.

Package Contents

1 x drill bits (Φ0,47 inch / 12 mm)

1 x Twist Drill Bit ：Φ1.5-Φ13 mm

1x suitcase

1 x Coolant Tank

1 x Drill Chuck

1 x thimble (0,25 x 4 inches / 6,34 x 102 mm)

1 x Rope

1 x Manual

Features and details

High efficiency: our magnetic drill with 1200W power and 0 – 580rpm rotation speed. /min drill continuously and can reach a maximum depth of 55 mm (2,17 inches). Maximum drilling diameter: 40 mm (1,57 inches). The powerful 2,6 A motor enables easy drilling in industrial steel.

Precision Core and Twist Drill Bit: Two drill bits are included with the magnetic press. It can drill most holes. Core drill bit: Φ0,47 inch / 12 mm. Twist drill bit: Φ1.5-Φ13 mm

Magnetic holding force 13000N: The pure iron electromagnetic base is solid and durable. It is characterized by a strong magnetic holding force of up to 2922 lbf / 13000 N. This allows the machine to be positioned accurately for precise drilling.

Double guide rail in the shape of a swallow tail: Thanks to the double guide rail in the shape of a swallow tail, the height of the motor can be adjusted, thus guaranteeing the precision of drilling. Ergonomic handle provides a comfortable grip during transport. Three long cranks allow labor-saving work. The coolant tank dissipates heat quickly.

Wide Applications: This magnetic drill is widely used in ship and bridge construction, industrial and steel structures, wind turbine and power plant construction, railway construction, equipment installation and many other fields. Suitable for drilling most surfaces.
