Magnetinis gręžtuvas 1400W, 12500N, su 6 grąžtų komplektu

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas 1400W, 12500N, su 6 grąžtų komplektu. Kategorija: Gręžimo staklės.

• Gamintojas: Vevor
• Modelis: CLZJP6JT5

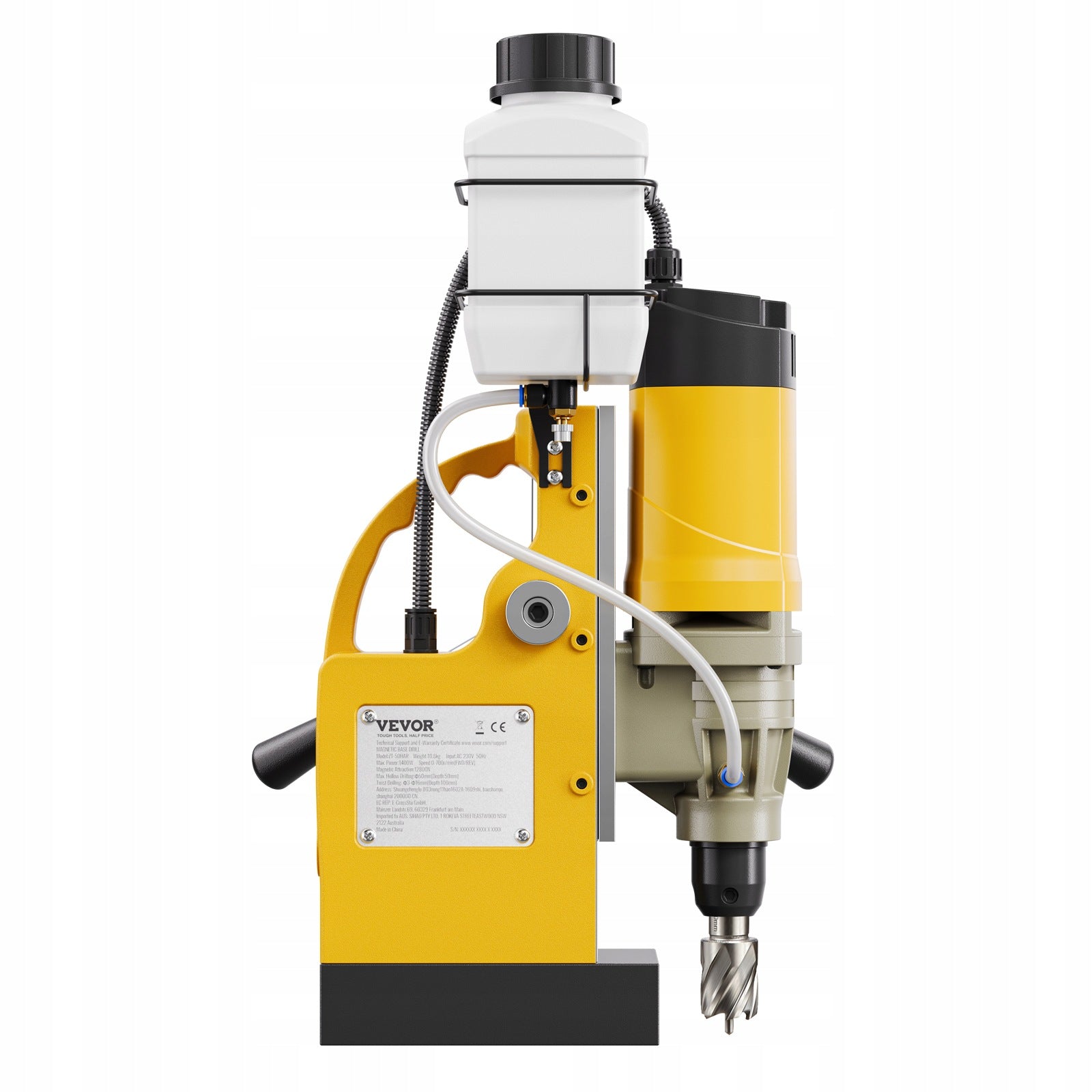

Electromagnetic drilling machine 1400 W

The magnetic drill bit adheres securely to steel or iron surfaces, allowing for precise drilling of burr-free holes. With 6 drill bits, you can perform a wide range of drilling tasks. It is made of high-quality alloy and is ideal for home installation, industrial applications, and steel processing.

• Magnet of the highest class
• Understand the power
• Safety and durability
• User-friendly design
• Variety of application options

Specifications

• Item Model Number: ZT-50HAR
• Handle Type: Weldon Cap (3/4 inch / 19,05 mm)
• Maximum charging power: 1400 W (EU)
• Maximum magnetic force: 2878 lbf / 12800 N
• Idle speed: 0-650 rpm /min
• Max. Drilling diameter (core drill): Φ2 inches / Φ50 mm
• Max. drilling depth: 2 inches / 50 mm
• Max. Drilling diameter (curly drill): Φ0,1-0,6 inch / Φ3-16 mm
• Max. drilling depth (curly drill): 3,9 inch / 100 mm
• Thread Size Range: M3–M16
• Max. stroke: 6,3 inch / 160 mm
• Net weight (including all accessories): 27,3 lbs / 12,4 kg

Strong performance

Our magnetic drill is equipped with a power 1400 W motor with adjustable speed range 0 – 650 rpm /min. , which greatly increases drilling efficiency, especially for projects requiring intensive drilling. It provides more stable operation, greater precision and greater comfort of use.

Versatile drilling functions

Featuring multiple drill bits, a professional drill chuck, and a forward/reverse rotation feature, this magnetic drill allows you to drill holes, cut holes, and thread. From small DIY projects to large-scale industrial applications, we can meet all your drilling needs.

10-step setting

Adjust the speed exactly to the diameter of the drill. For smaller holes, switch to a higher speed to drill more efficiently and get smooth hole walls. For larger holes, the speed should be reduced to avoid damage to the drill or lack of coaxiality caused by excessive speed, which will greatly increase the drilling accuracy.

Precise depth scale

The integrated scale allows you to directly monitor and control the drilling depth during operation, ensuring that each hole meets the exact size requirements. This magnetic press is particularly valuable in applications where precise depth control is required, such as: B. in machining and construction installations.

Durable guide rail

The swallow tail guide design guarantees high rigidity and withstands significant forces and cutting moments. Even when working in harder materials or in harsh drilling conditions, the magnetic drill remains stable and reliable.

Stable base

The low center of gravity provides stability and prevents wobble. This allows you to perform even complex and time-consuming tasks with ease.

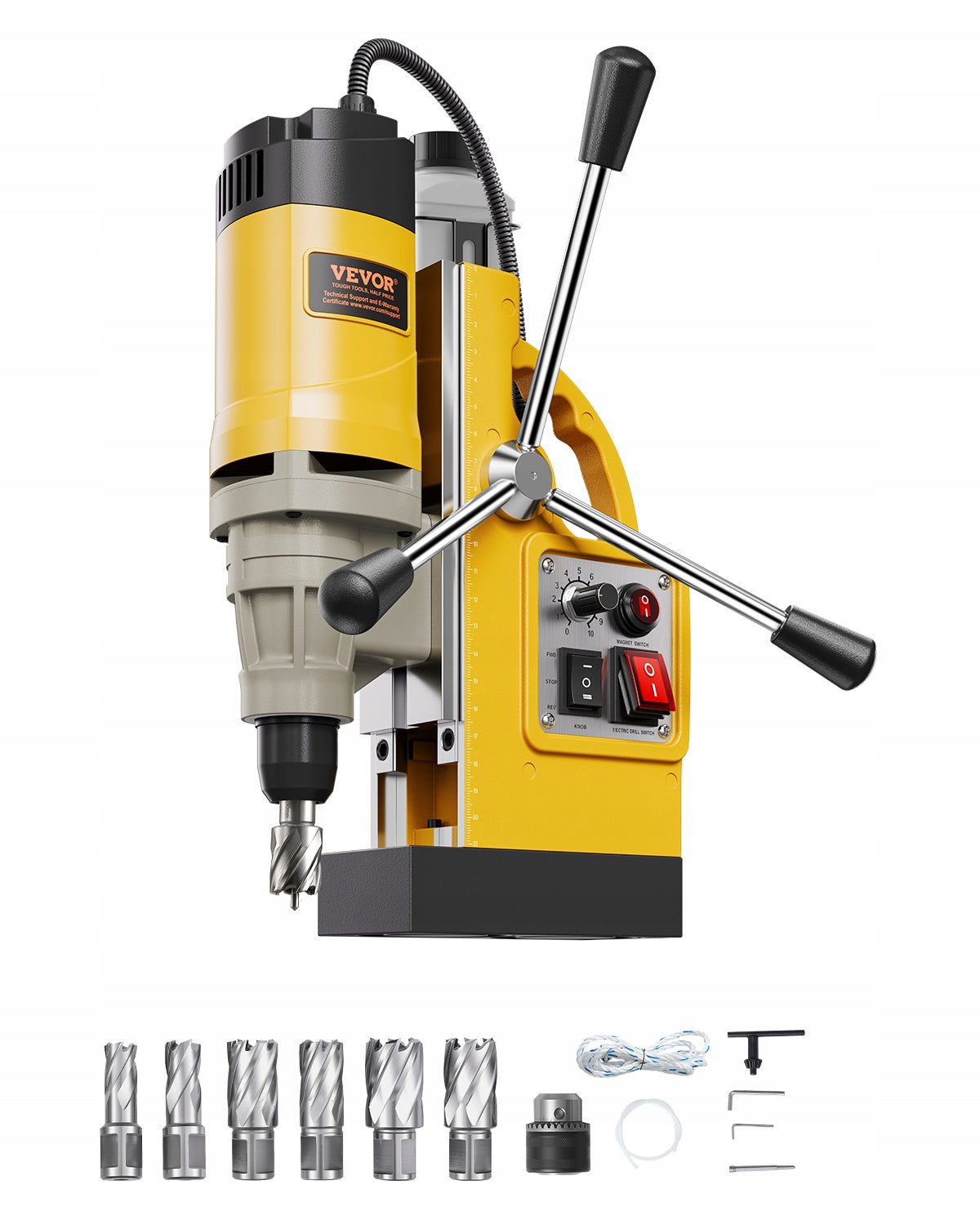

Package Contents

• 1 x Drill Chuck Wrench
• 1 x Twist Drill Chuck
• 1 x Coolant Tank + Rack
• 1 x Cooling Pipe
• 1 x Rope
• 1 x Thimble
• 2 Allen keys
• 1 x Conversion Connector
• 6 x Weldon shank core drill bits
• 3 x Hand Cranks
• 1 x User Manual

Key features

Premium Quality Magnet: Get ready for unstoppable power! Our electric-magnetic drill generates an extremely high driving force thanks to a copper motor with a power of 1400 W. It can drill in the toughest materials at a speed of 0 to 650 rpm. /min. Max. Drilling diameter (core drill): Φ2 inches (Φ50 mm); Max. Core depth: 2 inches (50 mm)

Understand the power: a powerful force of 2878 lbf (12800 N) is generated by an electromagnetic, thickened base, and thanks to the iron bodies, the magnetic drill works stably and at any angle during drilling. Adjustable 10-speed gearboxes ensure precise and efficient operation depending on the drill diameter

Safety and durability: For this reason, combined overload protection features are available. The cooling system is characterized by rapid heat dissipation, which protects the operator from injuries caused by sudden overload and high temperatures during drilling. In addition, the guide made of titanium and magnesium alloy has anti-corrosion and wear-resistant properties, which significantly extends the life of the machine

User-friendly design: A scale is attached to the frame of the device, which allows users to determine the distance between the drill and the drilled material in millimeters. Even a beginner can drill precise and clean holes. In addition, the ergonomically shaped handle and 3 elongated cranks guarantee a comfortable grip during handling and movement, while saving a lot of energy.

Wide range of applications: This magnetic drill plays an important role in do-it-yourself work, industrial and steel construction, ship and bridge construction, railway construction, wind power and power plant construction, and many other fields. NOTE: To ensure optimal application, the sheet thickness should be at least 0,39 inches (10 mm). Not applicable for stainless steel and cast iron. For reverse and horizontal drilling, a safety rope should be used

Specifications
