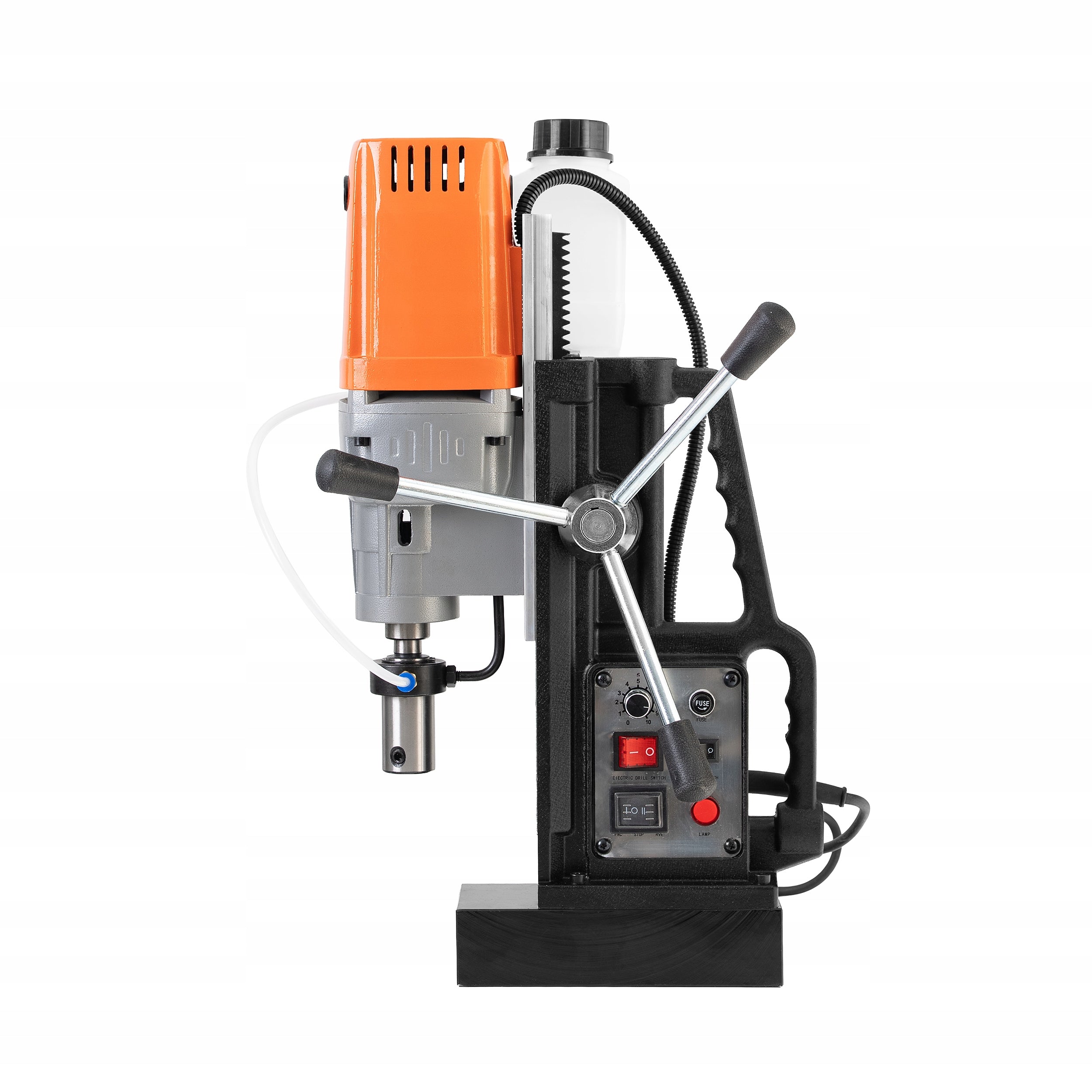

Magnetinis gręžtuvas metalui, 1450W, 13000N

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas metalui, 1450W, 13000N. Kategorija: Gręžimo staklės.

• Gamintojas: Sevico
• Modelis: V20
• Galia: over 851 W

Magnetic drilling machine

SEVICO - MODEL V20

✅ Power and Precision in Industry

Advanced drill with magnetic foot 1450 W, designed for the toughest construction and workshop tasks. Equipped with a powerful electromagnet with a clamping force of up to 13000 N, it guarantees absolute stability and safety of operation when drilling vertically, horizontally and even in an inverted position. The device has a smooth speed control and a change in the direction of rotation (right/left), which makes it an ideal tool not only for drilling, but also for professional threading.

✅ Versatility

The device has two types of fixing working tools thanks to the included equipment:

• Weldon 19 mm (3/4") handle – this is the basic, direct type of fastening integrated into the spindle of the machine. It is used for the installation of professional trepanation cutters (crown drill bits), which are tightened with Allen pressure screws visible on the side of the spindle.

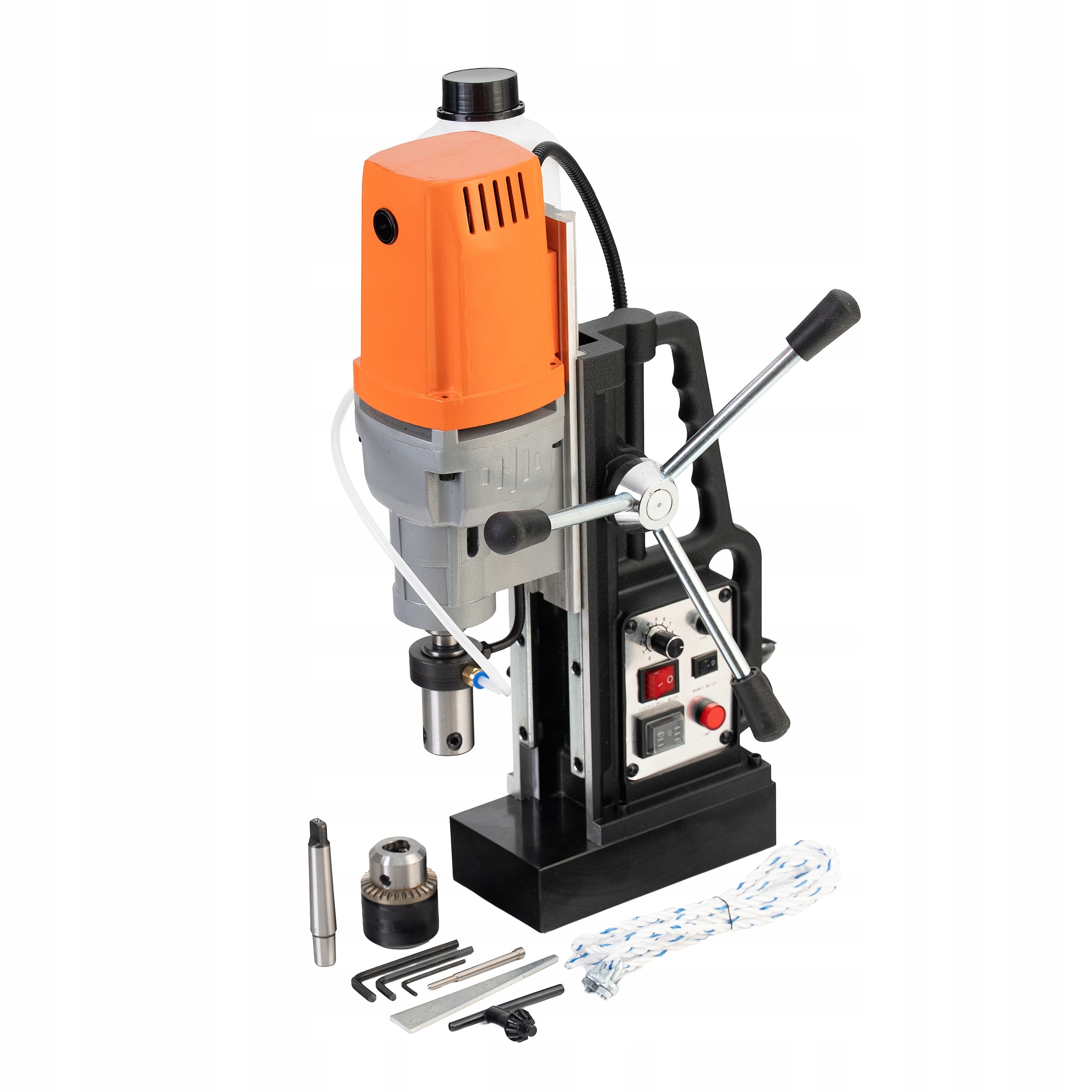

• Traditional key drill chuck (with Morse / Weldon cone adapter) – visible in the main photo along with accessories next to the drill. The classic gear holder allows you to attach ordinary twist drills (cylindrical) with smaller diameters.

🛠 Wide application and versatility in every workshop

You get equipment designed for professionals that is ideal for the following areas:

✅Steel structures and construction:

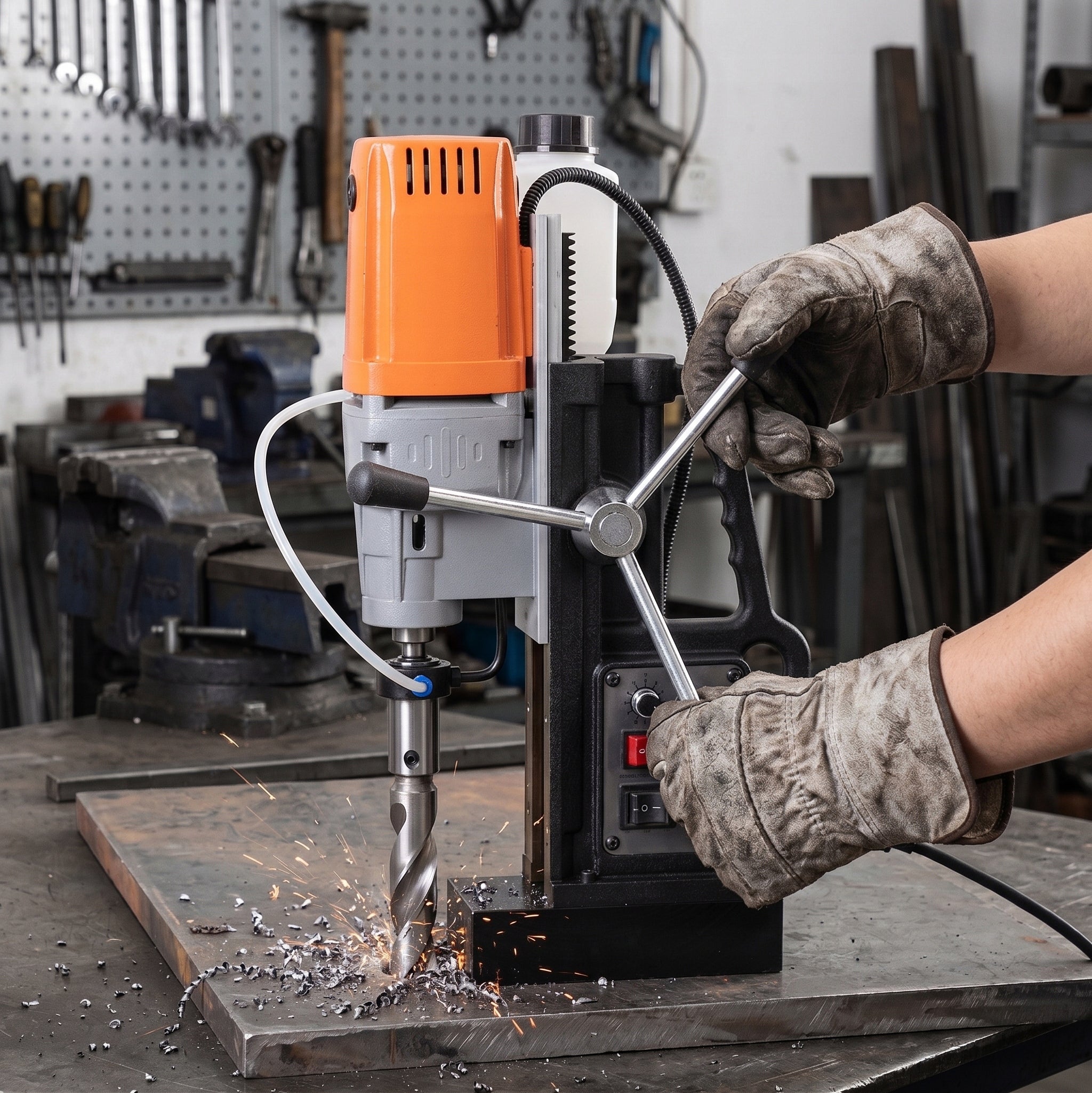

• Drilling holes in thick profiles, I-beams and bridges directly on the construction site.

✅Professional hole threading:

• With reverse rotation (REV) and smooth speed control, the machine is ideal for cutting threads.

✅Core drilling (trepanation):

• Fast and efficient execution of large holes up to 40 mm in diameter with minimal effort.

✅Traditional winding drilling:

• Stable operation with classic drills of various diameters up to a depth of 100 mm.

📊 Technical specification

The device is characterized by an excellent power-to-size ratio, which is confirmed by the following parameters:

✅High-performance engine:

• 1450 W power guaranteeing stable operation under heavy loads without performance drops.

✅Industrial electromagnet:

• Attraction force of up to 13000 N (13 kN) for rigid fastening to steel.

✅Right rotation (FWD):

• Smooth speed control from 0 to 800 rpm. /min to optimal good cutting parameters.

✅Left rotation (REV):

• Speed adjustable from 0 to 770 rpm. /min designed for safe withdrawal of taps.

✅Core drilling capacity:

• Support for trepanation drills (mills) with a diameter of up to 40 mm with a maximum depth of 50 mm.

✅Traditional drilling capacity:

• Support for classic twist drills ranging from 1,5 mm to 23 mm with depths up to 100 mm.

✅Cooling system:

• Integrated system with gravity tank feeding coolant directly to the cutting site.

🛡 Safety and principles of proper use

Working with a magnet requires following key procedures that guarantee trouble-free operation:

Optimal substrate thickness:

• The foot achieves full attraction force only on clean, flat steel plates with a minimum thickness of 10 mm.

Security at heights:

• When working vertically or overhead, it is absolutely necessary to use a belt or safety chain in the event of a power outage.

Perfect foot cleanliness:

• Before turning on the electromagnet, it is necessary to thoroughly clean the material from chips, rust and scales that weaken the magnetic field.

💡 Practical advice and tips

Harness the full potential of your device and extend the life of your work tools with simple habits:

✅Continuous coolant dispensing:

• The use of coolant-lubricating significantly extends the service life of expensive crown cutters and protects the material from overheating.

✅Rotary speed control:

• Remember the principle that the larger the diameter of the drill, the lower the revolutions should be set on the knob.

✅Proper lever pressure:

• When drilling with cutters, press the feed with sensitivity, allowing the geometry of the blade to drain the chips from the hole itself.

Specifications
