Magnetinis gręžtuvas metalui, 1500W, 160 mm eiga, 11500N, WELDON 19 mm

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas metalui, 1500W, 160 mm eiga, 11500N, WELDON 19 mm. Kategorija: Gręžimo staklės.

• Gamintojas: Powermat
• Modelis: PM1456
• Galia: over 851 W

MAGNET FORCE 11 500 N | POWER 1500 W | WORKING STROKE 160 MM | WELDON 19 MM

Model: PM-WM-1500M

Magnetic drill for precise drilling in steel and metal structures where manual or table equipment will not work. You gain stable fastening, high power and accuracy, shorter working time and the ability to drill vertically, horizontally and overhead.

⚫ WHEN MANUAL CAN’T DO IT – YOU’RE IN CONTROL

▪ Drilling in steel in a place where hand drill or table drill does not make sense? Here you attach the equipment on the magnet 11500 N.

▪ You get stability and clean work: 1500 W, Ø50 mm, jump 160 mm — without struggling to set up.

▪ In addition, Weldon 19 mm and readiness to drill on various planes.

🔸 RELIABLE DRILLING WHERE OTHER TOOLS FALL OFF

Do you work in the field, on steel structures or large elements? The magnetic drill gives you a stable attachment without combination. You save time, nerves and corrections, because the tool keeps exactly where you need it.

🔸 MORE POWER, LESS MATERIAL STRUGGLE

The power of 1500 W allows you to drill smoothly even larger diameters in steel. You do not force yourself, do not tire your hands and do not risk damaging the drill. Work goes faster and predictably.

🔸 ACCURACY THAT MATTERS IN PRACTICE

The large working stroke of 160 mm and drilling up to 50 mm in diameter give you freedom for a variety of tasks. One tool takes care of more work, so you don’t have to change equipment during the job.

🟠 WHAT SETS OUR DRILL APART?

🔸 STRONG MAGNET YOU CAN TRUST

The magnetic base with a force of 11500 N holds steel firmly even with vertical operation. You gain safety, control and peace of mind when precision matters.

🔸 STANDARD MOUNT, LESS PROBLEMS

The Weldon 19 mm spindle allows you to easily select popular cutters and accessories. You are not looking for unusual solutions and do not waste time on matching.

🔸 EQUIPMENT FOR REAL WORK, NOT FOR THE DISPLAY CASE

The compact design and reasonable weight make it easy to transport and position in the workplace. It’s a tool that works with you, not bother you.

🟠 SECURE ATTACHMENT TO STEEL

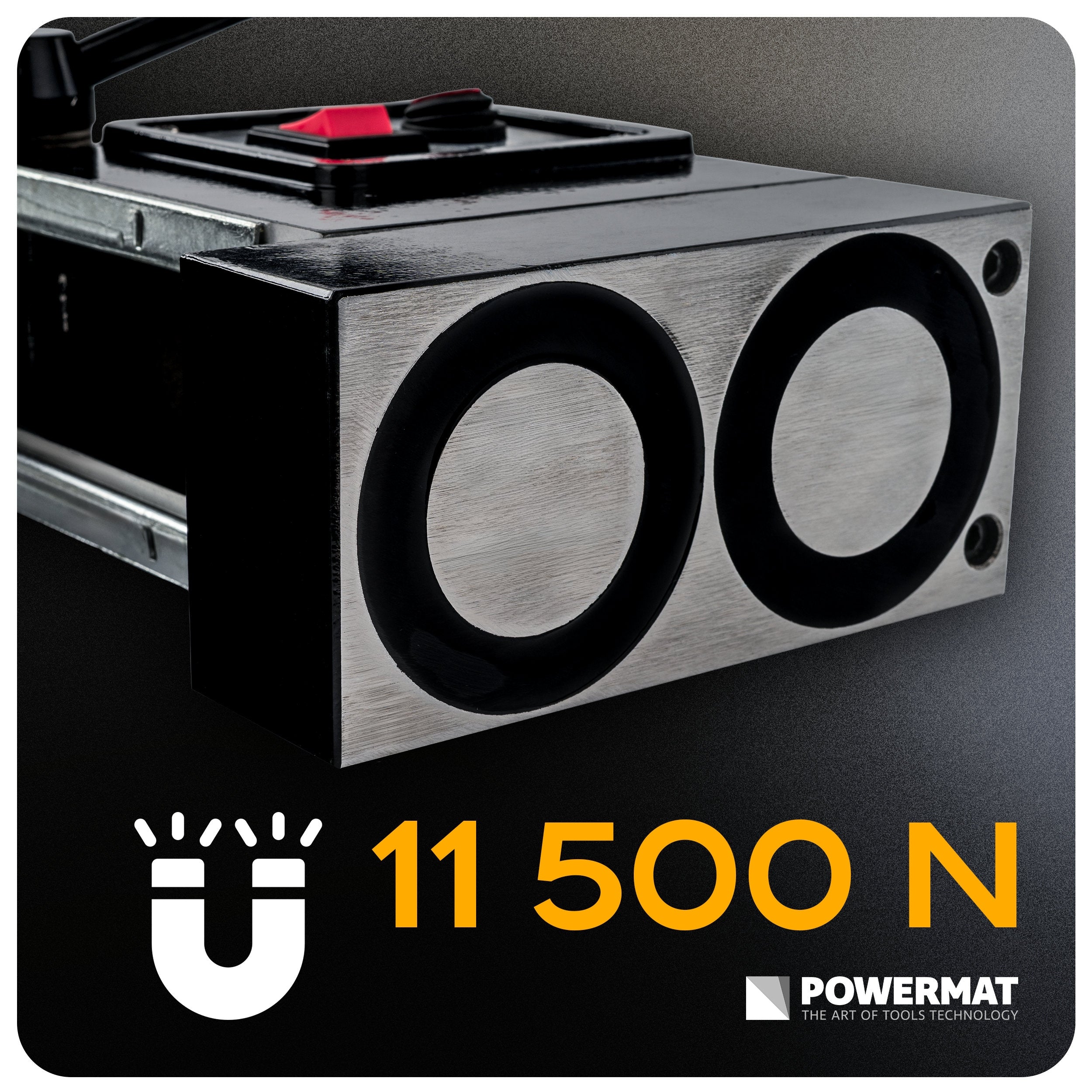

Magnetic base allows stable attachment of the device to steel surfaces without additional handles. The magnet force of 11500 N keeps the drill in place when drilling horizontally, vertically or from the bottom.

Permanent position reduces the risk of shift and axial errors. Stability translates into more accurate openings and quieter operation.

🟠 ENGINE POWER MATCHED TO STEEL

The 1500W motor provides the energy needed to drill into soft steel without tugging.

Rotary speed up to 700 rpm /min allows you to drill in a controlled manner.

🟠 DRILLING RANGE FOR LARGER HOLES

The maximum drilling diameter of 50 mm allows you to make large holes with one device.

Support for crown drills 12 to 35 mm and curly drills 1,5 to 13 mm increases the versatility of applications.

⚫ SPECIFIC PARAMETERS THAT MAKE A DIFFERENCE

You get 1500 W of power, drilling up to Ø50 mm and jump 160 mm, which is a range sufficient for most steel work. The strength of the 11500 N magnet provides the stability you expect from special task equipment.

🟠 TECHNICAL DATA

• Model: PM-WM-1500M
• Power supply: 230 V / 50 Hz
• Maximum power: 1500 W
• Engine speed: 700 rpm
• Magnet force: 11500 N
• Working stroke: 160 mm
• Maximum drilling diameter: 50 mm
• Handle range – twist drill bit: 1,5 – 13 mm
• Handle range – crown drill: 12 – 35 mm
• Spindle Cone: Weldon 19 mm
• Net weight: 12 kg

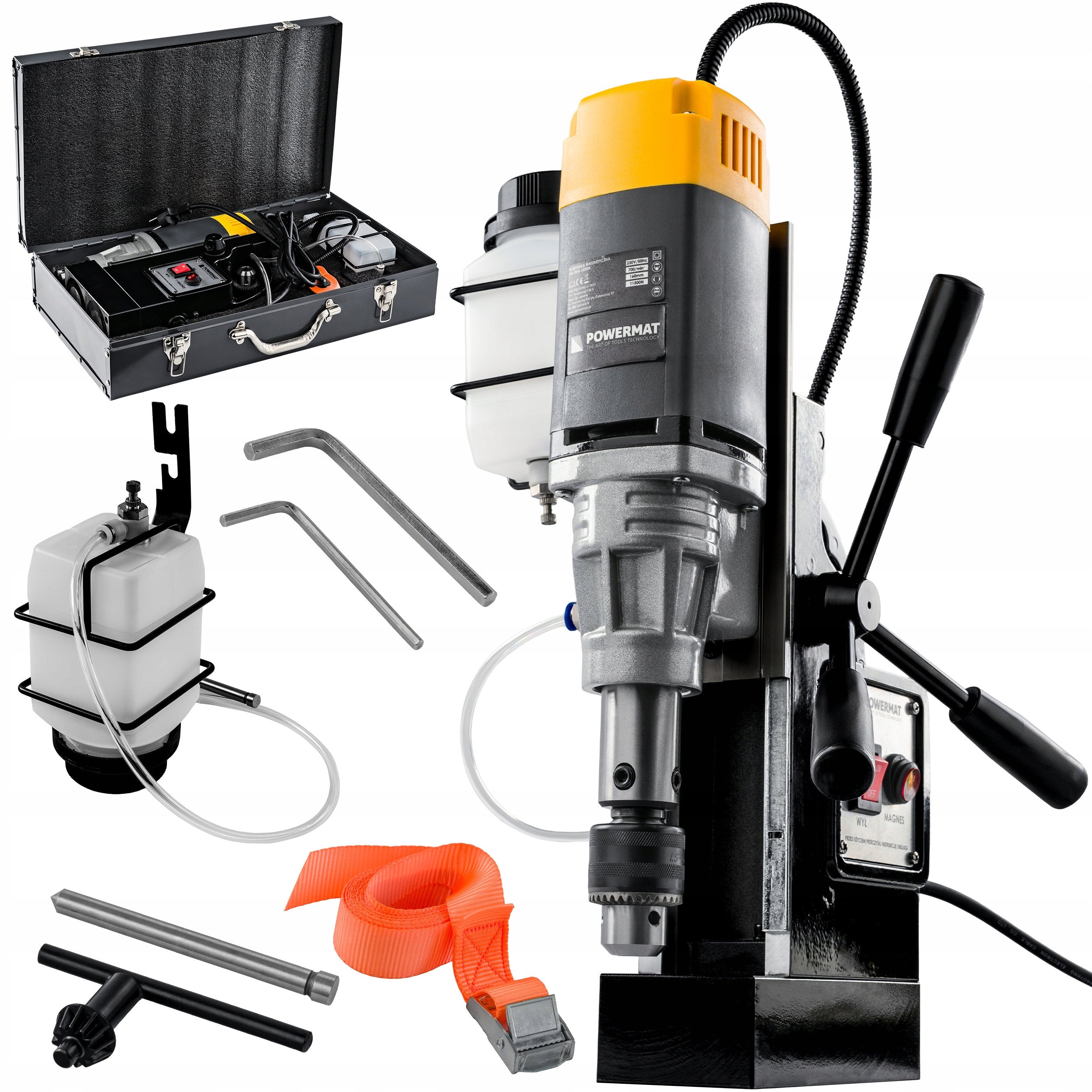

🟠 CONTENTS OF THE SET

• Magnetic drilling machine PM-WM-1500M
• Drill chuck Weldon 19 mm
• Wrench for drill chuck
• Coolant tank
• Mounting Wrench x2
• Point
• Screw-in feed handle x3
• Transport case
• Fastening belt

⚫ EQUIPMENT DESIGNED FOR PRACTICAL WORK

Weldon 19 mm is a standard that facilitates the selection of accessories and accelerates the start of work. Robust construction and thoughtful technology mean less downtime and more predictability on the construction site.

🟠 LARGE WORKING STROKE

The working stroke of 160 mm allows drilling deep holes in thick steel elements.

Greater range of motion reduces the need to move the device during operation.

🟠 STANDARD TOOL ATTACHMENT

The Weldon 19 mm spindle cone allows the use of popular cutters and accessories.

Standard solution facilitates the selection of working tools without manufacturer restrictions.

🟠 COOLANT TANK

The coolant tank allows the use of coolant during drilling, which is required when working with this device.

Coolant supply reduces the heating of the tool and material. Constant cooling helps maintain smooth drilling.

🟠 SUITCASE FOR TRANSPORT AND STORAGE

The supplied case allows you to safely store and transport the device outside the workplace. Protection during transfer reduces the risk of mechanical damage.

In practice you prepare the tool for the next job faster.

🟠 DIMENSIONS OF THE DEVICE

Length: 24 cm

Width: 17,5 cm

Min. Height: 32 cm

Max. Height: 47 cmDimensions of magnetic foot: 17 x 8,5 cm

Power cord length: 220 mm

⚫ A CHOICE THAT REDUCES THE RISK OF MISTAKES

▪ When you work on steel, you value stability and control – this is where the magnet 11500 N gives it.

▪ You have a range that organizes the work: 1500 W, Ø50 mm and jump 160 mm without constant changes of equipment.

▪ The Weldon 19 mm standard helps to maintain the consistency of the fixtures and settings in your work.

⚫ FAQ

▪ WHAT MATERIALS IS THIS DRILL DESIGNED FOR?

The device is designed for drilling holes in steel, using trepanation cutters and appropriate accessories. It is not suitable for working with non-magnetic materials without additional solutions.

▪ CAN YOU DRILL IN AN UPRIGHT POSITION OR OVERHEAD?

Yes, the drill can work on horizontal, lateral and lower surfaces. When working vertically and overhead, it is required to use a seat belt.

▪ WHAT IS THE MAXIMUM DRILLING DIAMETER?

The maximum drilling diameter is 50 mm. The handle range for crown drills is 12 to 35 mm, and for twist drills 1,5 to 13 mm.

▪ DOES THE DEVICE REQUIRE THE USE OF COOLANT?

Yes, coolant should be used when drilling. It is recommended to mix water with soap in the right proportions, without pouring the internal elements of the device.

▪ CAN THE DRILL BE ATTACHED TO NON-MAGNETIC SURFACES?

No, the magnetic base does not attach to non-magnetic materials. Other design solutions are required for such applications.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Powermat
Parametry	Type	drill
Parametry	Kind	magnetic
Parametry	Manufacturer code	PM1456
Parametry	EAN (GTIN)	5900748402447
Parametry	Power supply	network
Parametry	Power	over 851 W
Parametry	Rotational speed	700 RPM
Parametry	Number of gears	1
Parametry	Handle type	toothed
Parametry	Motor type	brushed motor
Parametry	Maximum drilling diameter in wood	50 mm
Parametry	Maximum drilling diameter in metal	50 mm
Parametry	Voltage (V)	230 V
Parametry	Maximum power	1500 W
Parametry	Power cord length	2.2 m
Parametry	Drill weight	11.5 kg
Parametry	Product weight with unit packaging	15.5 kg
Parametry	Additional information	transportation box included
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
