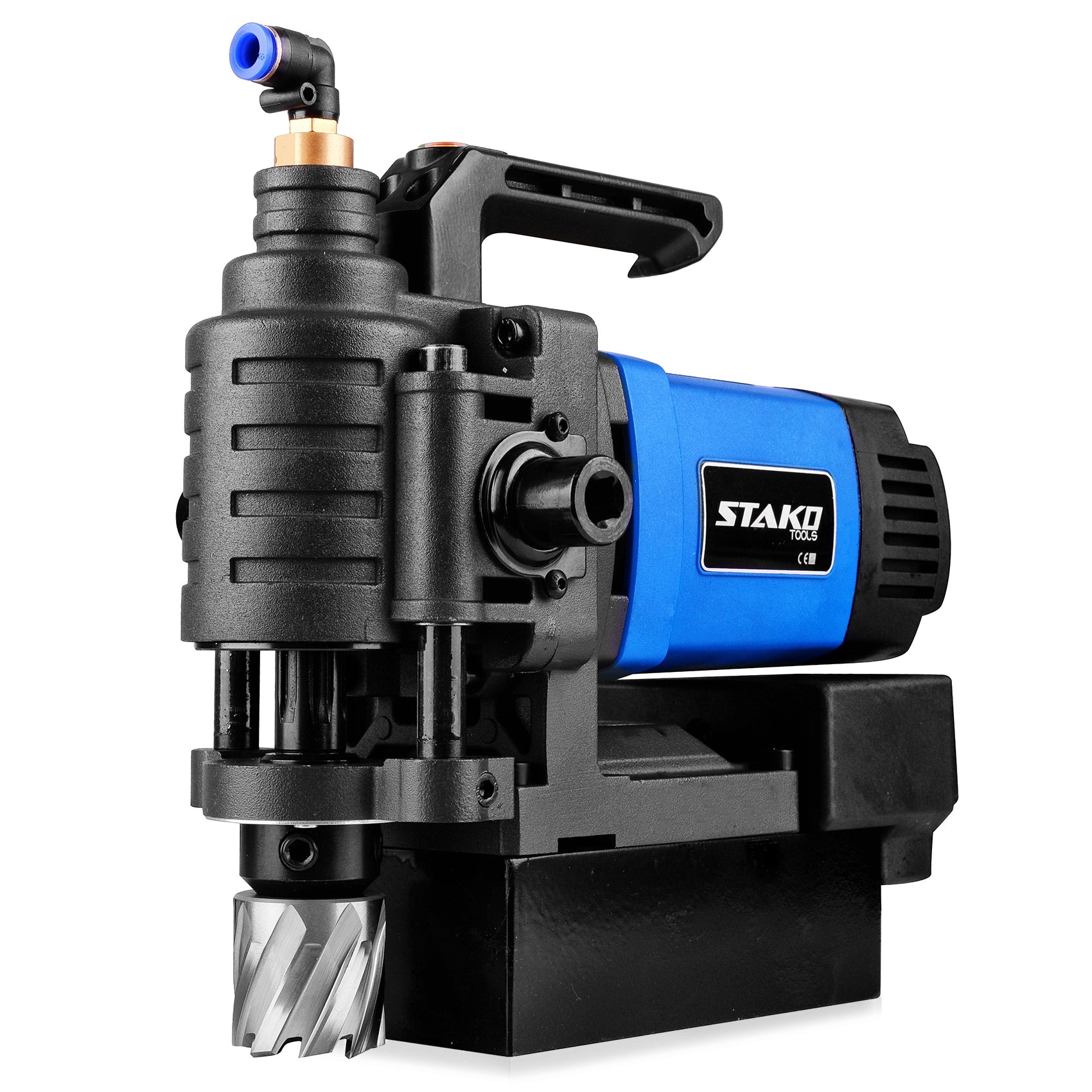

Magnetinis gręžtuvas STAKO, 38 mm, 1650 W, 8 kg, žemas profilis

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas STAKO, 38 mm, 1650 W, 8 kg, žemas profilis. Kategorija: Gręžimo staklės.

• Gamintojas: Stako
• Modelis: KCY-38DM
• Galia: over 851 W

* Equipped with WELDON 19mm ¾" drill chuck (for trepanation / core cutters)

Low profile magnetic drills are used in many areas of industry, especially where work takes place in tight or hard-to-reach places, such as the assembly of metal structures, repair work, maintenance or industrial installations. Their ability to work in places with limited space makes them valuable tools for operators who have to face the challenges of working in difficult conditions.

• Engine power: 1650 Watt
• Power supply: 230 V / 50-60 Hz
• Soft start: YES
• Rotation speed: 680 rpm.
• Max. Ø drilling (tube): 38 mm
• Working stroke: 60 mm
• Dimensions: height 255 mm x length 280 mm x W 150 mm
• Magnetic force: 14500 N (1450 kg)
• Magnetic foot dimensions: 153 x 78 mm
• Weight: 8 kg

• ✅ High quality
• ✅ Simple operation
• ✅ Compact and lightweight design (8 kg)

Thanks to its small size, the drill is great for use in hard-to-reach places with limited access to the processed material such as tight corners, recesses or areas with limited space.

The compact and lightweight design guarantees easy transport and convenient positioning of the machine.

Our magnetic drill is a guarantee of increasing the efficiency and precision of the holes, avoiding mistakes and damage to the material that can occur during classic manual drilling. Moreover, it makes the drilling process much faster, which translates into saving time and resources.

This type of equipment is an alternative to table machines, is characterized by much lower weight, greater mobility and comfort of work, while maintaining sufficiently high technical parameters, including engine power.

The double coil magnet, which generates a magnetic field with a high attraction force of 14500 N (1450 kg), enables safe horizontal, vertical and above-the-head operation, ensures stability and confidence in attaching the drill to the metal surface and enables precise and efficient drilling of holes.

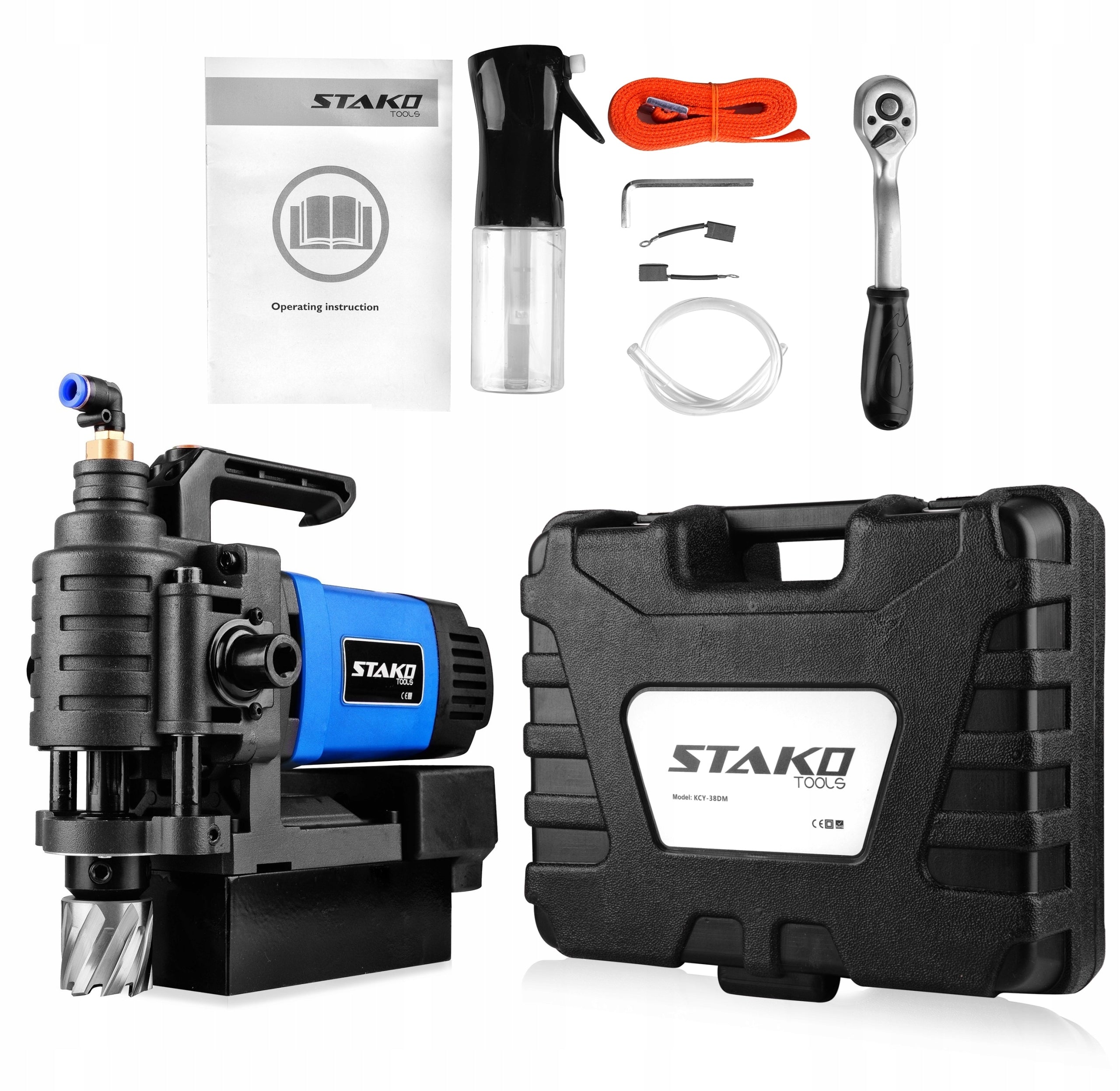

• 1 x Magnetic drilling machine STAKO KCY-38DM
• 1 x Feed handle

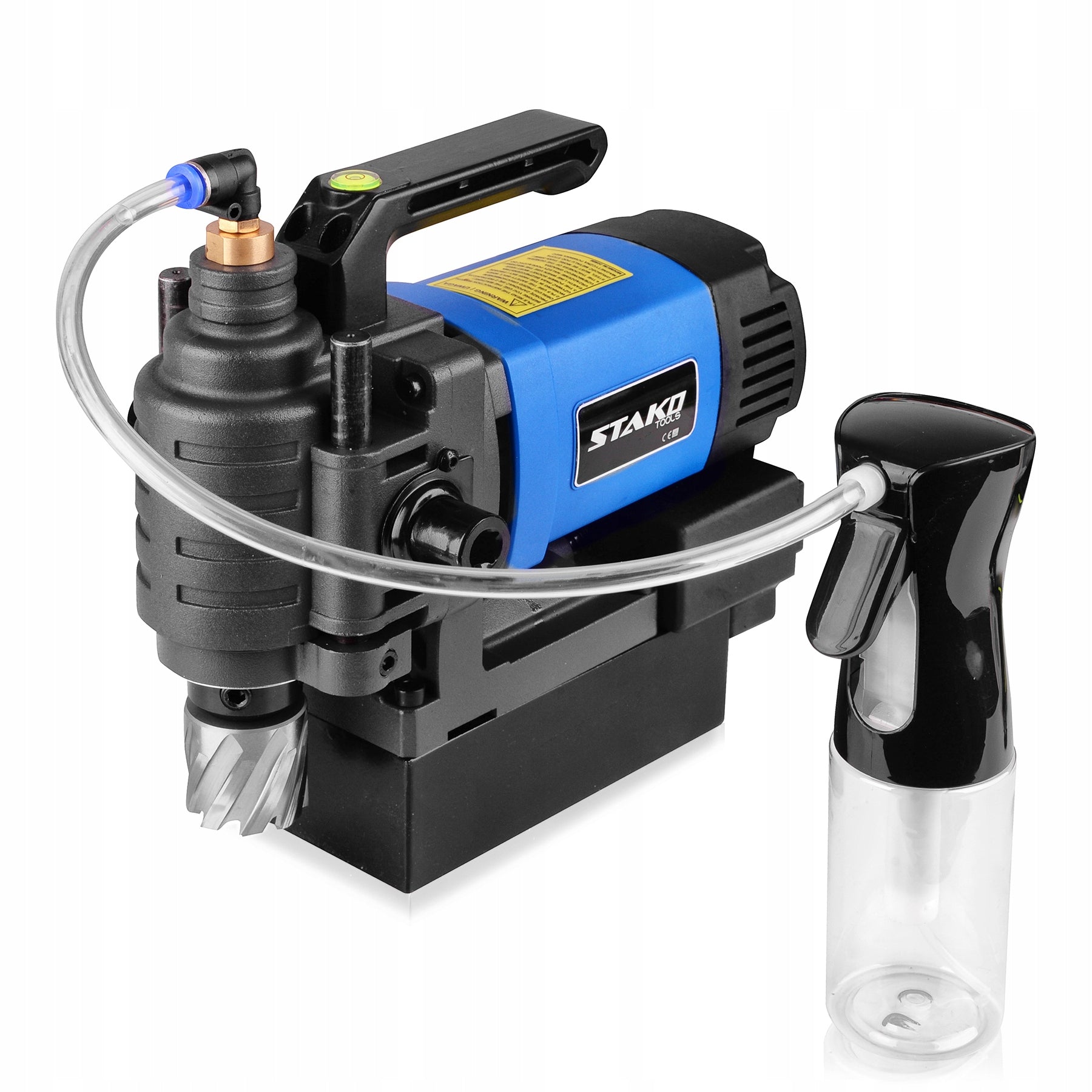

• 1 x Coolant container and hose
• 1 x Seat Belt
• 1 x Allen Wrench
• 2 x Motor Brushes
• 1 x Operation and Safety Manual
• 1 x Carrying case

Specifications
