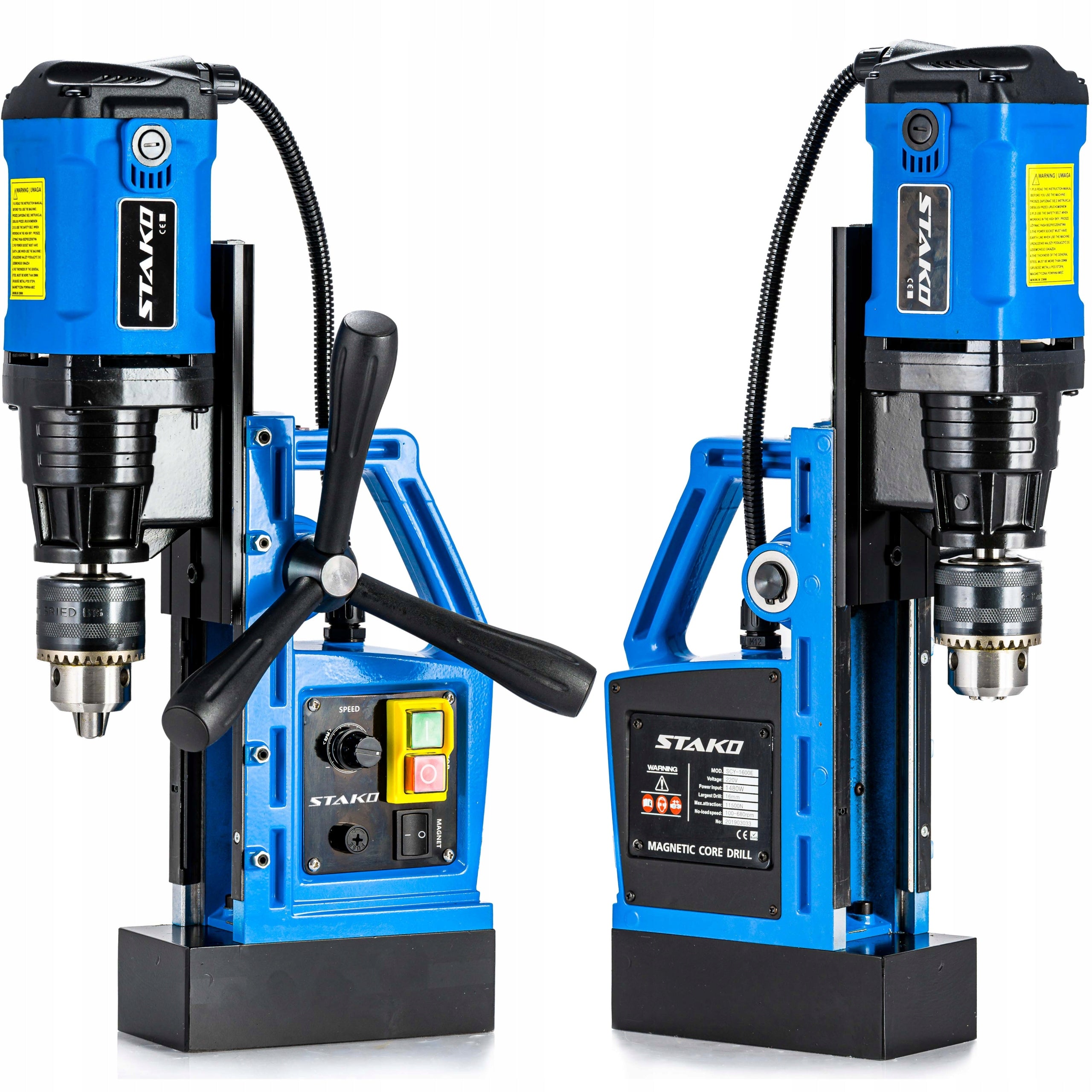

Magnetinis gręžtuvas STAKO, 40 mm, 1480 W, 10 kg

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas STAKO, 40 mm, 1480 W, 10 kg. Kategorija: Gręžimo staklės.

• Gamintojas: Stako
• Modelis: SCY-1600E
• Galia: over 851 W

* Equipped with:

Borkop B16 / 3 – 16 mm drill chuck (for cylindrical drills and spectral foraminifera)

TECHNICAL DATA:

• Engine power: 1480 Watt
• Power supply: 230 V / 50 - 60 Hz
• Soft start (soft-start): YES
• Tool holder: Borkop B16 / 3 - 16mm
• Max. Ø drilling (full/roller drill): 16 mm
• Max. Ø drilling (core hole): 40 mm
• Speed control: YES (0 - 680 rpm /min.)

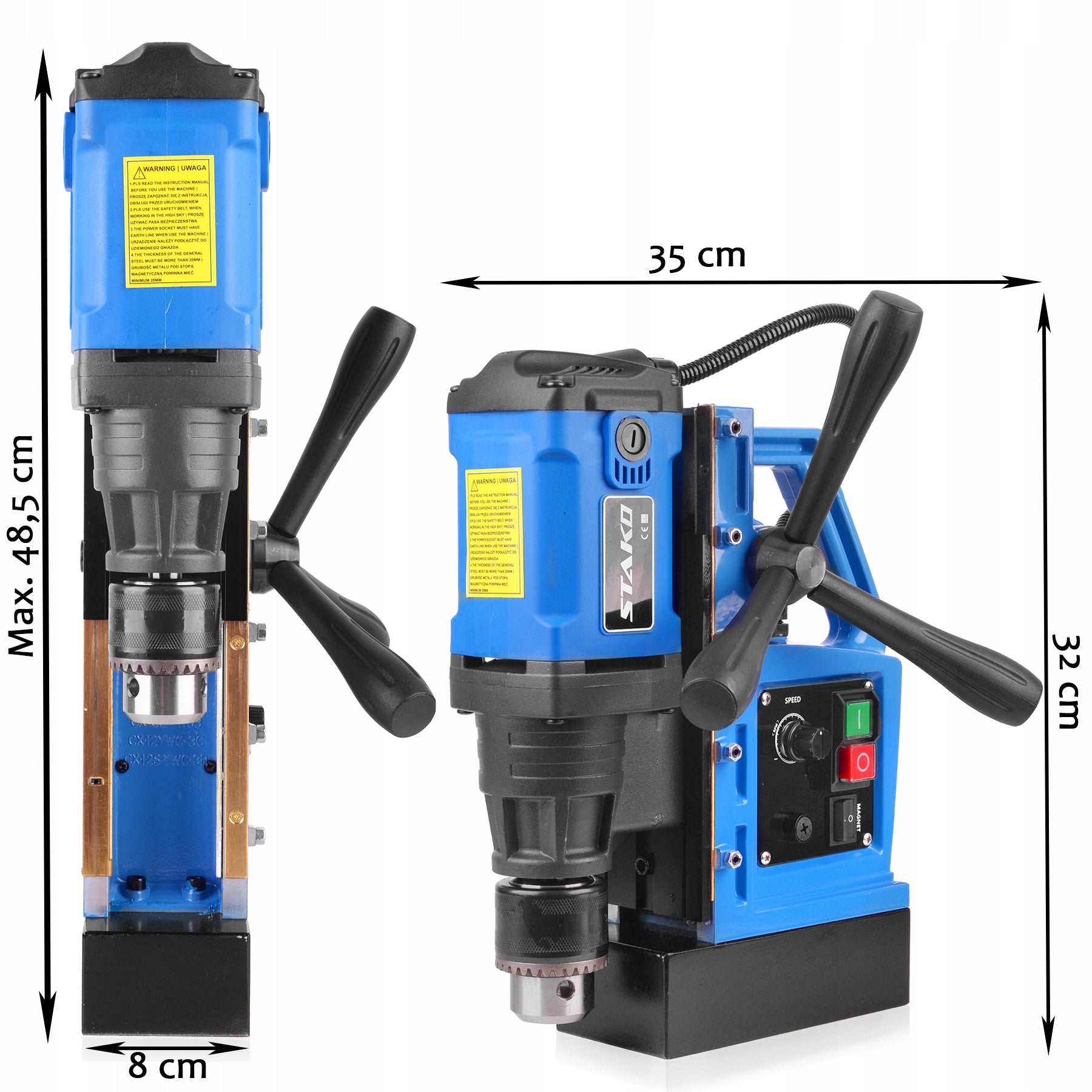

• Max/min height: 475 / 320 mm
• Maximum distance from spindle to base: 160 mm
• Working stroke: 155 mm
• Magnetic force: 11500 N (1150 kg)
• Magnetic foot dimensions: 160 / 80 mm
• Weight: 10 kg

• ✅ High quality workmanship
• ✅ Simple operation
• ✅ Gentle start-up and smooth speed control
• ✅ Compact size, compact and lightweight design (10 kg)

Thanks to its small size, the drill is great for use in hard-to-reach places.

The compact and lightweight design guarantees easy transport and convenient positioning of the machine.

High-end device for precise drilling in steel with a very good price-performance ratio.

Our magnetic drill is a guarantee of increasing the efficiency and precision of the holes, avoiding mistakes and damage to the material that can occur during classic manual drilling. Moreover, it makes the drilling process much faster, which translates into saving time and resources.

This type of equipment is an alternative to table machines, is characterized by much lower weight, greater mobility and comfort of work, while maintaining sufficiently high technical parameters, including engine power.

The magnetic drill control panel is a central element that allows the user to control the various parameters and functions of the device. It is designed to allow for easy and intuitive control of your device, while also ensuring that your work is safe and efficient.

Smooth speed control from 0 to 680 revolutions per minute does not burden the motor, which extends its service life and is useful when working with different drill diameters.

The device has protection against automatic restart s in the event that the work is interrupted due to power failure.

The double coil magnet, which generates a magnetic field with a high attraction force of 11500 N (1150 kg), enables safe horizontal, vertical and above-the-head operation, ensures stability and confidence in attaching the drill to the metal surface and enables precise and efficient drilling of holes.

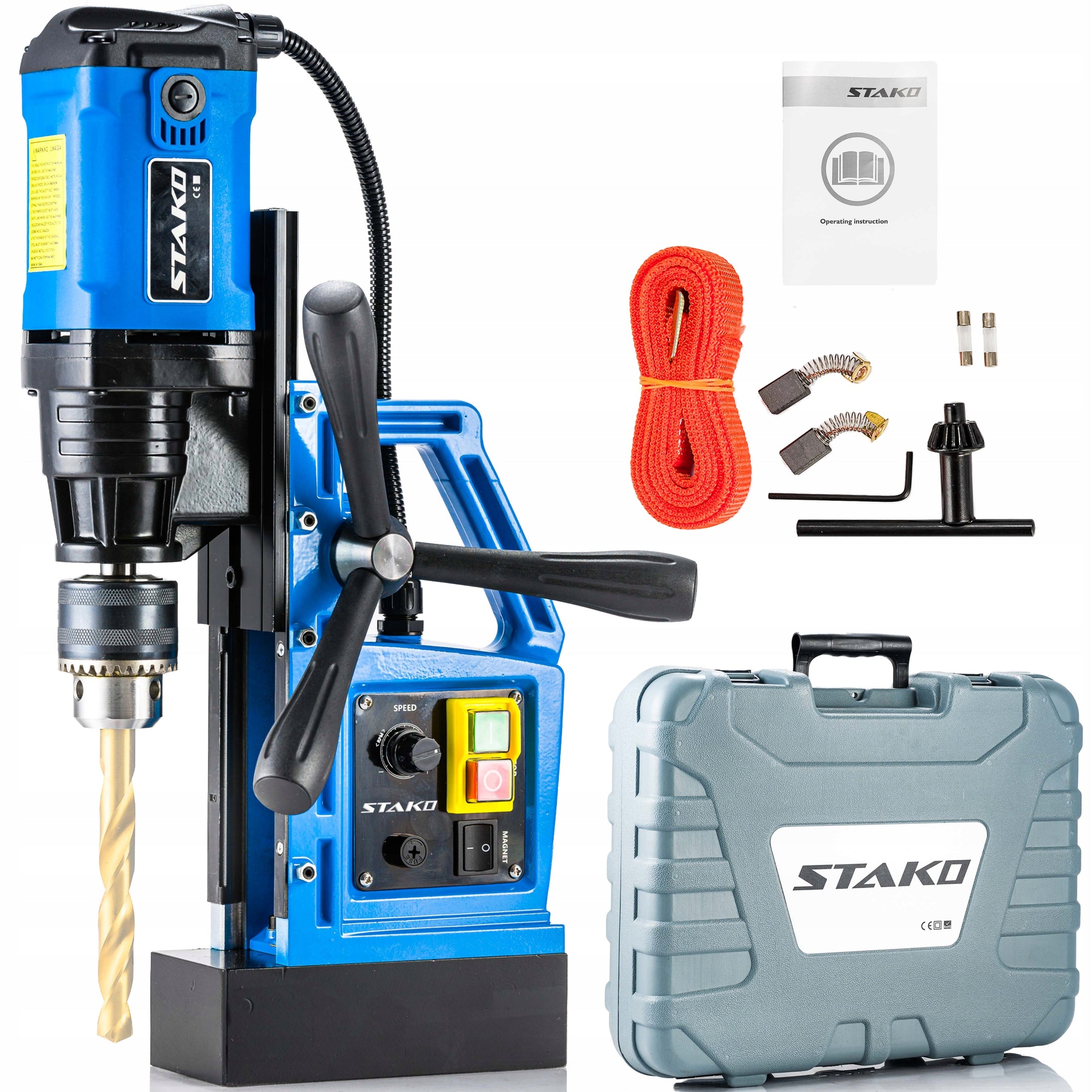

THE SET INCLUDES:

• 1 x Magnetic drilling machine STAKO SCY-1600E
• 1 x Drill chuck B16 / 3 – 16 mm
• 1 x Drill Chuck Crimping Wrench
• 3 x Feed handle
• 1 x Seat Belt
• 2 x Motor Brushes
• 2 x Fuse
• 1 x Manual
• 1 x Carrying case
