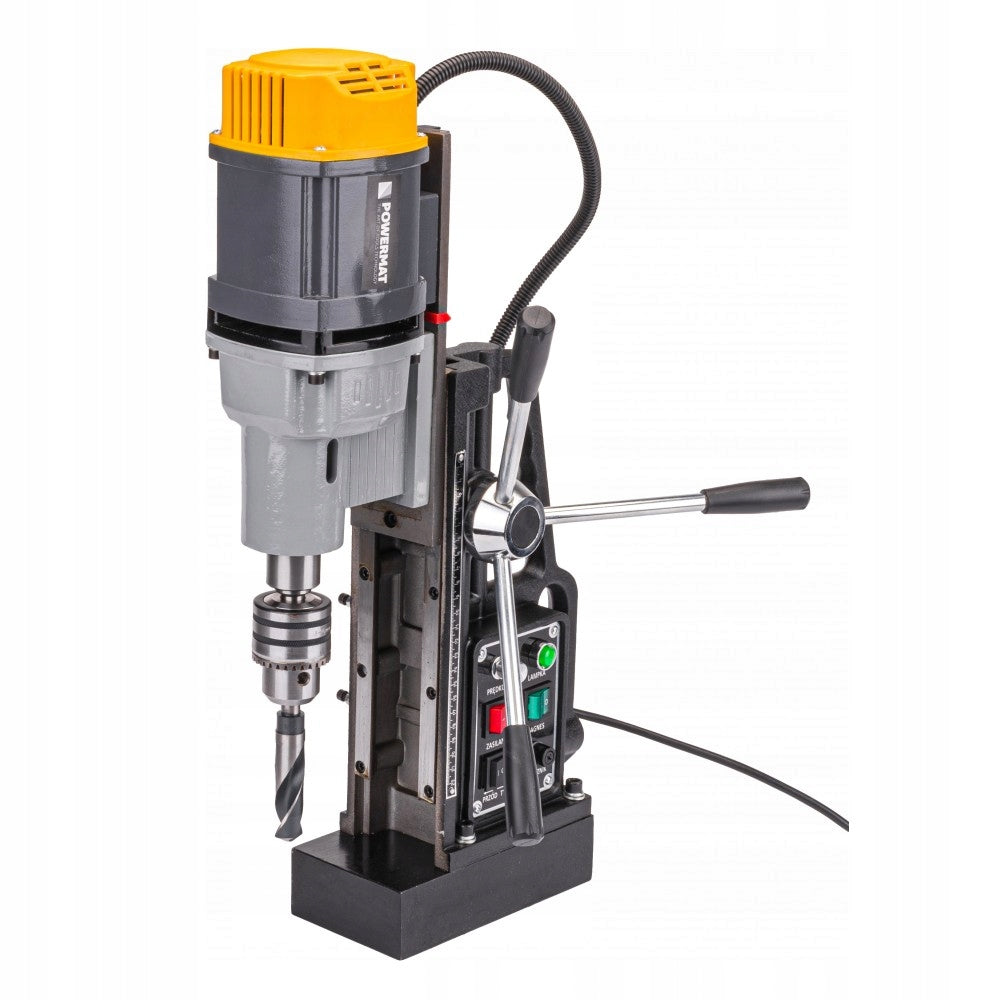

Magnetinis gręžtuvas STRONG, 2100 W, 230 V, 50 mm, 14000 N, MT3/MT2

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas STRONG, 2100 W, 230 V, 50 mm, 14000 N, MT3/MT2. Kategorija: Gręžimo staklės.

• Gamintojas: Powermat
• Modelis: PM-WM-2100T / PM1203
• Galia: over 851 W

POWERMAT PM-WM-2100T / PM1203

⚙ Technical data

• Maximum power: 2100 W
• No-load rotation: 200 - 600 [ rpm ]
• Magnet force: 14000 N
• Handle type: B16 gear drill chuck (3 - 16 mm) + Weldon trepanation drill chuck (19 mm)
• Maximum drilling diameter with full drill: 28 mm
• Maximum diameter of drilling with a pipe drill: 50 mm
• Maximum height of the device: 610 mm
• Minimum height of the device: 390 mm
• Maximum working stroke: 180 mm
• Soft-start: YES
• Weight of the device: 21 kg

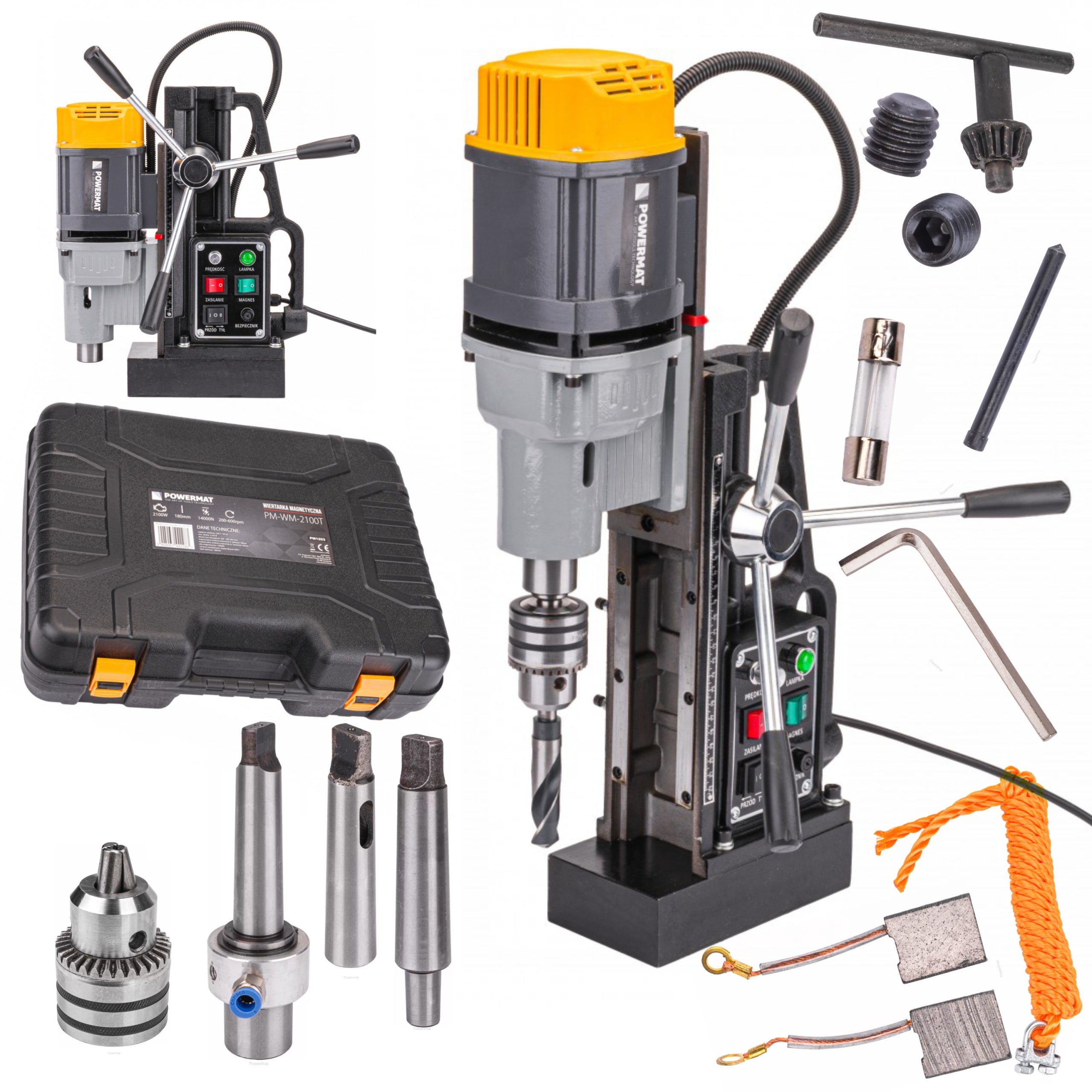

✅Equipment

• Electric drilling machine POWERMAT
• Gear drill chuck B16 (3 - 16 mm) MT3
• Drill chuck for Weldon cutters 19 mm (3/4")
• Conical adapter with MT3 -> MT2
• Safety cord
• Punch
• Guide pin (point)
• 2x spare fuse
• Coolant tank 500 ml
• Transport case
• User manual in Polish
• Original packaging
• Spare Allen Screws
• Wrench for gear holder
• Allen wrench for tool lock
• Spare carbon brushes

➡ Main features

Magnetic force 14000 N: The powerful magnet can generate a holding force of 14000 N / 3147 lbs, ensuring that the drill-driver does not move during operation. Our magnetic drill anchors securely when working thanks to the base with an electromagnet.

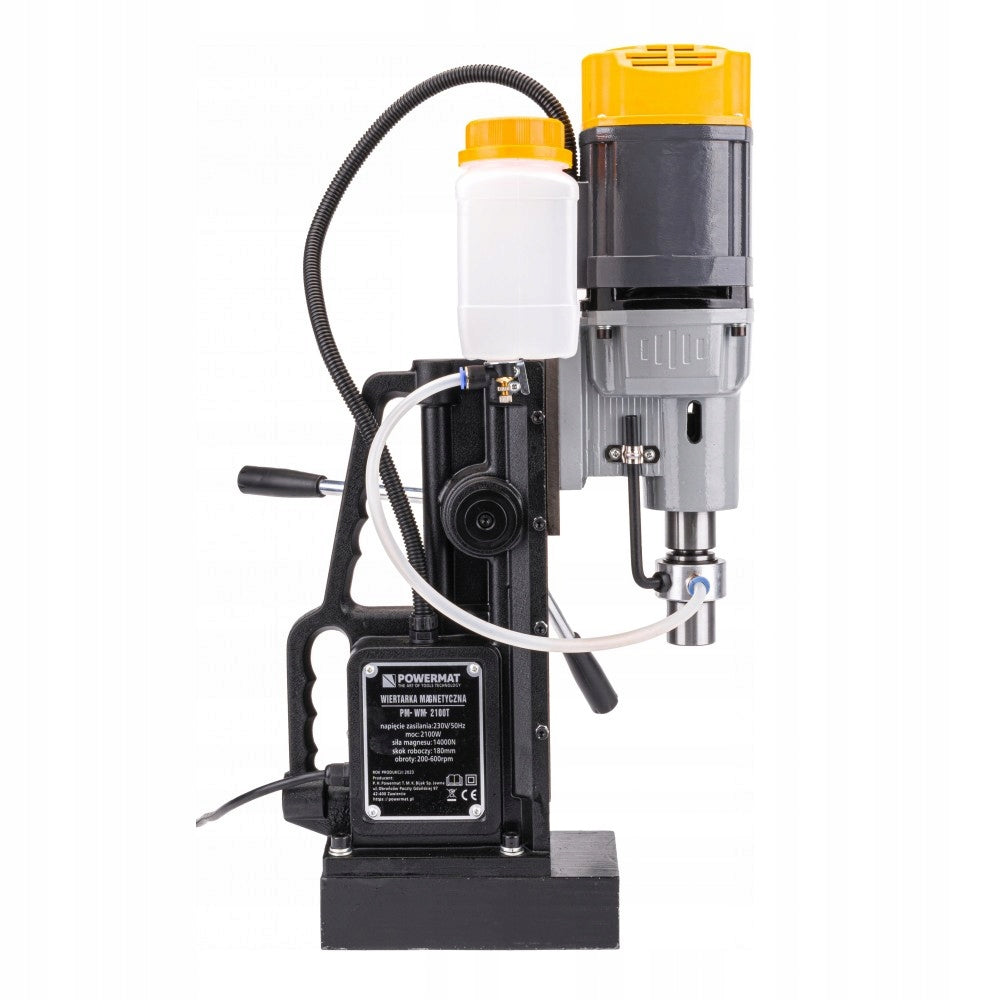

Efficient cooling system: The dustproof air inlet and outlet holes are designed to effectively cool your magnetic drill during overheating and take your safety to the next level.

User-friendly design: The ergonomic handle provides a comfortable grip during work and transport. 3 extended cranks are covered with non-slip rubber, which saves labor. The external carbon brush allows you to operate magnetic drills with minimal effort.

Various applications: Electromagnetic drilling machine plays an extremely important role in shipbuilding, equipment manufacturing, equipment installation, bridge construction, wind power and other engineering facilities.

Improved ergonomics

Convenient to use tool exploration knob in material with balanced plunge feed.

Two solid magnets

Thanks to the total absorption force of up to 14000N, the drill attached to the ground will easily stay on the cut material.

The drill additionally has a smooth rotation adjustment.

A very solidly made B16 toothed drill chuck will lock any cylindrical drill from 3 mm to 16 mm.

19 mm MT3 conical holder for Weldon cutters
