Magnetinis gręžtuvas VEVOR 1100W, 12000N, 40 mm, su 6 kaltiniais grąžtais

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas VEVOR 1100W, 12000N, 40 mm, su 6 kaltiniais grąžtais. Kategorija: Gręžimo staklės.

• Gamintojas: Vevor
• Modelis: CLZTJJKX640MMKJT
• Galia: over 851 W

Magnetic Electric Drilling Machine

This class-leading drill is designed and engineered for speed and precision, with a robust 12 000 N magnetic grip and an optimized 550 rpm rotation speed. /min. It is an indispensable tool for heavy industrial work and steel structures.

NOTE: Our magnetic drill can only be used with pipe drills, not for hole saws.

Higher efficiency

Premium Core Drill Bits

Magnetic force 12000 N

Thoughtful design and cooling system

Specifications

Maximum drilling diameter: 1,57 inch / 40 mm

Maximum drilling depth: 2 inches / 50 mm

Voltage: 220 V

Rated frequency: 50 Hz

Rated Input Power: 1100W

Spindle speed (idle speed): 550 rpm /min

Stainless steel pot: 21,36 cubic inch / 350 ml

Maximum magnetic force 2700 lbs (12000 N)** (thinner metal = less force)

Tool holder: Weldon 3/4 inch (19,05 mm) grip.

Total weight: 30 lbs / 13,6 kg

Exceptional performance

This magnetic drill is designed for precise and demanding core drilling and is equipped with a 550 rpm motor. /min and power 1100 W. Maximum core drilling diameter: 40 mm (1,57 inches); Maximum stroke: 125 mm (4,92 inches). Our magnetic drill can only be used with core drills, not with hole saws.

Practical accessories

Six drill bits meet a variety of working requirements and can be mounted directly, without the use of a clamp. The set also includes a stainless steel coolant tank and a guide pin for convenient use.

Suction power 12 000 N

The stable base acts as a strong electromagnet that firmly holds the drill in place with a force of 2700 lbs (12 000 N) during operation, preventing any movement during drilling.

Dust-proof cooling hole

The set includes a coolant cylinder with a quick coupler, ensuring a long lifespan of the cutter and quiet operation of the drill. Dustproof air inlets and outlets also lower the temperature.

Details worth attention

The cranks are covered with non-slip rubber for easy and effortless handling. The ergonomically shaped handle fits comfortably in your hand. The clear control panel makes it easy to operate.

Various applications

Electromagnetic drilling machine plays a very important role in shipbuilding, apparatus construction, installation technology, bridge construction and other technical systems.

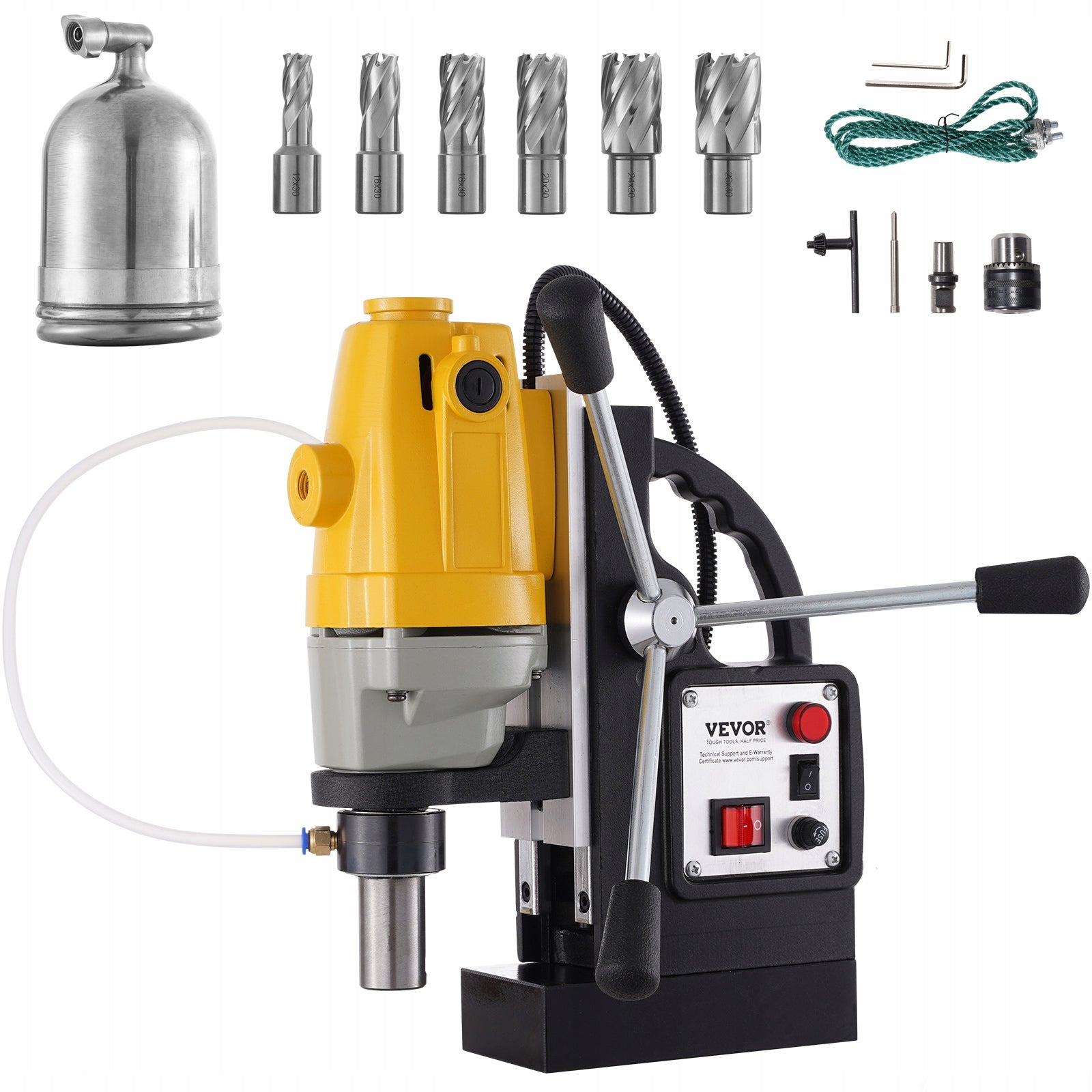

Package Contents

1 x MD40 Magnetic Drill

6 x Core Drill Bits

1 x Stainless Steel Pot

1 x Pilot Pen.

1 x Rope

1 x User Manual

Key features

Superior performance: Our portable drill delivers exceptional performance with its 1100W copper motor. It can drill into the toughest materials at 550rpm. /min. Maximum core diameter: 40 mm (1,57 inches); maximum feed distance: 125 mm (4,92 inches). In addition, our magnetic column drill can only be used with pipe drills, not with hole saws.

Premium Core Drill Bits: 6 chisel drill bits are available: 0,47 inch (12 mm), 0,63 inch (16 mm), 0,71 inch (18 mm), 0,79 inch (20 mm), 0,94 inch (24 mm), 1,02 inch (26 mm) to meet a variety of core drilling needs.

Magnetic force 12 000 N: A strong two-stage magnet generates a holding force of 12 000 N, ensuring the stability of the drill during operation. With an electromagnetic base, our magnetic drill bit securely holds a sturdy iron base during use.

Thoughtful design and cooling system: This ergonomically shaped handle provides a comfortable grip during work and transport. Three elongated cranks are covered with non-slip rubber. Coolant tank, dustproof air intake and vents cool the magnetic drill in case of overheating.

Versatility: This versatile magnetic drill is ideal for applications in industrial and steel construction, ship and bridge construction, railway construction, wind turbine construction, power plant construction, do-it-yourself work, equipment assembly, and many other areas.

Specifications
