Magnetinis gręžtuvas VEVOR, 1450 W, 13000 N traukos jėga

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas VEVOR, 1450 W, 13000 N traukos jėga. Kategorija: Gręžimo staklės.

• Gamintojas: Vevor
• Modelis: CLZTJ6JTFP50QLWW70

Electromagnetic drilling machine 1450 W

This magnetic drill securely adheres to steel and iron surfaces, providing precise burr-free holes. With six drill bits, it is suitable for a variety of drilling tasks. Made from high-quality alloy, it is ideal for DIY projects, industrial applications, and steel processing.

Top-notch magnet

Understanding the Power

Safety and durability

User-friendly design

Wide range of applications

Specifications

Article model number: 8880E

Shaft Type: Weldon Shaft

Maximum power consumption: 1450 W

Maximum magnetic force: 2922 lbf / 13000 N

Forward idle speed: 0-850 rpm /min

Idle speed in reverse direction: 0 to 720 rpm /min

Maximum drill diameter (core drill): Φ2 inches / Φ50 mm

Maximum drilling depth: 2 inches / 50 mm

Maximum drill diameter (spiral drill): Φ0,1 – 0,6 inch / Φ3 – 16 mm

Maximum drilling depth (spiral drill): 3,9 inch / 100 mm

Thread Size Range: M3-M16

Maximum range of motion: 8,27 inch / 210 mm

High efficiency

Our magnetic drill is equipped with a 1450 W motor with adjustable speed in the range of 0 to 850 rpm. /min, which greatly increases drilling efficiency, especially for projects requiring intensive drilling. This ensures more stable operation, greater precision and greater comfort of use.

Versatile drilling capabilities

Featuring a variety of core drill bits, a professional swivel handle, and forward and backward rotations, this magnetic drill is suitable for ring drilling, drilling, and tapping. From small DIY projects to large industrial applications, we will meet all your drilling needs.

Adjustable speed

Precisely adjust the speed to the diameter of the drill. For smaller holes, use higher speed to ensure efficient drilling and smooth hole walls. For larger holes, reduce the speed to prevent damage to the drill or misalignment caused by excessive speed, as well as to significantly improve drilling accuracy.

Precise depth scale

The integrated scale allows you to directly monitor and control the drilling depth during operation, ensuring that each hole meets the exact requirements. This magnetic drill is particularly valuable in applications that require precise depth control, such as machining and assembly of workpieces in the construction industry.

Solid guide rail

The "swallow tail" guide design provides high rigidity and withstands significant cutting forces and torques. Even when machining hard materials or in harsh drilling conditions, the magnetic drill remains stable and reliable.

Stable base

The low center of gravity is designed to provide stability and prevent wobble, so you can tackle even the most challenging or time-consuming tasks with ease.

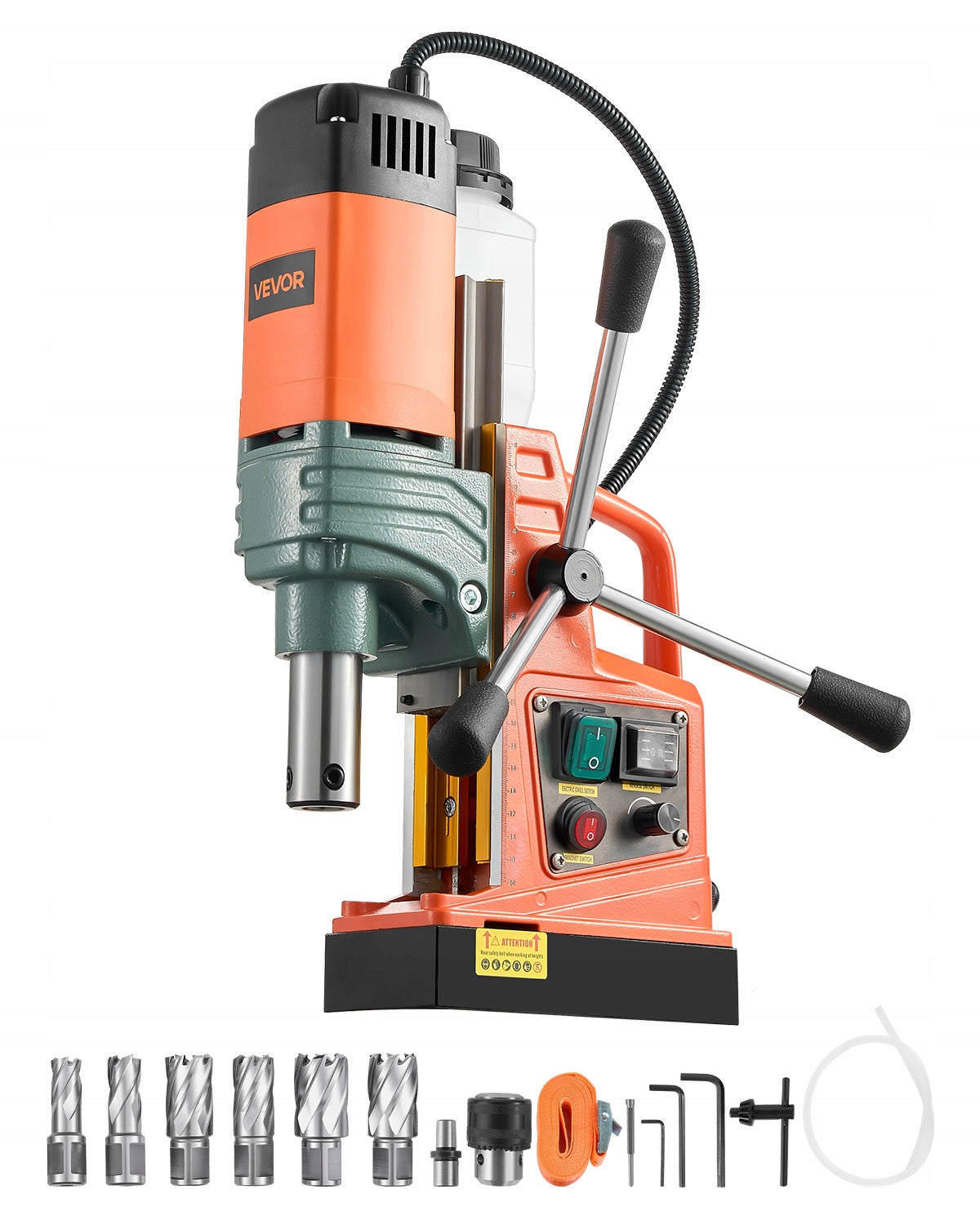

Package Contents

1 x Drill Chuck Wrench

1 x Drill Chuck

1 x Coolant Tank + Stand

1 x Coolant Hose

1 x Rope

1 x Thimble

3 Allen keys

1 x Conversion Connector

6 x Weldon shank core drill bits

3 x Hand Cranks

1 x User Manual

Key features

Efficient magnetic base: Equipped with a 1450W copper motor, this magnetic drill offers strong and stable operation. Effortlessly drill into hard materials at 0 to 850 rpm. /min. Maximum core diameter: 50 mm; maximum core depth: 50 mm

Feel the power: With a holding force of 13 000 N (2922 lbf), this magnetic drill is equipped with a pure iron core, ensuring safe and stable operation from different angles. The 10 speed settings allow for precise and efficient drilling of holes of various diameters.

Safety and durability: This magazine press is equipped with overload protection and a quick cooling system to prevent overheating and ensure safe operation. Titanium and magnesium alloy guide provides excellent wear resistance, extending the service life.

User-friendly design: This core drill features an integrated scale for precise distance measurement in millimeters, allowing for easy and accurate drilling. The ergonomic handles and three elongated cranks provide a comfortable grip and easy handling.

Versatile Applications: This magnetic drill is ideal for DIY projects, equipment installation, steel structures, shipbuilding, bridges, railways and power plants. Note: Use only for steel sheets with a thickness of 10 mm or more. Not suitable for stainless steel or cast iron. When drilling in the overhead or horizontal position, use a safety rope.

Specifications
