Magnetinis gręžtuvas WABROTECH WT16E, 1380W, 680 aps./min

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas WABROTECH WT16E, 1380W, 680 aps./min. Kategorija: Gręžimo staklės.

• Gamintojas: WABROTECH
• Modelis: Wiertarka magnetyczna WT16E
• Galia: over 851 W

Technical data:

• Tool holder: Jaw holder 3-16 mm
• Engine power: 1380 Watt
• Power supply: 230 V / 50 Hz
• Soft start (soft-start): YES
• Speed control: 100 – 680 rpm.
• Max. Ø drilling (full): 16 mm
• Max. Ø drilling (tube): 30 mm
• Max. working stroke: 130 mm
• Magnetic force: 11500 N
• Magnetic foot dimensions: 170 x 80 mm
• Max. dimensions (D x Sz x W): 250 x 180 x 450 mm
• Net weight: 10 kg
• Transport case included: YES

The Drilling machine WT16E is a compact magnet designed for reliable and precise work using twist drills. Equipped with a 1380 W motor and adjustable rotational speed in the range of 100 – 680 rpm /min., allows you to make holes with a diameter of up to 30 mm using core drills. Its small size and low weight (only 10 kg) make it ideal for places with limited space, while offering high drilling efficiency in hard materials, which significantly increases the comfort of the operator.

The WABROTECH WT16E magnet is equipped with an electric motor with a power of 1380 W with copper windings, which are distinguished by high efficiency and resistance to overload, surpassing models with less durable aluminum windings. Robust thermal insulation effectively protects the structure from overheating, extending its service life and ensuring reliability in demanding conditions. Smooth speed control up to 680 rpm /min. allows precise adjustment of operating parameters to drills of different diameters, ensuring versatility and convenience of use.

The WT16E drill for twist drills has a two-coil electromagnet with a power of 11 500 N, perfectly holding the material and ensuring safe operation in any position, also above the head.

The presented model was equipped with a jaw handle 3-16 mm, embedded in the housing with two machine bearings. As a result, the work of the drill remains stable at every stage, eliminating any beatings and minimizing the likelihood of its damage.

WT16 in the version for twist drills are characterized by the following opening parameters:

• maximum drilling diameter with full drill Ø 16 mm,
• maximum drilling diameter with core drill Ø 30 mm,
• maximum working stroke 130 mm.

A big advantage of the solutions are durable guides in which the engine mounting plate moves, offering at the same time the possibility of adjusting and replacing them. As a result, the feed operation is smooth and allows you to easily delete any slacks.

Drill chuck error tolerance +/- 0,5 mm.

Thanks to its parameters, the WT16 magnetic drill for twist drills will be widely used in the following works and industries:

• processing of steel materials,
• construction and installation companies,
• production of machinery and cranes,
• services,
• locksmith workshops.

WABROTECH WT16 (set for twist drills) – equipment

When you buy a WT16 magnetic drill in our online store, you will receive:

• 1 x WT16E Magnetic Drilling Machine
• 3 x Feed handle
• 1 x Jaw holder 3-16 mm (mounted)
• 1 x Drill Chuck Crimping Wrench
• 1 x Seat Belt
• 1 x Fuse
• 1 x Brush Set
• 1 x Allen Wrench
• 1 x Manual

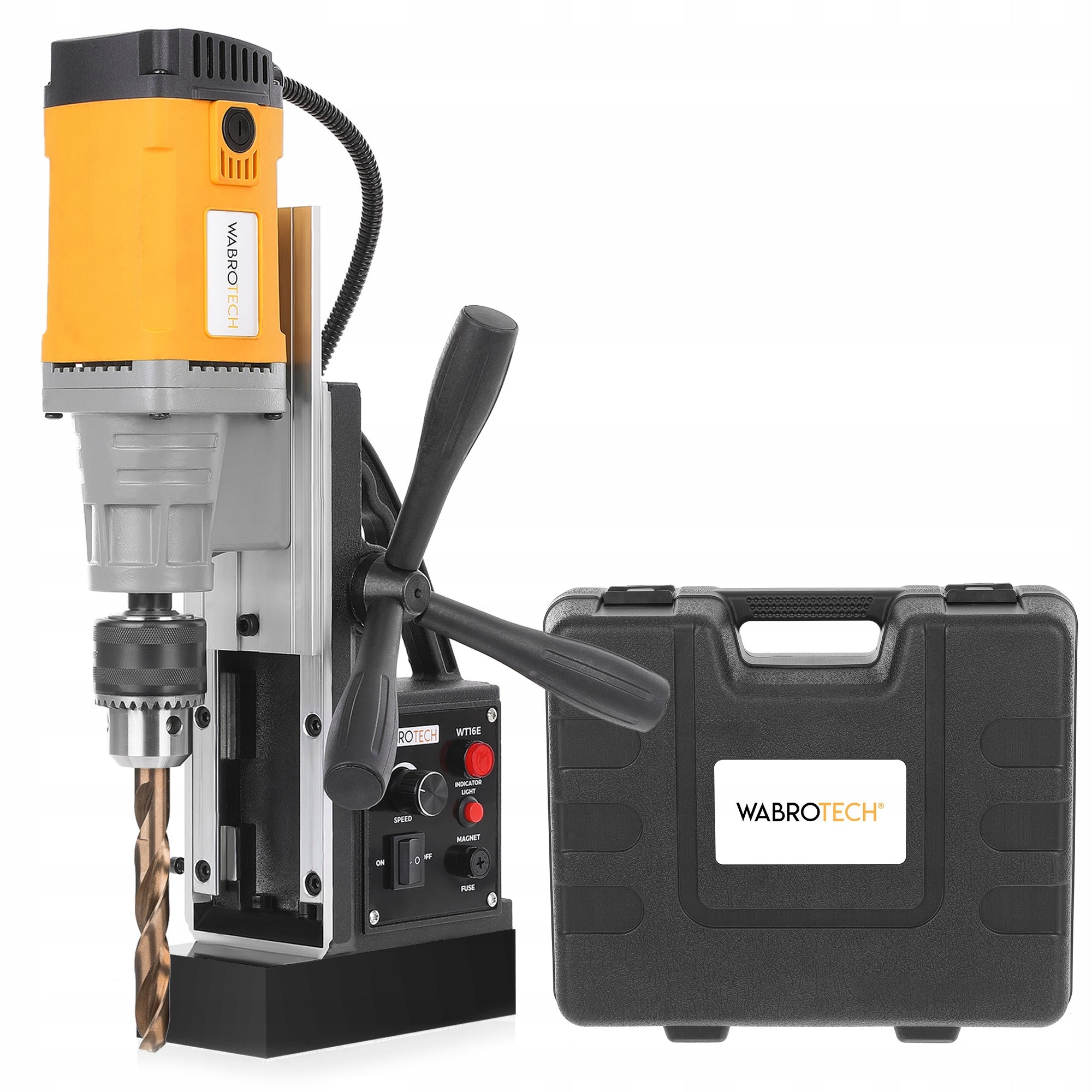

• 1 x Carrying case (free)
