Magnetinis gręžtuvas WABROTECH WT23, 50 mm, 1880 W

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas WABROTECH WT23, 50 mm, 1880 W. Kategorija: Gręžimo staklės.

• Gamintojas: WABROTECH
• Modelis: Wiertarka-WT23REW
• Galia: over 851 W

WABROTECH MAGNETIC DRILL

WT23RE MILLING CUTTER KIT

+ B16 drill chuck 3-16mm

+ WELDON holder 19mm

Technical data:

• Tool holder: MT2 taper spindle
• Motor power: 1880 W
• Power supply: 230 V / 50 Hz
• Soft start: YES
• Max. rotational speed: 580 rpm (adjustable on the potentiometer)
• Reverse rotation (threading function): YES, M3-M16
• Max. Drilling diameter (full): 23 mm
• Max. Drilling diameter (tubular): 50 mm
• Max. working stroke: 200 mm
• Magnetic force: 13000 N
• Magnetic foot dimensions: 205 x 105 x 50 mm
• Device dimensions (L x W x H): 300 x 215 x 410 mm
• Package dimensions (L x W x H): 610 x 210 x 540 mm
• Device weight: 19.50 kg
• Weight with packaging: 28.00 kg
• Carrying case included: YES

Magnetic drilling machine WT23RE by WABROTECH is a versatile and durable magnet, which is great for core drilling using cutters as well as for drilling with ordinary twist drill bits. Thanks to the reverse rotation function, it can also be threaded without buying expensive threading sets with built-in rotation ratio.

In the series of drills offered by our company, the mechanical transmission has been strengthened and good quality bearings have been used. The high-power motor does not get tired during operation. The motor winding is made of high-quality coil copper and covered with durable insulation for high temperature protection (it does not overheat as in the case of fraudulent aluminum windings covered only with a layer of copper for appearance). These treatments ensure a long life of the device and job satisfaction.

The drill is ideal for steel, installation, shipbuilding, bridge, crane production, assembly, locksmith work, where it meets the highest requirements.

Drill chuck error tolerance +/- 0,5 mm.

The rotational speed can be smoothly adjusted in the range of max 580 revolutions per minute, which is necessary when working with different diameters and types of drills.

The high-power dual-coil electromagnet allows you to work safely in any position, even above the head. It is also equipped with a separate switch combined with a fuse, which makes the drill less emergency and more safe.

WT23RE-W – the ability to rotate

The WABROTECH WT23RE magnetic drill has an adjustable base, allowing you to rotate in the range of 45o to the right or left relative to the magnetic foot. Thanks to this, the versatility of the device is even higher.

The external spindle of the drill has an entrance to the morse cone 2, which allows the use of any drill chucks and directly drills with a fin. This spindle has been embedded in the housing with two solid machine bearings, which ensures stable operation of the drill and eliminates any beatings. The drill mounting plate slides in durable guides, with the ability to adjust and replace them. Thanks to the materials used, the feed operation is smooth, and in the event of slack, they can be deleted.

Compact, lightweight design and easy operation allow for universal use and easy transport.

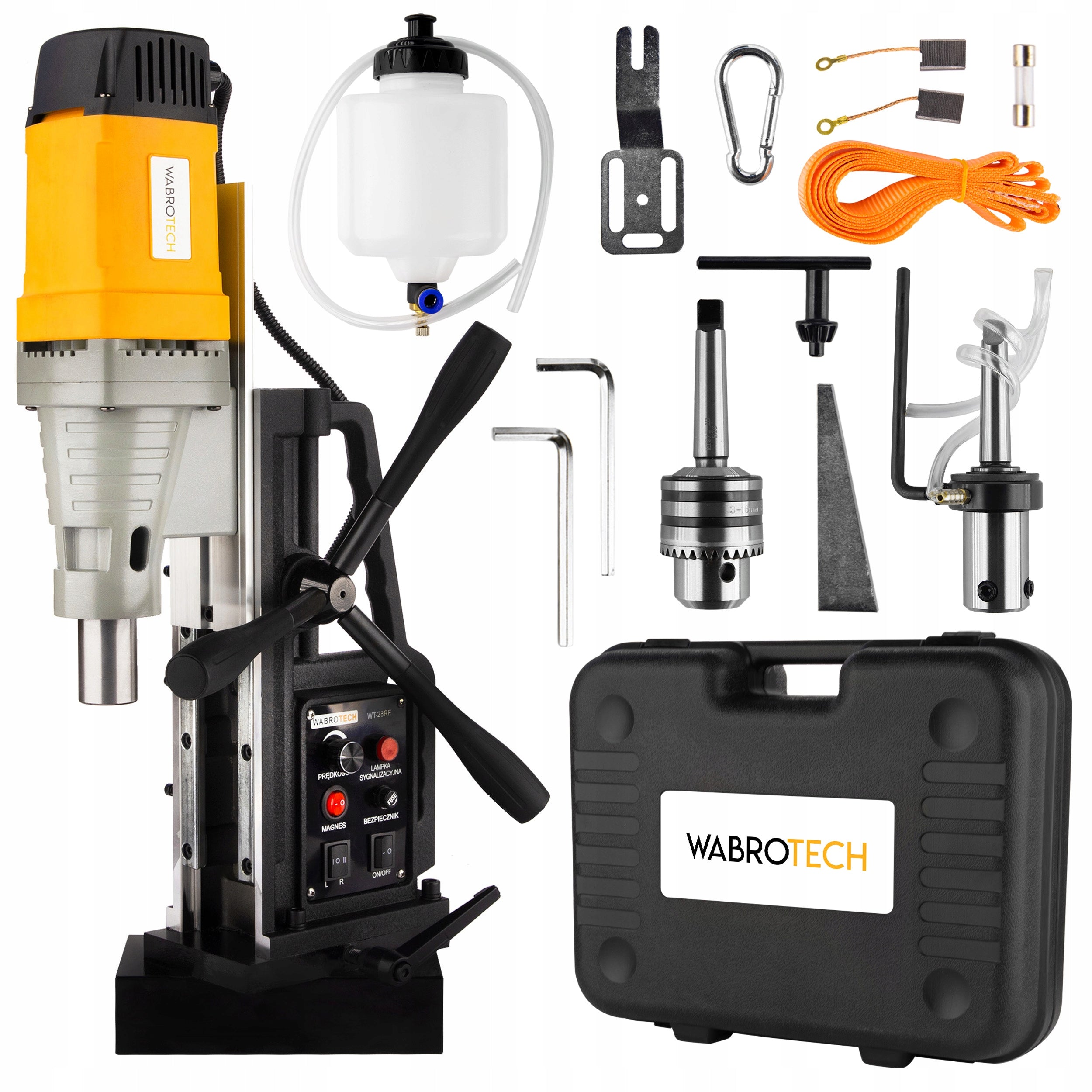

Included for cutters:

• 1 x Magnetic Drilling Machine WT23RE
• 1 x Carrying case (free)
• 3 x Feed handle
• 1 x Allen Wrench
• 1 x Punching Wedge
• 2 x Fuse
• 1 x Seat Belt
• 1 x Brush Set
• 1 x Manual
• 1 x Foot Lock Holder
• 1 x 19 mm weldon drill chuck
• 1 x Coolant Tank
• 1 x Jaw holder MT2 / 3 – 16 mm
• 1 x Drill Chuck Crimping Wrench
