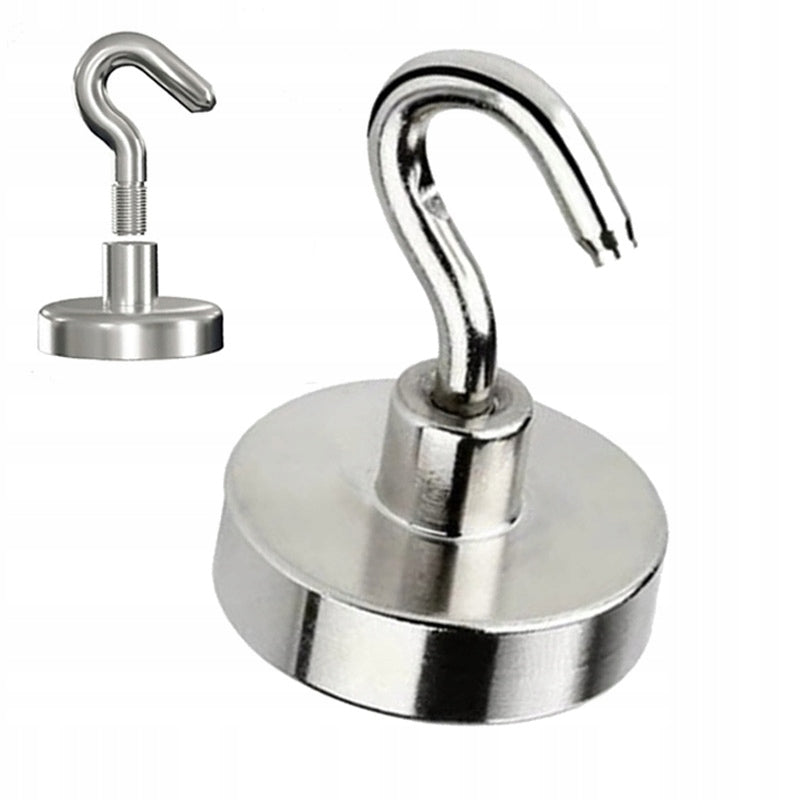

Magnetinis laikiklis su kabliuku HUNTER, 36x8 mm, keliamoji galia 48 kg

Trumpai apie prekę

Prekė: Magnetinis laikiklis su kabliuku HUNTER, 36x8 mm, keliamoji galia 48 kg. Kategorija: Neodimio magnetai.

• Gamintojas: Hunter
• Modelis: HOLD_1SZT_A6

➡ PARAMETERS

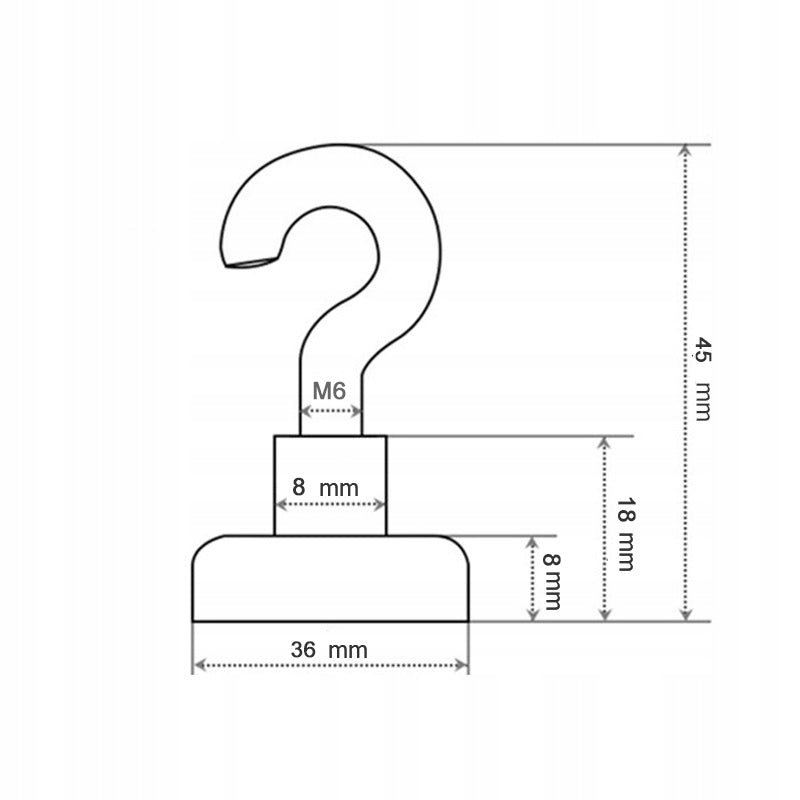

✅ DIMENSIONS: 36 mm [diameter] x 8 mm [thickness]

✅ HEIGHT WITH HOOK: 45 mm

✅ SLEEVE DIAMETER: 8 mm

✅ THREAD: M6

✅ TYPE: WITH CEILING HOOK

✅ LIFTING CAPACITY: ~48 kg (the final lifting capacity is affected by many factors, we suggest testing the magnet under given conditions)

✅ MAGNET COATING: NiCuNi- Nickel Copper Nickel

✅ HOUSING COATING: Ni - Nickel

✅ QUANTITY: 1 PIECE

✅ WORKING TEMPERATURE: UP TO 80 °C

✅ WEIGHT: 35 g

Neodymium magnetic holder with ceiling hook. Nickel handle housing. The handle has an M6 thread.

Perfect for home, school, office, workshop, or warehouse. It can also be used outdoors.

➡ MAGNETIC DURABILITY

We offer only the highest quality products, we guarantee lifetime magnetic durability on the handles we sell.

➡ APPLICATION

Thanks to the internal thread and screw-in hook, the handle is widely used. It can be used as a removable hook for hanging a variety of items. Just touch the handle to the metal surface. It will serve us at home, garage, workshop or warehouse.

➡ STEEL HOUSING

Magnets are brittle materials, through the use of a steel housing, the neodymium magnet is much better protected from damage.

➡ LIFTING FORCE

The given lifting force was measured at detachment perpendicular to the several-millimeter steel plate. Attention! Another force will have a hook attached to the ceiling, and another to the wall. The thickness of the material to which the holder has been attached is also crucial, so we suggest testing the magnet under the given conditions.

➡ LIFTING POWER AND OPERATION

✅ The given lifting force was measured with perpendicular and parallel detachment on a 2,5 mm steel plate.

✅ Note! Another detaching and sliding force will have a hook attached to the ceiling, and another to the wall, as illustrated, the picture above.

✅ The thickness of the material to which the holder has been attached is also key, so we suggest testing the magnet under the given conditions.

✅ These dimensions are shown on a 2,5 mm steel plate in a laboratory test

➡ LIFTING FORCE AND APPLICATION

✅ According to the laws of physics, two forces act significantly on the handle : sliding and detaching force.

✅ It is important where and how we install it.

✅ If we install it in parallel, e.g. to the ceiling then has the greatest lifting capacity and can carry a heavier thing.

✅ If mounted perpendicularly, e.g. to the wall, then it has a lifting capacity of approx. 4 times weaker.

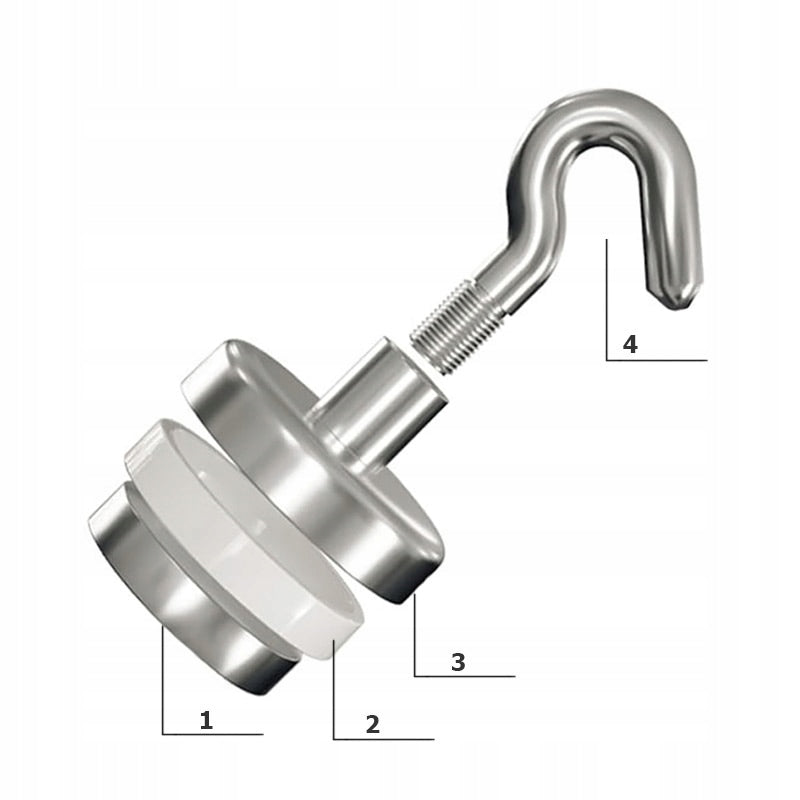

➡ CONSTRUCTION OF THE HANDLE

1. Nickel Coated Steel Housing

2. Securing epoxy adhesive

3. Strong neodymium magnet

4. Steel screw-in hook

➡ IMPACT ON ELECTRICAL EQUIPMENT

Neodymium magnetic holders generate a very strong magnetic field, it can have an adverse effect on electrical, electronic devices or storage media. They can also disrupt pacemakers.

➡ RISK OF INJURY

Magnetic holders should be handled with great care, approaching them to other magnets or metal surfaces causes them to be immediately attracted. It is absolutely necessary to avoid placing any parts of the body between the attracted surfaces, this can result in serious injuries. Not suitable for children.

➡ BRITTLENESS OF MAGNETS

Neodymium magnetic holders, due to their chemical composition and production process, are very fragile materials, carelessly approaching them to other magnets or metal surfaces may result in mechanical damage.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Shape	cylinder
Parametry	Lifting capacity	48 kg
Parametry	Manufacturer code	HOLD_1SZT_A6
Parametry	EAN (GTIN)	5904172343277
Parametry	Number of pieces on offer	1 szt.
Parametry	Brand	Hunter
Parametry	Packaging status	original
