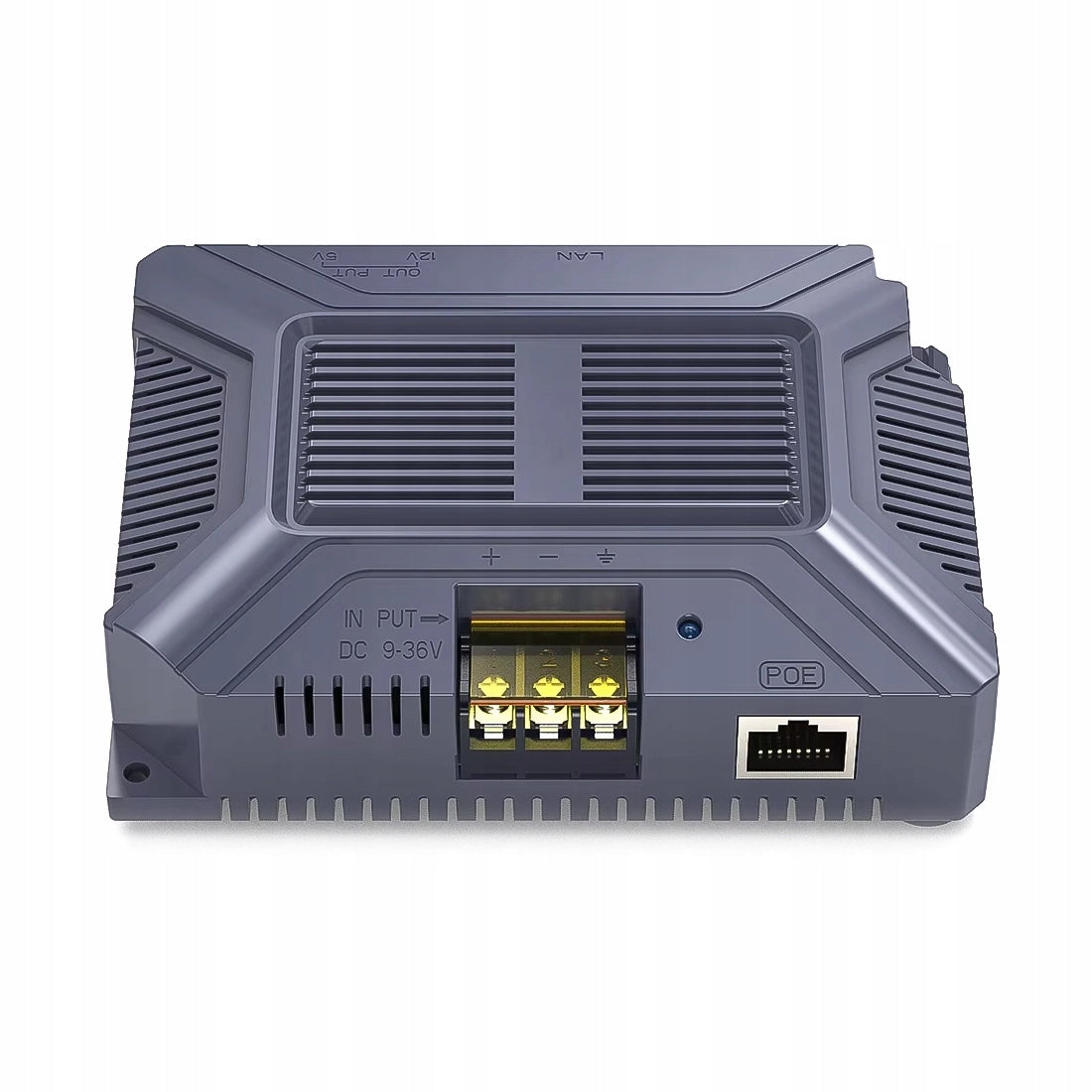

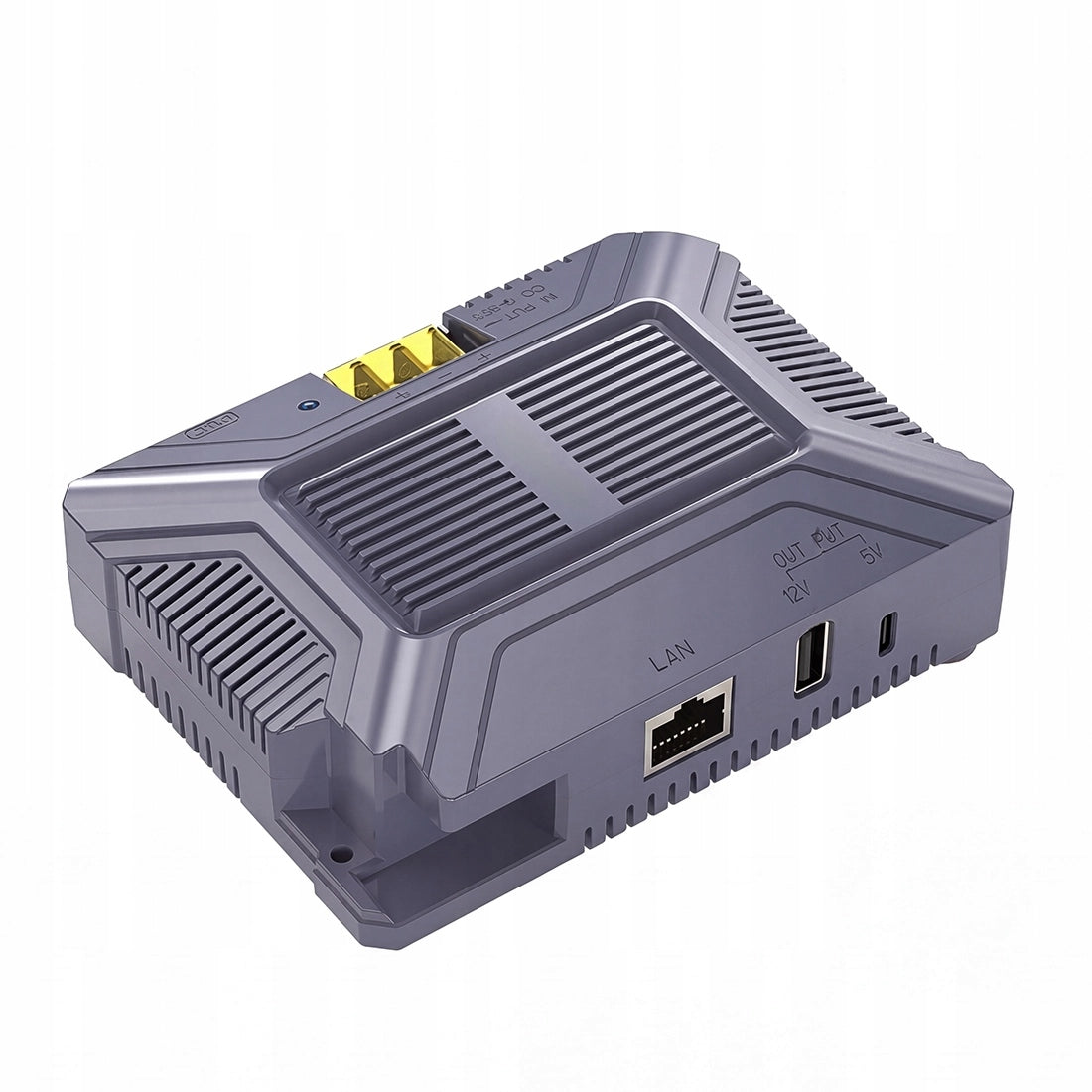

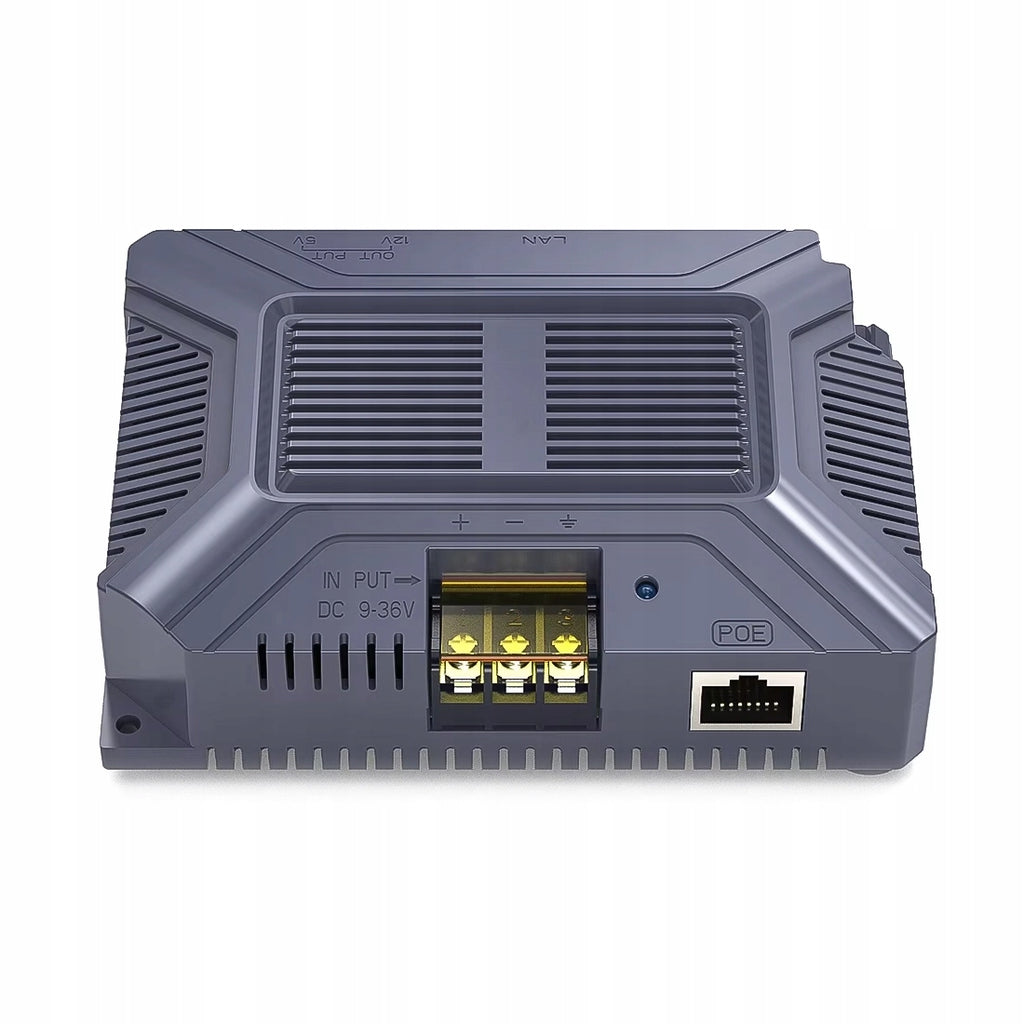

Maitinimo adapteris Starlink Gen3, 12V/24V, 200W, LAN 1000 Mbps, Spacetronik

Trumpai apie prekę

Prekė: Maitinimo adapteris Starlink Gen3, 12V/24V, 200W, LAN 1000 Mbps, Spacetronik. Kategorija: Dalys ir komponentai.

• Gamintojas: Starlink
• Modelis: SSP02

SKU: SSP02

Key Features

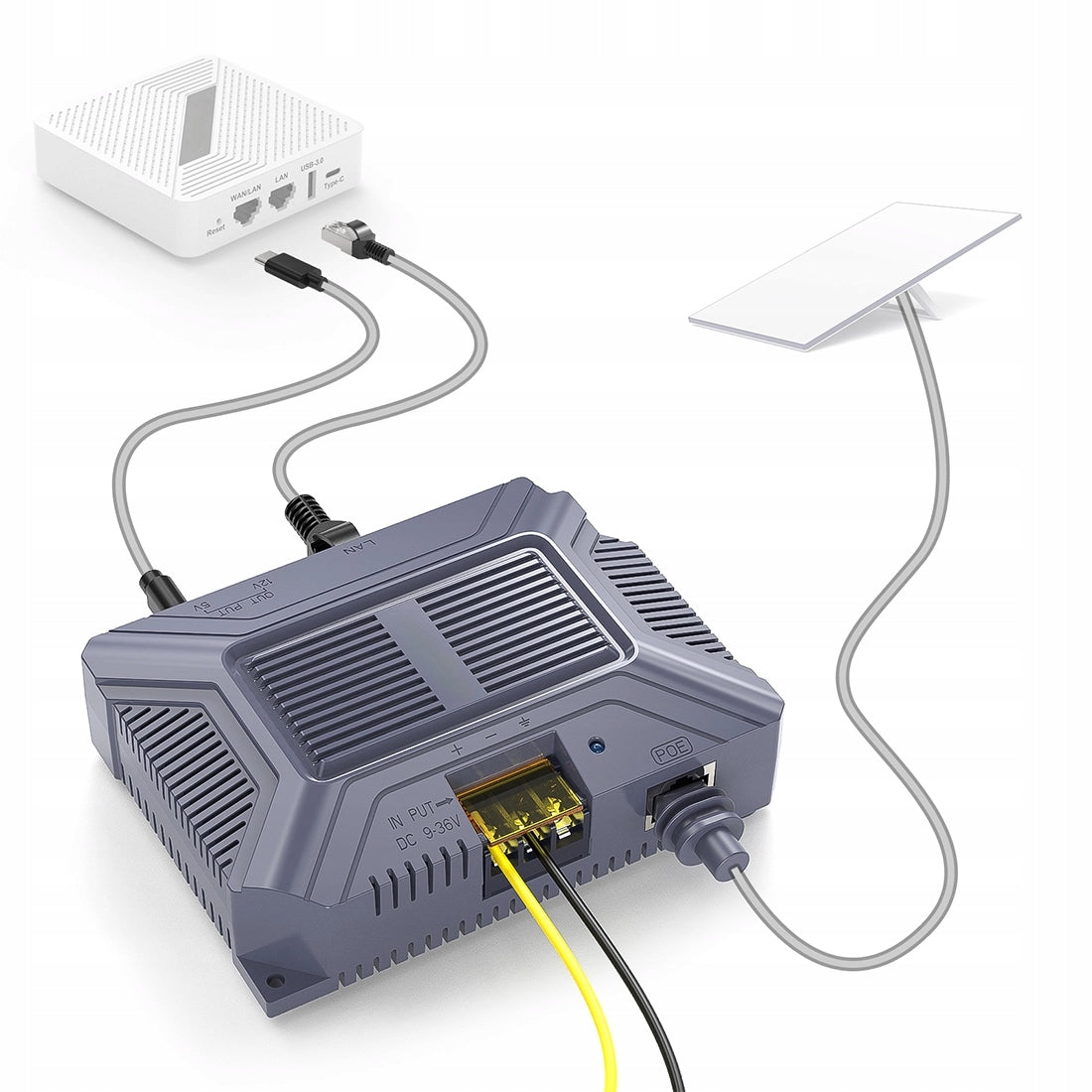

☑ 5-in-1 integration for full network control: Connect your antenna, your own router and additional accessories to one device, saving space and eliminating cable tangles.

☑ Stable operation at a wide voltage of 9 to 36V: You will avoid cumbersome Internet resets with sudden voltage drops in your 12V or 24V installation.

☑ Full transfer speed thanks to LAN port 1000 Mbps: You can transfer data to your private router without delay, taking full advantage of the gigabit potential of the Starlink connection.

☑ Safe PoE power supply with a total power of 200W: You will provide the Gen3 terminal with the right dose of energy necessary for smooth operation, even during very intensive data downloads.

☑ Convenient power supply for accessories from USB 12V and 5V ports: Directly from the adapter you can power additional network equipment or quickly charge your smartphone, without having to look for separate chargers.

☑ Advanced surge protection up to ±15KV: Effectively protect your expensive satellite equipment from electrostatic discharge when working in open space.

☑ Reliable operation in temperatures from -20°C to +55°C: You will maintain an uninterrupted connection with the world without worrying about overheating of equipment on hot days or breakdowns during cold nights.

Instant Setup

Plug-and-Play operation: The equipment is ready to work immediately after connecting the wires, without complicated configuration.

Simple connectivity: Dedicated antenna connector and standard network port allow you to easily output the signal to your own router or switch.

Integrated power: Built-in power interfaces allow you to connect smaller peripherals directly to the module, eliminating unnecessary extension cords.

Protection against surges

✔ Electrostatic protection: The built-in system actively neutralizes charges accumulating on the roofs of vehicles or masts.

✔ Effective grounding: Dedicated connection immediately eliminates dangerous voltage spikes arising on long external wires.

✔ Weather resistance: Guarantees the safety of equipment and stable operation of the network even in very difficult weather conditions.

Full Performance at Extreme Load

No power drops: Eliminates the “bottleneck” problem by preventing sudden device reboots and network bandwidth drops.

Heavy duty support: The design easily copes with high power consumption, even during intensive operation of built-in snow melting systems.

Safe switching to 12V/24V: Enables efficient operation of satellite infrastructure in low-voltage installations without any compromises.

Minimalistic Installation

• Less equipment and cables: Brings the entire network center to one point, eliminating tangled wires and separate power modules.
• Aesthetics and order: The compact size allows you to easily and discreetly hide the installation in the cabinet or behind the masking panel.
• Convenience: No chaos in cables facilitates service access and increases comfort during long journeys.

Specification

Power supply parameters:

• Total power: 200W
• minimum input power: 200W
• Input voltage: DC 9-36V
• SPX PoE Output: 57V/3A Max
• USB-A Output: 12V/3A Max
• USB-C Output: 5V/3A Max
• pin configuration: +V: 1, 2, 3, 6; -V: 4, 5, 7, 8

Interfaces and connectivity:

• Ports: 1x LAN, 1x SPX PoE, 1x 3-pin power connector, 1x USB-C, 1x USB-A
• Network speed: 10/100/1000 Mbps

Security:

• Surge protection: ±8KV differentially (Class A)
• ESD protection: ±8KV contact, ±15KV air (class A)
• ground connector

Working environment:

• Operating temperature: -20°C to +55°C
• Storage temperature: -40°C to +70°C
• Operating humidity: 10%-90% (non-condensing)

Compatibility:

• Starlink Standard (Gen3) satellite terminals
• 12V and 24V electrical installations

Applications:

• Motorhomes and tourist vehicles
• yachts and boats
• independent off-grid and solar installations
• field work with limited access to mains power

Included:

• 1x device
• 1x instructions

FAQ

I have an older version of Starlink (Gen2) with a moving antenna. Will this adapter work with it?

No, this model is only for third generation devices (Gen3). The SPX PoE connector in the Spacetronik SSP02 adapter has a power architecture specifically tailored for newer terminals, so it will not properly power older satellite sets.

I want to install this in my RV. When starting the engine, when the voltage on the battery drops, will Starlink reset?

It should not, because the adapter supports a very wide range of input voltage from 9 to 36V. Even if the voltage temporarily drops below the standard 12V when starting the engine, Spacetronik will maintain a stable power supply, which will prevent cumbersome interruptions in communication.

Starlink draws a lot of electricity in snow removal mode. Will this power supply pull the antenna in winter without overheating?

Yes, the device has a total power of 200W, which allows for trouble-free operation of the terminal even at the maximum load of the snow melting system. You only need to ensure that the battery installation and wires supplying electricity to the adapter are properly selected and able to deliver the required power.

I have my own 12V router that I use instead from the provider. Can I power it directly from this adapter?

Yes, the SSP02 has a built-in USB-A output with a voltage of 12V and a maximum intensity of 3A. Thanks to this, you can easily power additional network equipment straight from the device, completely eliminating the need to mount more power supplies in the vehicle space.

Do I need to connect a ground wire if the equipment is mounted inside a dry caravan?

Yes, proper grounding is always recommended. The antenna is located outside and is exposed to electrostatic discharge, and the surge protection built into the Spacetronik adapter will only work effectively if they can discharge charges to the mass.

I'm thinking about skipping the original router. Will connecting the antenna through this injector cut my internet speed?

No, the data transfer speed will remain unchanged. The Spacetronik SSP02 adapter is equipped with a gigabit LAN port, allowing you to take full advantage of the maximum bandwidth of your satellite connection when transmitting signal to your private network equipment.
