Maitinimo šaltinis stiprintuvas Televes 579401 PICOKOM PUS122PICO 12V 200mA

Trumpai apie prekę

Prekė: Maitinimo šaltinis stiprintuvas Televes 579401 PICOKOM PUS122PICO 12V 200mA. Kategorija: Antenos maitinimo šaltiniai.

• Gamintojas: Televes
• Modelis: 579401

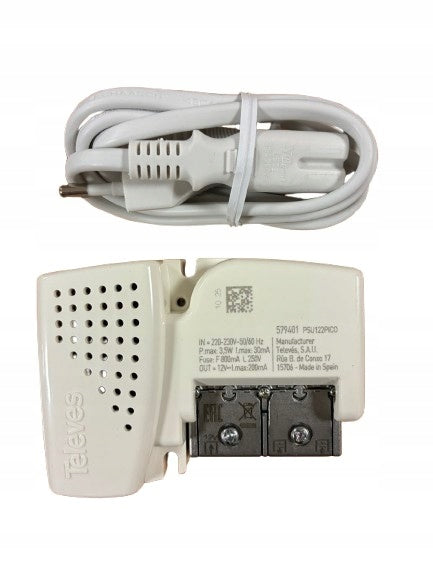

PICOKOM 2F Power Supply - PUS122PICO + Power Cable - Made in Spain - Rolls Royce among antenna power supplies.

12V (200mA) home power supply, transmitting power via an input coaxial cable, while allowing the TV signal to pass through. Used in installations to power mast amplifiers or BOSS system and other models of Televes antennas, e.g. V mix+ EDGE mix+. As well as in antennas from other manufacturers. Equipped with a splitter to generate two outputs.

Distinctive features

• High-efficiency switching power supply: up to 40% less power consumption
• Very low power consumption
• Aesthetic design and reduced dimensions: installation in 100x100 mm enclosures
• EasyF connection system
• Fully automated production subjected to rigorous quality controls
• Screwed to the wall
• Transitional losses vary depending on the number of outputs used

Learn more

EasyF connection system - easy and quick installation

EasyF is an innovative connection system for internal (wire) coaxial cables. The conductor is introduced directly into the device, thereby increasing the reliability of the connection. In addition, thanks to the lack of use of F connectors, it is possible to reduce the dimensions of the device and secure two cables with one screw.

• Time-saving: faster installation, no need to apply connectors to coaxial cables. In addition, the process of threading / winding connectors in the device is avoided, which is sometimes impossible due to the lack of adequate space
• Reliable connection: The flange that holds the cable prevents the cable from loosening
• Cost savings: installation does not require additional F-type or IEC connectors
• Optimization of space: inputs and outputs are located on the same side of the device, thanks to which cable bending is avoided and installation work is facilitated
• Three simple installation steps - connecting two cables only requires unscrewing and screwing the cover:

1. Unscrew the splitter cover to access the connection

2. Enter a pre-prepared coaxial cable

3. Close and screw the lid

Learn more about the reliability of EasyF

Thanks to EasyF, the connection of the coaxial cable with the device is made through an automated system of inserting the cable conductor into the contact, without the need for welding.

• Longer lifespan of the device: elimination of welds extends the lifespan of the device
• Reduction of failure rates, usually caused by cold welding
• Optimization of electromagnetic interaction at high frequencies
• Strengthening our commitment to the environment: no pollution from welding processes and less power consumption in production processes

Specifications
