Maitinimo valdiklis Shelly Mini Gen3, WiFi, 1 vnt.

Trumpai apie prekę

Prekė: Maitinimo valdiklis Shelly Mini Gen3, WiFi, 1 vnt.. Kategorija: Automatizavimo moduliai.

• Gamintojas: Shelly
• Modelis: 3800235261576

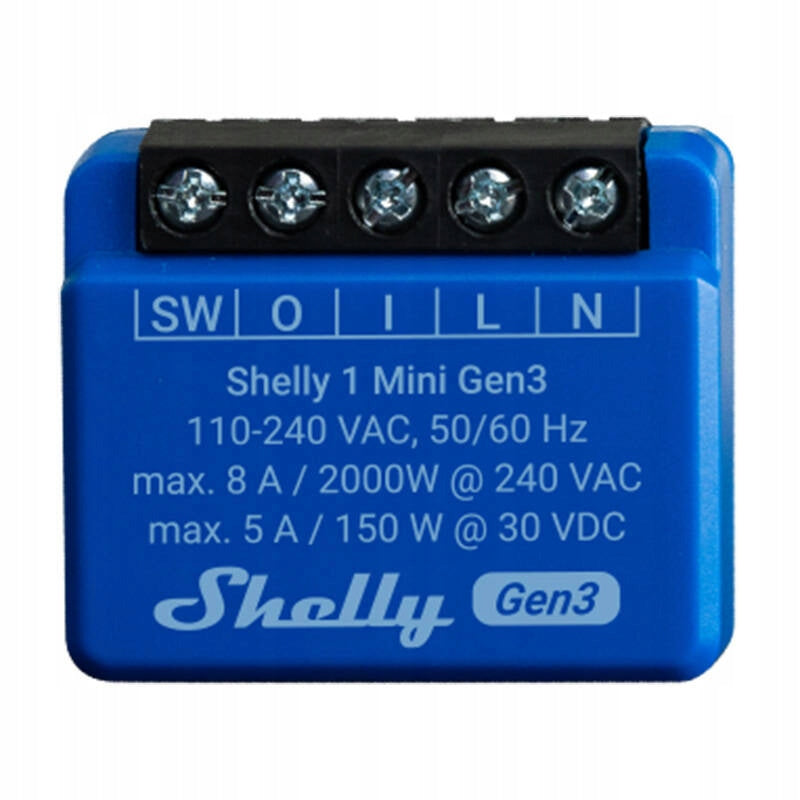

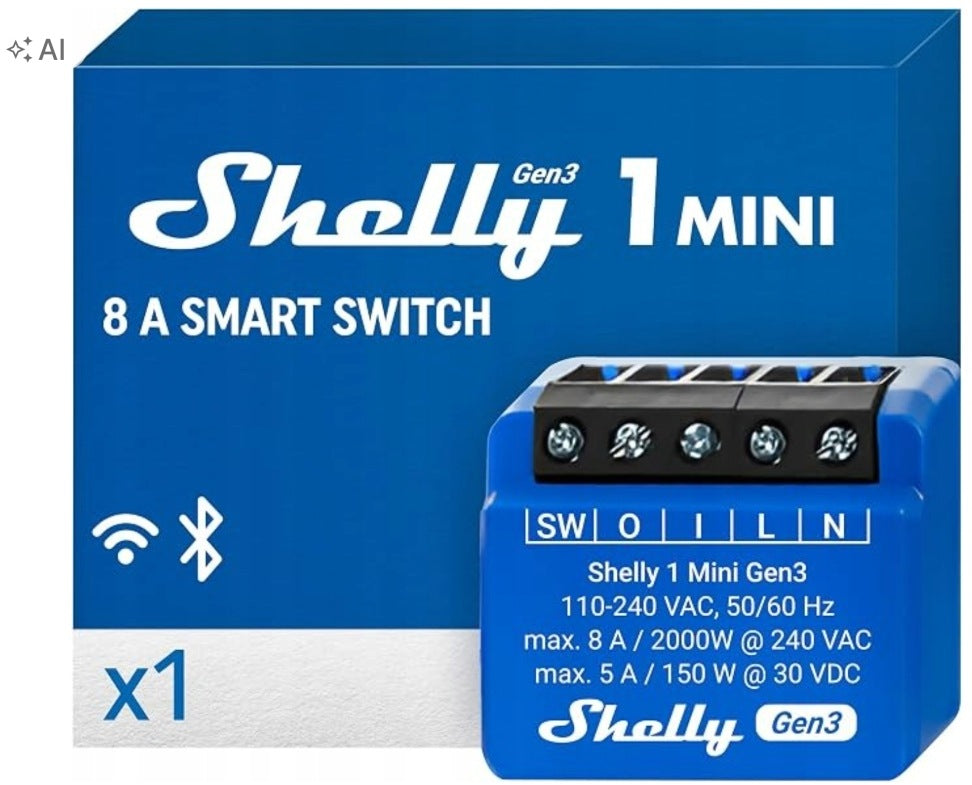

Discover a new dimension of control in your home with the Shelly 1 Mini Gen3! It's so small it fits in standard electrical boxes, outlets, light switches, and other space-constrained locations. It's equipped with a more powerful processor and more memory, resulting in more efficient operation.

• Manufacturer: Shelly
• Model: 1 Mini Gen3
• Power supply: 110 - 240 VAC
• Relay: Dry, NO (regular open) contact, 1-pole, micro-contact
• Energy consumption: < 1.2 W
• External protection: Characteristics of circuit breaker B or C, max. 10 A rated current, min. 6 kA short-circuit current switch, energy limitation class 3
• Max. switching voltage: 240 VAC, 30 VDC
• Max. switching current: 8 A/240 VAC, 5 A/30 VDC
• Max. output power: 2000 W/240 VAC, 150 W/30 VDC
• Internal temperature sensor: Yes
• Bluetooth wireless protocol: 4.2
• Bluetooth range: Up to 10m inside and 30m outside
• CPU: ESP-Shelly-C38F
• Flash: 8 MB
• Schedules: 20
• Webhooks (URL Actions): 20 with 5 URLs per action
• Scripts: Yes
• MQTT: Yes
• UDP: Yes
• Advanced Schedules: Yes
• KVS: Yes
• Dimensions: 29x34x16 ±0.5 mm
• Weight: 19 ±1 g
• Conductor cross-section: 0.2 to 2.5 mm² / 24 to 14 AWG (fixed, twisted and 'bootlace' insulation tips)
• Length of exposed conductor: 6 to 7 mm
• Assembly: In a can on the wall
• Housing material: Plastic
• Ambient operating temperature: -20 °C to 40 °C
• Moisture: 30 % to 70 % RH
• Maximum altitude: 2000 m

✔ Humidity and Temperature Monitoring: Additionally, the Shelly 1 Mini Gen3 allows you to monitor humidity and temperature, giving you complete control over your home environment. You can adjust the parameters to your preferences, ensuring maximum comfort and optimal indoor conditions.

✔ Safety and Convenience: Full control over your devices allows you to increase safety and convenience at home. You can, for example. remotely turn on and off lighting or security systems, which can help ensure peace of mind during your absence.

The Shelly 1 Mini Gen3 is an improved version of the popular Shelly Plus 1 Mini, equipped with an advanced processor and increased memory. This makes the device work even faster and more reliably. Its small size allows for easy installation in standard wall boxes, behind electrical outlets or light switches, even where space is limited.

Controlling your devices is now easier than ever! Turn appliances on and off remotely, automate their operation, and enjoy the comfort that the Shelly 1 Mini Gen3 provides, no matter where you are – all you need is an internet connection. The controller is also compatible with popular home automation platforms, including Amazon Alexa, Google Smart Home, and Samsung SmartThings, so you can manage your devices with your voice!

With Shelly 1 Mini Gen3 you can also extend the range of your network Wi-Fi for devices IoT. This device acts as a signal booster, receiving a Wi-Fi signal and amplifying it to cover a larger area. This ensures that your IoT devices will always stay connected.

The device supports both Wi-Fi, and Bluetooth 4.2, which means that it can be easily integrated into your existing ecosystem. It also acts as a BLE gateway, enabling communication between the Shelly BLU devices and the Shelly ecosystem. Plus, with the ability to monitor humidity and temperature with the Shelly 1 Mini Gen3, you have complete control over the environment in your home. You can adjust the parameters to your preferences, ensuring maximum comfort.

With the ability to create advanced schedules, you can program your electrical devices to work exactly the way you need them to. Let the light turn on at a specific time of day and the heating adapts to your schedule – Shelly 1 Mini Gen3 is ready to meet your expectations.

Specifications
