Matavimo prietaisas Sonel MPI-540-PV

Trumpai apie prekę

Prekė: Matavimo prietaisas Sonel MPI-540-PV. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI540PV

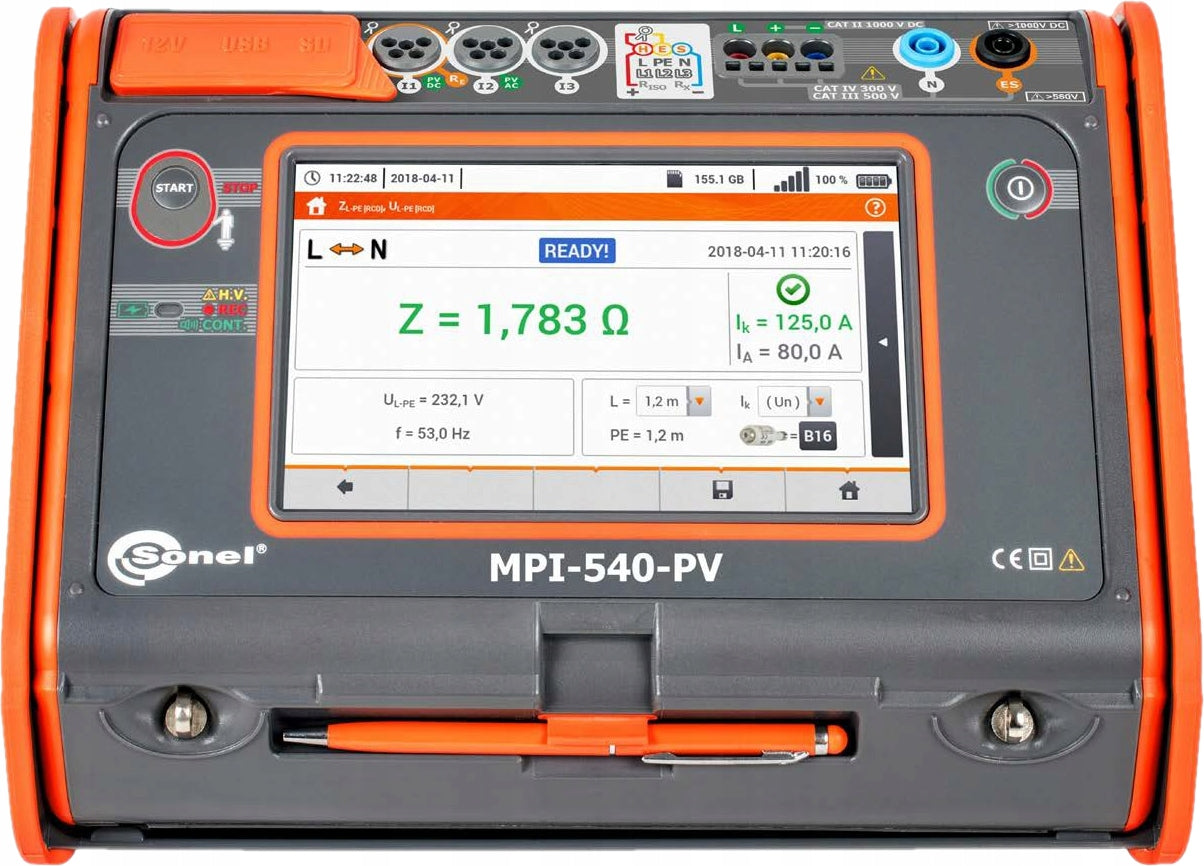

MULTIFUNCTIONAL METER FOR ELECTRICAL AND PHOTOVOLTAIC INSTALLATIONS MPI-540-PV

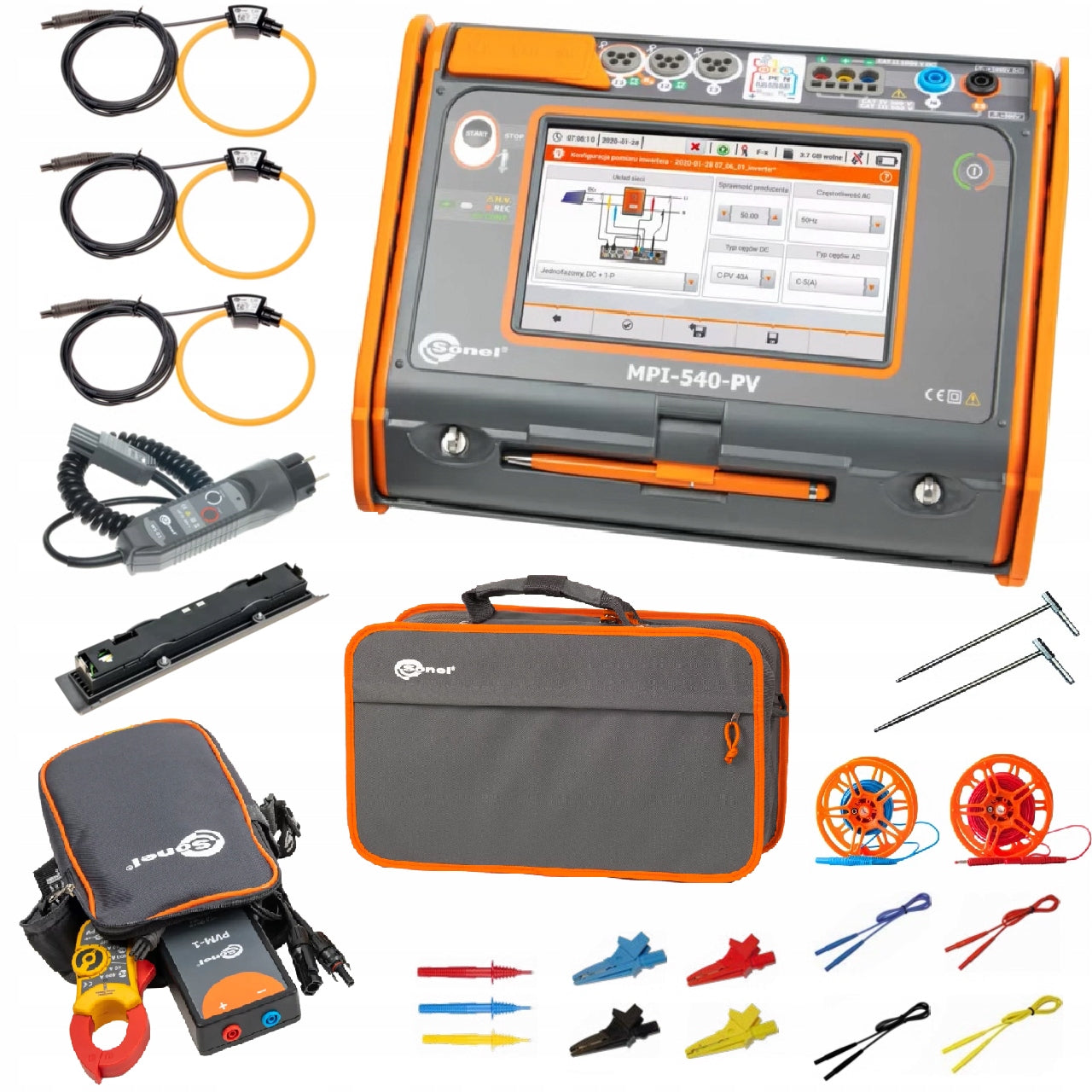

CONTENT OF THE SET VISIBLE IN THE PHOTO

AUTHORIZED DISTRIBUTOR OF SONEL - YOU RECEIVE SUPPORT, CONFIDENCE IN THE PURCHASE OF FULL-FLEDGED EQUIPMENT AND PROFESSIONAL ADVICE.

By purchasing a meter in Merazet, you receive a 10% discount on calibration in the Merazet laboratory.

The Merazet laboratory operates in accordance with the quality management system PN-EN ISO 9001:2009 and based on the requirements of PN-EN ISO/IEC 17025:2005, ensuring measurement consistency and high parameters of the obtained results.

Sonel MPI 540 PV practical advantages

Sonel MPI-540-PV guarantees very high accuracy of measurements carried out in class S of PN-EN 61000-4-30. It allows you to quickly assess parameters and determine potential energy savings with the built-in energy loss calculator. In addition, the three-phase power grid parameter recorder, which is equipped with the Sonel MPI-540-PV meter, is a guarantee of reliable and advanced power quality diagnostics.

Sonel MPI-540-PV Electrical and photovoltaic meter – advantages

Thanks to the use of Li-Ion batteries, we get a longer working time of the device, while the removable microSD memory card allows you to easily increase memory resources. The Sonel MPI-540-PV meter is an ergonomic and easy-to-use device, which guarantees the 7” touch panel, the largest of the control panels available on the market. Another advantages of the Sonel MPI-540 are:

time saving – quick measurement of short-circuit loop with RCD switch without triggering in just a few seconds,

Simplification of measurements – the device gives the possibility of automatic measurements in sequence.

very fast from measurements to report.

Sonel MPI-540-PV new software and features

A new and interesting feature of the MPI-54-PV meter from Sonel is the ability to add photos and voice notes to the measurement. The new Soel software allows you to make such a multimedia description of the measuring point and it is completely free, only after a free system update.

Sonel MPI-540-PV meter for photovoltaic industry

The unprecedented multifunctionality of the MPI-540-PV allows for a wide range of measurements, which means that this camera replaces several meters without losing anything on the quality and accuracy of the measurements.

Sonel MPI-540-PV for installation security control

These devices allow you to take measurements to check the safety of industrial and domestic electrical installations. Ease of automation of residual current circuit breaker tests and Auto mode, freedom of configuration of measurement sequences, self-tests or AutoISO-1000C adapter for controlling insulation resistance of 3-, 4- and 5-wire wires are several of the next advantages of this device.

Sonel MPI-540-PV – measurement guarantee according to PN-EN 62446

Sonel MPI 540 PV meter is used to perform the following measurements in accordance with PN-EN 62446:

Grounding resistance

Insulation resistance on the DC side

open circuit voltage UOC

operating currents and powers on the DC and AC side

continuity of protective connections

inverter efficiency

short-circuit current ISC

Measurement in class S of EN 61000-4-30

Sonel Meters MPI-540 and MPI-540-PV Sonel guarantee the recording of electrical energy quality parameters 50/60 Hz in class S of EN 61000-4-30:

frequency in the range of 40 Hz – 70 Hz

voltages L1, L2, L3 – average values in the range up to 500 V

currents L1, L2, L3 – average values, current measurement in the range up to 3 kA – depending on the current clamps used

reactive power (Q), active power (P), apparent power (S)

harmonics – up to 40th in voltage and current

PF – power factor, cosφ

THD harmonic distortion coefficient for voltage and current

MPI-540 meter – measurements in accordance with regulations

Sonel MPI-540 and Sonel MPI-540-PV meters allow you to perform all measurements of the reception of the installation, of course in accordance with applicable regulations.

Short-circuit loop impedance also in circuits with RCD circuit breakers

Insulation resistance and ground resistance (4 measurement methods and ground resistivity measurement)

parameters of RCD circuit breakers

illuminance

tests of engine direction of rotation and phase order

continuity of protective and compensatory connections

Sonel MPI-540-PV- comprehensive analysis of network parameters

The three-phase recorder, built into the meter, allows you to observe the current state of the network and record its parameters – voltage, current, power, harmonics, THD. In addition, thanks to the meter, it is possible to read selected quantities, as well as call their graphic presentation on the screen in real time. The measurement is performed regardless of the registration saved to the memory card.

The device presents:

measurements of many parameters in tabular form

Voltage and current waveform charts – oscilloscope

Indicative chart

Voltage and current charts over time

Harmonic chart in current and voltage

Communication and software Sonel

Another advantage of the Sonel meter is communication interfaces and the ability to work with external software. Built-in USB port, removable SD memory card or wireless Bluetooth and Wi-Fi port allow you to transfer measurement data to any external computer.

Sonel Electrical Measurements is a program for generating test reports in the field of shock protection, and the downloaded results can be saved to simple formats or printed with Sonel Reader. The Sonel Analysis application is used to read and analyze data from the recorder.

Sonel MPI-540-PV measurement in difficult conditions

Multifunctional meters Sonel MPI-540 and MPI-540-PV are adapted to work in difficult environmental conditions, and the tilting screen cover protects it from mechanical damage. The design of the housing made in the IP51 degree of protection allows benches and quick access to the touch panel, communication sockets and measuring probes and, importantly, is resistant to dust and water.

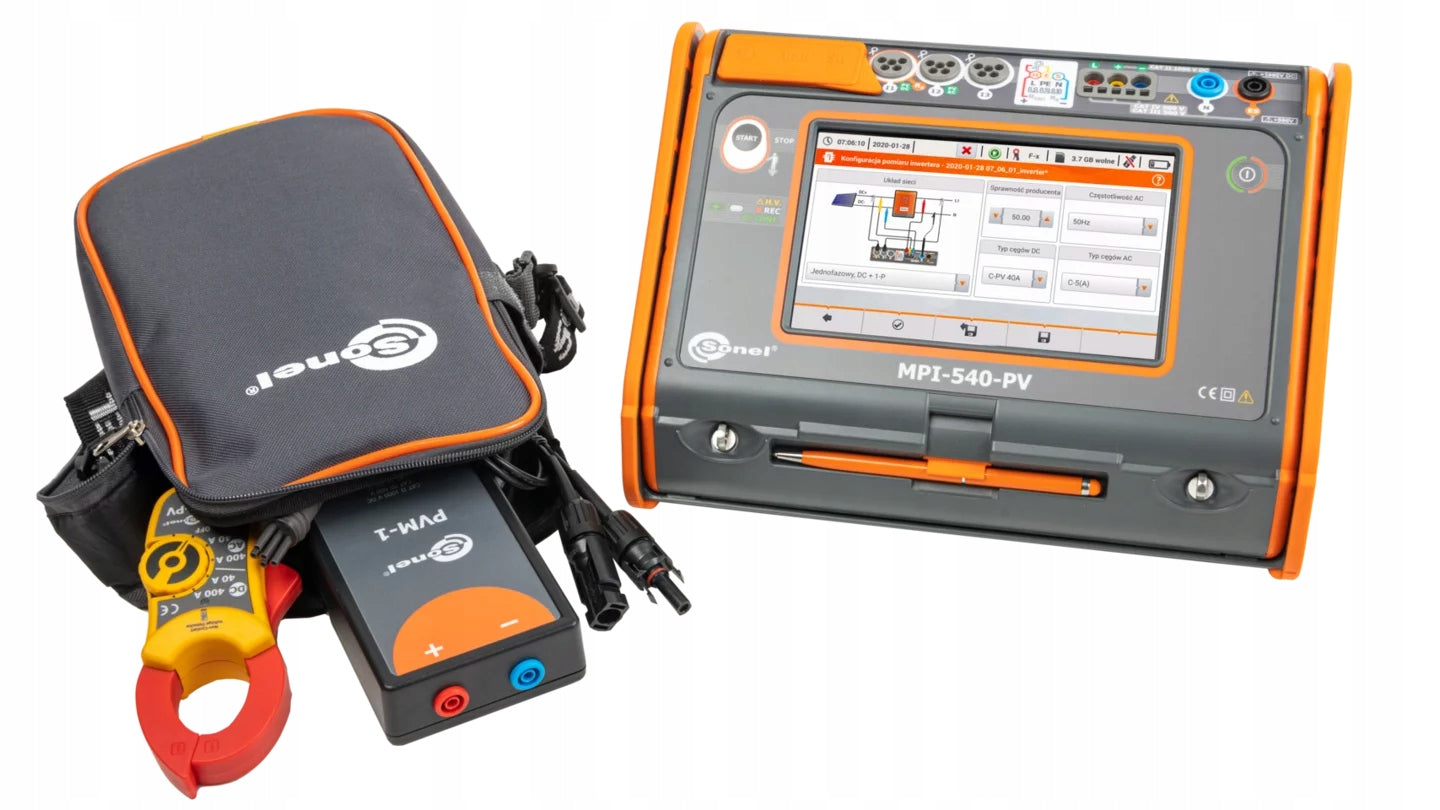

Standard accessories MPI_540PV

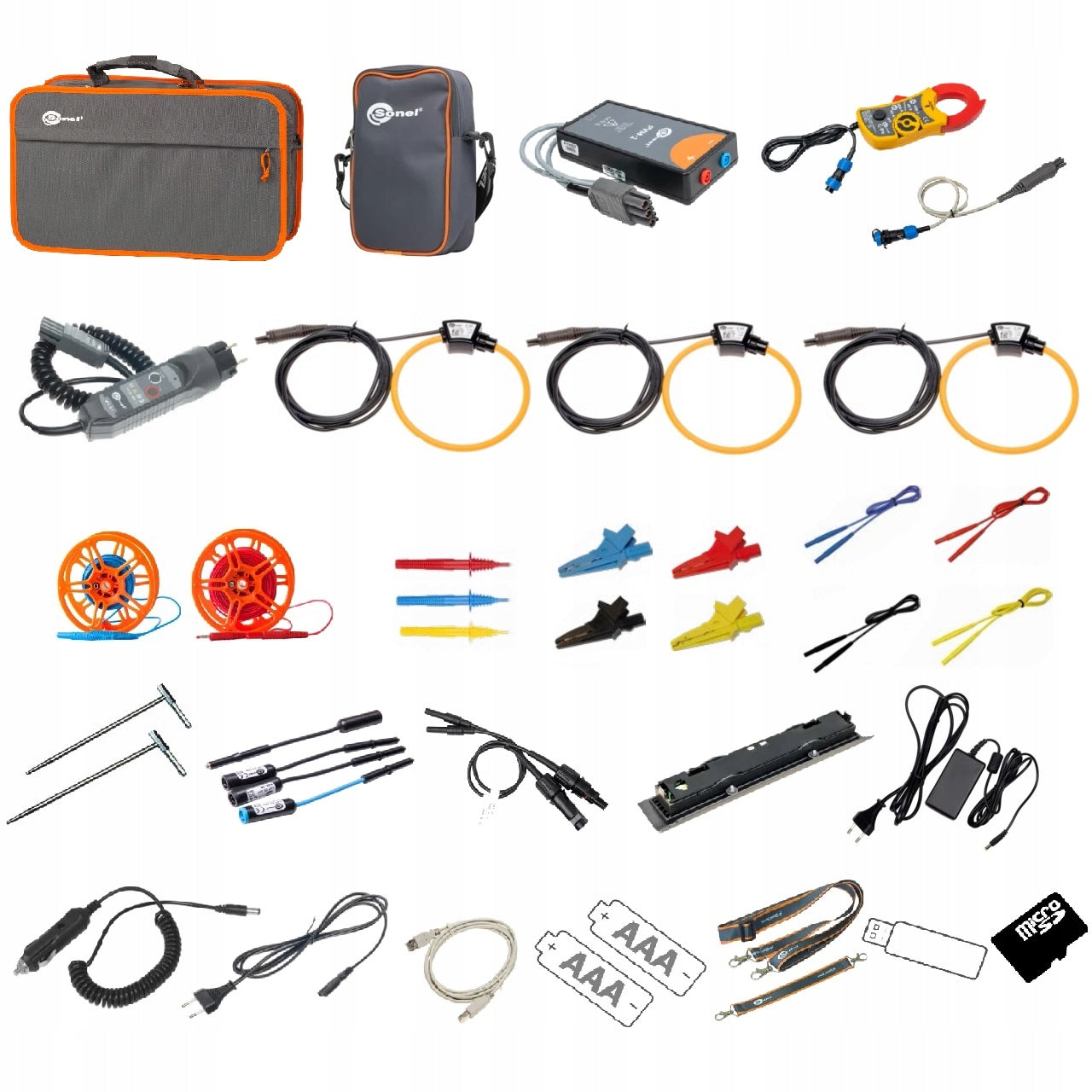

The standard set supplied by the manufacturer includes:

· meter MPI-540 – WMPLMPI540PV / WMPLMPI540 / WMPLMPI540S

· set of measuring wires:

§ adapter WS-03 triggering measurement (UNI-Schuko plug) (cat. III 300 V) – WS-03 –

WAADAWS03

§ wires 1,2 m in cat. III 1000 V with banana plugs – 4 units:

o yellow – WAPRZ1X2YEBB

o red – WAPRZ1X2REBB

o blue – WAPRZ1X2BUBB

o black with N – WAPRZ1X2BLBBN

§ cable for measuring grounding on a spool (banana plugs):

o 15 m blue – WAPRZ015BUBBSZ

o 30 m red – WAPRZ030REBBSZ

· cable for transmission, terminated with USB plugs – WAPRZUSB

· crocodile 1 kV 20 A (cat. III 1000 V) – 4 units:

§ yellow K02 – WAKROYE20K02

§ red K02 – WAKRORE20K02

§ blue K02 – WAKROBU20K02

§ black K02 – WAKROBL20K02

· blade probe with banana socket (cat. III 1000 V) – 3 units:

§ yellow – WASONYEOGB1

§ red – WASONREOGB1

§ blue – WASONBUOGB1

· 30 cm probe for driving into the ground – 2 pcs. – WASONG30

· adapter for rail fitting with M4/M6 thread – set of 4 (for rail fitting with M4 and M6 thread) – WAADAM4M64

· power supply for charging Z7 batteries – WAZASZ7

· battery charging cable (IEC plug C13, 230 V) – WAPRZLAD230

· charging cable from the car cigarette lighter socket – WAPRZLAD12SAM

· case for meter and accessories – WAFUTL2

· braces for the meter (long 1,5 m and short 30 cm) – WAPOZSZEKPL

· container with Li-Ion battery 11,1 V 3,4 Ah – WAAKU15

· 4 GB microSD card

· flexible clamps F-3A with current up to 3 kA AC (Ø 120 mm) – 3 pcs. – WACEGF3AOKR

· adapter PVM-1 – WAADAPVM1 – MPI-540PV

· measuring clamps C-PV – WACEGCPVOKR– MPI-540PV

· MC4 adapter-banana sockets (set) – WAADAMC4– MPI-540PV

· adapter for C-PV clamps – WAADACPV– MPI-540PV

· PV accessory case – WAFUTM13– MPI-540PV

· instruction manual

· warranty card

· calibration certificate
