Matuoklis KELVIN tiltas ir milliohmetrų testeris CEM DT-5302

Trumpai apie prekę

Prekė: Matuoklis KELVIN tiltas ir milliohmetrų testeris CEM DT-5302. Kategorija: Universalūs įrankiai.

• Gamintojas: CEM
• Modelis: DT-5302-1

Catalog No.: 19833

The manufacturer of the device is a reputable company CEM, a detailed description, a hyperlink to the manufacturer's website and an instruction manual are available at: www.stratos.pl/strony/19833.htm

Meter - milliommeter is a professional measuring tool that combines the functions of:

• direct voltage measurement in the range of 400mV/4/40/400V (±1.0%), 1000V (±1.5%)
• alternating voltage measurement in the range of 400mV/4/40/400V (±1.2%), 1000V (±1.2%)
• direct current measurement in the range of 400µA/4mA/40mA/400mA (±1.5%)
• measurement of alternating current in the range of 400µA/4mA/40mA/400mA (±1.5%)
• resistance (resistance) measurement in the range of 400Ω (±1.0%), 4k/40k/400k (±1.0%), 4MΩ (±2.5%), 40MΩ (±3.5%)
• measurement of low resistance in the range of 400mΩ/4Ω/40Ω (±1.0%)
• capacity measurement in the range of 4nF/40nF (±5.0%), 400nF/4µ/40µF (±3.0%), 400µF (±4.0%), 4mF (±10.0%), 40mF (>±10.0%)
• circuit continuity test (with closed-circuit buzzer)
• LED polarity direction test

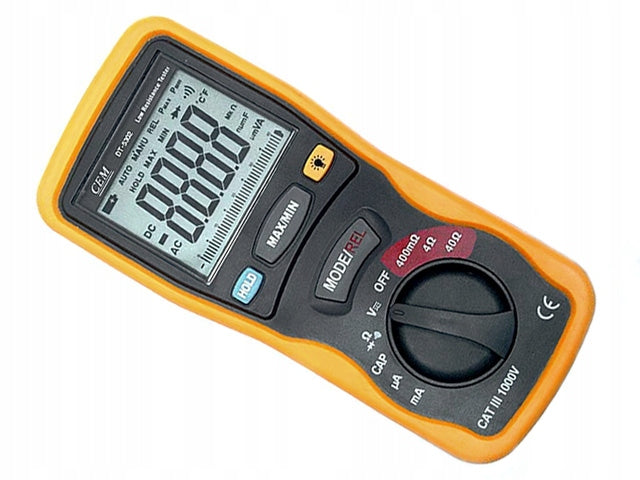

The meter has a large (50x62mm) backlit 3¾ LCD display for reading the measurement, a 42-segment bargraph (ruler for easy estimation of indications - the equivalent of a hand in analog meters), automatic change of measurement ranges, memory of the last, minimum and maximum reading and an automatic switch.

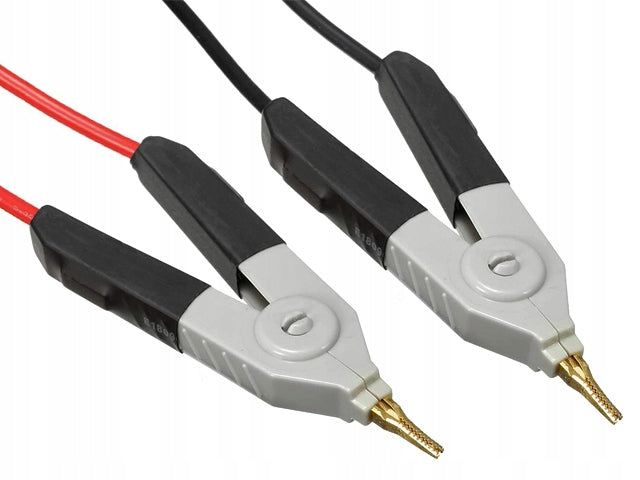

A special feature that distinguishes the offered tool from most universal meters is the function of measuring low resistance (millimeter). Thanks to the four-core measurement, the impact of wire resistance (KELVINA bridge) is compensated and resistance measurements from several millioms with an accuracy of 1% are possible

The housing made of non-slip plastic, high-quality measuring wires and a suitcase-case ensure ergonomics and convenience of use.

• Supply Voltage: 9V (6x1.5V AA Batteries Included)
• Display: LCD 3¾ digits, max indication 3999
• Meter dimensions (length/width/height): 200/92/50mm
• Length of measuring wires: approx. 0.6m
• Meter weight (with battery pack): approx. 550g

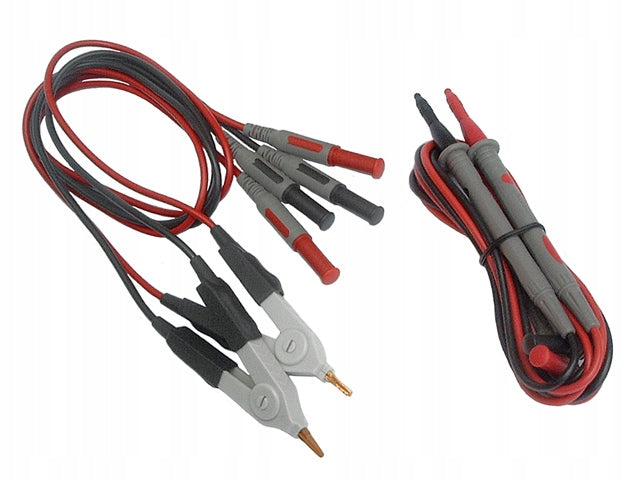

• The set includes a meter - a millimeter, a set of batteries, a set of measuring wires, a case-case and an instruction manual.

Specifications and detailed parameters are available at www.stratos.pl/specyfikacje/19833.pdf

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
