Aprašymas
Trumpai apie prekę

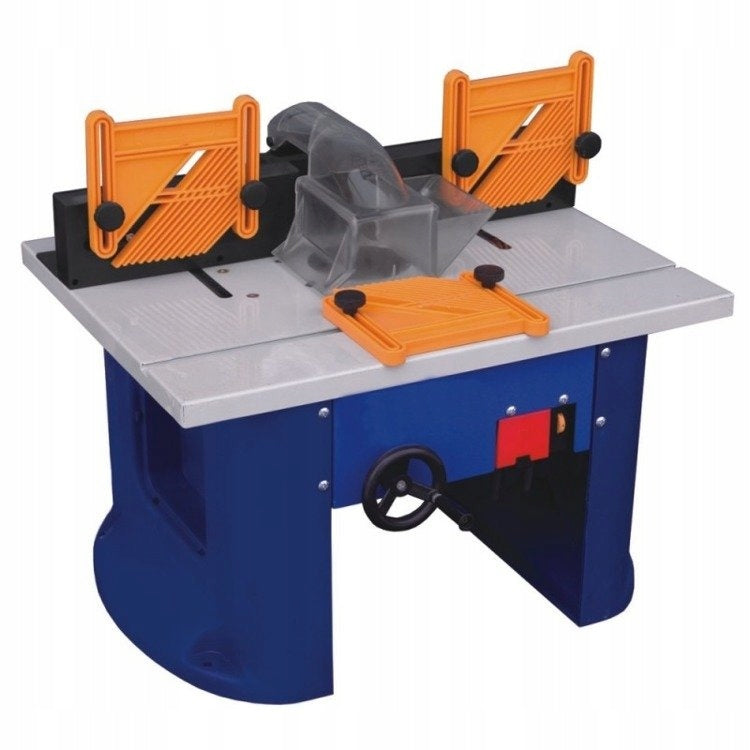

Prekė: Medžio frezavimo staklės DEDRA DED7742, 1500 W. Kategorija: Frezavimo staklės.
- Gamintojas: Dedra
- Modelis: DED7742
- Įtampa: 230 V
Product code: DED7742
Milling machine Dedra DED7742 with a power of 1500 W. Suitable for collet 6, 8, 12 mm. The device is equipped with smooth rotation adjustment.
Lower spindle milling machine is a device designed for processing wood and wood-based elements as well as plastics and acrylics.

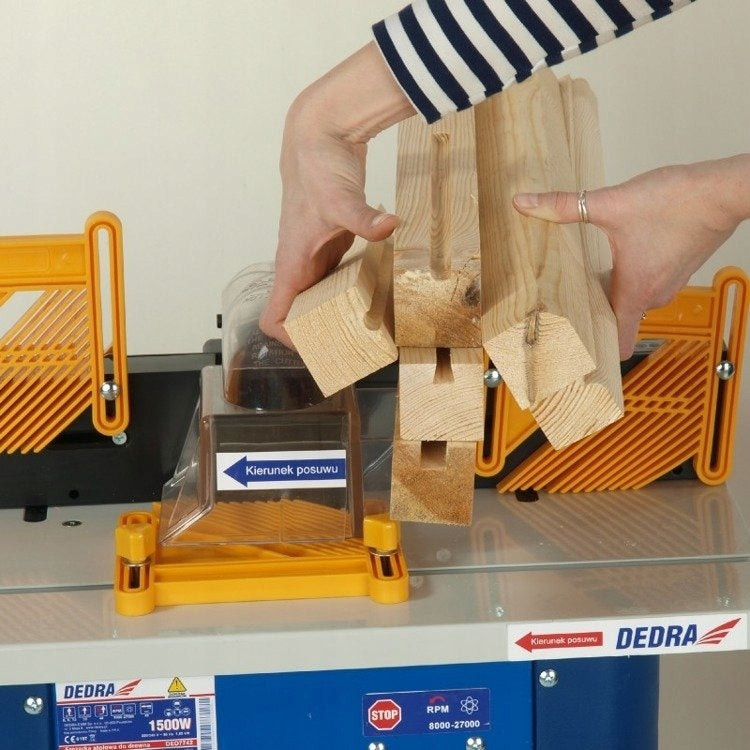

Depending on the cutters used, the following operations can be performed using a milling machine:

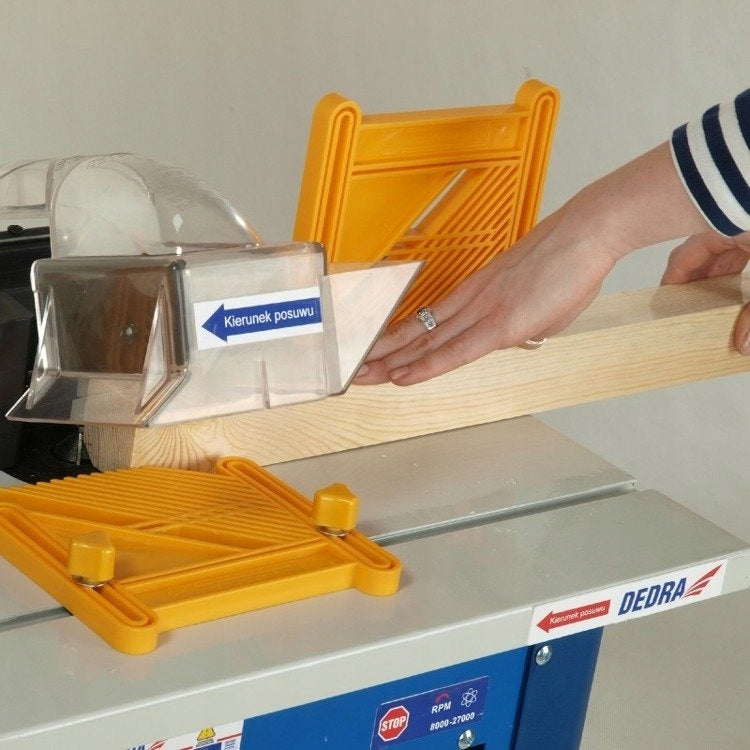

- Profile milling of straight edges
- making quarters, skirting boards, doors, etc.
- making dowel, wedge and swallow tail connections
- execution of inlets and indentations
- making longitudinal holes
- making choices (e.g. under hinges)
A1537964069)
- Table milling machine DED7742
- longitudinal guide (tilting cover, guide body, guide pads, small clamping knobs,
- large clamping knobs, excavation ejector connector, set of screws).
- flexible resistance plate
- clamp knob small
- Angular fitting
- Wrench for fixing the cutter
- key for moving the cutter in a vertical plane
- collet cover
- cutter terminal bushing
- set of screws, washers and nuts
- Rated power: 1500 W
- Frequency of jumps without load : 8000-27000 rpm
- Power supply : 230 V / 50 Hz
- Engine: single-phase, commutator
- Clamping sleeve : 6 mm, 8 mm and 12 mm
- Maximum diameter of the working part of the cutter : 35 mm
- Dimensions of the working table: 600 x 460 mm
- Diameter of the discharge nozzle : 69 mm (ex. ) / 57 (in. )
- Cutter stroke : 40 mm
- Volume: 95,3 dB
- Net weight: 18 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Dedra |
| Parametry | Series | DED7742 |
| Parametry | Milling machine type | other |
| Parametry | Power supply | mains |
| Parametry | Maximum power | 1500 W |
| Parametry | Supply voltage | 230 V |
| Parametry | Maximum no-load speed | 27000 RPM |
| Parametry | Maximum milling depth | 35 mm |
| Parametry | Pitch of the milling unit | 40 mm |
| Parametry | Device weight | 18 kg |
| Parametry | Product weight with unit packaging | 20 kg |
| Parametry | Manufacturer code | DED7742 |
| Parametry | EAN (GTIN) | 5902628774200 |
| Parametry | Packaging status | original |
| Parametry | Tool holder (mm) | 6,8,12 |
| Parametry | Additional information | dust removal,speed regulator |
