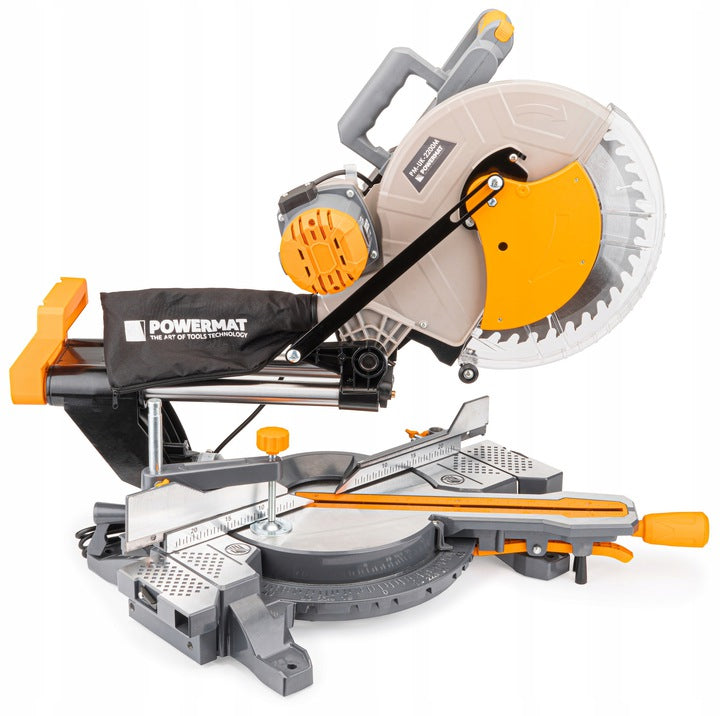

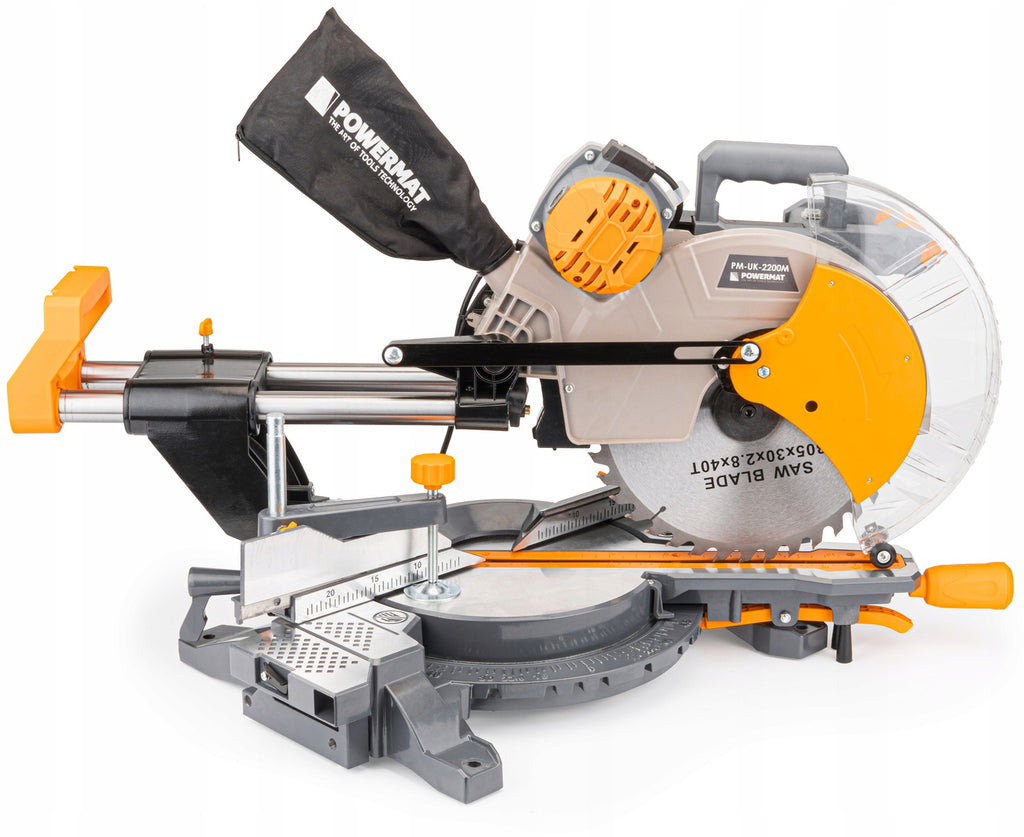

Medžio kampinis pjūklas su lazeriu 2200W PM-UK-2200M

Trumpai apie prekę

Prekė: Medžio kampinis pjūklas su lazeriu 2200W PM-UK-2200M. Kategorija: Kampiniai pjūklai.

• Gamintojas: Powermat
• Modelis: Powermat PM-UK-2200M / PM0874

POWERMAT PM-UK-2200M / PM0874

⚙ TECHNICAL DATA

• Power supply: 230 V / 50 Hz
• Engine power: 2200 W
• No-load rotation: 3800/min -1
• Cutting disc size: Ø 305 x Ø 30 x 2,8 [ mm ] ( 40 T / 60 T / 100 T )
• Stroke angle: -45° / 0° / +45°
• Bevel cutting: 0 bis 45° left, right
• Insulation Class: II
• Sound pressure level Lpa: 95 dB (A )
• Lion Sound Power Level: 108 dB (A)
• Vibration level (K = 1,5 m/s² ): 2,5 m/s²
• Weight of the device: 20,8 kg
• Length of power cord: 205 cm

ADDITIONAL FUNCTIONS

• Laser
• LED backlighting

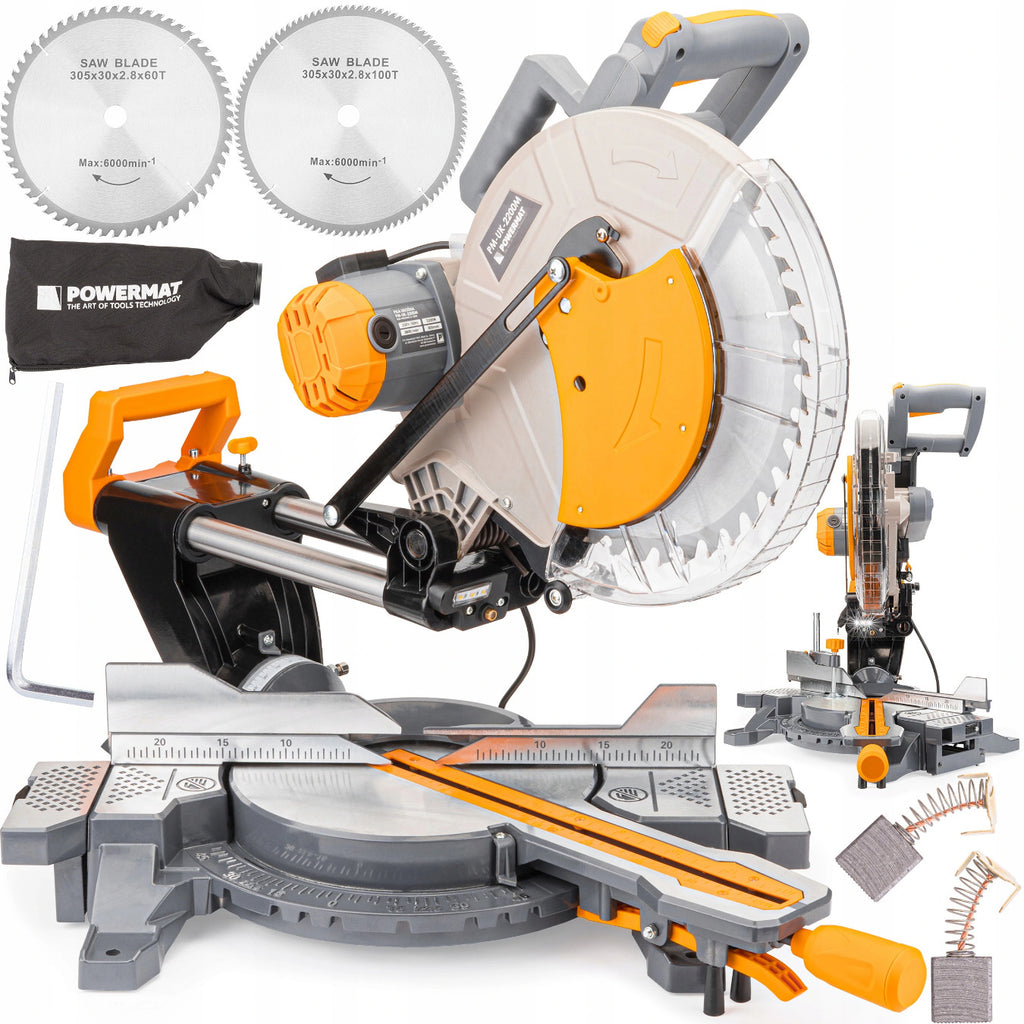

✅EQUIPMENT

• Miter saw PM-UK-2200M POWERMAT
• Set of spare brushes
• Allen Wrenches
• Pouch with chip slider
• Original packaging
• User manual in Polish
• 3 x cutting disc ( 1x 305 x 30 x 2.8 x 100T , 1x 305 x 30 x 2.8 x 60T , 1x 305 x 30 x 2.8 x 40T - 40T saw is factory installed on the device )

Bevel saw - POWERMAT brand slash with a power of up to 2200 W is ideal for everyday DIY. Works great for diagonal and angular cuts. The miter saw from POWERMAT has a double slide rail that can be locked with a special locking handle. Designed for versatile use, it accurately and precisely cuts treated wood, plastics and hard and soft wood.

⭐ CUTTING HEIGHT / WIDTH

• 105 x 330 mm: Angle | saw tilt: 0° / table settings: 0°
• 60 x 230 mm: Angle | saw tilt: 0° / table settings: 45°
• 35 x 230 mm: Angle | saw tilt: 45° / table setting: 45°
• 60 x 230 mm: Angle | saw tilt: 45° / table settings: 0°

⭐FUNCTIONAL BASIS

The base is made of die-cast aluminum, such a structure is resistant to deformation during operation.

The milled surface of the table top provides an appropriate coefficient of friction, so that the material does not slip excessively on the working table.

The device has a rotary table with angle setting and a tilting disc with an adjustment range of 0 - 45°, as well as a guide and a vise for safe and clean work in wood.

With the right disc, the slash can also cut through aluminum and plastics.

⭐LASER CUTTING LINE

Accurate laser cutting line indicator allows you to visualize the place of application of the disc on the material.

⭐ VERTICAL CLIP

The adjustable vertical clamp allows you to fix the material in such a way that it does not move during cutting with feed. The device has two mounting places, so you can mount the clamp on the left or right side of the device.

Steplessly extendable table extensions along with folding stops make it easier to work with longer material. Limiters are used to block the material so that it does not move sideways during operation.

⭐ERGONOMIC HANDLE WITH LOCK

The device allows for fast and precise cutting of wood, boards, panels, etc. Thanks to the tilting and rotating head, double diagonal cutting is possible. The saw is equipped with a durable motor with a maximum power of 2200W with replaceable brushes. The laser guide, which is installed in the device, increases the comfort and precision of work with the material. Power supply is carried out via the electrical network.

⭐LED LAMP

LED light with triple LED allows you to illuminate the processed material thus improving the comfort of work.

The POWERMAT brand is a manufacturer of equipment used in professional and hobby woodworking, combustion tools, electrical tools and many others. The brand has been present on the Polish market since 1990. provides m.in. Bevel and table saws, planers or table grinders, which are appreciated by both small production plants and DIYers. A wide range of devices, machines manufactured in accordance with the highest safety standards and competitive price are the hallmarks of the POWERMAT brand.

POWERMAT is a manufacturer of equipment used in professional and hobby woodworking, combustion tools, electrical tools and many others. The brand has been present on the Polish market since 1990. provides m.in. Bevel and table saws, planers or table grinders, which are appreciated by both small production plants and DIYers. A wide range of devices, machines manufactured in accordance with the highest safety standards and competitive price are the hallmarks of the POWERMAT brand.
