Metalinė sandėliavimo lentyna GR 200x350x60, 350 kg lentynai

Trumpai apie prekę

Prekė: Metalinė sandėliavimo lentyna GR 200x350x60, 350 kg lentynai. Kategorija: Lentynos ir knygų spintos.

• Gamintojas: Dodas
• Modelis: DGR20035060MOP4

WORKSHOP METAL SHELVING UNIT GR 200X350X60 MOP4 350 kg PER SHELF

Economical wide-span shelving system made of high-quality steel. Shelving widely used in warehouses, archives, factories, retail and wholesale. Designed for manual operation and ideal for storing cartons, boxes, boxes or suitcases. Ready for intensive use, durable and very robust. Side frames of the rack made of steel, painted powder dark gray color RAL7016 which ensures high resistance to damage, corrosion and chemicals. Shelves made of steel powder coated in dark grey colour RAL7016. The construction of the shelf consists of two load-bearing beams and two metal panels additionally reinforced from the bottom. The very durable construction allows you to load a single free-standing segment up to 2000 kg, while the maximum load capacity of the shelf is 350 kg.

• intended for the storage of goods in bulk, in prepackages or containers
• irreplaceable and reliable in warehouses, archives, workshops, retail outlets
• easy and quick installation
• possibility of expansion into serial sequences
• strong all-metal shelves
• thanks to the perforation of the poles, the possibility of adjusting the spacing of the shelves every 40 mm
• galvanized steel construction
• possibility of free access from both sides of the rack

These racks are a segmented model, which significantly reduces costs in racking projects and minimizes the loss of storage space. Very large easiness of assembly and expansion to specific needs, but also disassembly of parts of the series without worrying about the safety of others.

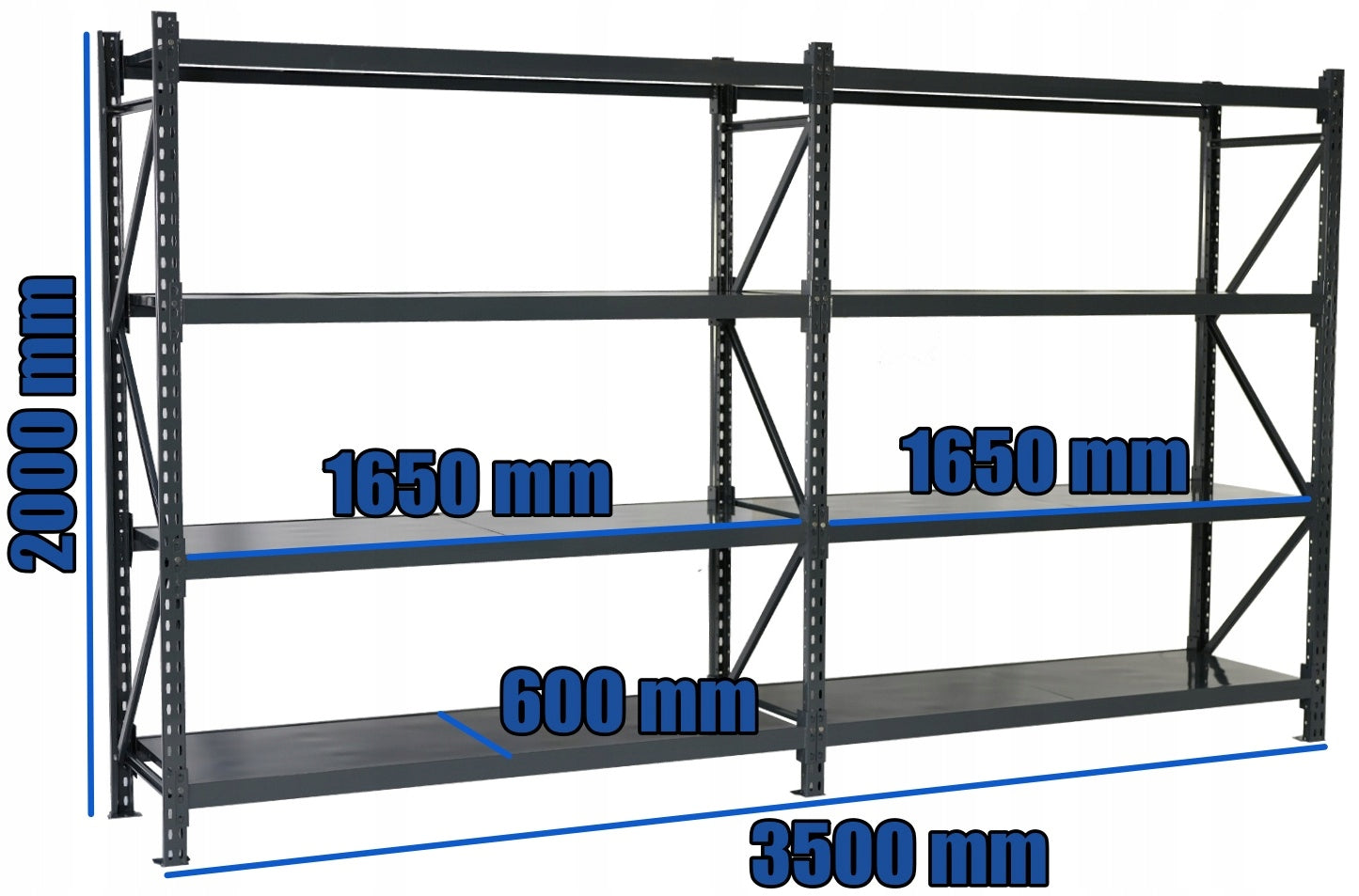

INDUSTRIAL SHELF 200x350x60 MOP4

• HEIGHT: 200 CM
• WIDTH: 350 CM
• DEPTH: 60 CM
• TYPE OF SEGMENT: DOUBLE MODULE
• LOAD CAPACITY OF THE SEGMENT: 2000 KG
• LOAD CAPACITY OF THE SHELF: 350 KG
• SHELF FILLING: 2x METAL PANEL
• SHELF DIMENSIONS: 165x60 CM
• NUMBER OF SHELVES: 8
• FRAME FINISH: RAL7016 POWDER COATED STEEL
• SHELF FINISH: POWDER COATED STEEL RAL7016
• MOUNTING METHOD: TWISTED/PRESSED

WHAT IS INCLUDED IN THIS SET:

• 3 x side frame 200x60 cm
• 16 x support beam
• 16 x Metal Panel
• all mounting material like bolts, nuts, hooks is included in the price and scope of delivery

1. Profile- 6 times bent with double-row perforation along the entire length allowing adjustment of the height of levels every 40 mm and mounting beams on both sides for connecting racks into strings. The element is made of steel sheet with a thickness of 1,2 mm.
2. Foots- protecting the ground on which the rack will be placed, the possibility of attaching to the ground. The element is made of steel sheet with a thickness of 2,0 mm.
3. Concentration- profiles "U" connecting profiles. The element is made of steel sheet with a thickness of 1,2 mm.
4. Beam/traverse- closed profile with a cross section of 60x40 mm. Element made of steel sheet thickness: Profile- 1,2 mm fixing ear 2,0 mm
5. Panels, shelf fillings- welded with additional reinforcements on the bottom of the shelf. Element made of steel sheet thickness: flat panel surface - 0,8 mm, brackets - 1,0 mm.

Modular system allows you to build strings of racks with lengths tailored to your specific needs, also facilitates very simple assembly as well as safe disassembly of parts of the string if necessary. Segmented model significantly reduces costs in racking string projects and minimizes the loss of storage space. Each string starts with a start segment with any additional amount depending on demand.

• the cheapest solution (modular system)
• maximum use of space
• easy and convenient access to any goods
• the ability to adjust the levels to your needs at any time
• stable and robust construction
• simple and quick installation
• whole produced in Poland
• racks in a fixed offer, always available
• ease of expansion at any time

1. Strong 6 times bent vertical profile with perforation.

2. Foot with holes for anchoring the rack to the floor if necessary.

3. Shelf height adjustment every 40 mm up-down.

4. Metal panels embedded in beams - twice bent each year with 4 welded brackets on the bottom.

5. Side concentrations- profile connectors.

⭐ Why choose this bookcase? ⭐

☑ Functional and robust

☑ Strong and robust construction

☑ Very stable

☑ Possibility to quickly adjust the height of shelves

☑ Metal and durable shelves, up to 350 kg!

☑ Large number of storage spaces

☑ Modular system

☑ Simple and quick installation

1. Start/freestanding segment- you can use it as a standalone freestanding rack or set it as the first in a string and add any number of additional segments to it to create rack strings.
2. Additional / delivery segment- a rack used to expand the existing rack.

How do the segments in the DODAS GR industrial shelving system have dimensions?

START/FREESTANDING SEGMENTS:

• height: 200 or 250 cm
• width: 180 cm or 90 cm
• depths: 60, 80 or 100 cm

ADDITIONAL SEGMENTS:

• height: 200 or 250 cm
• width: 90 or 125 cm
• depth: 60, 80 or 100 cm

Do you need an extra level?

Possibility to buy additional shelves in another offer.

CHECK VIDEO INSTALLATION INSTRUCTIONS FOR DODAS RACKS

https://www.youtube.com/watch?v=jcWvZipYhbQ (copy link)

The figure shows an example of the spacing of beams - storage levels.

We issue the Declaration of Conformity necessary for the storage of goods, required by the National Labour Inspectorate.

• HIGH QUALITY
• PRICE GUARANTEE
• FAST DELIVERY
• BUYER SATISFACTION
