Metalo ir laidų detektorius BOSCH GMS 100-23

Trumpai apie prekę

Prekė: Metalo ir laidų detektorius BOSCH GMS 100-23. Kategorija: Detektoriai.

• Gamintojas: Bosch
• Modelis: 0601081800

The equipment of the offered detector includes:

• batteries supplying the detector
• Protective cover made of durable fabric for detector

Technical parameters:

• Detected materials

rebar iron, steel, ferrous and non-ferrous metals, live wires

• Max. depth of measurement (for iron and steel): up to 80 mm
• Max. depth of measurement (for copper and non-ferrous metals): up to 100 mm
• Max. depth of measurement (voltage cables): up to 50 mm
• Working time on one battery pack: approx. 9 hours
• Automatic detector switch: after 5 minutes of inactivity
• Power supply: 2 x LR6 battery (AA)
• Degree of protection against dust and water: IP54
• Weight of the device: 0,28 kg
• Dimensions: 186 x 86 x 33 mm

The digital detector GMS 100-23 from BOSCH is a device designed for the detection of live wires and non-conductive wires and for the detection of ferrous metals (e.g. rebar) and non-ferrous (e.g. aluminum, copper, brass, etc. ).

The detector is a very safe device and incredibly easy to use. The built-in two-tone LED indicates unambiguously whether you can drill in a given place or not. If in detection mode the diode lights up red – this means “DO NOT DRILL” and when it lights up in green – it means that “YOU CAN DRILL”.

The detector has been equipped with an innovative function – CENTER, thanks to which you can quickly and with high accuracy detect the presence of the desired materials in the wall (wires, rebars, structures) and determine its center.

Thanks to the GMS 100-23 detector, you can safely work even in difficult conditions (e.g. with high dustiness), and in addition to a two-color large LED, the presence of hidden objects in the wall or ceiling is indicated by an audible signal.

AUTO CAL function – automatic calibration function so that the detector automatically calibrates and the work is accurate, safe and fast.

Two-color large LED (red and green) – indicates unambiguously whether it is possible to drill (green) or not to drill (red), and at the same time increases work safety and facilitates operation.

On and off sound signal with modulated frequency – facilitates the location of the object being searched, especially useful when working in difficult construction conditions (e.g. at high dustiness), and thanks to the modulated frequency, the detector allows you to precisely determine the position of the detected object in the wall – the frequency of the sound signal increases when the meter approaches the detected object.

Automatic switch function – after 5 minutes of inactivity, the detector will be automatically switched off so that the device itself takes care of the state of charge of the power batteries and allows for maximum long work on one battery pack (approx. 9 hours continuous operation).

Meter fault warning function – shows that the meter has been damaged and should be sent back to the service.

CENTER function – allows you to quickly and very accurately locate a foreign element in the wall and determine its center, thanks to which it minimizes the risk of damage caused by drilling in the wrong place.

Special impact-resistant housing – the side parts of the housing have been covered with a special, soft Softgrip material, thanks to which the ergonomics of the device has been increased (the meter does not slip out of your hands) and the impact resistance has been greatly increased (e.g. when falling on hard ground).

Intuitive and very simple operation – thanks to the large display and very accurate keyboard description, it facilitates operation and increases the speed of work.

The possibility of using a lithium-ion battery 3,7 V / 1000 mAh / 3,7 Wh from BOSCH (not included).

Protective cover made of durable fabric included – allows for easy and safe transport of the meter.

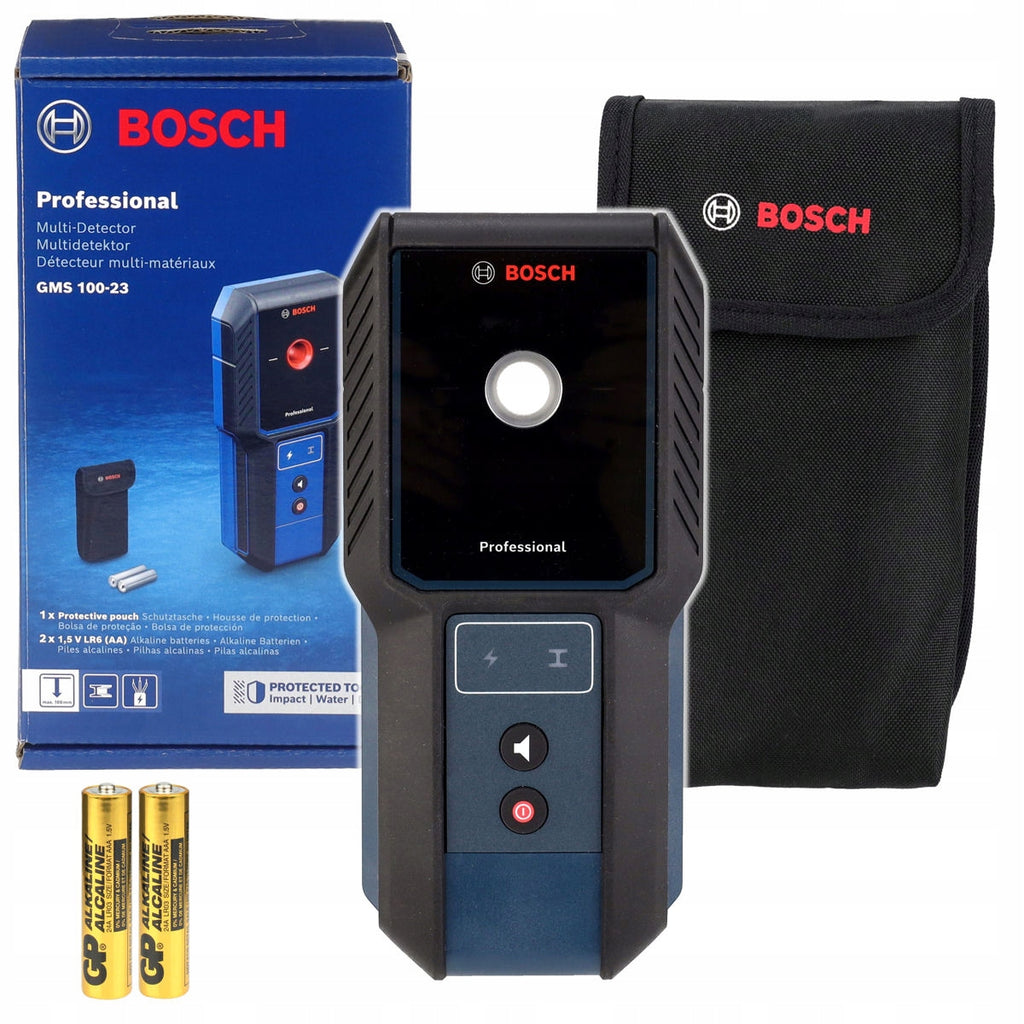

Delivery includes:

• Digital detector of metals and electrical wires
• Power batteries
• Protective cover
• Instruction manual in Polish
