Metalo, medžio ir įtampos detektorius UT387E Uni-T

Trumpai apie prekę

Prekė: Metalo, medžio ir įtampos detektorius UT387E Uni-T. Kategorija: Detektoriai.

• Gamintojas: UNI-T
• Modelis: UT387E

• Safe planning of drilling and assembly work
• Multifunctional detection: cables, metals, wood - in one device
• High accuracy and depth of detection
• Visual and sound signalling - fast location of hidden objects
• Easy operation, even for those with no technical experience

UNI-T UT387E - Professional detector of wires and structural elements in the wall

UNI-T UT387E is a intelligent detector of wires, metal and structural elementsh located in the walls. It is an indispensable tool for electricians, fitters, builders and DIYers who want to avoid accidental drilling of the installation or damage to the supporting elements. The UT387E combines precision detection with simple, intuitive operation and readable LCD display.

Detection of wires, metal and wooden structural elements

The UT387E detector enables effective detection of:

• voltage cable (AC)
• metal elements (iron, steel, copper, etc. )
• wooden structural elements (e.g. beams, frames)

With digital signal processing (DSP), the device analyzes data in real time and presents a precise result on the screen. Built-in LED indicators and sound and graphic signals help accurately locate the detected object.

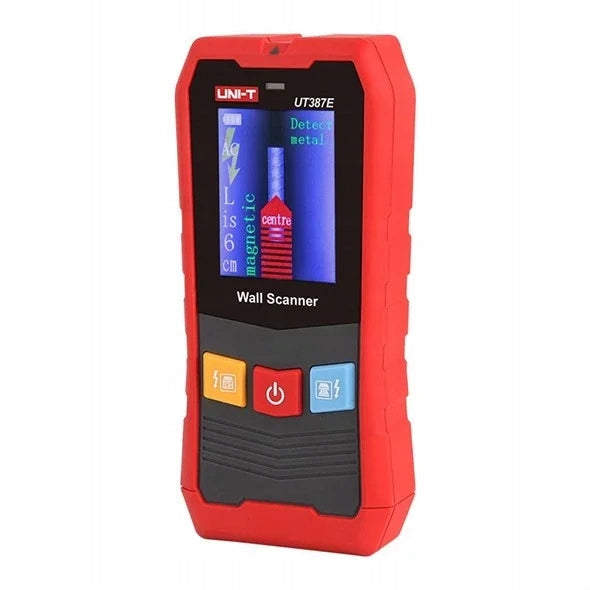

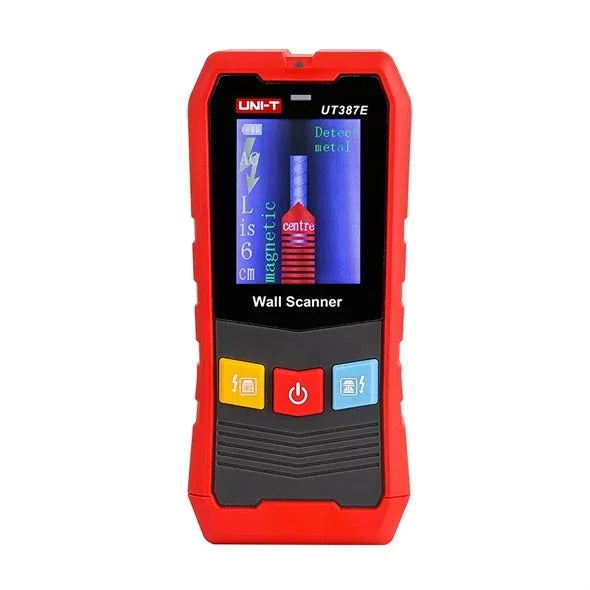

Readable screen and intuitive markings

The UT387E is equipped with a backlit LCD display, which shows in real time the type of object detected and its depth (for metal and wood). The screen is supported by built-in LED signaling and an audible alarm, which makes it easy to precisely locate the installation in the wall, even without visual contact.

Accuracy and safety at work

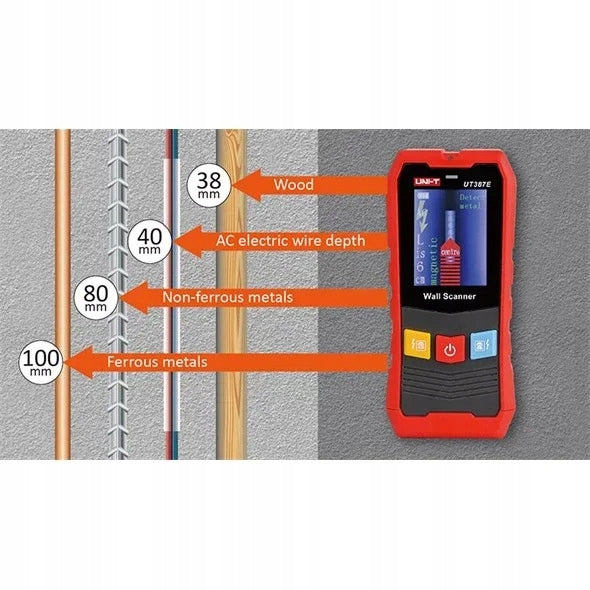

Thanks to the technology used, the UT387E enables the detection of:

• voltage cables at depths up to 50 mm,
• ferrous metal - up to 100 mm,
• non-ferrous metal (e.g. copper, aluminium) - up to 80 mm,
• wooden elements - up to 20 mm.

These are sufficient parameters to safely plan drilling, forging or other assembly work in most typical walls (gypsum, concrete, brick, wood).

Technical data (detailed):

Detected materials: ferrous metal, non-ferrous metal, wood, live wires

Maximum detection depth:

• Live wires: up to 50 mm
• Iron metal: up to 100 mm
• Non-ferrous metal: up to 80 mm
• Wood: up to 20 mm

Indicators: LCD screen + sound indicator + 3-segment LED

Screen backlight: YES

Automatic calibration: YES

NCV function (contactless voltage detection): YES

Power Supply: Accumulaot (300 mAh)

Auto shutdown function: YES (after 5 minutes of inactivity)

Dimensions: 220 x 83 x 32 mm

Weight: approx. 260 g (incl. battery)

Working conditions: 0°C - 40°C, humidity < 85% RH

Safety standards: CE, RoHS compliant

PRODUCT FEATURES Metal, wood and voltage detector UT387E Uni-T

• Product Brand: UNIT
• EAN: 6935750538777
• Manufacturer code: UT387E

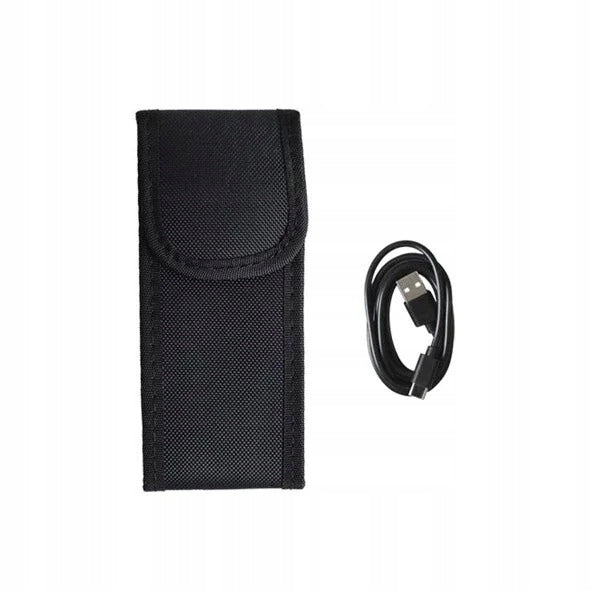

• Set includes: Measurement UT387E
• Power supply: battery
• Dimensions: 220 x 83 x 32 mm
• Weight: 260
