Metalo pjovimo diskinių pjūklas EVOLUTION S355CPS, 355 mm

Trumpai apie prekę

Prekė: Metalo pjovimo diskinių pjūklas EVOLUTION S355CPS, 355 mm. Kategorija: Diskiniai pjūklai.

• Gamintojas: Evolution
• Modelis: S355CPS

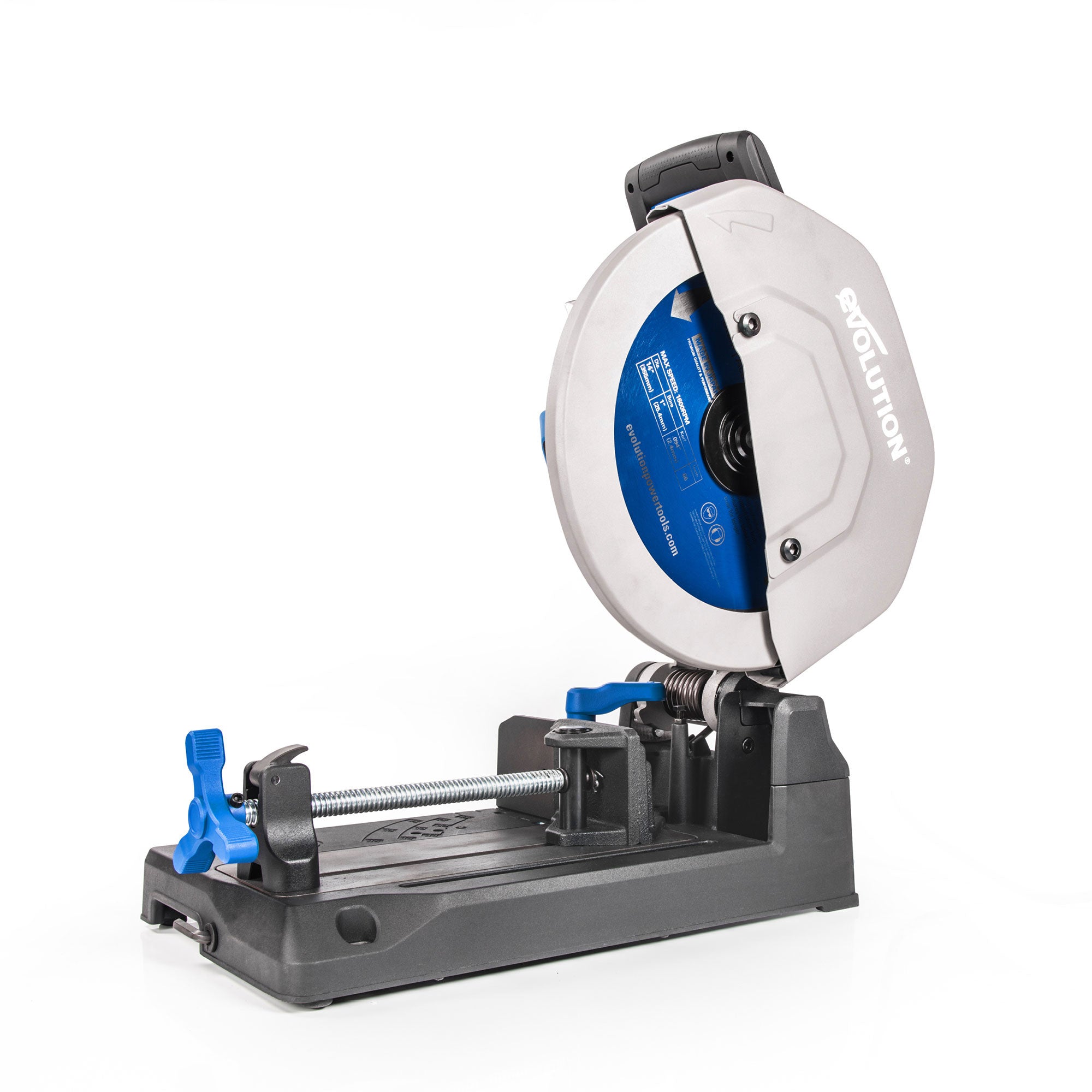

✅New S355 CPS circular cutter.

Successor to the well-known and successful Evolution RAPTOR 355 cutter. New design and new features: vise with quick attachment function, transport handle for easy carrying of the cutter.

✅The S355CPS cutter offers the possibility of cutting profiles made of materials such as:

• steel,
• stainless steel,
• aluminium.

✅The high-power 2200W motor is capable of handling even the most demanding jobs.

✅The device will work well in companies involved in the production of steel structures, where cutting at an angle is important.

✅Twisted vise up to 45 degrees guarantees that the element can be cut at any angle. Adjusting and setting is very simple - just unscrew one screw.

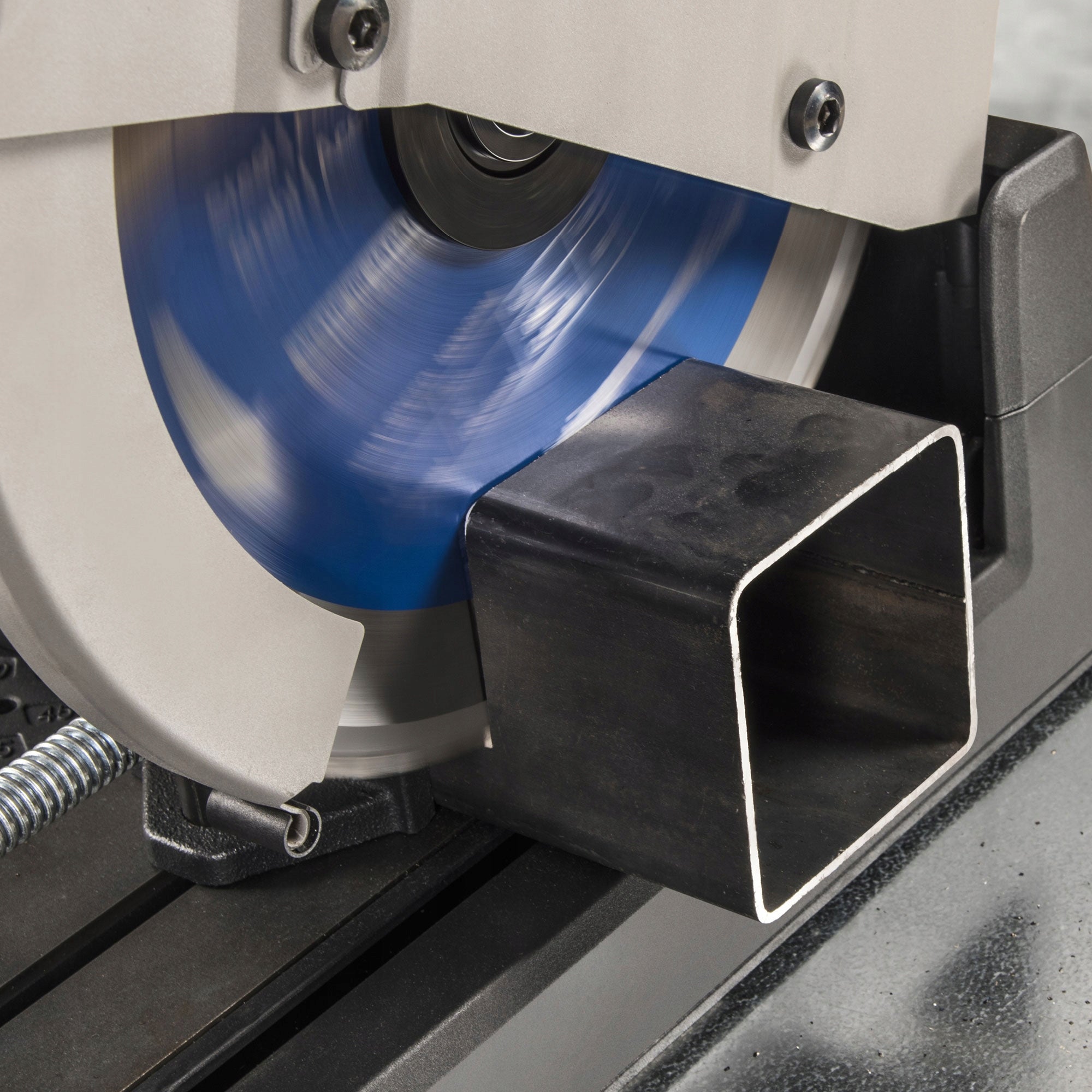

✅The biggest advantage apart from the very high cutting speed is accuracy and no sparks during the cutting process.

The special dry cut technology ensures that the cut material is not heated and immediately after the cutting process, the material can be further processed.

✅ Specification

• Model: S355CPS
• Engine power: 2200 W
• Power supply voltage: 230 - 240 V
• Rotary speed (no load): 1450 rpm /min
• Maximum dimension of the cut profile (3 mm 90° wall): 120 x 120 (95 x 180 rectangle) mm
• Maximum dimension of the cut profile (3 mm 45° wall): 89 x 89 (rectangle 78 x 110) mm mm
• Maximum wall thickness of the cut profile: 6 mm
• Maximum cutting capacity at 0°: 130 (round section) mm
• Maximum cutting capacity 45°: 105 (round section) mm
• Weight of the device: 23 kg
• Weight with packaging (gross): 25,5 kg
• Recommended maximum working time: 30 min
• Noise level (at load): 121 dB(A)
• Noise level (no load): 108 dB(A)
• Vibration level (at load): 1,39 m/s²
• Diameter of the disc: 355 mm
• Diameter of disc mounting hole: 25,4 mm
• Disc thickness: 1,7 / 2,4 mm
• Number of teeth: 66 of

✅The set includes

• 1 x Evolution S355CPS cutter,
• 1 x Evolution 355mm 66 tooth steel cutting disc,
• 1 x hexagonal key for disc replacement,
• 1 x user manual in Polish .

✅Package dimensions: 470 x 575 x 374 mm

✅Product dimensions: 410 x 530 x 310 mm

✅Product weight: 23,1 kg

✅Package weight: 27 kg
