Mini belaidžių siurbtukų rinkinys stiklui, keramikai, plytelėms, 93 x 170 mm, 2 vnt.

Trumpai apie prekę

Prekė: Mini belaidžių siurbtukų rinkinys stiklui, keramikai, plytelėms, 93 x 170 mm, 2 vnt.. Kategorija: Plytelių siurbtukai.

• Gamintojas: Kraftech
• Modelis: 011

2x Mini ELECTRIC SUCTION CUP FOR STONEWARE TILES CORDLESS GLASS UP TO 100KG

Are you looking for a handy tool for precise laying and correcting the position of tiles, stoneware or glass?

The compact Krafttech Model 011 cordless suction cup is designed for comfortable operation where traditional, large suction cups are too bulky.

Thanks to the automatic vacuum pump, the device itself ensures constant pressure, guaranteeing a safe grip of material weighing up to 100 kg - with an own weight of only 600 g!

The most important advantages:

• Compact dimensions (93 x 170 mm): Irreplaceable when working in narrow spaces, on smaller surfaces and with precise tightening and correction of tiles.
• Automatic pressure retention system: The sensor continuously monitors the vacuum level and automatically knocks it down, preventing the material from slipping.
• Digital LCD display: The easy-to-read screen allows you to control the pressure level and battery status on an ongoing basis.
• Ergonomics and control: Rubberized, non-slip grip (90 mm) provides secure handling and one-handed maneuverability.
• Electronic drain valve: Instant vacuum release with the touch of a button.
• USB-C charging: You can charge a powerful Li-ion battery with a standard charger for your phone or powerbank.
• Ready-to-use kit: Includes suction cup, USB-C cable, filters to protect the mechanism from dust and transport case.

USB-C charging: Even on the way to construction

You can charge your new mini suction cup Kratftech 011 with the included universal USB-C cable exactly the same as you charge your phone. A powerful Li-ion battery with a capacity of 1200 mAh (2,4Ah) guarantees long operation, and when the battery level drops, the power source can be literally anything:

• network charger from phone
• powerbank quick recharge during breakfast break on the job
• USB socket in the car suction cup charges when you go to the customer
• laptop, workstation or extension cable with USB input

END with a tangle of cables and completing another dedicated, unusual chargers!

Forgotten in the workshop, a dedicated charger can paralyze a whole day of work on assembly. In the case of the Kratftech 011 suction cup, this problem simply does not exist. Thanks to the universal USB-C connector, you do not have to watch the next factory power supply. Discharged battery halfway through tile laying? All you need is a cable from your smartphone, car charger or powerbank held in your pocket to return to work after a while.

Digital LCD Screen: Full Control and Work Safety

The digital LCD display in the Krafttech 011 suction cup shows simultaneously:

• The current lifting capacity and vacuum you know exactly whether the suction cup holds the weight securely (up to 100 kg max)
• Battery charge level constant preview of the battery 2,4 Ah (1200 mAh), without the risk of unexpected discharge
• The vacuum system operating indicator informs about automatic pumping and maintaining safe pressure

Automatic pumping zero risk of material falling

• Suction cup detects pressure drop and immediately starts pumping
• Constantly maintains a safe vacuum, and after finishing work, you release the grip with one button
• Peace of mind at work ideal solution for safe assembly and handling of materials
• Continuous protection works automatically from the moment you turn on the device

Intuitive operation in 4 simple movements

1. Hold you wake up and turn on the device.
2. Short click triggers automatic suction and securely grips the material.
3. Move the current operating parameters you have constantly on the LCD screen.
4. Quick double-click completely releases the pressure and releases the element.

No manual valves or pressure boosting. You will master the logical interface in a few seconds created for comfortable work.

Manual pressure release valve

In addition to the classic button, it is equipped with a physical trigger lever. It has been designed to make the disassembly process independent of electronic systems or battery level. Its elevation immediately equalizes the pressure under the rubber substrate, allowing for trouble-free detachment of the device.

• Full supervision without power supply: The suction cup maintains tightness and grip even after the equipment is completely turned off.
• Protection of rubber elements: Gentle air inlet prevents damage to the seal
• Proper work sequence: Air should be allowed in only when the transferred material safely rests in the destination!

Additional filters

Dust generated during cutting stoneware, ceramics or stone processing is a silent killer of battery and pneumatic tools. Abrasive particles pulled inside the vacuum system act as sandpaper destroy seals, draw cylinders and lead to irreversible vacuum loss. The effect? The suction cup loses holding power and the work becomes dangerous and inefficient.

• To prevent this, the device has been equipped with an integrated filtration system, and in the factory kit you get up to 3 filters protecting the suction system (one mounted in the device + two spare).
• Saving time and money: A set of spare filters is immediately in the case. You don’t have to waste time looking for spare parts or worry about expensive service.

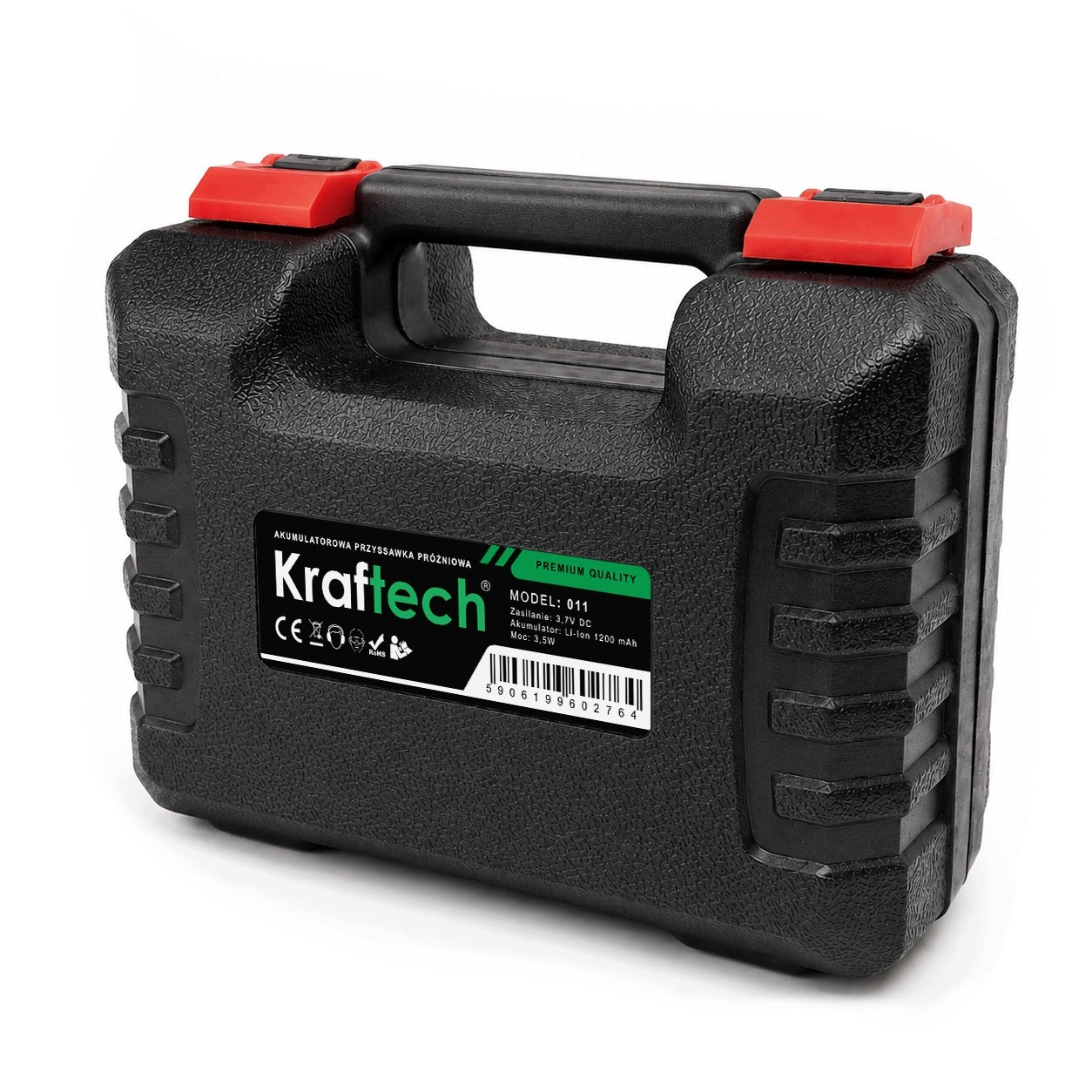

Handy transport case

The set includes a sturdy case that makes it easy to securely store and transport the suction cup and all accessories. Protects the device from dust, moisture and mechanical damage during transport or storage.

Thanks to dedicated places for the elements of the set, everything remains organized and always at hand – both when working on the construction site, as well as in the workshop or garage.

Application of mini electric suction cup

• Assembly and handling of ceramic tiles and stoneware facilitates precise laying of large-format wall and floor tiles, tiles and mosaics without the risk of scratching their surface.
• Working with glass and window joinery allows you to safely maneuver glass panes, mirrors, glass elements and tempered glass countertops.
• Assembly of natural stone and conglomerates – useful for fitting and installing marble, granite or conglomerate slabs (e.g. kitchen countertops and window sills).
• Finishing work with furniture and household appliances facilitates lifting and precise matching of smooth furniture fronts (e.g. high gloss lacquered), door panels or device housings.
• Disassembly and service work – facilitates prying and removal of raised technical floors, revisions and dismantled smooth elements without the use of sharp tools.

ATTENTION! When the suction cup doesn't work

• Strongly structural and porous surfaces
• Dirty, dusty or wet materials layer of construction dust, sand, grease or water on the material cuts off the tightness of the rubber gasket and causes air to escape.
• Surfaces damaged or cracked
• Elements strongly bent or with a small radius of pipe, strongly rounded elements or tiles with dimensions smaller than the gasket itself (93 x 170 mm), where the edges of the suction cup protrude beyond the material.
• Exceeding the maximum lifting capacity (100 kg) – an attempt to lift heavier objects or lift the material at the wrong angle (vertical/shear lift is usually lower than horizontal).
• Unloaded battery or power failure – an electric pump and automatic pressure boosting system require a charged 3,7 V battery to maintain a safe vacuum.
• Rubber gasket capture or clogged filter – damaged, chipped or hardened from cold sealing rubber and dust-clogged filter will damage the tightness of the system.

TECHNICAL DATA:

• Brand: Kratftech
• Model: 011
• Maximum lifting capacity: 100 kg
• Suction cup dimensions: 93 x 170 mm
• Handle length: 90mm (rubberized, non-slip)
• Voltage: 3,7 V
• Display Type: Digital LCD
• Battery: Li-ion 2,4Ah (1200 mAh)
• Charging: USB-C
• Automatic pressure retention system: YES
• Drain valve: Electronic
• Weight of the device: 600g
• Number of: 2 Pcs.

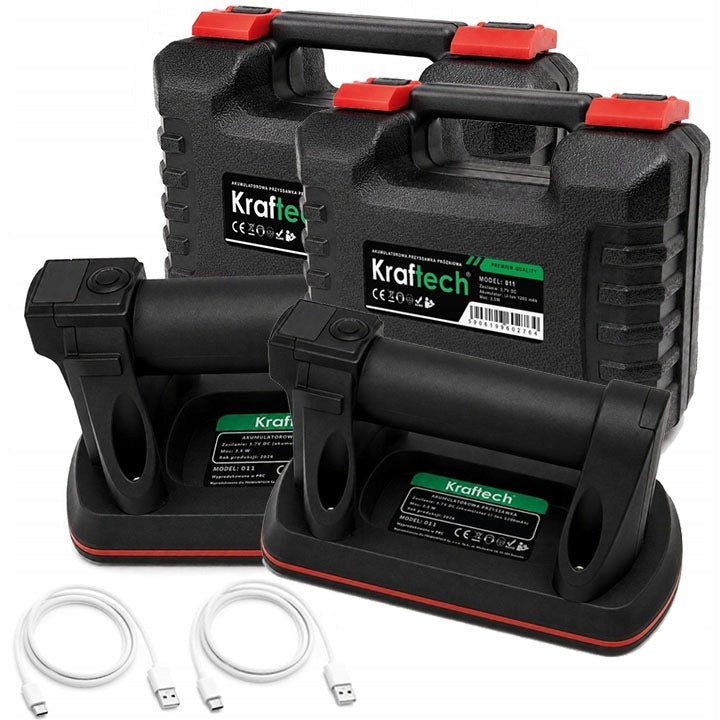

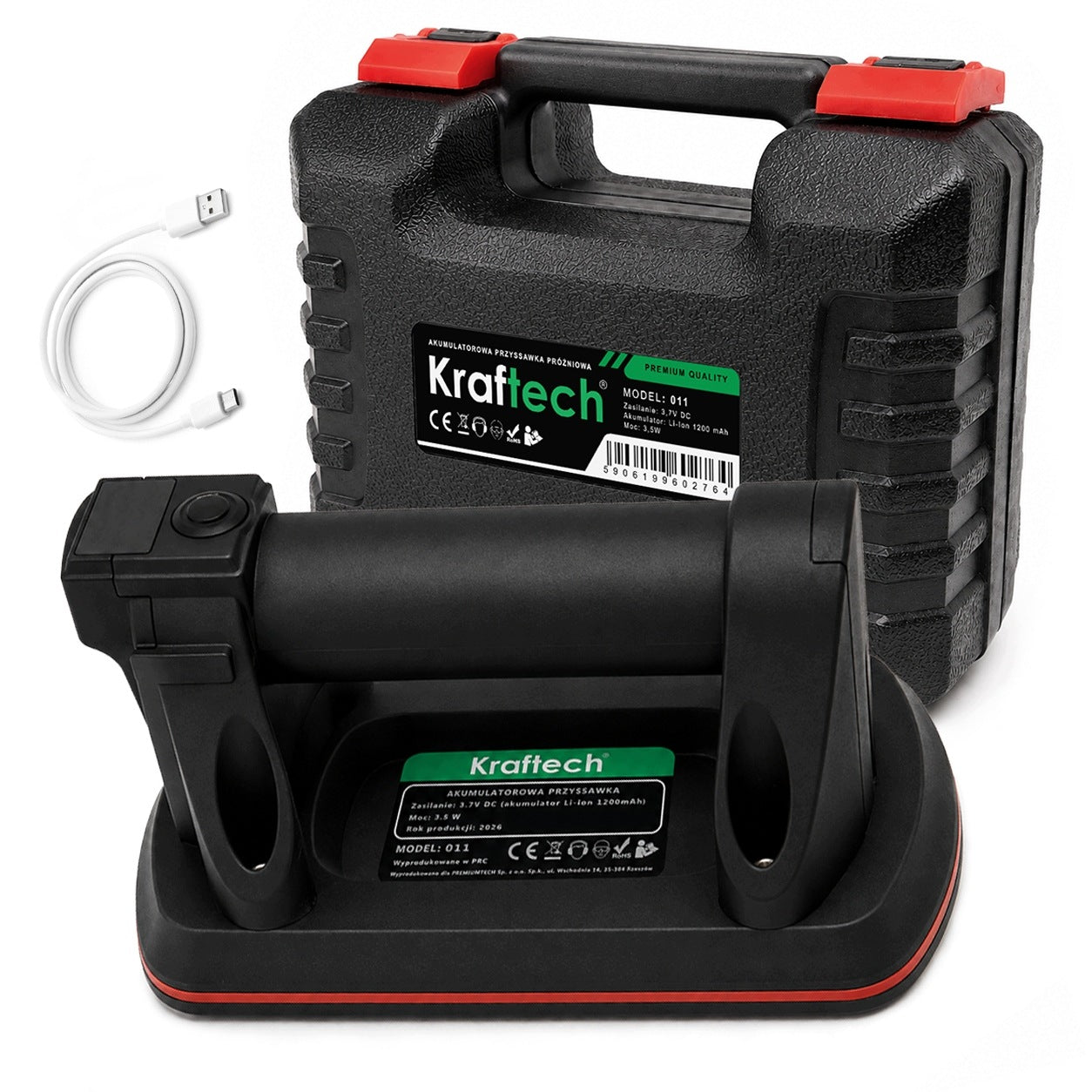

THE SET INCLUDES:

• Automatic vacuum suction cup
• Cable for USB-C charger,
• Two dust filters,
• Handy transport case,
• Operating instructions.

Frequently Asked Questions (FAQ)

1. What materials is the Krafttech 011 suction cup suitable for?

The device is ideal for working with materials with a smooth and clean surface. It is used for handling and precise installation of stoneware, ceramic tiles, glass, mirrors, natural stone and conglomerate countertops, as well as varnished furniture fronts.

2. What are the dimensions of the suction cup and its maximum lifting capacity?

The suction cup has compact dimensions (93 x 170 mm) and a rubberized handle with a length of 90 mm. It weighs only 600 g and its maximum lifting capacity is up to 100 kg (maximum value with a perfectly flat surface working horizontally).

3. Does the device itself guard the secure grip?

Yes. The suction cup is equipped with an automatic pressure holding system.

4. What is on the digital LCD display?

The real-time LCD display shows three key parameters:

• Current vacuum / lifting capacity value,
• Battery charge level,

5. How does the suction cup charge and how long does the battery last?

The device has a built-in Li-ion battery with a capacity of 1200 mAh (2,4 Ah), which charges via a universal USB-C connector. You can use a standard phone charger, powerbank, USB socket in the car or an extension cable with a USB port.

6. How to quickly release the suction cup after laying the tile?

You have two options:

• Electronic: quick two-click button on the housing instantly releases vacuum.
• Mechanical: manual trigger lever allows you to gently and uselessly equalize the pressure for electronics (works even when the battery is completely discharged).

7. What are the filters included and how often should I replace them?

Filters protect the internal pumping system against construction dust and abrasive particles (e.g. after cutting the stoneware). They prevent the cylinders from scratching and losing vacuum. The set includes 3 filters (1 mounted + 2 spare). The filter should be cleaned or replaced when it visibly gets dirty with dust.

8. In what situations will the suction cup NOT work properly?

The suction cup will not hold pressure on:

• Highly structural, porous and rough surfaces,
• Dirty, wet, dusty or greasy elements,
• Cracked or heavily rounded surfaces,
• Materials smaller than gasket dimensions (93 x 170 mm),
• Objects exceeding the maximum weight of 100 kg.

9. What is included in the factory kit?

The set includes: mini electric suction cup Krafttech Model 011, USB-C charging cable, a total of 3 dust filters and a transport case.
