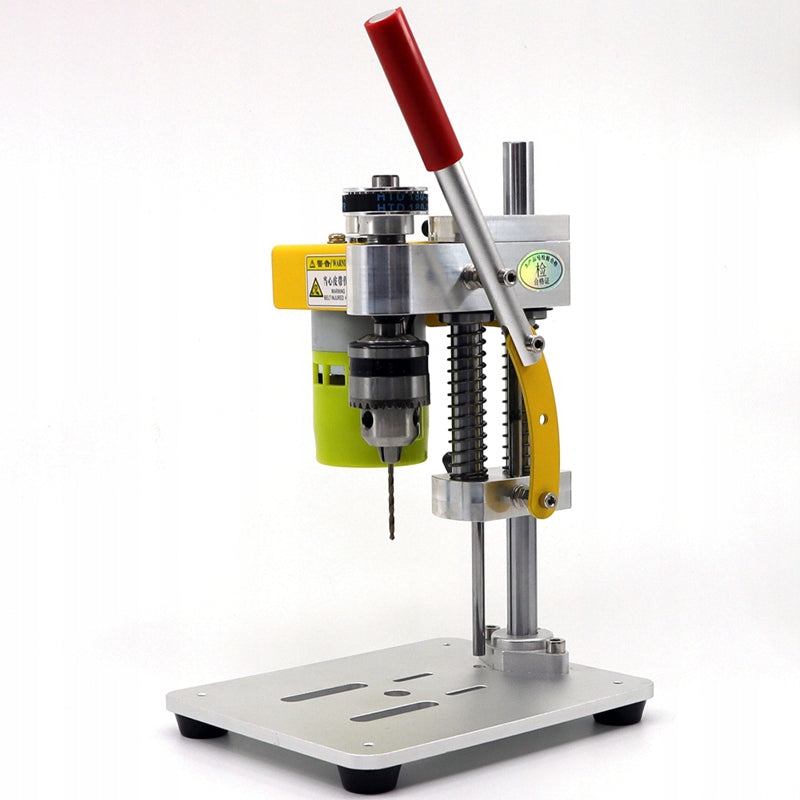

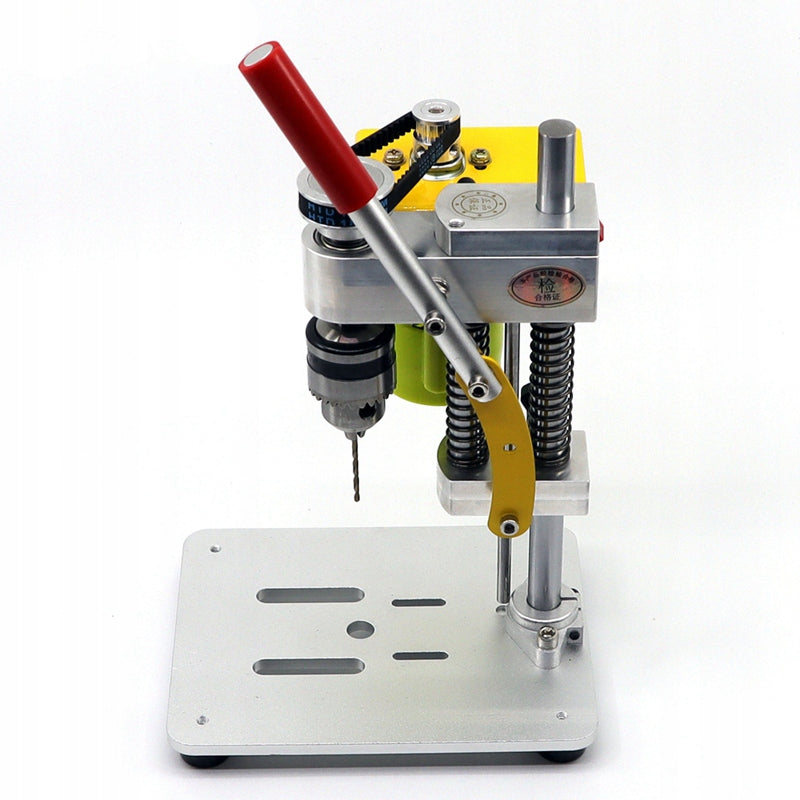

Mini grąžtas su 795 varikliu, B10 griebtuvas, 120 W

Trumpai apie prekę

Prekė: Mini grąžtas su 795 varikliu, B10 griebtuvas, 120 W. Kategorija: Gręžimo staklės.

• Gamintojas: ASV
• Modelis: ASV-B10-2

This mini machine drill has a solid metal structure, 795 DC motor provides strong and precise drilling ability. It is equipped with a B10 drill chuck compatible with HSS 0.6-6mm drill bits. It has 3 metal axles, 2 bearings, double spring and limiting lever, easy to operate, ideal for wood, plastic plate, resin plate, aluminum and other drilling in soft material. Compatible size and low noise allow you to use it at home for DIY projects. An additional extension design with two types of sockets on the base allows you to install a mini vice bench or CNC sliding table for CNC drilling projects.

-Engine: 795

-Speed: 4500-7000 rpm

- Drill chuck model: B10

-Diameter of drill attachment: 0.6-6mm

- Max. Stroke Press: 4cm

- Max. Drilling depth: 4cm

- Size: 15x12x2cm/5,9x4,7x8,7 inch (L*W*H)

Characteristics:

1) solid metal structure with 3 metal axes, 2 linear bearings, double spring for precise drilling

2) 795 DC motor with a maximum rotation speed of 7000 revolutions per minute provides large and precise drilling capacity

3) B10 drill chuck compatible with 0.6-6mm HSS drill bit for wood, plastic plate, resin plate, aluminum and other soft material for drilling

4) equipped with limiting lever allow easy control of drilling depth

5) the expansion hole on the base allows you to easily locate the drilling center on the base (after adjusting the clamping height, just loosen the limiting lever, make sure it falls into the hole, which means that the drill is in the center of the base)

6) additional expansion design with double expansion slots on the base allows you to install a mini bench vice or CNC sliding table for CNC drilling projects

7) compatible size and weight about 1.7kg, save space and easy to carry

8) after the basket is installed, the drill bit can be widely used in DIY wooden jade stone and kafta model toys, watch and mobile phone repair

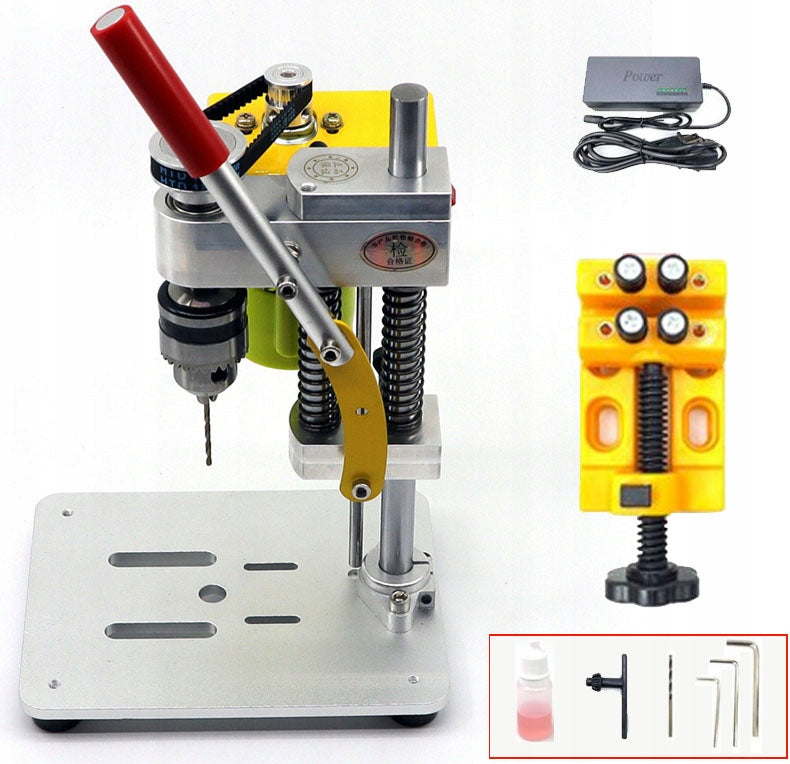

• Precision Table Drill
• Drilling Wrench
• Power supply 12V-24V 7-stage adjustable speeds
• key
• Set of pliers
• Oil for machine maintenance

Specifications
