Mobilus generatorius GENEZO 100 kW / 130 kVA, Stage V, AVR, ATS SZR

Trumpai apie prekę

Prekė: Mobilus generatorius GENEZO 100 kW / 130 kVA, Stage V, AVR, ATS SZR. Kategorija: Elektros generatoriai.

• Gamintojas: no brand
• Modelis: GF2 100KW
• Įtampa: 400 V

Generation generator GENEZO GF2 100 kW / 130 kVA Stage V AVR ATS 230/400 V with trailer Niewiadów AG2730HT

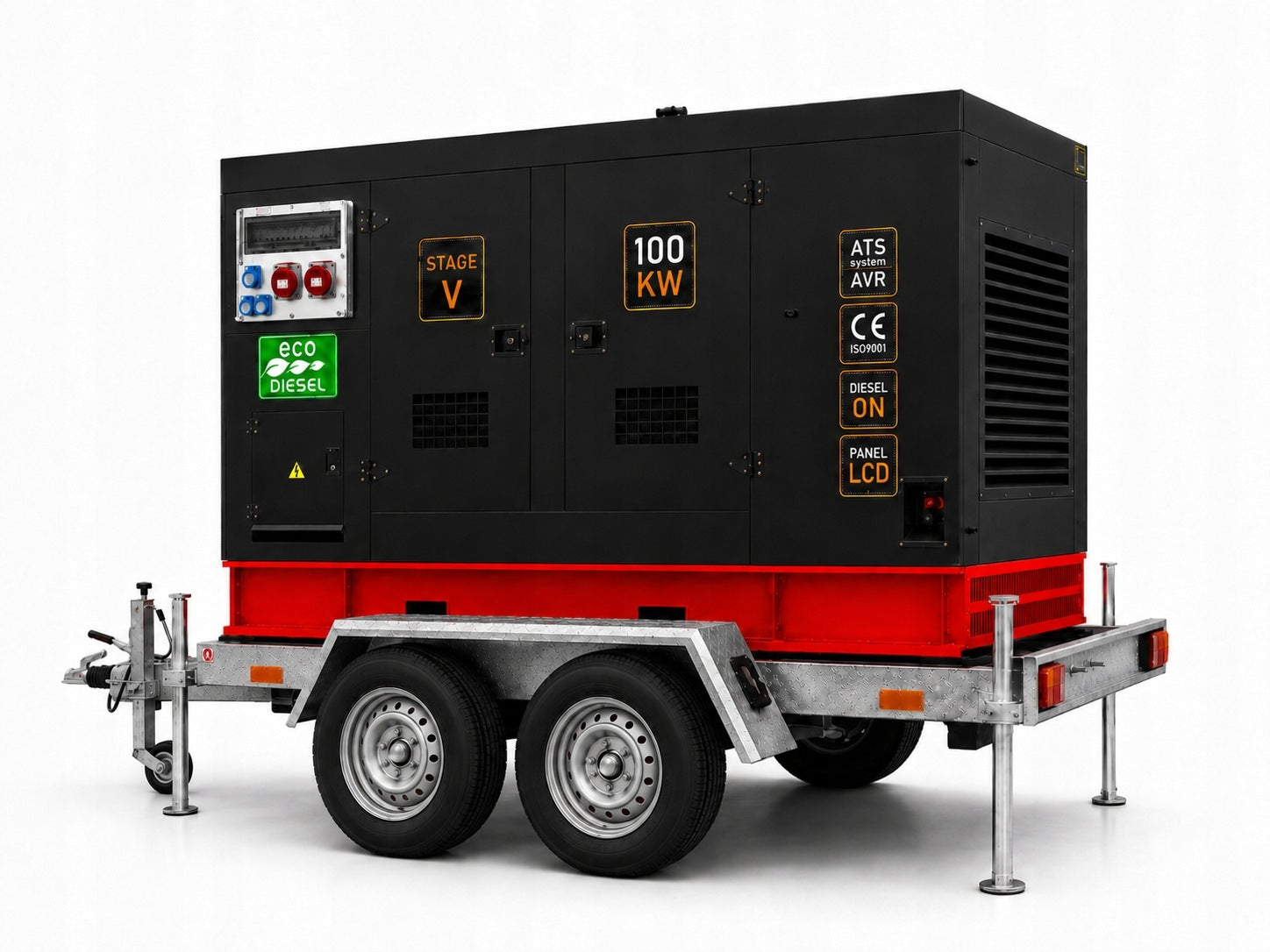

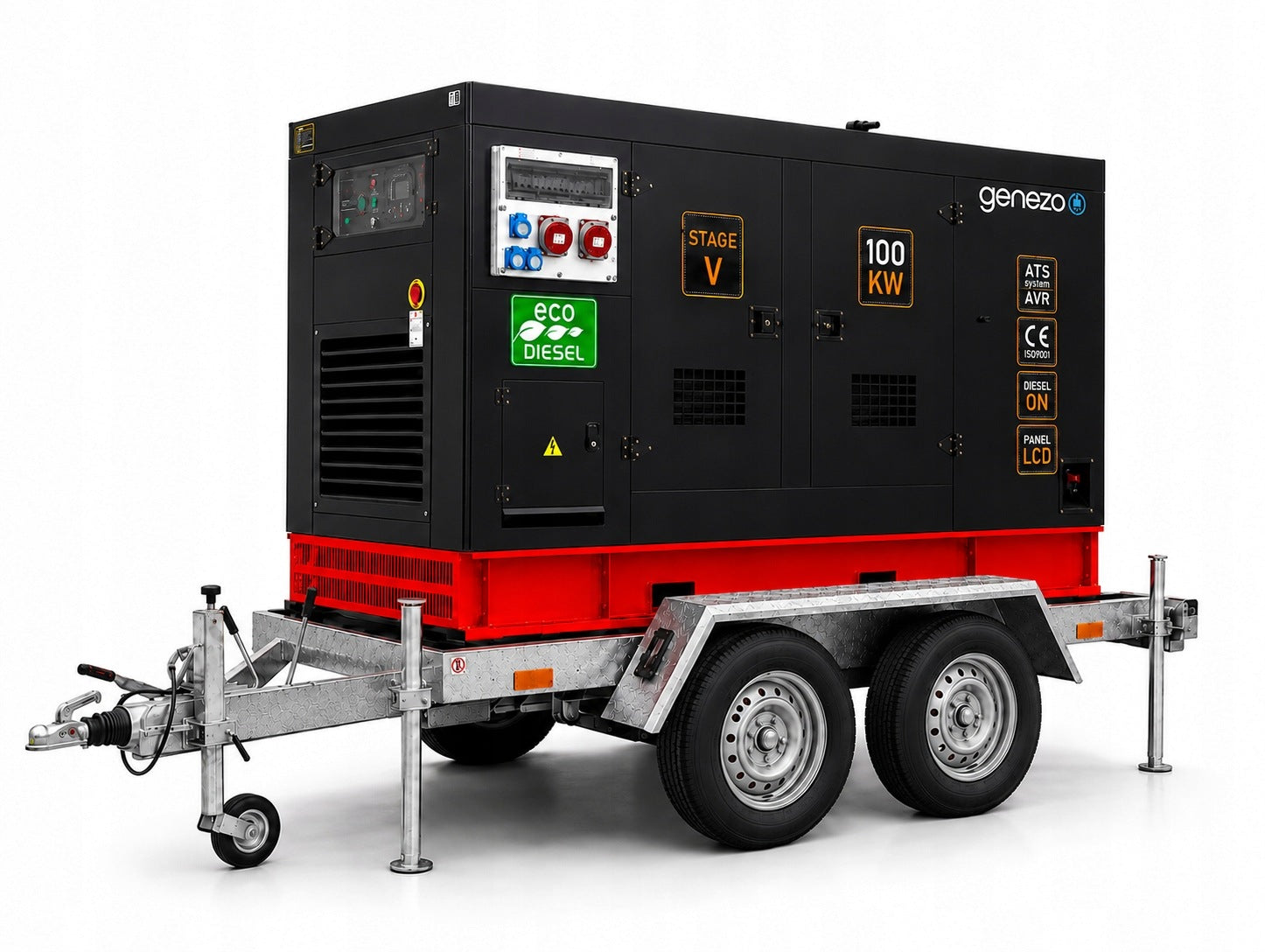

The subject of the auction is a professional mobile generator set GENEZO GF2 100KW with a rated power of 100 kW and an apparent power of 130 kVA, built in a muted industrial housing and mounted on an approved transport trailer Niewiadów AG2730HT.

It is a complete, mobile power source designed to work in demanding conditions. The unit will work both as a primary and emergency power supply for companies, production plants, construction sites, farms, commercial facilities, server rooms, data centers, public facilities and outdoor events.

The device is equipped with a modern Kunming Yunnei Power diesel engine that meets the Stage V emission standard, DINGOL synchronous generator, AVR AS440 electronic voltage regulation, SmartGen LCD digital controller and the ability to work with ATS and SZR systems.

The whole was built on a solid, two-axle trailer Niewiadów AG2730HT with DMC 2700 kg, thanks to which the set is mobile, stable and prepared for convenient transport.

The price applies to the complete set: GENEZO GF2 100KW generator set with Niewiadów AG2730HT trailer.

The most important advantages of the set

1. Rated power of the aggregate 100 kW
2. Apparent power 130 kVA
3. Stage V compliant diesel engine
4. DINGOL synchronous generator
5. Electronic voltage regulation AVR AS440
6. SmartGen LCD Controller
7. Possibility of cooperation with ATS and SZR
8. Remote monitoring via the Internet
9. Support for GPS, GSM and MODBUS
10. Voltage 230/400 V
11. Frequency 50 Hz
12. Three-phase power supply
13. Mute housing
14. Easy service access
15. Adaptation to industrial work
16. Mobile buildings on the trailer
17. Trailer Niewiadów AG2730HT with approval
18. DMC trailer 2700 kg
19. Two braked axles
20. Welded steel frame, hot dip galvanized
21. Possibility of registering and navigating public roads after meeting formal requirements

Application of the aggregate

GENEZO GF2 100KW can be used, among others, to power:

1. construction sites
2. production facilities
3. agricultural holdings
4. warehouse halls
5. workshops
6. commercial facilities
7. service facilities
8. server rooms and data centers
9. pumps and technological installations
10. industrial machinery
11. outdoor events
12. public buildings
13. emergency installations
14. ATS and SZR backup power systems

Technical data of the aggregate

Model: GENEZO GF2 100KW

Rated power: 100 kW

Apparent power: 130 kVA

Rated voltage: 230/400 V

Frequency: 50 Hz

Number of phases: 3

Rated Current: 180,4 A

Power factor: cos φ 0,8

Rotation speed: 1500 rpm /min

Fuel Type: Diesel

Weight of aggregate: 1660 kg

Aggregate dimensions: 3100 x 1100 x 1600 mm

Stage V diesel engine

The unit is equipped with a modern diesel engine Kunming Yunnei Power Co., Ltd. The unit is designed for industrial operation at a constant rotational speed of 1500 rpm. /min.

The engine meets the Stage V emission standard, which is particularly important for professional applications and where modern technical and emission solutions are required.

Engine data

Manufacturer: Kunming Yunnei Power Co., Ltd.

Engine model: DEF47CZAA5

Engine power: 129 kW

Power range: 56 kW to 130 kW

Rated rotation: 1500 rpm /min

Engine weight: 420 kg

Emission Standard: Stage V

Engine designed in collaboration with FEV

DINGOL synchronous generator

The unit is equipped with a DINGOL synchronous generator with a power of 125 kVA and active power of 100 kW. The generator works with the AVR AS440 system, which is responsible for stabilizing the voltage during operation of the device.

Thanks to this, the unit can power devices requiring stable current parameters, while maintaining the correct load selection and proper connection.

Generator data

Producer: DINGOL

Apparent power: 130 kVA

Active power: 100 kW

Voltage: 400 V

Rated Current: 180,4 A

Degree of protection: IP22

Insulation Class: H

Voltage regulation: AVR AS440

Excitation: 55 V / 2,5 A

Winding system: star

Operating ambient temperature: up to 40°C

SmartGen LCD controller

The unit is equipped with a professional SmartGen LCD controller, which allows convenient supervision over the operation of the device and control of the most important operating parameters.

The controller allows, among others:

1. automatic start and stop of the unit
2. monitoring of operating parameters
3. Voltage measurement
4. Frequency measurement
5. load control
6. history of alarms
7. overload protection
8. protection against oil pressure drop
9. protection against engine overheating
10. cooperation with ATS and SZR systems

AVR

The unit has electronic voltage regulation AVR AS440. The AVR system is responsible for stabilizing the output voltage during operation of the device.

This is particularly important when powering machines, industrial equipment, automation, technical installations and receivers requiring stable operating parameters.

Ready to cooperate with ATS and SZR

The unit is prepared to cooperate with automatic reserve switching systems ATS and SZR. This solution allows you to use the unit as an emergency power source in the event of a power outage from the mains.

It is a very practical solution for companies, production facilities, farms, warehouses, server rooms and buildings where continuity of power supply is crucial.

Remote monitoring, GPS, GSM, MODBUS, Ethernet, RS485

The unit can be equipped with a system of remote monitoring and management of the device via the Internet. To use the full functionality, a dedicated mobile application and an active SIM card with data transmission are required.

The GSM module allows the device to communicate with the application and remote surveillance system. Thanks to this, the user can control the operation of the unit without the need for constant presence at the device.

The GPS module enables ongoing tracking of the location of the unit, which is particularly useful when working in the field, on construction sites, when renting equipment and during the transport of the device.

The mobile application allows you to view operating parameters and remote supervision in real time.

The device also supports MODBUS communication, which is an industrial standard for data exchange between the aggregate and external systems such as BMS, monitoring systems or industrial automation.

MODBUS enables the transmission of selected operating parameters, alarms and device states to the master system, which allows the integration of the unit with technical installations used in industrial, service, warehouse and energy facilities.

The availability of individual functions depends on the configuration of the controller, communication module and the supervision system used.

Mute housing

The unit is built in a solid, muted industrial housing. The housing protects components from external factors, improves comfort of work and provides convenient service access.

The housing has:

1. service doors
2. ventilation grilles
3. access to the control panel
4. access to the engine
5. access to the generator
6. access to consumables
7. Information and warning signs
8. robust construction adapted to technical work

Standard equipment of the aggregate

1. SmartGen LCD Controller
2. AVR AS440
3. Emergency switch STOP
4. Starting battery
5. Industrial silencer
6. Mute housing
7. Service doors on both sides
8. Fuel Level Indicator
9. Installation 12/24 V
10. CE certified
11. Technical markings
12. Possibility of cooperation with ATS and SZR automation
13. Possibility of remote monitoring
14. Support GPS, GSM and MODBUS, depending on configuration

Trailer for Niewiadów AG2730HT

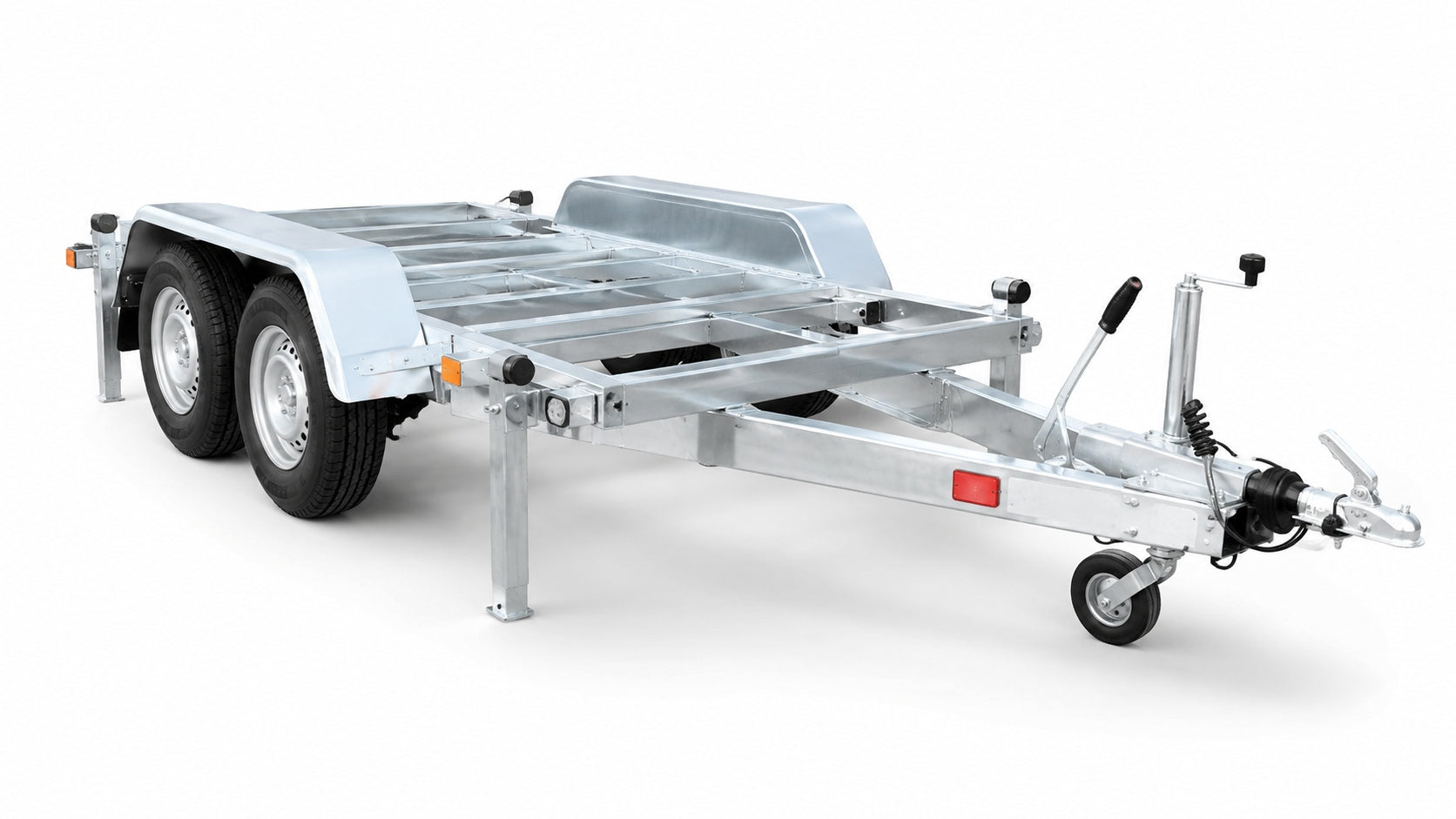

The unit is mounted on a solid Niewiadów trailer, model AG2730HT. It is a trailer adapted to transport heavy technical equipment, including power generators.

The trailer has a strong steel structure, two braked axles and a hot-dip galvanized frame. This makes the set stable, durable and prepared for professional use.

The AG2730HT provides adequate support for the unit and enables convenient transport between workspaces.

Technical data of trailer

Brand: Niewiadów

Model: AG2730HT

Internal dimensions: 307 x 134 cm

External dimensions: 454 x 194 x 77 cm

DMC: 2700 kg

Maximum load capacity: 2320 kg

Unladen weight: 380 kg

Number of Axles: 2

Axles: braked

Axle load capacity: 2 x 1350 kg

Standard equipment of trailers

1. Two axles braked 1350 kg each
2. Wheels on the outside of the box
3. Welded steel frame
4. Hot dip galvanized frame
5. Wheels 185 R14C 5.5 x 14
6. Incandescent lamps
7. 13 pin plug
8. Mudguards blinded from the inside with galvanized sheet
9. Support wheel fi 60 mm
10. Solid platform for aggregate
11. Design adapted to road transport
12. Possibility of registration in accordance with vehicle documents

Advantages of trailer Niewiadów AG2730HT

1. Stable two-axis design
2. High DMC 2700 kg
3. Maximum load capacity 2320 kg
4. Welded steel frame
5. Anti-corrosion protection by hot dip galvanizing
6. Braked axles
7. Wheels on the outside of the box
8. Strong fenders
9. Road lighting
10. 13 pin plug
11. Support wheel
12. Adaptation to the transport of aggregates
13. Robust solution for corporate and industrial applications

GENEZO GF2 100KW is an industrial generator set with a capacity of 100 kW and 125 kVA, equipped with a Stage V diesel engine, DINGOL generator, AVR voltage stabilization, SmartGen LCD controller, the ability to work with ATS and SZR and a remote monitoring option with GPS, GSM and MODBUS support.

In combination with the Niewiadów trailer, the AG2730HT creates a complete mobile power supply kit designed for professional applications in the field, industry, construction, agriculture and as an independent emergency power source.

Final information

The unit is a high-power technical device. Connection, commissioning and operation should be carried out in accordance with the manufacturer’s instructions and by persons with appropriate qualifications.

The price applies to the complete set: mobile generator set GENEZO GF2 100KW 100 kW / 125 kVA Stage V AVR ATS 230/400 V with trailer Niewiadów AG2730HT.

The first start-up is made and a detailed diagnosis of the engine and the operating parameters of the unit is carried out.

There are many parameters that determine the selection of the right unit (power demand, operating time, types of connected devices and many others). We use high quality consumables and factory spare parts.
