Mobilus generatorius GENEZO 80 kW, 3 fazių, 100 kVA su ATS

Trumpai apie prekę

Prekė: Mobilus generatorius GENEZO 80 kW, 3 fazių, 100 kVA su ATS. Kategorija: Elektros generatoriai.

• Gamintojas: no brand
• Modelis: GFM2-80KW
• Įtampa: 400 V

80 KW GENERATOR SET ON 2-AXLE TRAILER STAGE 5 EMISSION STANDARD

Parameters

Condition

New

Brand

Genezo

Model

GFM2-80

Type

stationary

Type of aggregate

three-phase

Engine

4-suwowy

Start-up

electric

Maximum power

80000 IN

Nominal power of generator

70000 IN

Engine power

140 KM

Fuel tank capacity

200 L

Weight of the device

1670 kg

Type of fuel

diesel fuel

Frequency

50 Hz

Working time on the tank

12 h

Product height

160 cm

Product Width

310 cm

Product depth

110 cm

Number of 1-phase sockets

1

Number of 3-phase sockets

1

European Emissions Standard

EURO 5 , STAGE 5

Supply voltage

400 V

Manufacturer code

GFM 2-80KW STAGE 5

Product weight with unit packaging

1670 kg

Packaging condition

original

Additional information

voltage stabilization (AVR), output to 12 V

Description

ADAPTED TO CONTINUOUS OPERATION

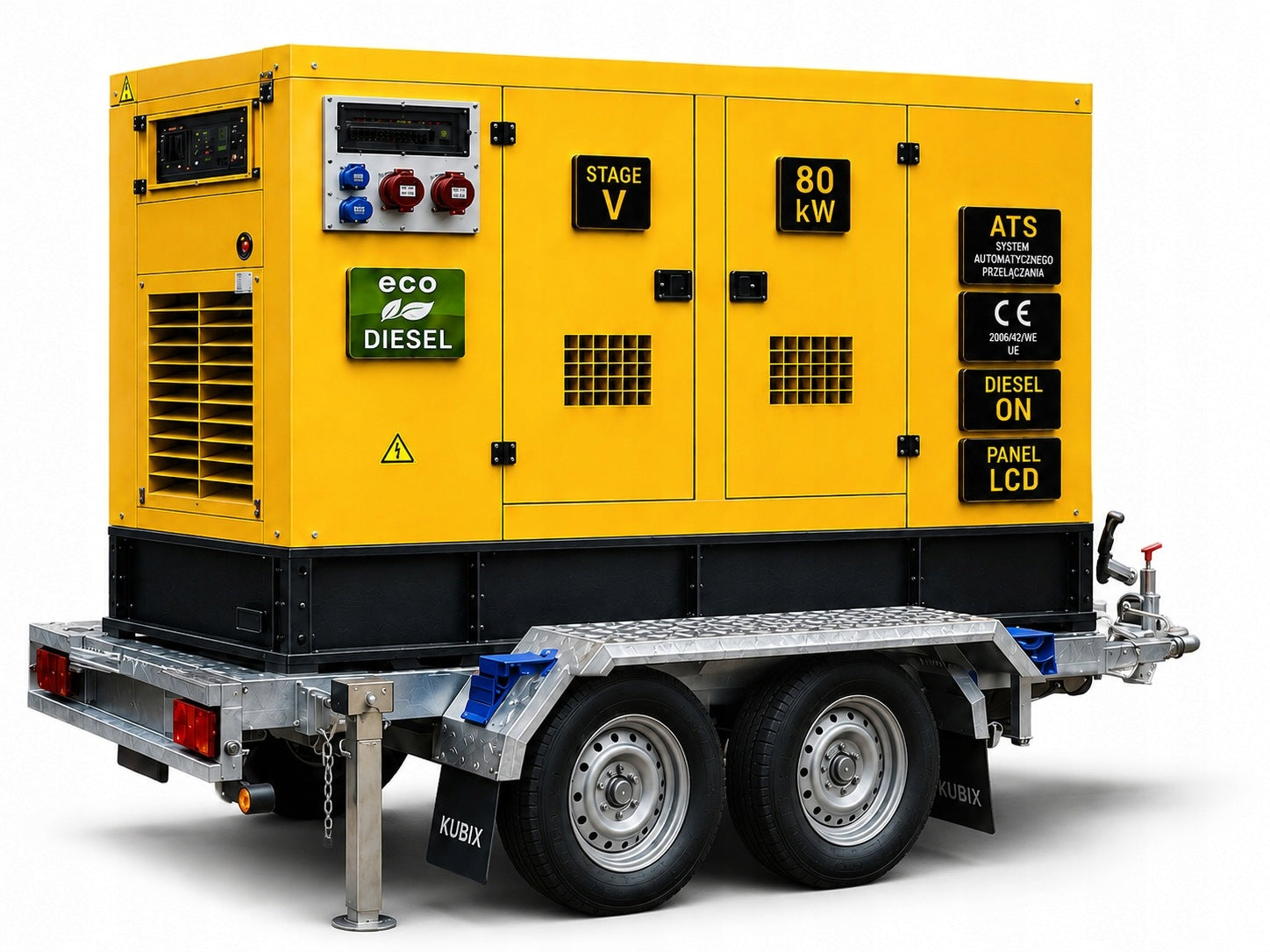

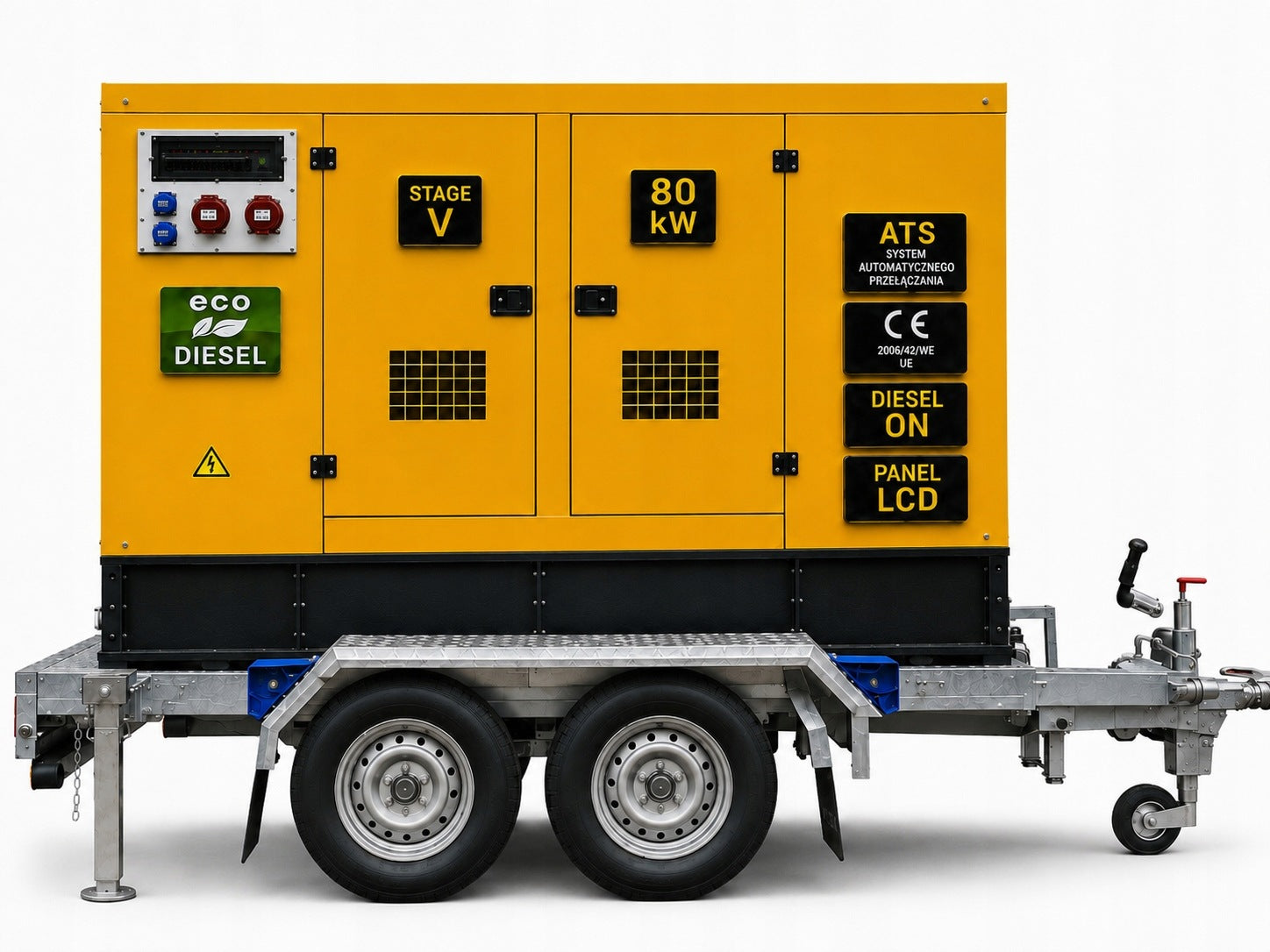

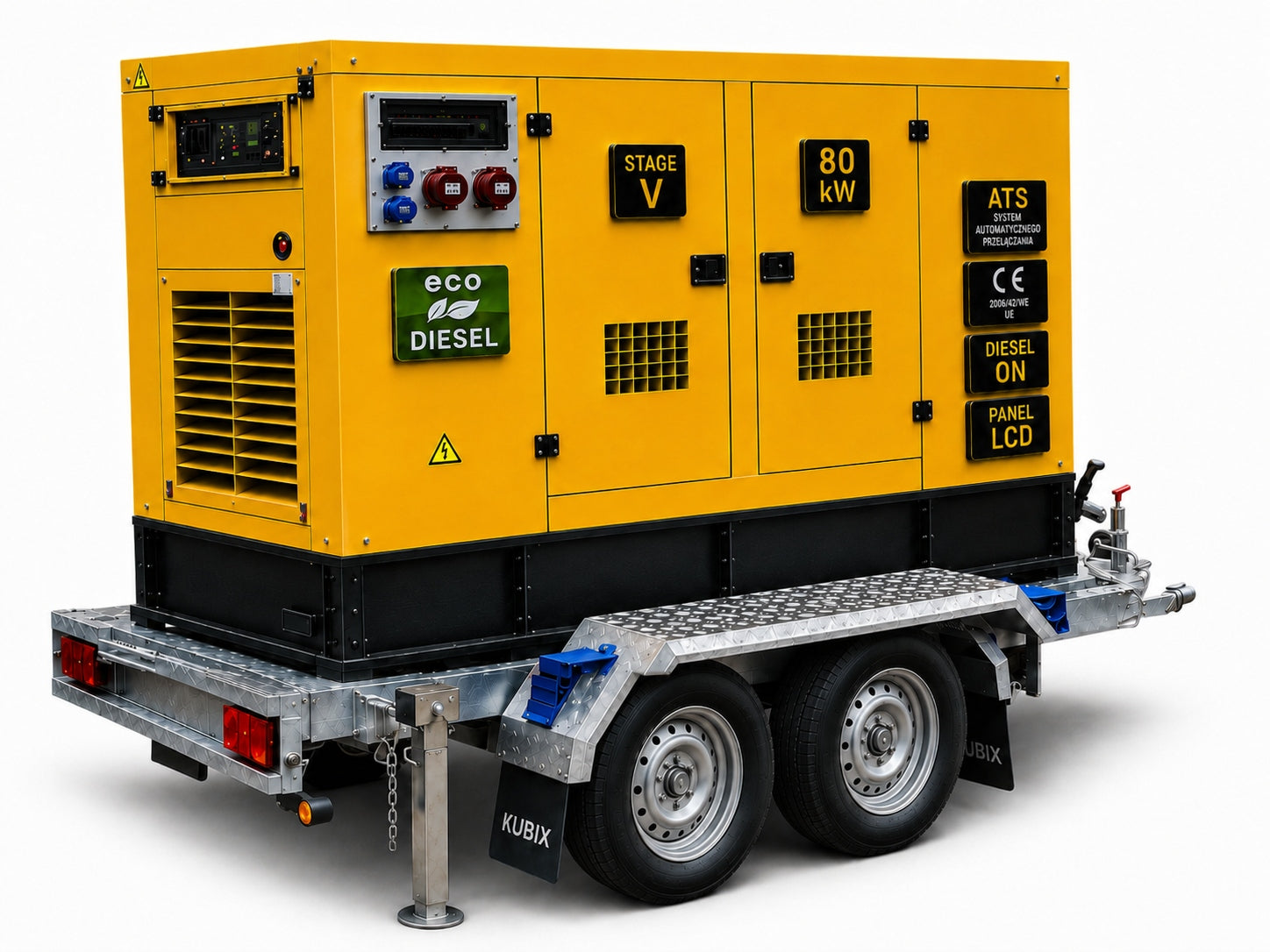

Mobile generator set GFM2-80KW ATS

parameters of the aggregate:

• Maximum power:80 KW 100kVA / 1500 rpm
• Output voltage: 400V/230V
• Power per 1 - phase: 33 kVA
• Frequency: 50Hz
• Weight of generator: 385kg
• Engine weight: 450kg
• Weight of the unit: 1670kg
• Fuel: Diesel
• Rotary rotation: 1500 rpm
• Diesel engine power: 140 HP
• Current: self-excited COPPER 100%
• AVR: Voltage stabilization under variable load
• Dimensions (Width x D. x H ): 3100x1100x1600mm
• Capacity of fuel tank: 200 L
• Fuel consumption: approximately 245 g/kWh

The first start-up is made and a detailed diagnosis of the engine and the operating parameters of the unit is carried out.

There are many parameters that determine the selection of the right unit (power demand, operating time, types of connected devices and many others). We use high quality consumables and factory spare parts.

The aggregate motor operates at a speed of 1500 rpm and thanks to a four-field AC generator provides an output voltage of 400V and 230V at a frequency of 50 Hz.

Reducing the nominal engine speed to 1500 rpm reduces fuel consumption, increases the durability of the machine and reduces the noise level of operation.

The generator is adapted to work in two modes:

MODE I - manual (turn the generator on and off manually)

MODE II - auto (turning the generator on and off via built-in ATS automation)

The kit includes a built-in ATS (SZR)

Generator set GFM2-80KW engine parameters:

STAGE 5 EMISSION STANDARD

• 4-cylinder in-line engine
• Engine Model: DEF47CZKA5
• Engine power 140HP/1500rpm
• liquid cooling of the engine
• type of fuel ON
• fuel consumption approximately 245 g/ kWh
• start of the electric motor
• 24 V motor electrical installation
• 2 x 100Ah 12 V batteries. During operation as a standby function under ATS, the batteries are recharged.
• engine weight 450 kg
• direct injection into the combustion chamber
• BOSCH fuel system

The engine is equipped with a heater for heating both engine oil and coolant at low temperatures.

The motor is mounted on a flexible primer that reduces system vibration during operation

Aggregate equipped with a multifunctional display (in Polish), which shows the most important parameters.

Temperature: °C/°F

Oil pressure: kPa/psi/bar

Fuel level in the tank: %

Rotation speed: rpm

Battery Voltage: V

Battery Charging Voltage: V

Motor Hour Counter: MTH

Number of starts

Shows current electrical parameters

Operating parameters of the generator

Single-phase voltages: V

Interfacial Voltages: V

Frequency: Hz

Current load of individual phases: A

Active power consumption: kW

Reactive power consumption: kVAr

Apparent power consumption: kVA

Professional transport trailer included in the price:

✔ two-axle trailer – stable and safe in transport

✔ equipped with overrun brake

✔ stabilizing supports – secure positioning in the workplace

✔ full approval

👉 The cost of the trailer is already included in the offer price – you buy a complete, ready-to-work set.

Before shipment, each unit is flooded with oil, it is started mechanically and electrically tested.

DESCRIPTION OF TRAILER

Trailer Niewiadów BR2 is a functional platform trailer designed for transporting loads requiring stable support and strong construction.

The platform construction facilitates loading and unloading, and the two-axis design affects the stability of handling and better weight distribution of the transported goods.

The trailer can be used for everyday work in the transport of materials, machinery, equipment, structural elements and other loads requiring a solid transport surface.

APPROVAL AND DOCUMENTS

The trailer has approval and a set of documents necessary for registration.

The set includes the manufacturer's documents, including documentation confirming the technical data of the trailer and the possibility of registering it in accordance with applicable regulations.

The approval information is important to the buyer because it confirms that the vehicle meets the requirements for entry into service and can be registered.

• Field: Value
• Brand: Niewiadów
• Model: BR2
• Year of manufacture: 2026
• Type: truck trailer
• Installation type: platform
• DMC: 2200 kg
• Approval: yes
• Documents to be registered: yes
• Number of axles: 2
• Number of wheels: 4

Remote monitoring, GPS, GSM, MODBUS, Ethernet, RS485

The unit can be equipped with a system of remote monitoring and management of the device via the Internet. To use the full functionality, a dedicated mobile application and an active SIM card with data transmission are required.

The GSM module allows the device to communicate with the application and remote surveillance system. Thanks to this, the user can control the operation of the unit without the need for constant presence at the device.

The GPS module enables ongoing tracking of the location of the unit, which is particularly useful when working in the field, on construction sites, when renting equipment and during the transport of the device.

The mobile application allows you to view operating parameters and remote supervision in real time.

The device also supports MODBUS communication, which is an industrial standard for data exchange between the aggregate and external systems such as BMS, monitoring systems or industrial automation.

MODBUS enables the transmission of selected operating parameters, alarms and device states to the master system, which allows the integration of the unit with technical installations used in industrial, service, warehouse and energy facilities.

The availability of individual functions depends on the configuration of the controller, communication module and the supervision system used.

The first start-up is made and a detailed diagnosis of the engine and the operating parameters of the unit is carried out.

There are many parameters that determine the selection of the right unit (power demand, operating time, types of connected devices and many others). We use high quality consumables and factory spare parts.
