Modulinis WiFi ritininių užuolaidų valdiklis Zamel Supla SRW-02m, 2 užuolaidoms

Trumpai apie prekę

Prekė: Modulinis WiFi ritininių užuolaidų valdiklis Zamel Supla SRW-02m, 2 užuolaidoms. Kategorija: Automatizavimo moduliai.

• Gamintojas: Zamel
• Modelis: SRW-02M

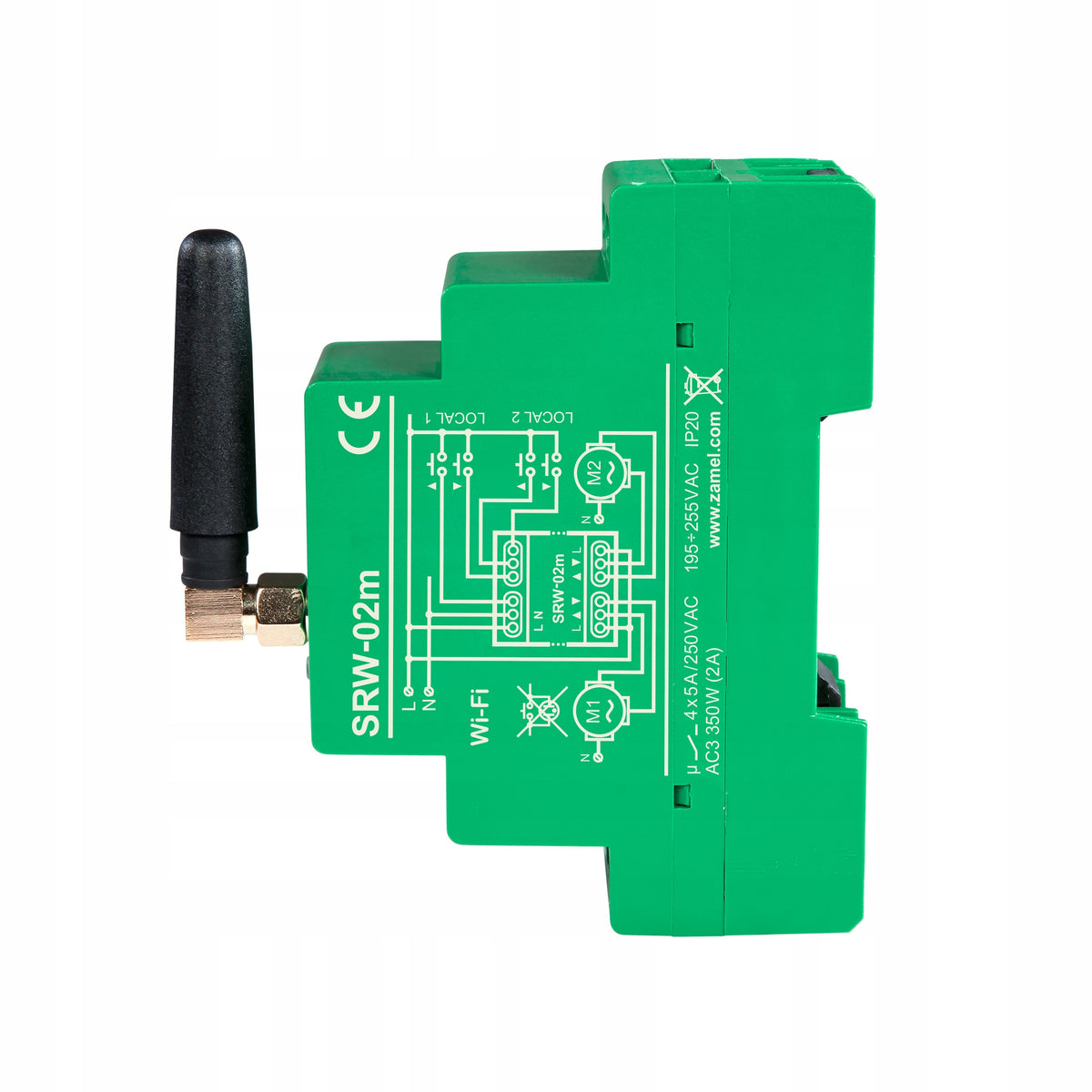

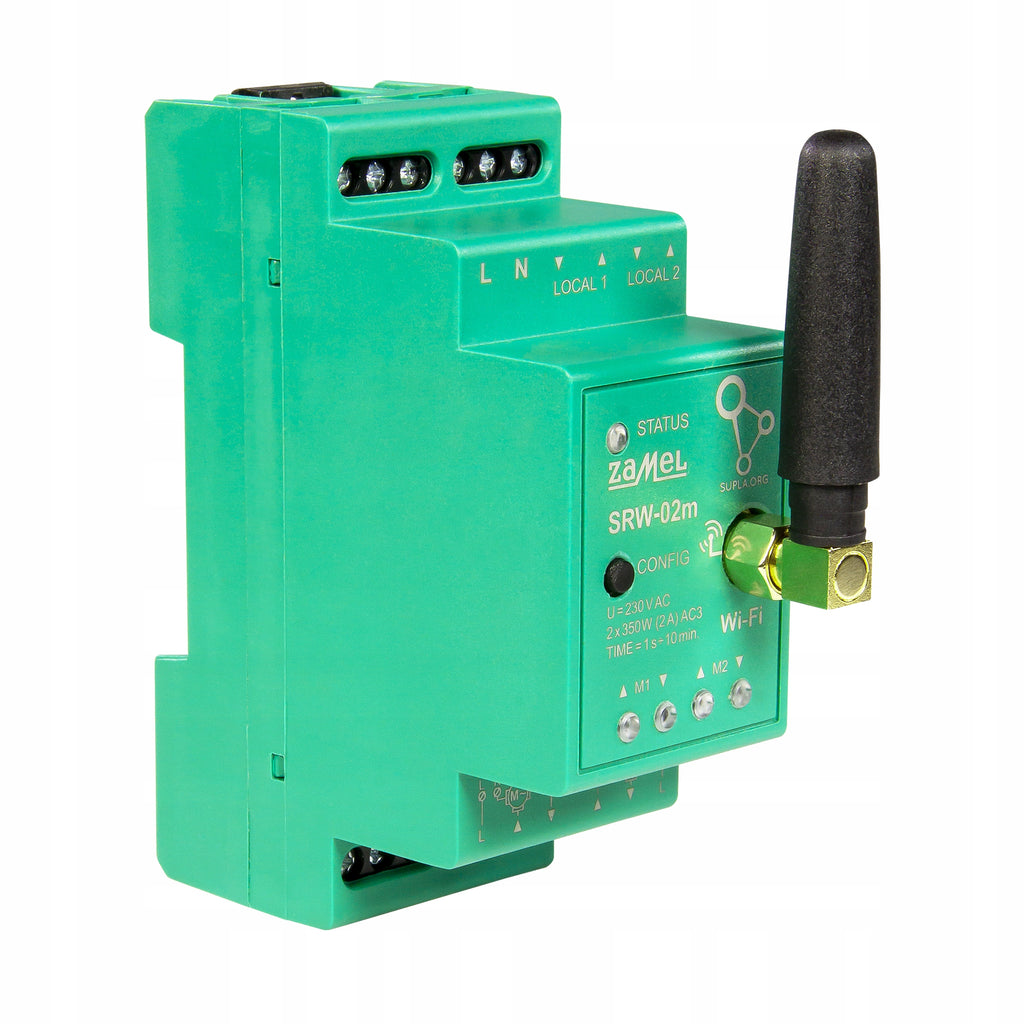

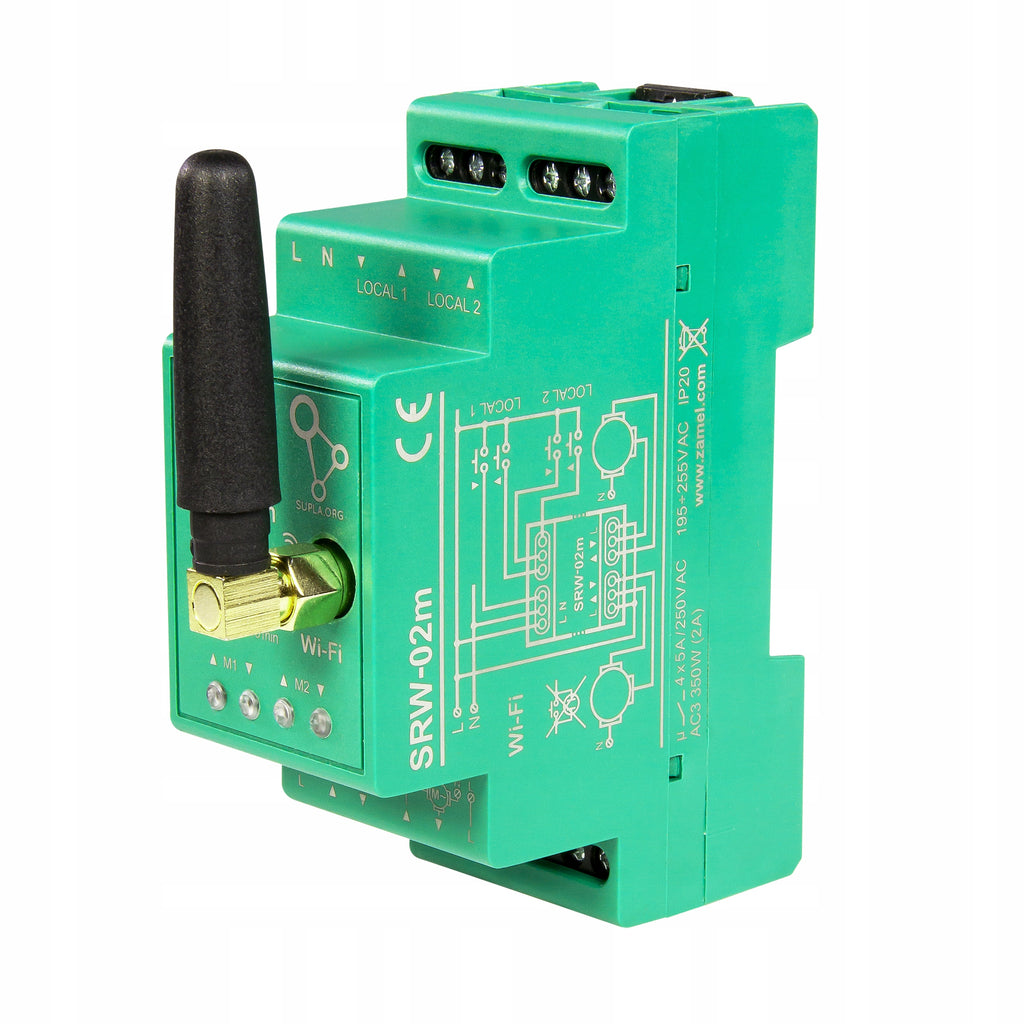

ZAMEL SRW-02M

• Control two blinds!
• Completely free SUPLA application - Thanks to it is possible to remotely close or open or check the position of the blind
• The SRW-02M roller shutter controller allows you to control the roller shutters with roller shutter buttons.
• Cooperation with roller shutter drives 230 V AC or for lower voltage - potential-free contacts

Opportunities:

• The SRW-02M roller shutter controller allows you to control two roller shutters using roller shutter buttons and applications.
• Modular housing allows you to install the device in the switchgear.
• It can also be closed or opened remotely.
• Thanks to the schedules saved in the cloud, it is possible to automatically control the blinds at a specific time on a selected day of the week.

Assembly:

• The SRW-02m receiver is designed for installation in distribution cabinets on the TH35 rail (DIN).
• The device occupies two modules. An important element is the connection of the antenna (included in the set).

Technical data:

• Rated voltage: 230 V AC
• Frequency: 50 / 60 Hz
• Rated power consumption: 4,6 W
• Transmission: Wi-Fi 2.4 GHz b/g/n
• Operating range: Wi-Fi coverage
• Number of inputs: 4
• Cooperation with connectors:monostable (bell buttons),; stable (standard light switches without backlight);
• Number of output channels: 2 x 2 switchable up/down
• Relay contact parameters (voltage-free contact): 4 x NO 5 A / 250 V AC
• Number of connection terminals: 12 (wires up to 2,5 mm²)
• Housing mounting: thread rail TH-35
• Temperature range: -10 +55°C
• Degree of protection: IP20
• Dimensions: 90 x 35 x 66 mm
• Weight: 0,13 kg
• Maximum output capacity: 4 x 5 A / 250 V AC: roller shutter motors – 350 W
