Monoblokinis Opticum LNB Astra/HotBird 3° palydovinis keitiklis

Trumpai apie prekę

Prekė: Monoblokinis Opticum LNB Astra/HotBird 3° palydovinis keitiklis. Kategorija: Keitikliai.

• Gamintojas: Opticum
• Modelis: Konwerter LNB Triple Opticum

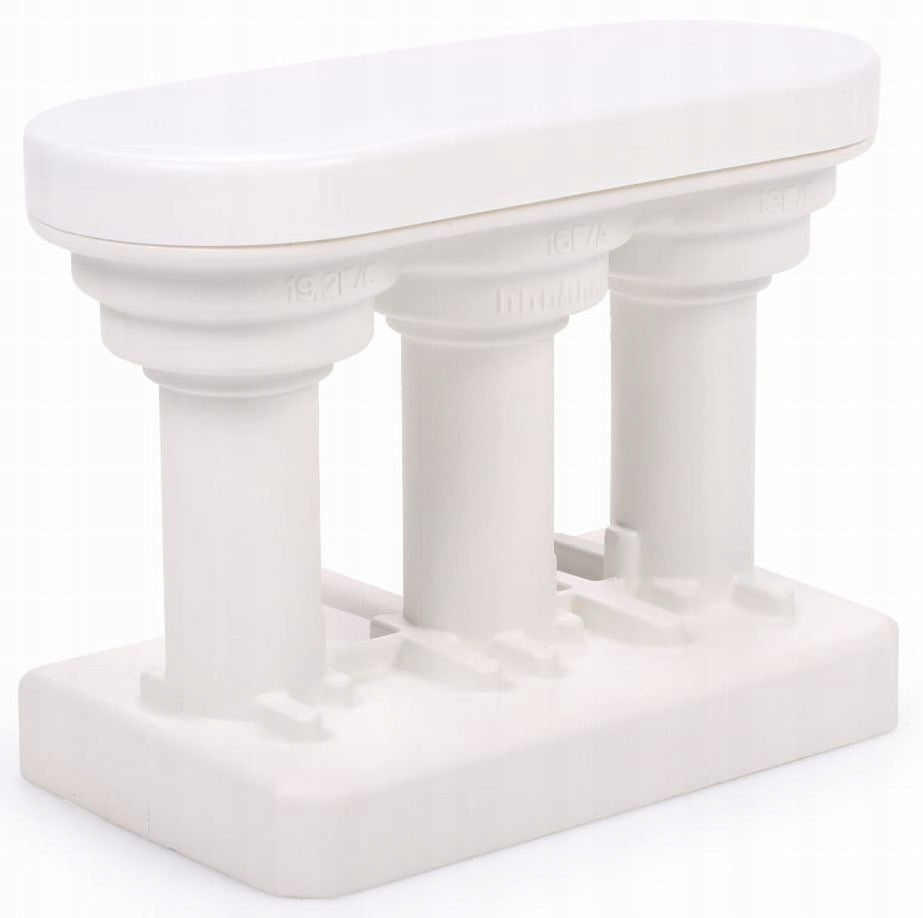

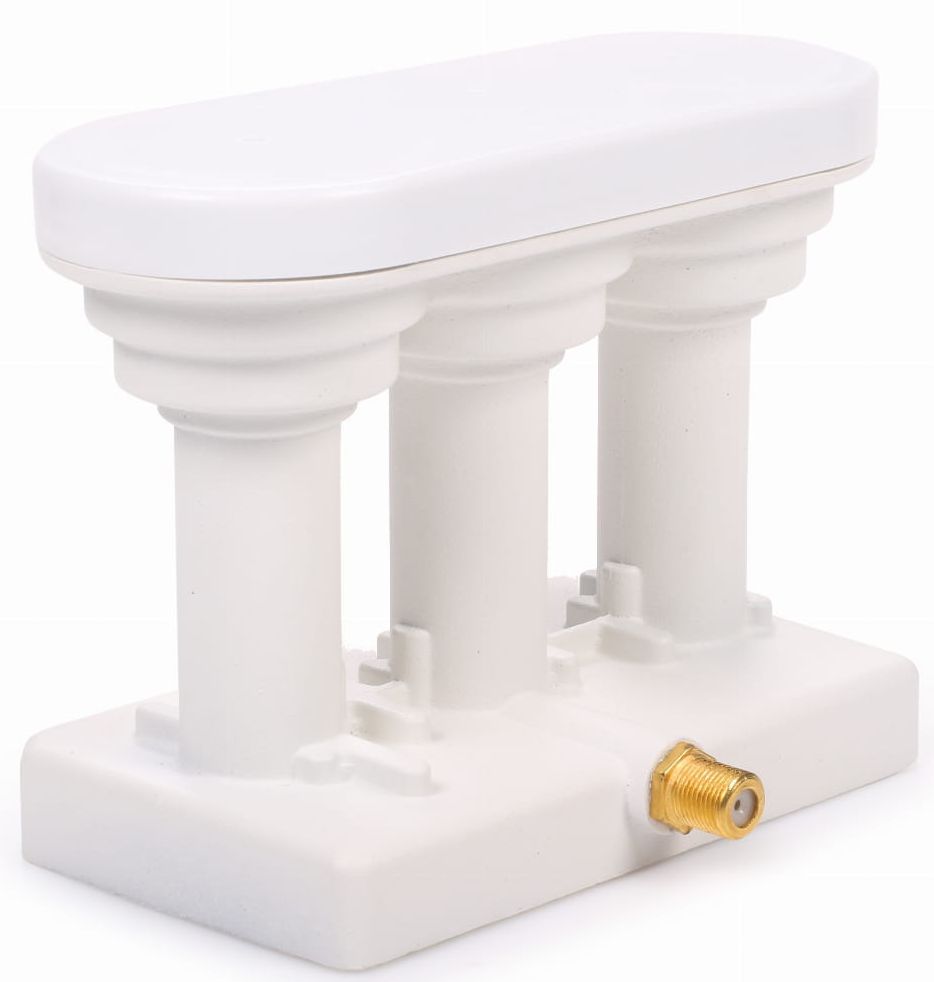

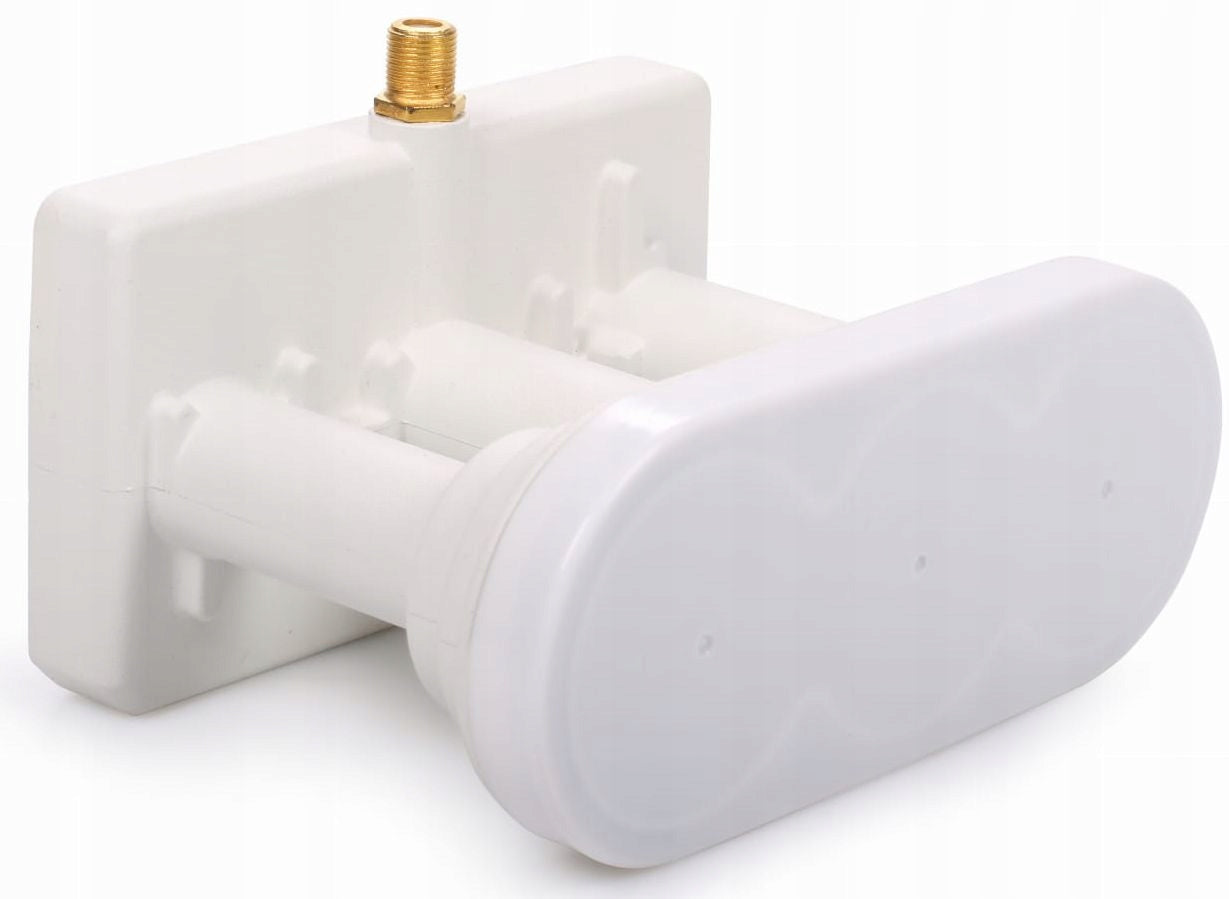

Monoblock Opticum Triple converter designed to receive signal from three any satellite positions located approx. 3° from each other. It is characterized by a low noise factor of 0,1dB. The built-in DiseqC switch allows you to automatically switch signals between satellites.

For example, it can be used to receive Astra 1 (19,2°E), Eutelsat 16A (16°E) and Eutelsat Hot Bird 13 (13°E) satellites.

• LNB Monoblock Single Opticum Triple converter
• adapter for mounting on ∅ 40 mm

• triple three-stage converter
• frequency range 10,7 - 12,75 GHz
• Noise factor 0,1 db
• resistant to changing weather conditions (high and low temperatures)
• Handle diameter: 20 mm + 40 mm adapter
• low noise HDTV phase compatible DVB-S2
• low energy consumption
• converter for canopy 80-90 cm
• reception from three satellites 3° away, e.g. Astra, Eutelsat, Hotbird

Monoblock Single provides a satellite signal for one DVB-S2 tuner. The converter is designed to work with antennas with a diameter of 80-90cm. Works perfectly with all digital tuners, e.g.: NC+ (Digit+, TNK, Smart HD) Cyfrowy Polsat. After setting the antenna to receive the signal from HOTBIRD, the signal from the ASTRA satellite will be available automatically. To switch the converter to receive from the ASTRA satellite, you need the DiSEqC signal generated from the tuner.

The converter works perfectly with all digital tuners, e.g.: NC+ (Digit+, TNK, Smart HD), Cyfrowy Polsat.

• Monoblock Triple Single LNB Opticum converter

KONTM0096

Specifications
