MTI monoblokinis konverteris, 2 palydovams (Astra, HotBird), 1 imtuvui

Trumpai apie prekę

Prekė: MTI monoblokinis konverteris, 2 palydovams (Astra, HotBird), 1 imtuvui. Kategorija: Keitikliai.

• Gamintojas: Corab
• Modelis: MTI AK51-M12

At this auction we propose:

Additionally free - 1 type F plug for coaxial cable.

...

It can be simply said that these are two Single converters + DiSEqC switch in one housing, for connecting one tuner to two HotBird and Astra satellites with antennas with a diameter of 80-90 cm

.

converter performance and technical parameters :

• possibility of receiving on 1 tuner from two satellites HotBird and Astra from antennas with a diameter of 80-90 cm,
• two Single converters and a DISEqC switch in one housing,
• lower band - 10.7-11.7 GHz, upper band - 11.7-12.75 GHz,
• upper frequency of the oscillator LOW 9.75 GHz,
• lower frequency of the HIGH 10.60 GHz oscillator,
• output frequency of the lower band 950-1950 MHz,
• output frequency upper band 1100-2150 MHz,
• switching signal of individual bands - 22 KHz,
• noise factor - average 0.2 dB,
• diameter of the canopy holder for mounting the converter - 40 mm
• converter dimensions: 125x115x50 mm, weight:250 g,
• MTI AK51-M12 model

• This converter is adapted to receive from the HD signal satellite as well as it is obvious that this converter (as well as any other) works seamlessly with HD tuners / decoders (high resolution)

.

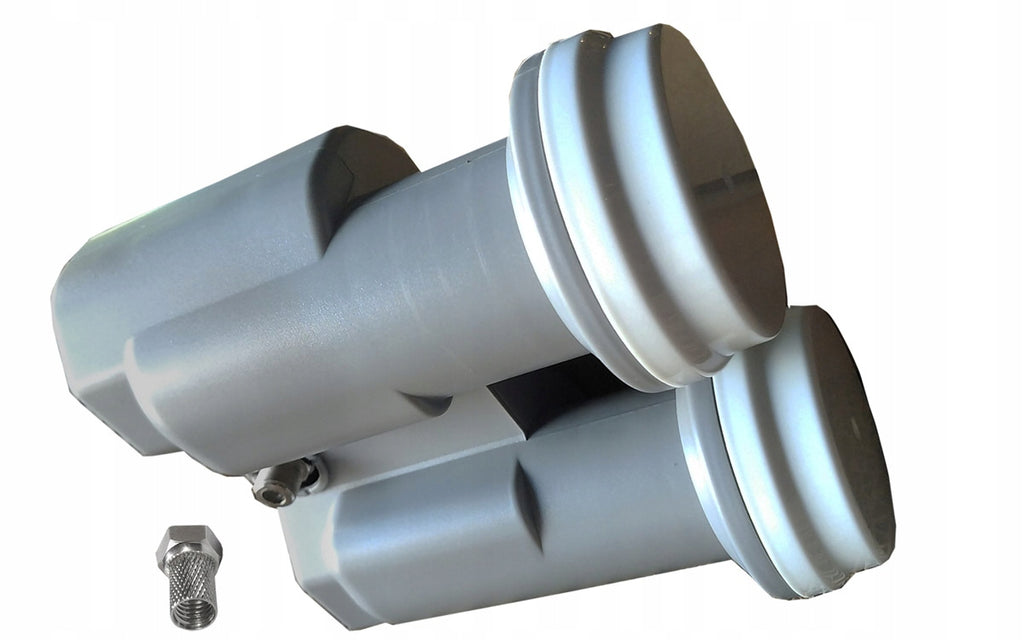

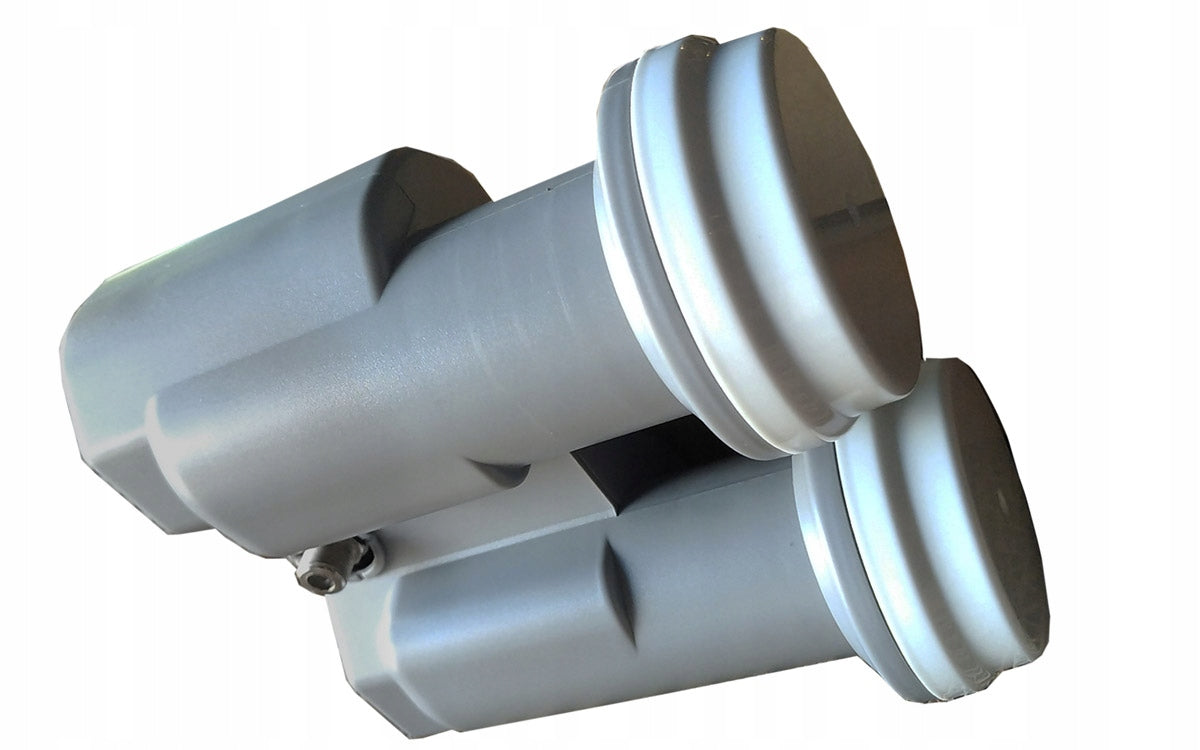

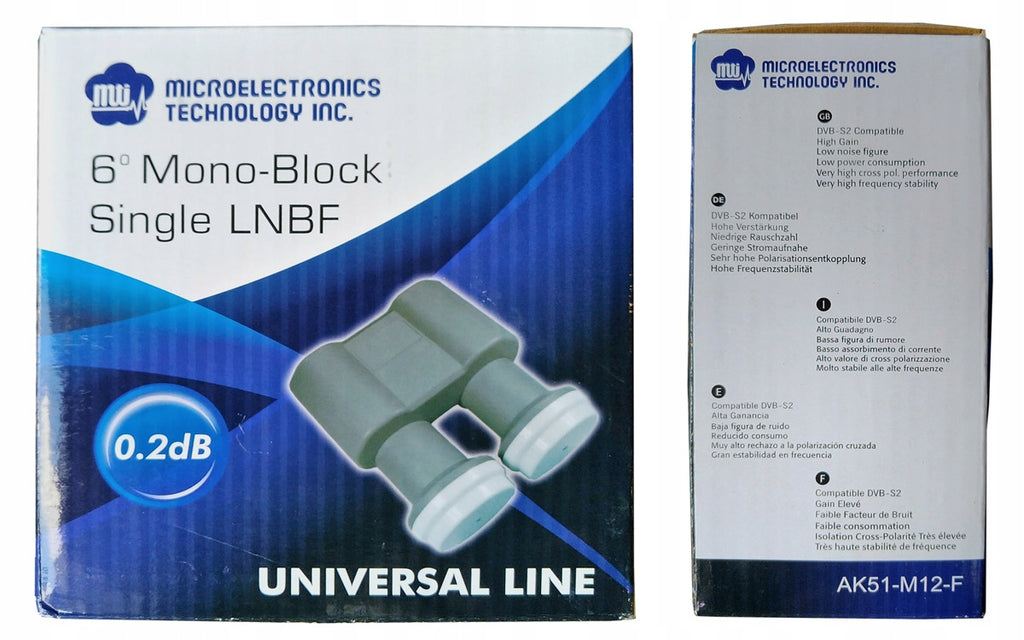

Below are photos of the items in this listing :
