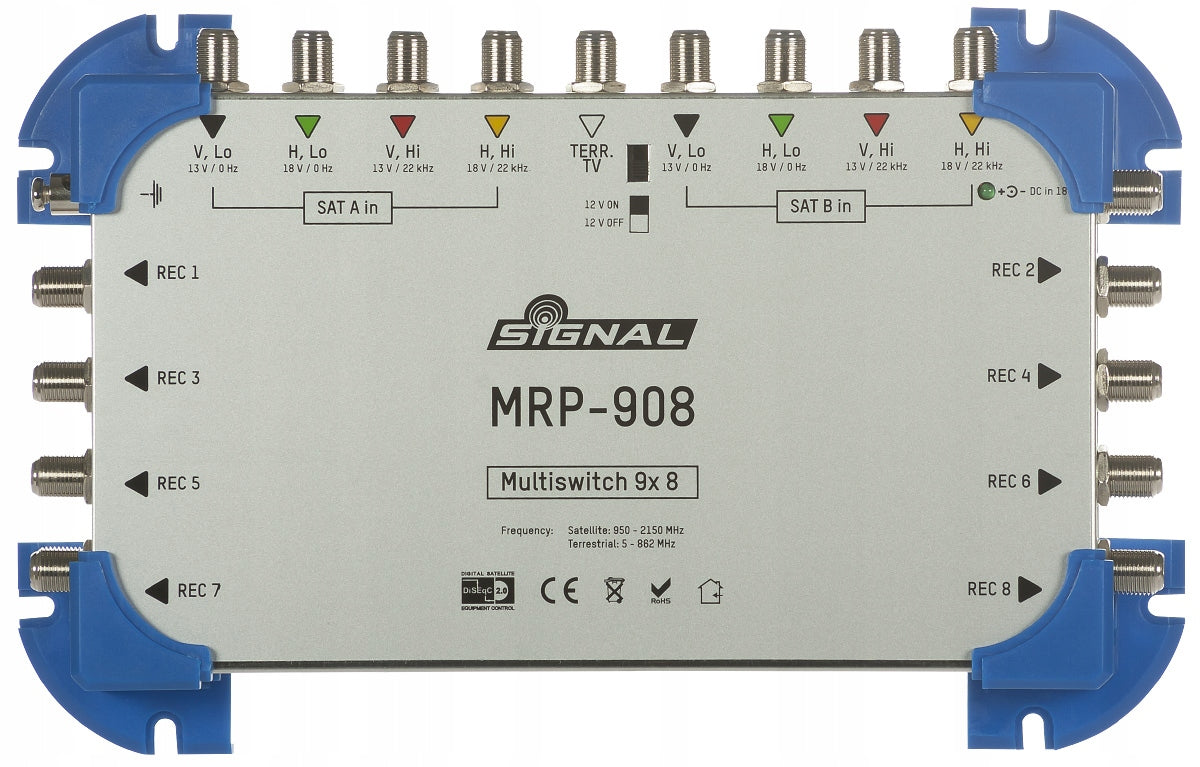

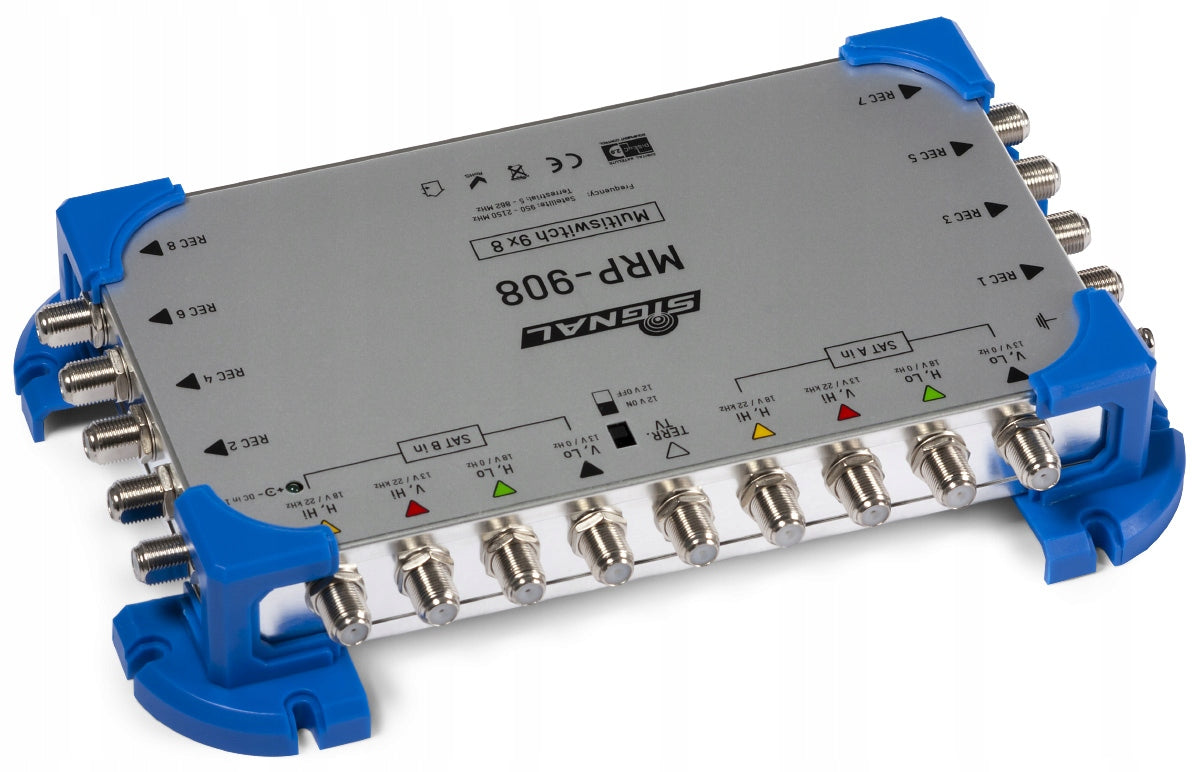

Multijungiklis Signal MRP-908, 9 įėjimai, 8 išėjimai

Trumpai apie prekę

Prekė: Multijungiklis Signal MRP-908, 9 įėjimai, 8 išėjimai. Kategorija: Multijungikliai.

• Gamintojas: Signal
• Modelis: MRP-809

Product Code: MRP-908

Distinguishing features:

• radial multiswitch,
• inputs: 8 of two quatro converters, 1 terrestrial FM/DVB-T,
• Outputs: 8 for SAT tuners,
• Passive FM/DVB-T track equipped with 12V DC On/Off switch,
• separation between inputs greater than 25 dB,
• high separation of 30 dB outputs (no crosstalk between bands and polarities),
• pre-correction of cable characteristics,
• very high input level 105 dBμV,
• high output level: 100 dBμV,
• power supply and multiswitch voltage indicators (simple diagnostics of power outage or short circuit in the ground track),
• ground connection,
• compact dimensions 220×120×42 mm,

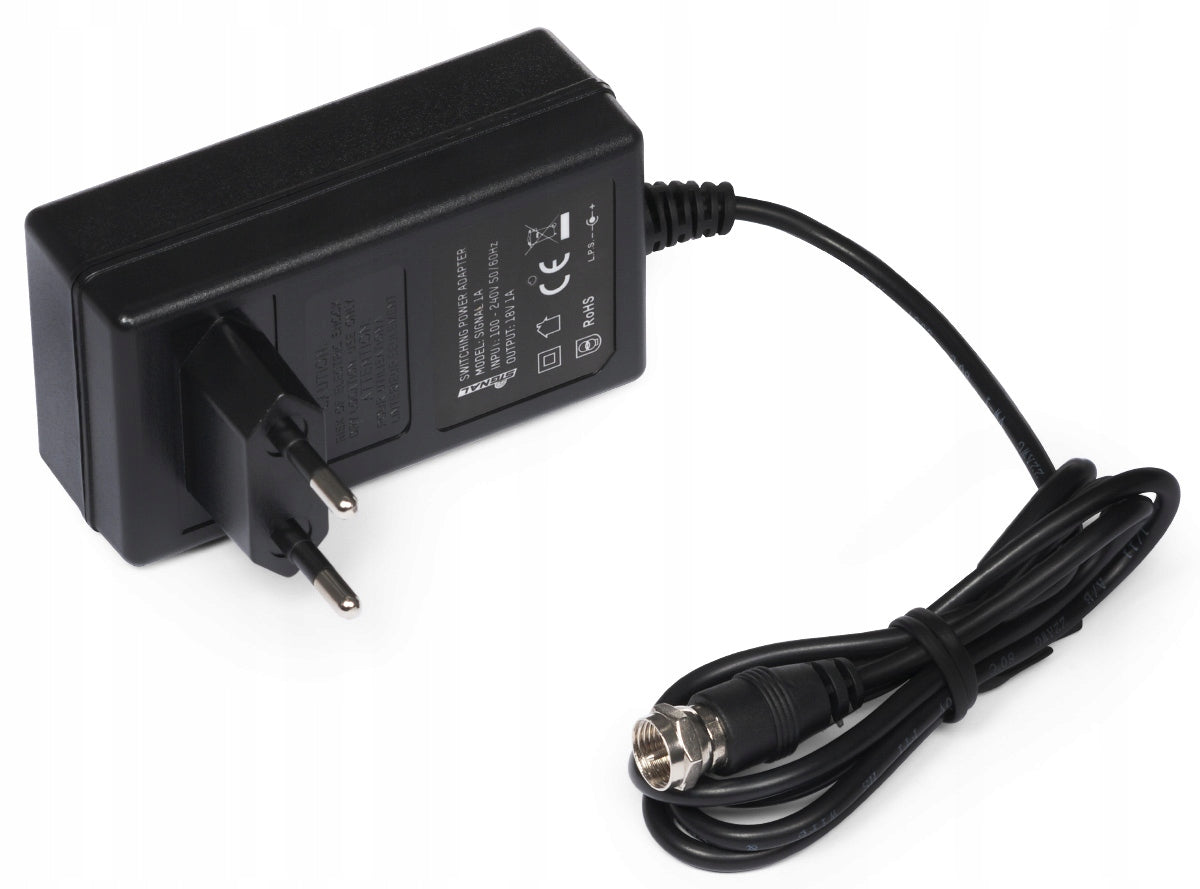

• external DC 18 V 1 A power supply,
• 3 years warranty.

The new Signal family of multiswitches enables the implementation of RTV/SAT installations in single-family houses and small residential and office buildings. Multiswitches are designed to work inside the building. Multi-band switches are dedicated to installations based on the star topology. In these types of systems, wires from end sockets converge at the place of installation of a multiswitch or a group of multiswitches. High separation of outputs (no crosstalk between bands and polarities) and built-in pre-correction of cable characteristics allows to eliminate the impact of cable attenuation increasing with frequency.

Technical data:

• Name: MRP-908
• Inputs: 8xSAT, 1xFM/DVB-T;
• Outputs: 8
• Frequency range [MHz]: Terr: 5-862, Sat: 950-2150;
• Attenuation [dB]: FM/DVB-T 14±1.5
• SAT 0
• Reflection losses [dB]: FM/DVB-T 8
• SAT10
• Separation [dB]: polarizing H/V 25
• between entrances 30
• FM/DVB-T 22 outputs
• SAT28
• Output level [dBμV]: 100
• Power supply for preamplifier [V/mA]: 12/60 max
• Power supply: Input: 90-264 V, Output:18V 1A
• Operating temperature range [ºC]: -20...+50
• Dimensions [mm]: 222×142×42
