Aprašymas
Trumpai apie prekę

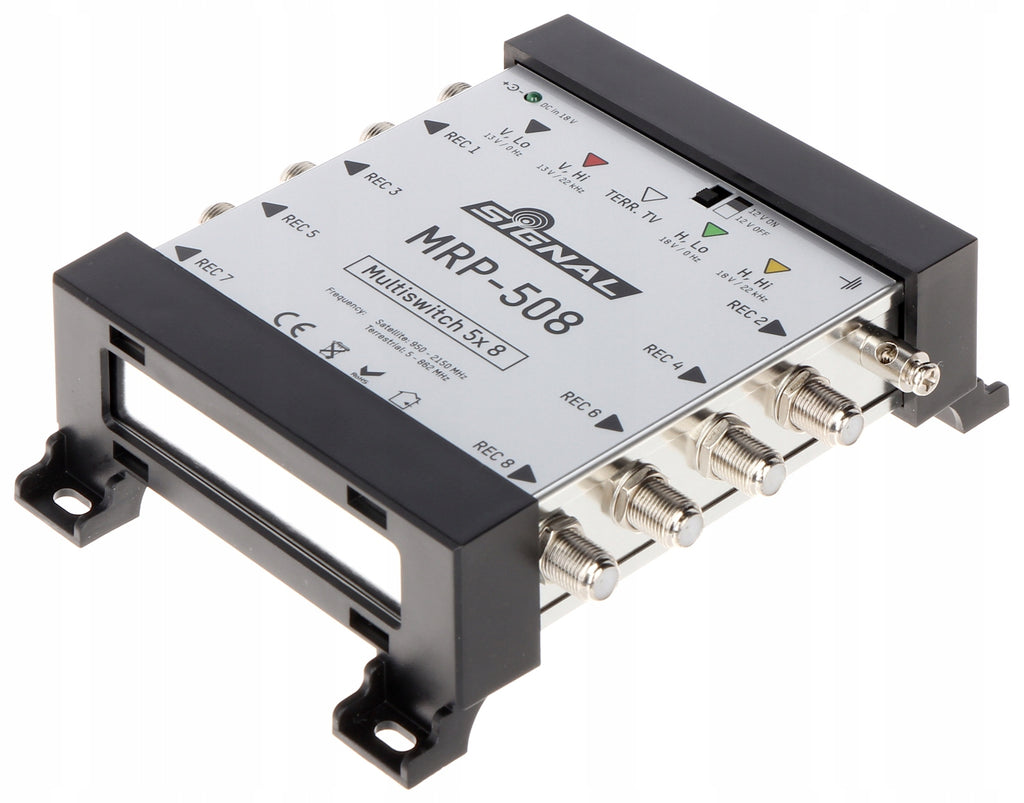

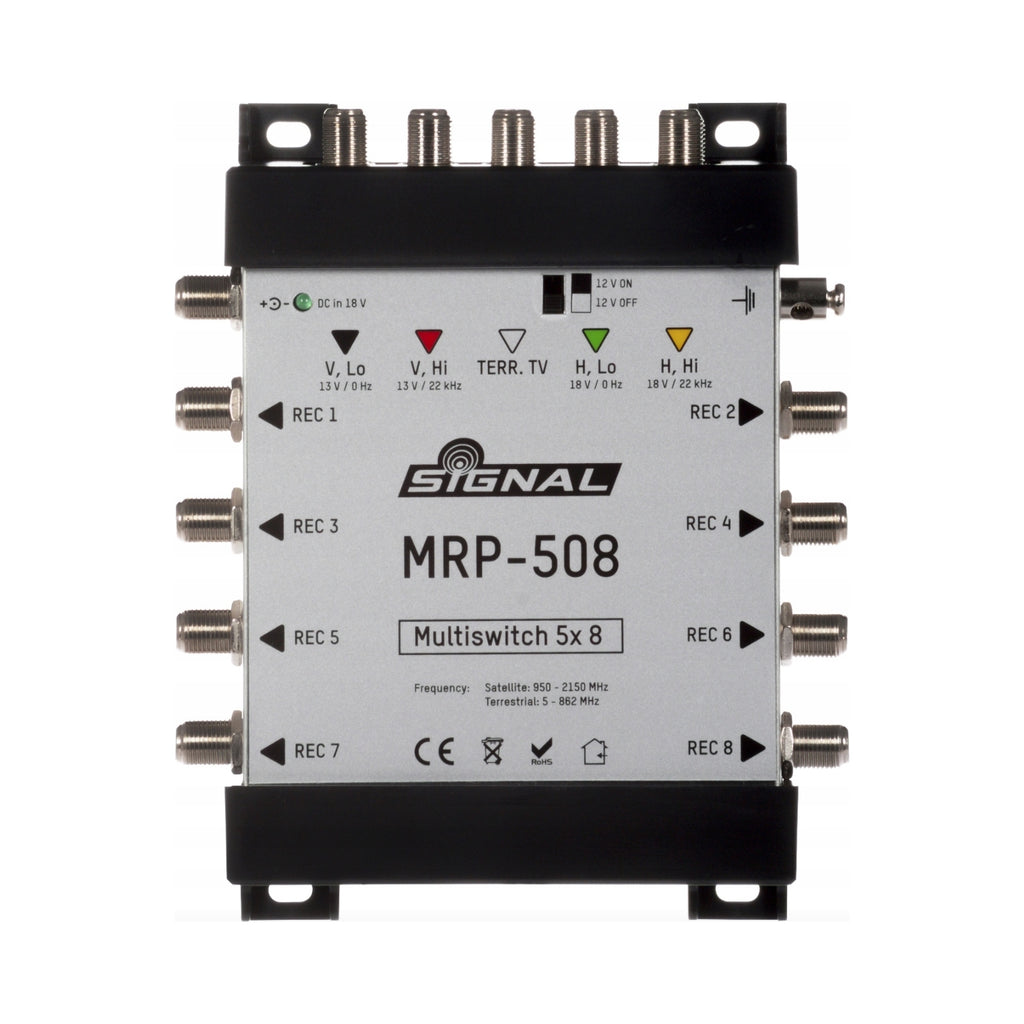

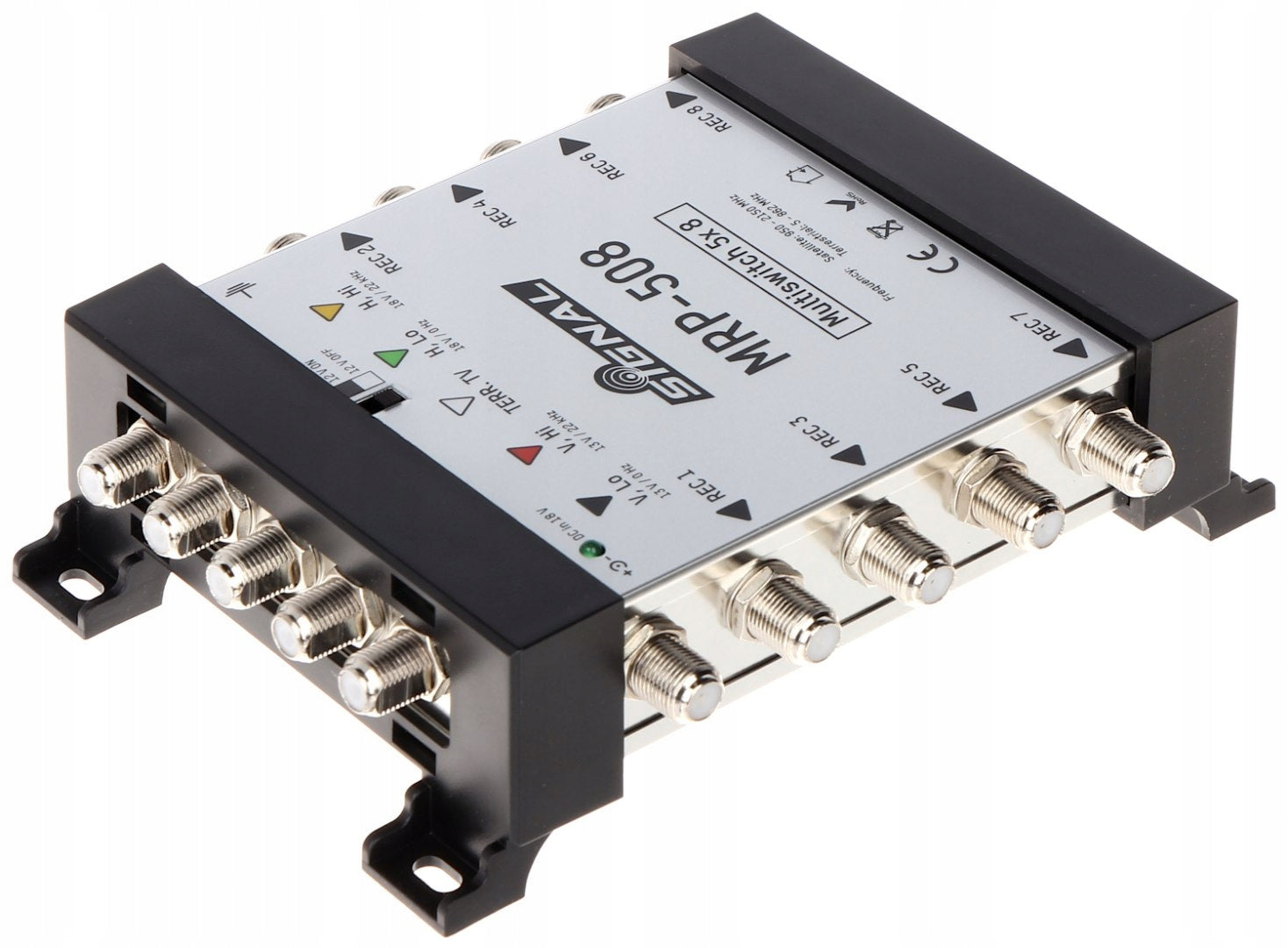

Prekė: Multiswichas Signal MRP-508, 5 įėjimai, 8 išėjimai. Kategorija: Multijungikliai.
- Gamintojas: Signal
- Modelis: MRP-508
Description
Attention! For unloaded outputs, 75 Ω final resistors should be used.
Specification
- Inputs: 4x 950 MHz ... 2150 MHz
- 1x 5 MHz ... 862 MHz
- Outputs: 8x 47 MHz ... 2150 MHz
- Switching signals:13 V / 18 V
- 0 Hz / 22 kHz
- SAT branch attenuation: 3 dB
- TV branch attenuation: 14 dB ± 1.5 dB
- Maximum SAT output level: 100 dBµV
- Maximum TV output level: 100 dBµV
- Power supply for preamplifiers: 12 V DC
- Power supply: 18 V DC / 1 A (power supply included)
- Dimensions:148 x 121 x 45 mm
- Weight: 0.3 kg
- Manufacturer / Brand: SIGNAL
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | MRP-508 |
| Parametry | Brand | Signal |
| Parametry | Model | MRP-508 |
| Parametry | Number of entrances | 5 |
| Parametry | Number of outputs | 8 |
| Parametry | Product width | 14.8 cm |
| Parametry | Product height | 4.5 cm |
| Parametry | Product depth | 12.1 cm |
| Parametry | Product weight | 578 g |
| Parametry | Product weight with unit packaging | 0.7 kg |
| Parametry | EAN (GTIN) | 5907634599182 |
| Parametry | Packaging status | original |
