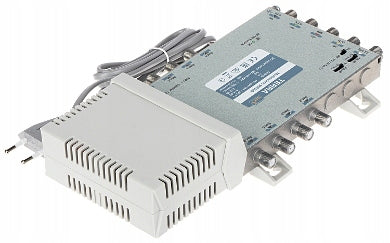

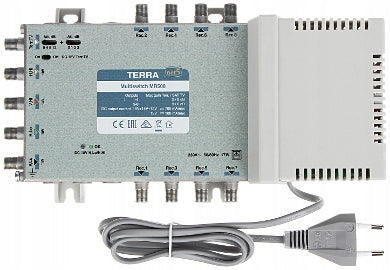

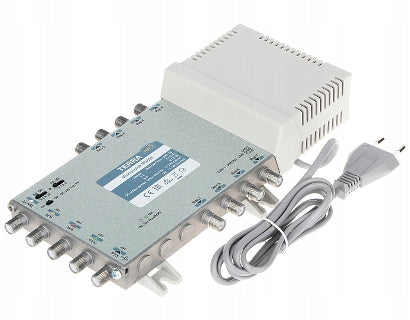

Multiswitch Terra MR-508, 5 įėjimai, 8 išėjimai

Trumpai apie prekę

Prekė: Multiswitch Terra MR-508, 5 įėjimai, 8 išėjimai. Kategorija: Multijungikliai.

• Gamintojas: Terra
• Modelis: MR-508

MULTISWITCH MR-508 5 INPUTS / 8 OUTPUTS TERRA

TERRA

Inputs: 4x 950 MHz ... 2400 MHz 1x 47 MHz ... 862 MHz Active ; Outputs: 8x 47 MHz ... 2400 MHz ; Switching signals: 14 V / 18 V 0 Hz / 22 kHz ; Power supply for preamplifiers: 12 V DC ;

• Weight: 0.8120
• Length: 270
• Width: 145
• Height: 60

MR series radial multiswitches are designed for small to medium-sized installations (4-70 outlets) distributing intermediate frequency SAT signal and terrestrial TV signal.

The MR series is intended for installations in systems that are entirely or partially based on a star topology, where cables from end outlets converge at the multiswitch or multiswitch group installation point. They are therefore ideal for use in single-family or multi-family homes.

The cast housing ensures a high level of shielding - Class A.

Inputs: 4x 950 MHz ... 2400 MHz

1x 47 MHz ... 862 MHz Active

Outputs: 8x 47 MHz ... 2400 MHz Switching signals: 14 V / 18 V

0 Hz / 22 kHz

SAT Gain (cable pre-correction): -1 ... 8 dB TV Gain (cable pre-correction): -2 ... 5 dB Separation: Between SAT/SAT inputs ≤ 30 dB Outputs ≤ 30 dB SAT Outputs ≤ 35 dB DVB-T Maximum SAT output level: 96 dBμV Maximum TV output level: 86 ... 88 dBμV Pre-amplifier power supply: 12 V DC Power supply: 230 V AC Dimensions: 253 x 135 x 52 mm Weight: 0.73 kg Manufacturer / Brand: TERRA
