Aprašymas
Trumpai apie prekę

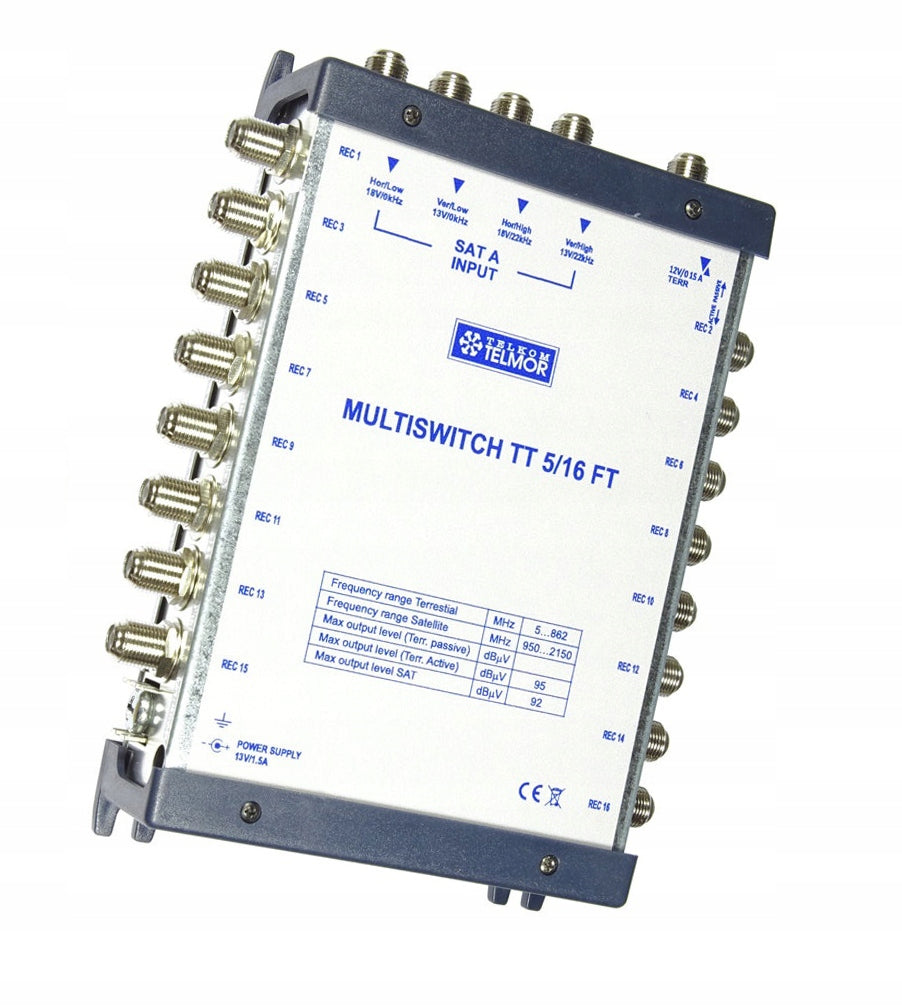

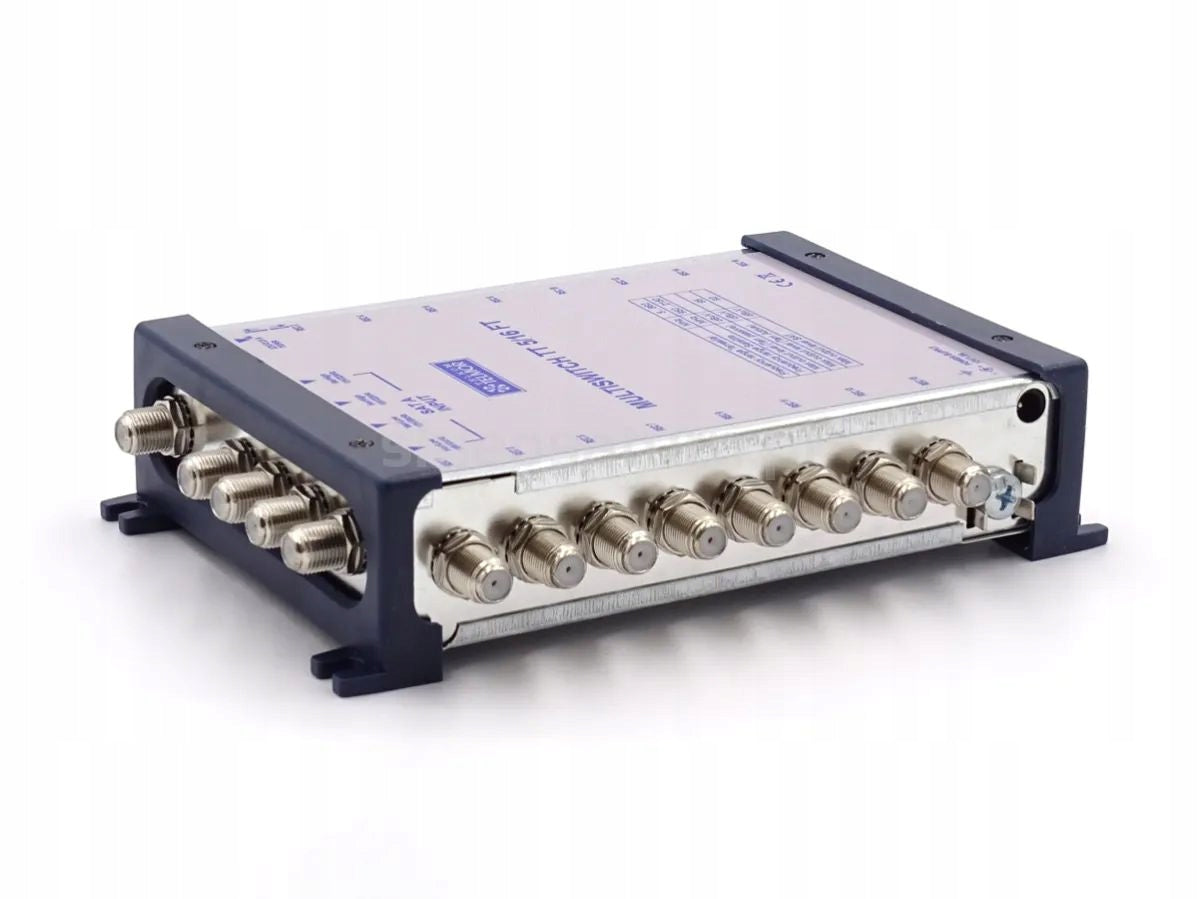

Prekė: Multiswitch TT-5/16 FT FINAL TELKOM-TELMOR televizijos signalų skirstytuvas. Kategorija: Multijungikliai.
- Gamintojas: Telkom-Telmor
- Modelis: 5/16 FT
Welcome to our auction
we have to offer:
TT-5/XFT belongs to the family of multiswitches that allow you to build large and very large collective installations. New regulation of the Minister of Transport, Construction and Maritime Economy regarding The technical conditions to be met by buildings impose the obligation to build multiswitch installations in each new multi-family building. An undoubted advantage of TT-5/XFT multiswitches is the built-in pre-correction of characteristics - the slope of characteristics. This feature of the device, combined with the phenomenon of increased cable attenuation with increasing frequency, allows you to achieve equalization of signal levels on the subscriber socket.
Characteristics:
- 16 RTV/SAT subscriber outputs
- Compatible with DAB, DVB-T/T2, DVB-S/S2
- Input mode switch RTV – active/ passive
- Compact housing
- Power supply from external SMPS power supply
- Built-in LED – operating signal
- Compliant with “A” class

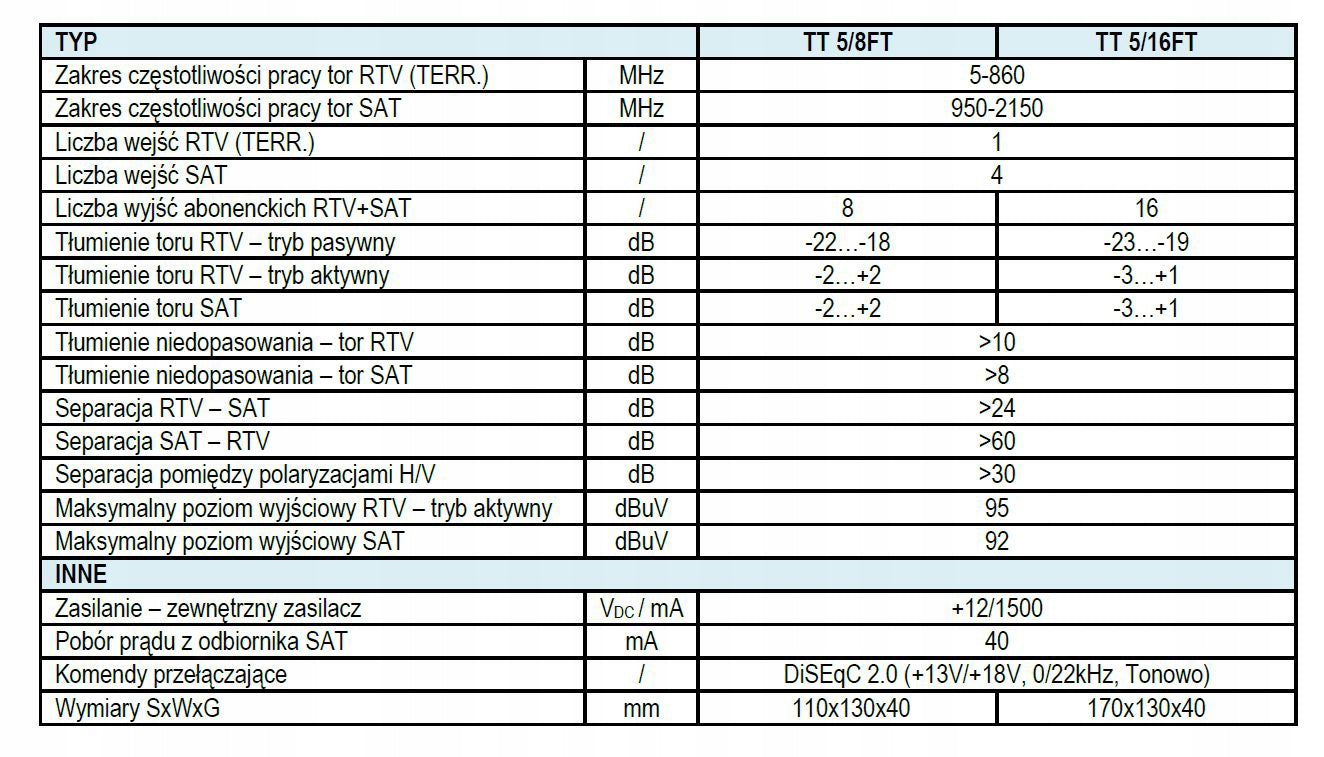

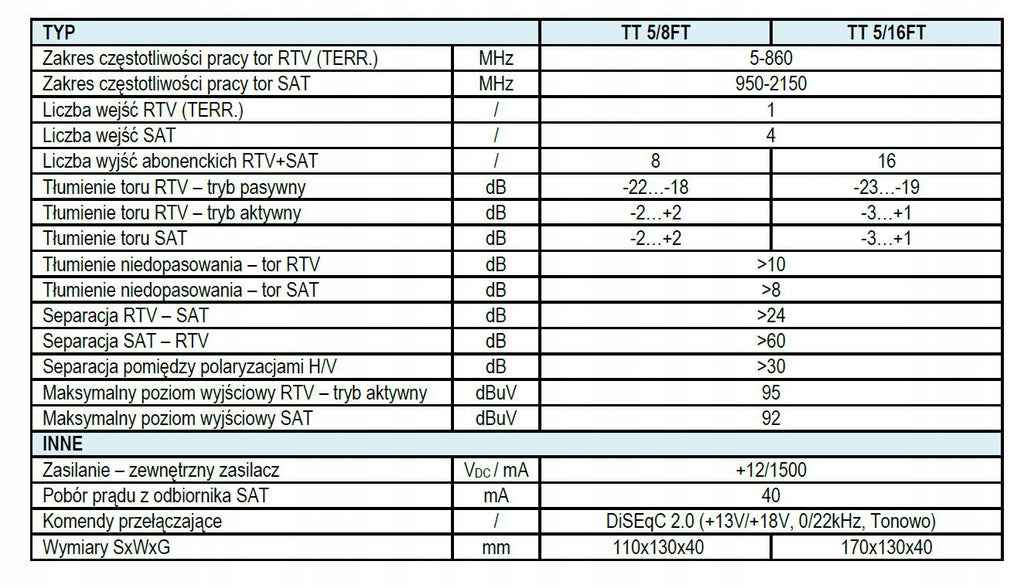

Specification:
Manufacturer and model:
TYPE:
final
Inputs | Outputs:
5(4xSAT + 1xTER) | 16
Power supply:
external
12V Voltage Transmission:
Yes
Frequency Response:
TER: 5-860 MHz
SAT: 950-2150MHz
Insulation:
TER - SAT: min. 24 dB
SAT - TER: min. 60 dB
Fleece. H/V: min 30 dB
Track Suppression Branch:
TER asset: -3...1 dB
TER liabilities: -23...-19 dB
SAT: -3...1 dB
Reflection attenuation (matching):
TER: min. 10 dB
SAT: min. 8 dB
Max. Input level:
TER: n/a dBuV
SAT: n/a dBuV
Max. baseline level:
TER: 95 dBuV
SAT: 92dBuV
Dimensions (L-H-W) ):
170 - 40 - 130 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | TT 5/16 FT |
| Parametry | Brand | Telkom-Telmor |
| Parametry | Model | 5/16 FT |
| Parametry | Number of entrances | 5 |
| Parametry | Number of outputs | 16 |
| Parametry | Product weight | 0.39 g |
| Parametry | Product weight with unit packaging | 0.39 kg |
| Parametry | EAN (GTIN) | 5903953004499 |
| Parametry | Packaging status | original |
